OIMACHI TRACKS

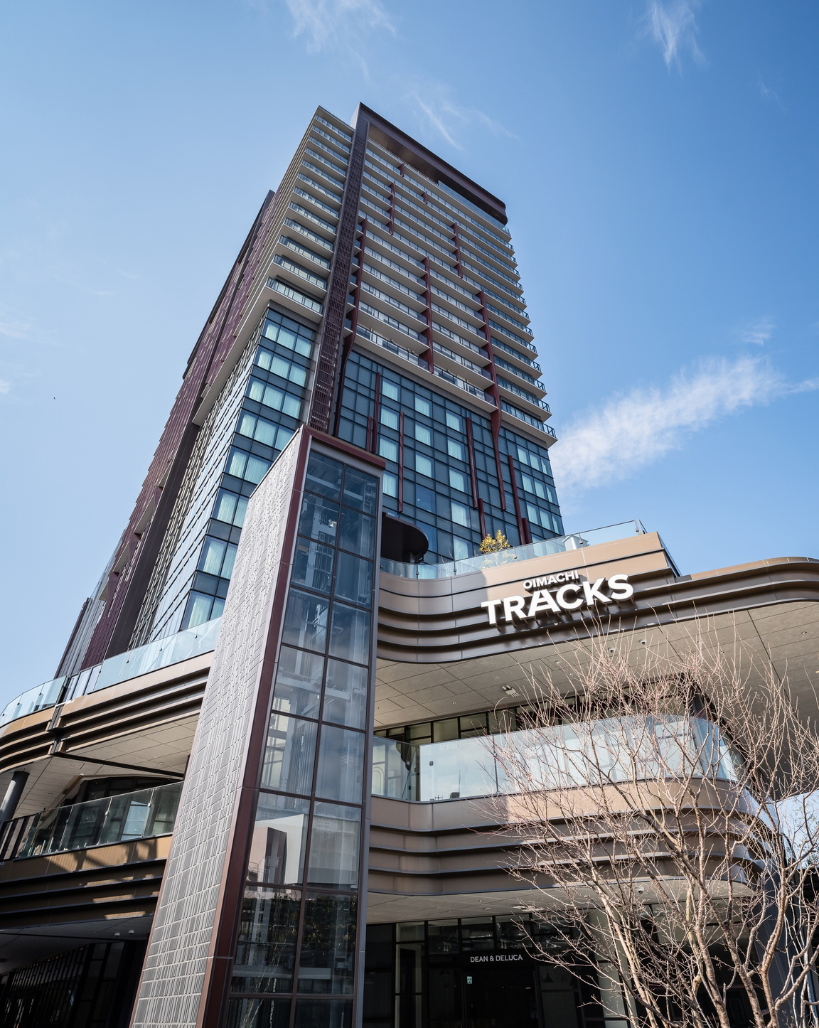

Oimachi Tracks, a large-scale complex located in front of Oimachi Station, is a new urban hub integrating offices, residences, a movie theater, a book lounge, restaurants, a sauna, and a hotel. Furthermore, it features locally rooted eateries, creating convenience and vibrancy unique to a station-front location.

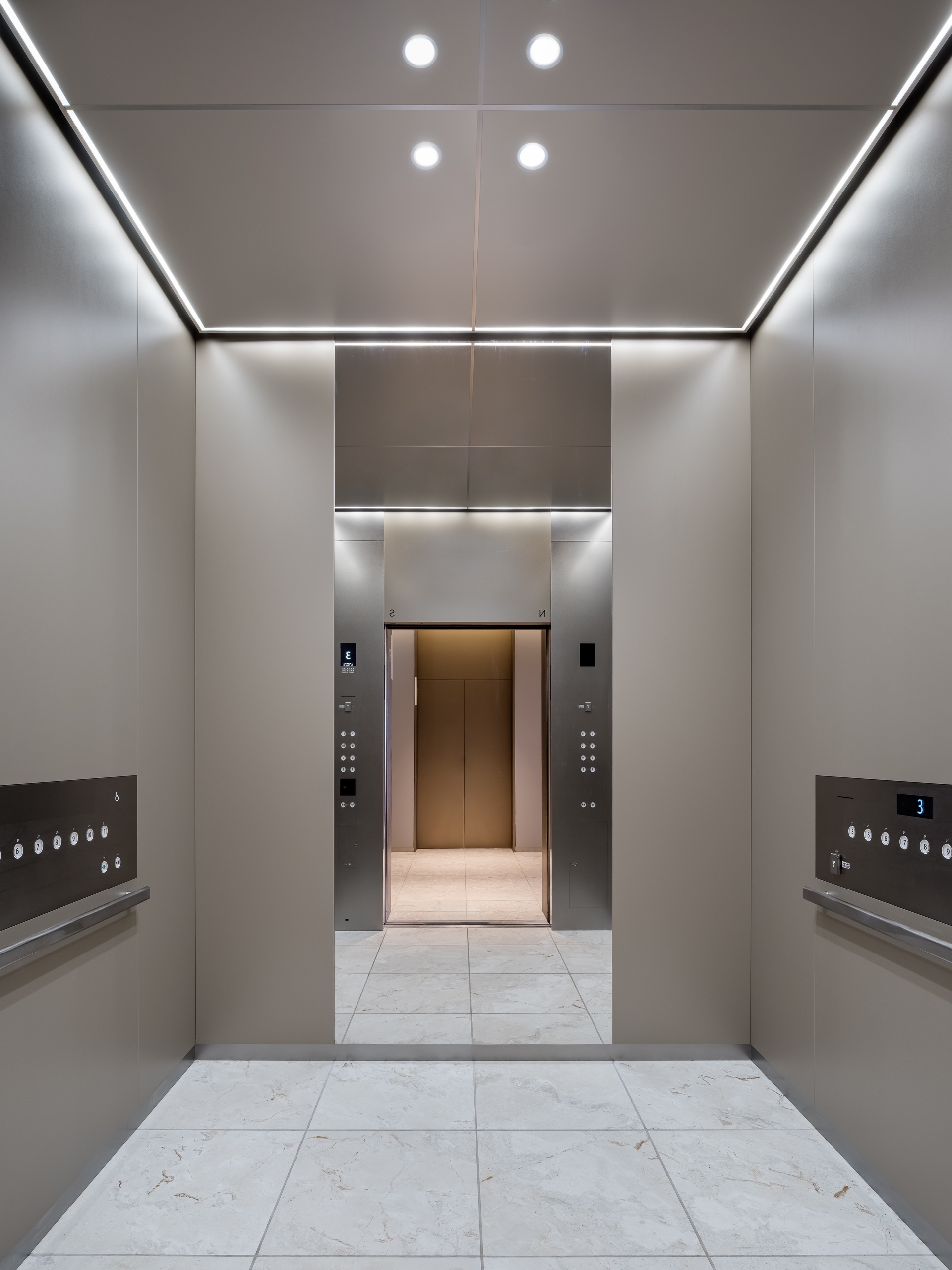

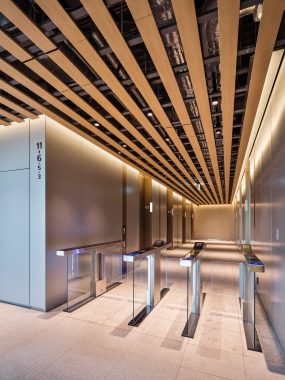

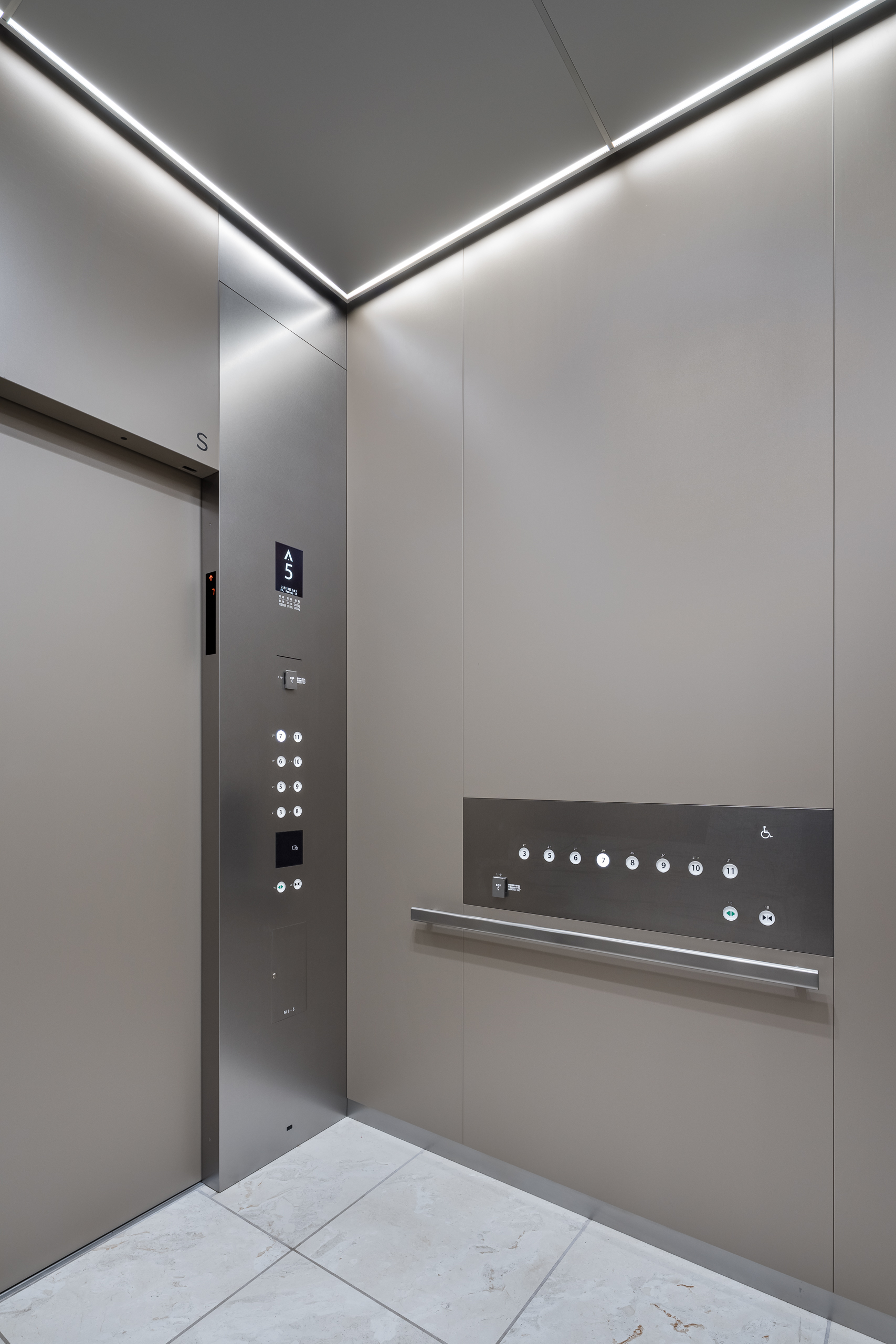

Fujitec supplied a total of seventy-six (76) units here: forty-six (46) elevators and thirty-two (32) escalators. The office tower elevators are equipped with the “EZSHUTTLE” destination registration system, which reduces congestion and enables efficient operation, supporting smooth vertical movement.

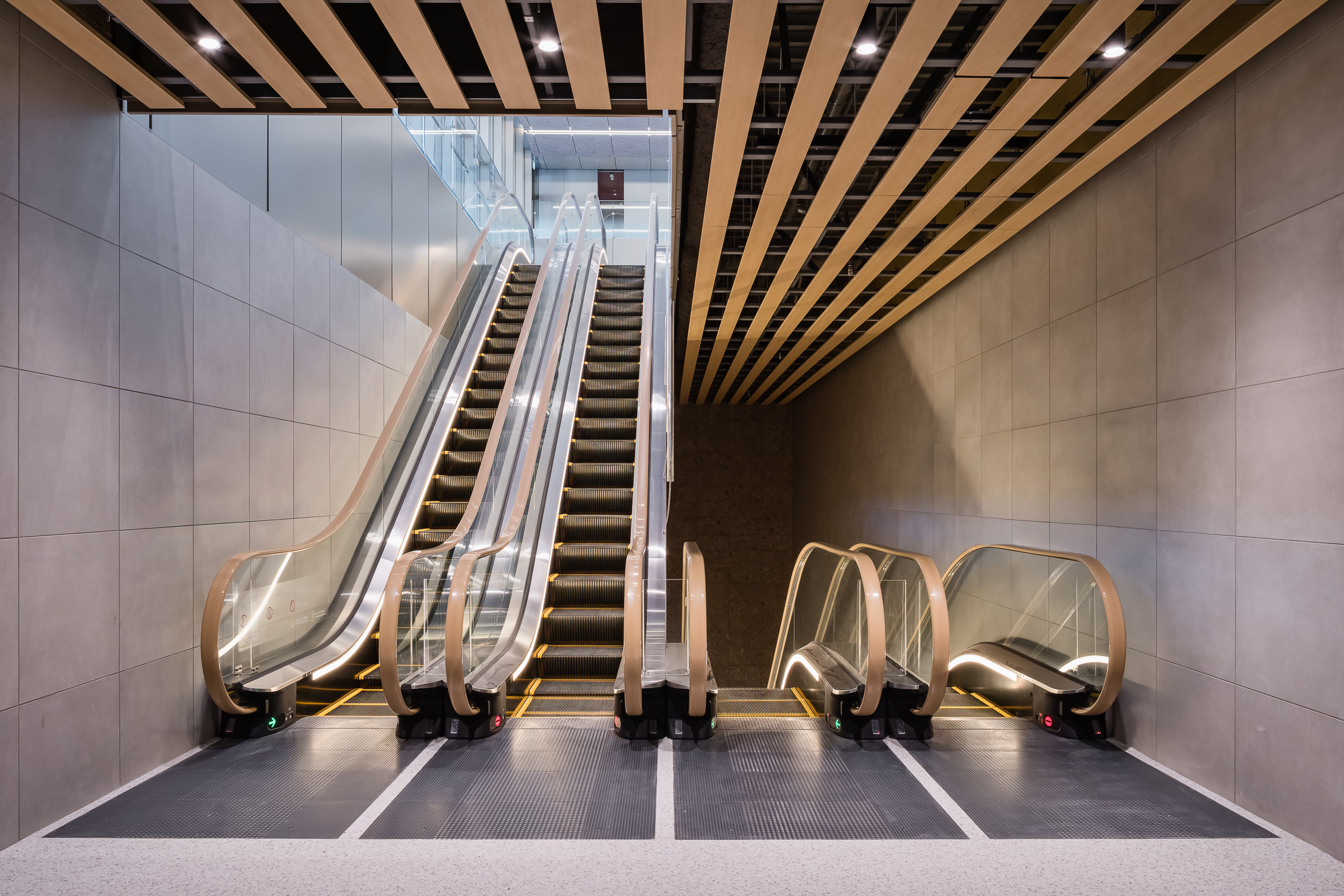

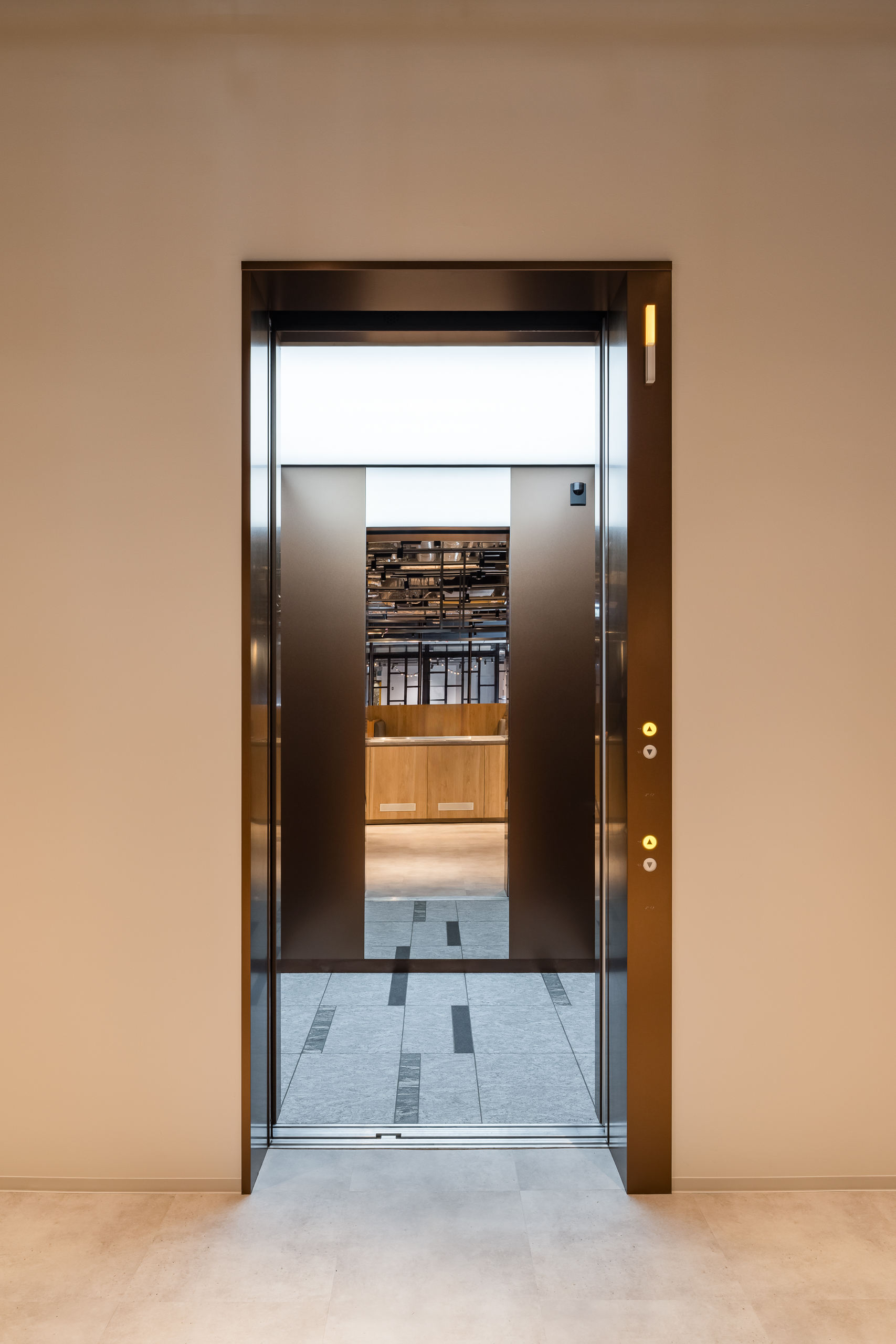

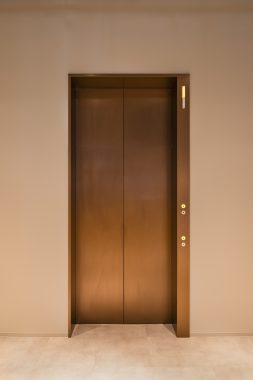

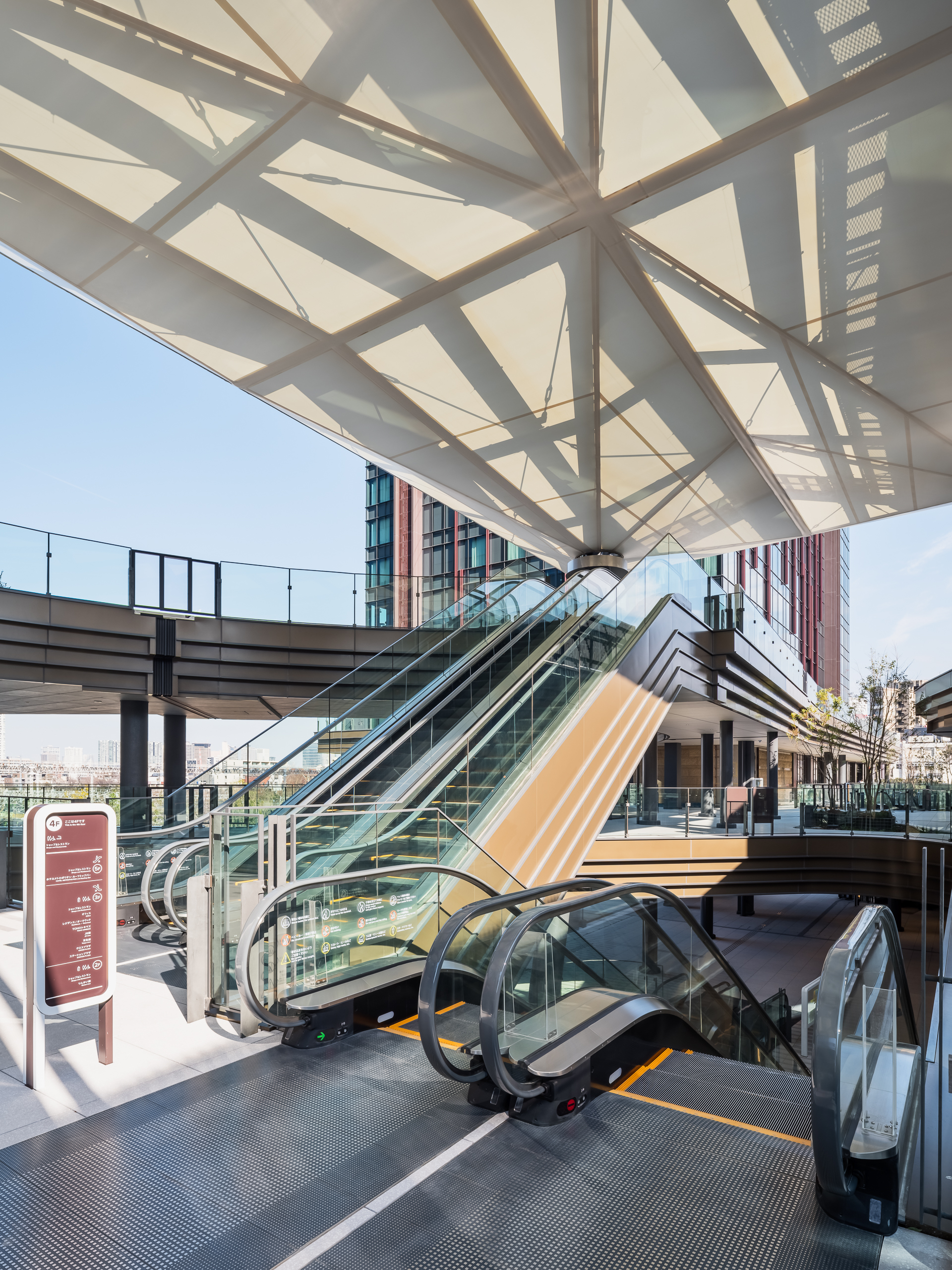

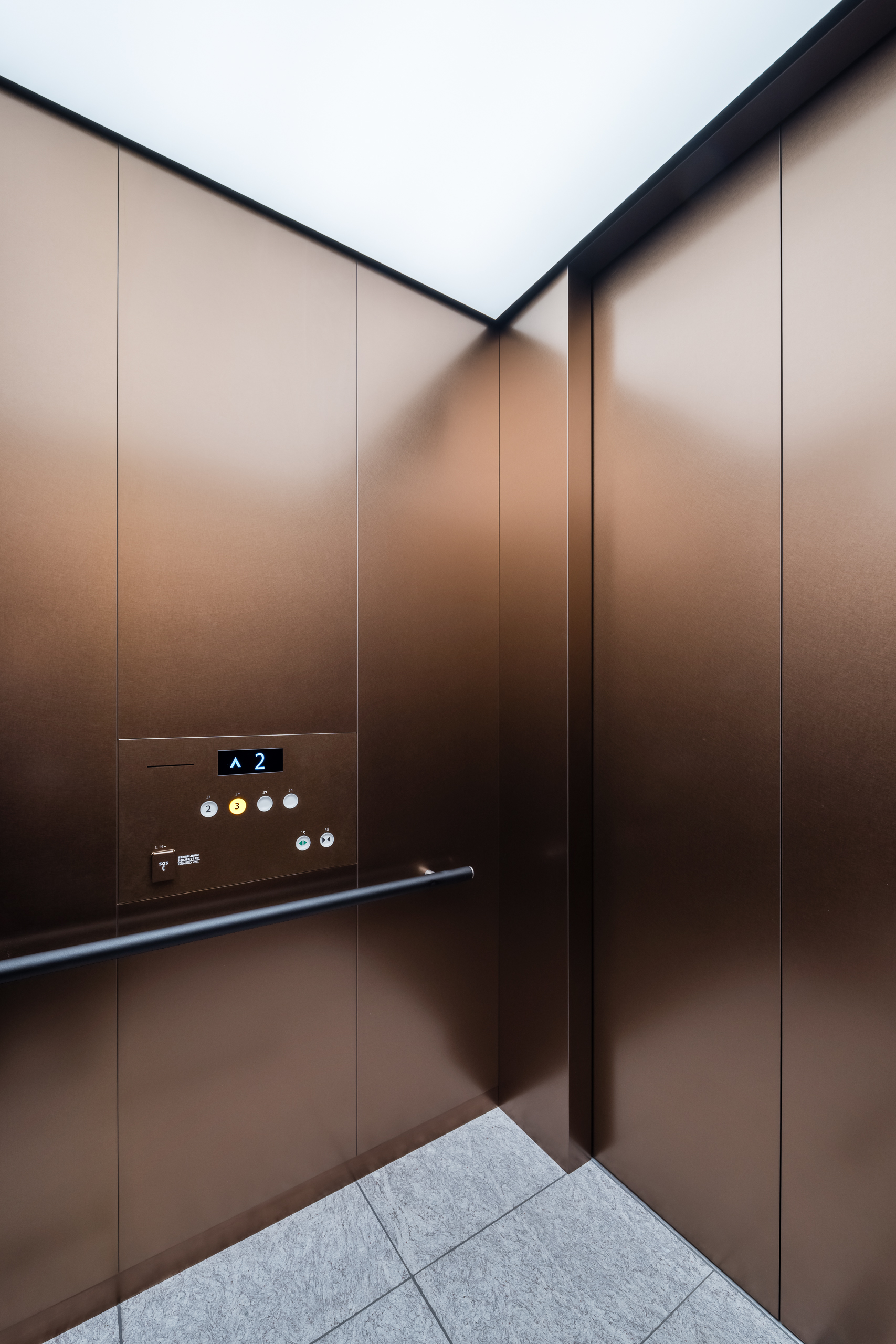

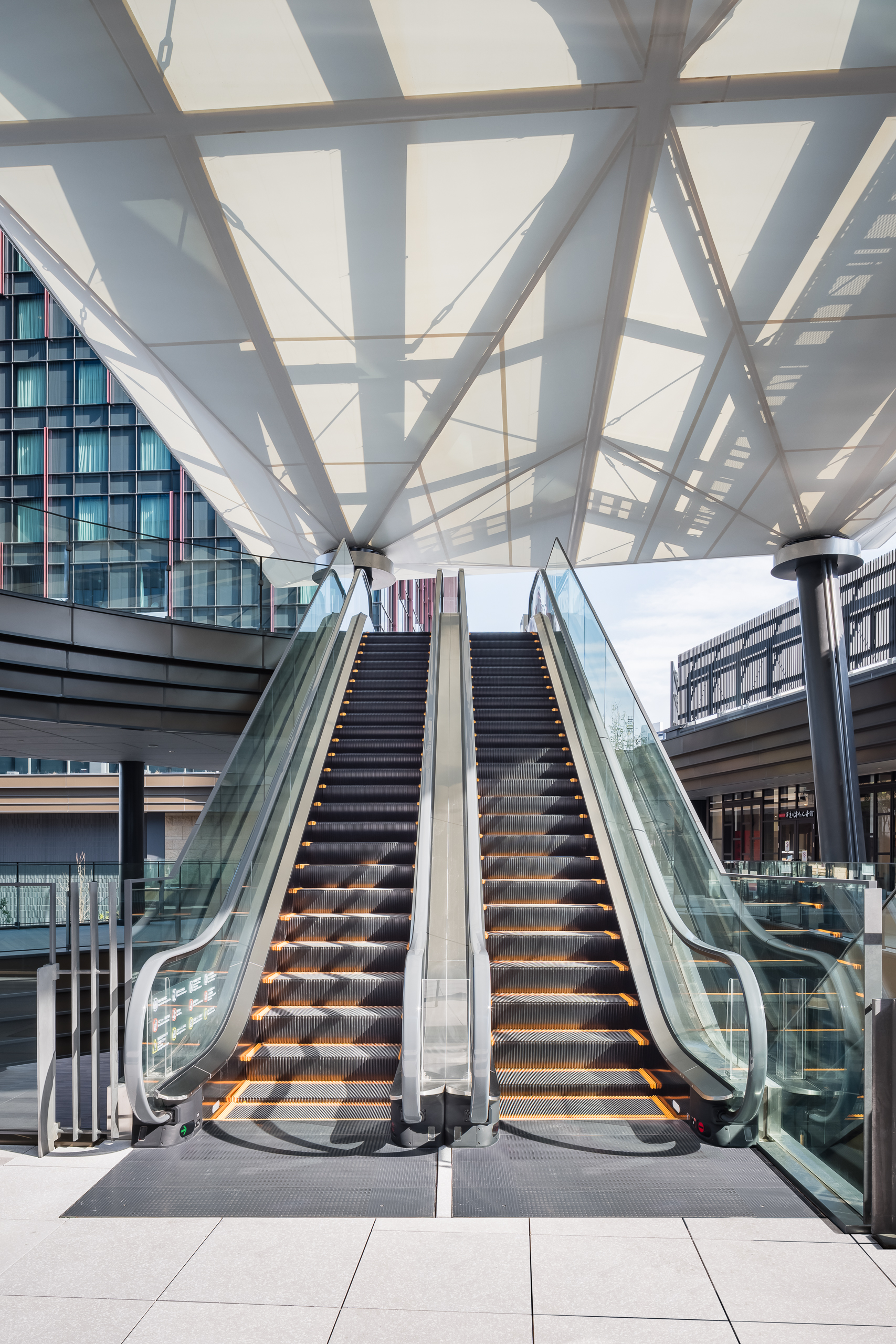

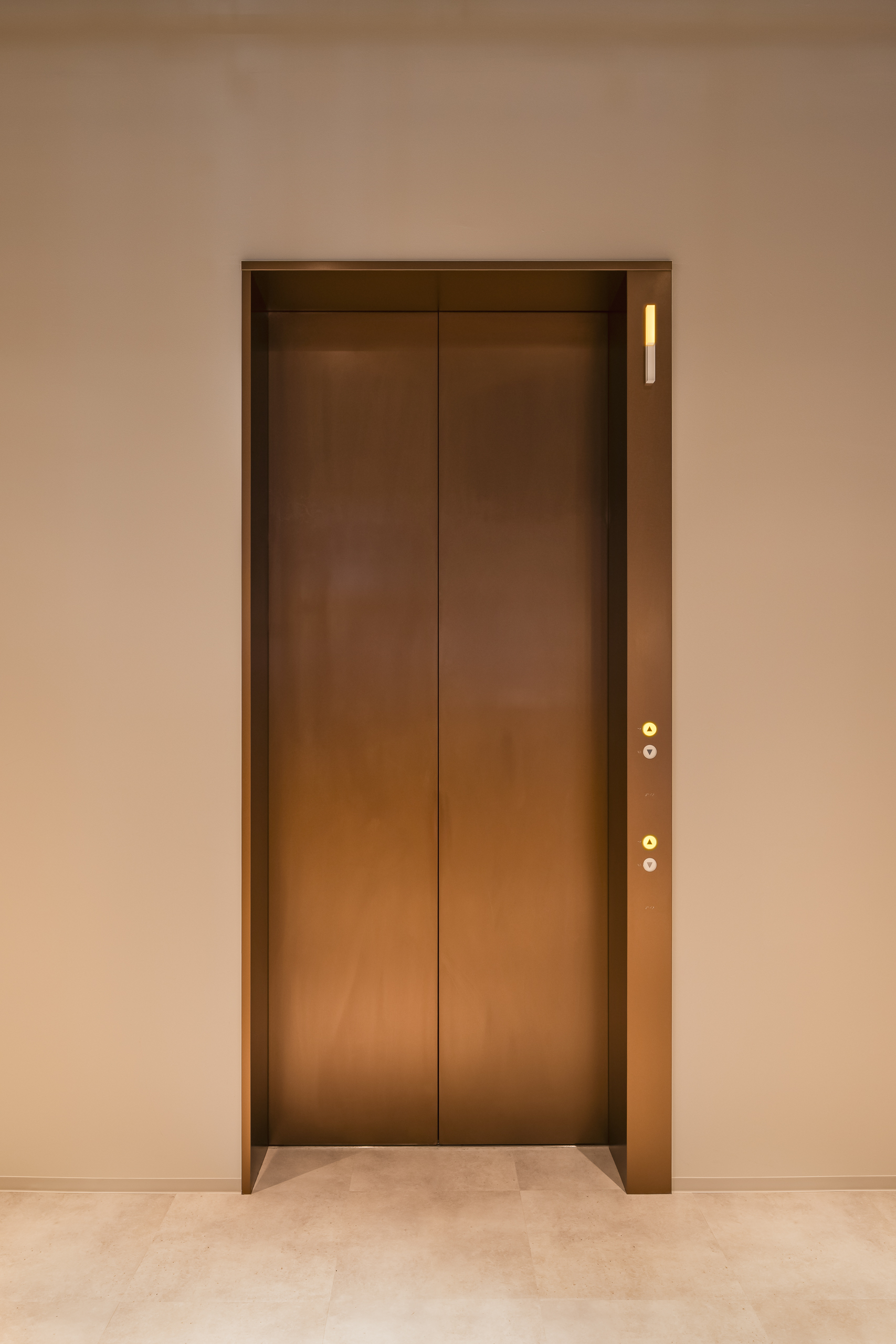

The escalators are strategically placed to align with the flow of movement in both the office and commercial areas, creating a comfortable transportation environment that considers passenger flow. The elevators in the commercial building feature colored stainless steel, creating a design that harmonizes with the facility's spatial design.
Furthermore, an observation elevator is positioned on the station plaza side, creating a three-dimensional transportation space that connects with the city.

  • Elevator
  • Escalator
  • Office
  • Commercial facility
  • Japan
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Step:600mm
  • Step:1000mm
  • 2020s
Building name
OIMACHI TRACKS
Location
Tokyo
Owner
East Japan Railway Company
Architect
JR-East Design Corporation
Contractor
Takenaka Corporation
Completion
2026

Specifications

Elevator Total units 46
Model Use Capacity (kg) Capacity (person) Speed (m/min) unit
PM-GL Passenger 2450 37 300 8
PM-GL Passenger 2450 37 180 8
PM-GL Passenger 750 11 150 1
PM-GL Passenger 2450 37 120 8
PM-GL Service 3000 27 150 1
PM-GL Service 1150 17 150 2
Order XIOR Passenger 1200 18 60 1
Order XIOR Passenger 1000 15 60 1
Order XIOR Service 1500 20 105 2
Order XIOR Service 1150 17 60 1
XIOR Passenger 1000 15 90 2
XIOR Passenger 900 13 90 1
XIOR Passenger 750 11 90 2
XIOR Passenger 1000 15 60 3
XIOR Passenger 900 13 60 1
XIOR Passenger 750 11 60 2
XIOR Passenger 900 13 45 1
XIOR Service 1000 15 45 1
Escalator Total units 32
Model Type Step width (mm) Rise (mm) Incline (degree) unit
GS-NX S 600 6000 35 2
GS-NX S 600 5500 35 2
GS-NX S 1000 5000 30 6
GS-NX F 1000 5000 30 2
GS-NX S 600 5000 30 4
GS-NX F 600 5000 30 4
GS-NX S 1000 4500 30 2
GS-NX F 1000 4500 30 2
GS-NX S 600 4500 35 2
GS-NX S 600 4500 30 2
GS-NX F 1000 3250 35 2
GS-NX F 1000 3120 35 2
