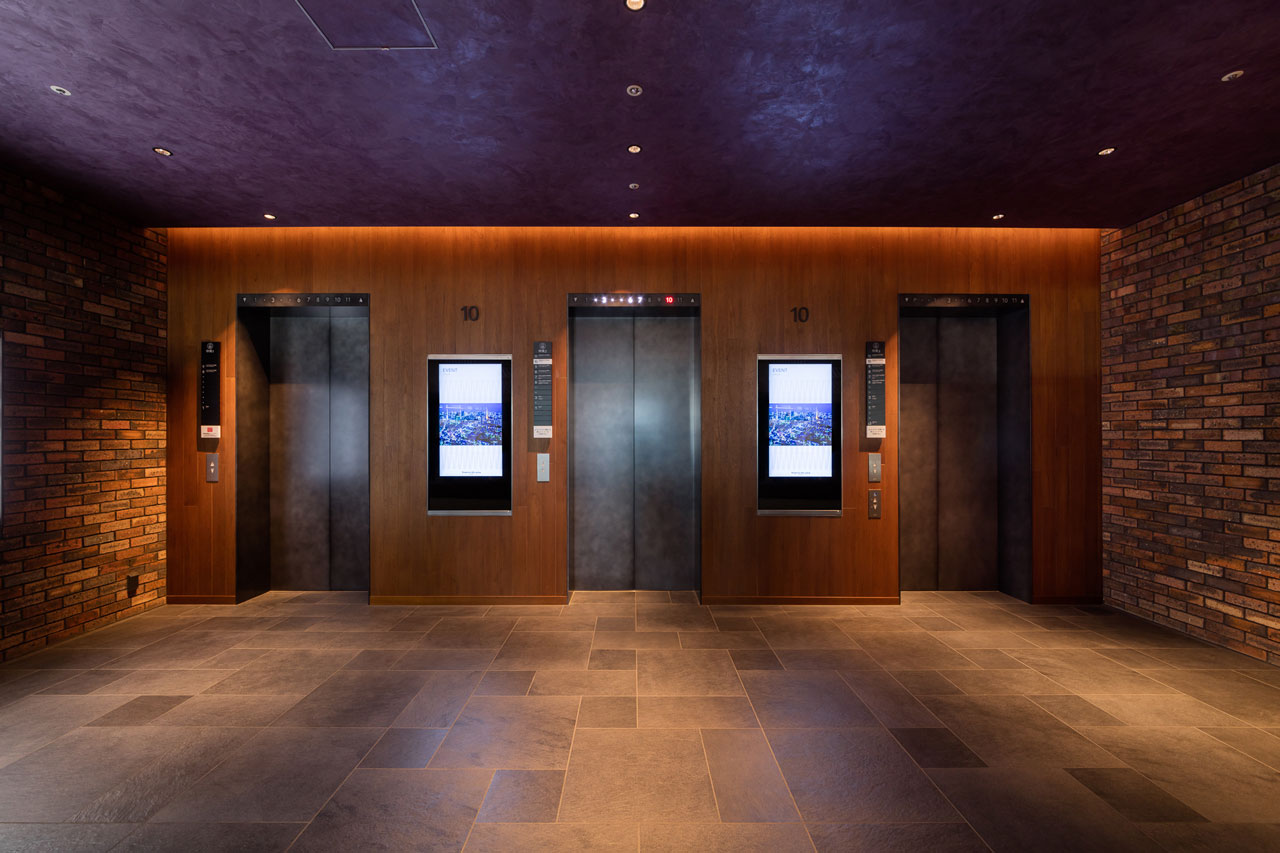

Elevator1

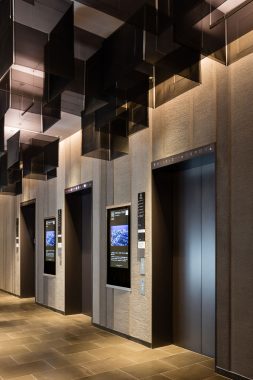

Elevator2
Elevator3
Elevator4
Elevator5
Elevator6
Escalator1
Escalator2
Escalator3

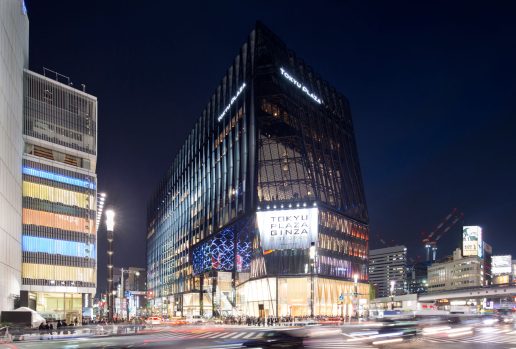

Exterior

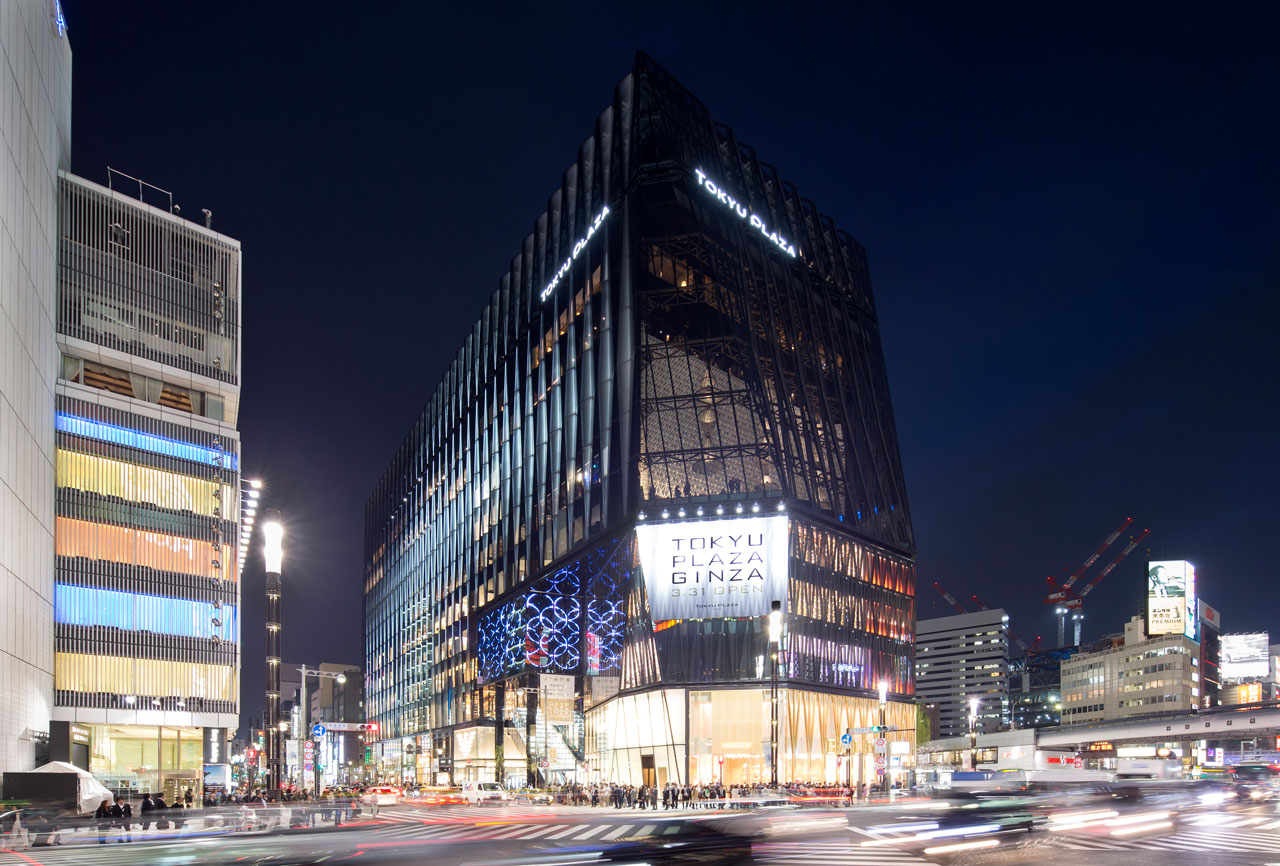

The Tokyu Plaza Ginza is located in Tokyo's major shopping and entertainment district. It has a striking exterior that was inspired by traditional Japanese Edo Kiriko cut glass. It has two basement levels and 11 floors above ground, with a total of 125 shops on 13 floors. It is a place that is visited not only by Japanese shoppers but also by many foreign tourists.
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| Order XIOR | Service | 1450 | 22 | 60 | 2 | 1 |
| AC-GL | Service | 1600 | 24 | 150 | 17 | 2 |
| AC-GL | Passenger | 1600 | 24 | 120 | 8 | 2 |
| AC-GL | Passenger | 1600 | 24 | 120 | 9 | 1 |
| AC-GL | Service | 1600 | 24 | 150 | 16 | 2 |
| AC-GL | Passenger | 1600 | 24 | 120 | 14 | 1 |
| AC-GL | Passenger | 1600 | 24 | 120 | 15 | 1 |
| AC-GL | Passenger | 1600 | 24 | 120 | 13 | 1 |
| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| GS-NX | S | 1000 | 10545 | 30 | 2 |
| Slim Fit | S | 1000 | 5500 | 30 | 2 |
| Slim Fit | S | 1000 | 5000 | 30 | 2 |
| Slim Fit | S | 1000 | 4800 | 30 | 4 |
| Slim Fit | S | 1000 | 4700 | 30 | 6 |
| Slim Fit | S | 1000 | 4500 | 30 | 2 |
| Slim Fit | S | 800 | 6000 | 35 | 2 |
| Slim Fit | F | 1000 | 5500 | 30 | 4 |
| Slim Fit | F | 1000 | 5000 | 30 | 4 |
| Slim Fit | F | 1000 | 4800 | 30 | 4 |
| Slim Fit | F | 800 | 4700 | 30 | 6 |
| Slim Fit | F | 1000 | 4550 | 30 | 2 |
| Slim Fit | F | 1000 | 4500 | 30 | 4 |
