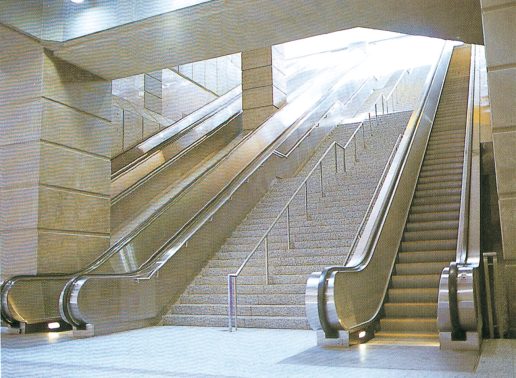

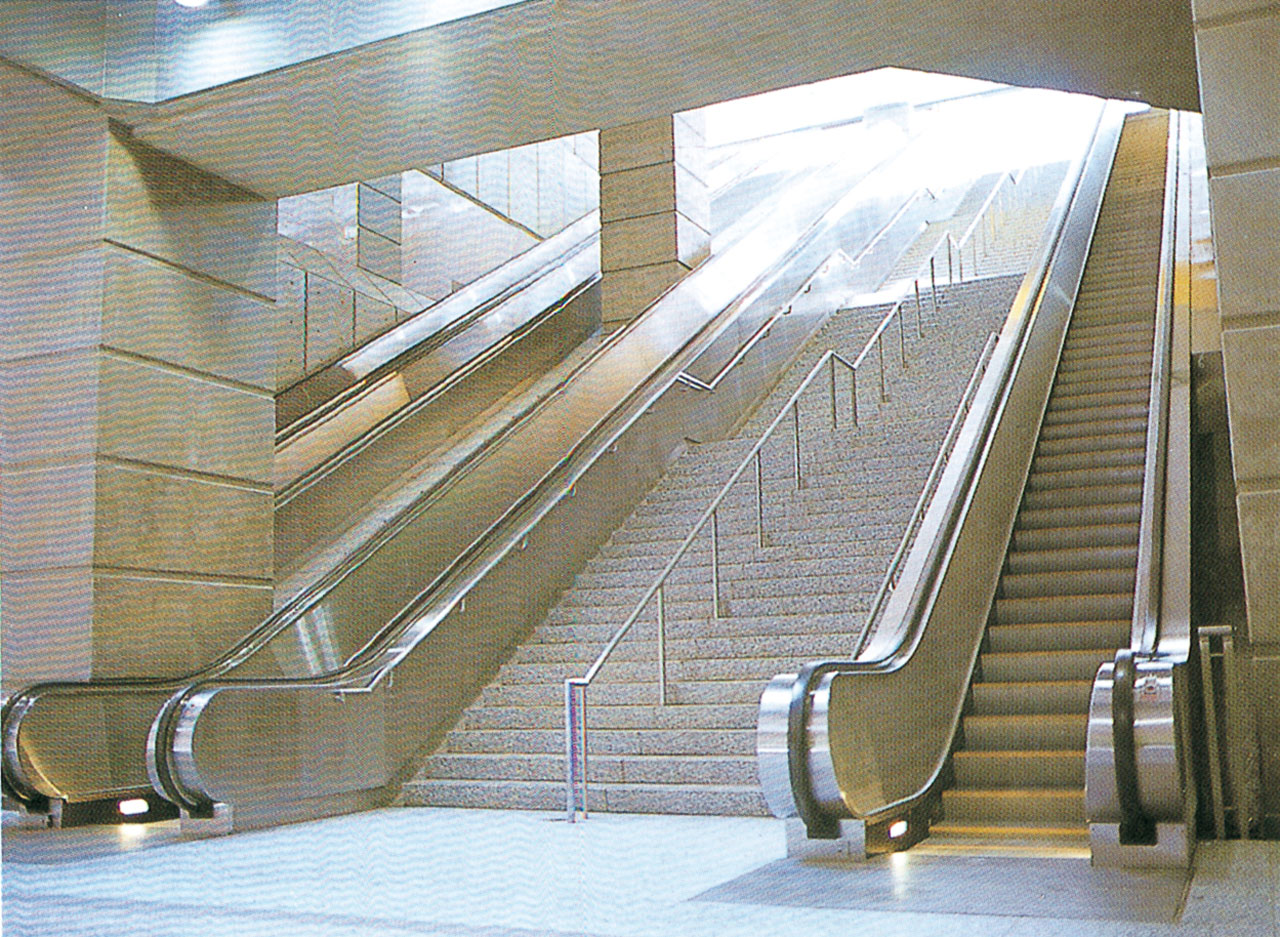

Escalator1

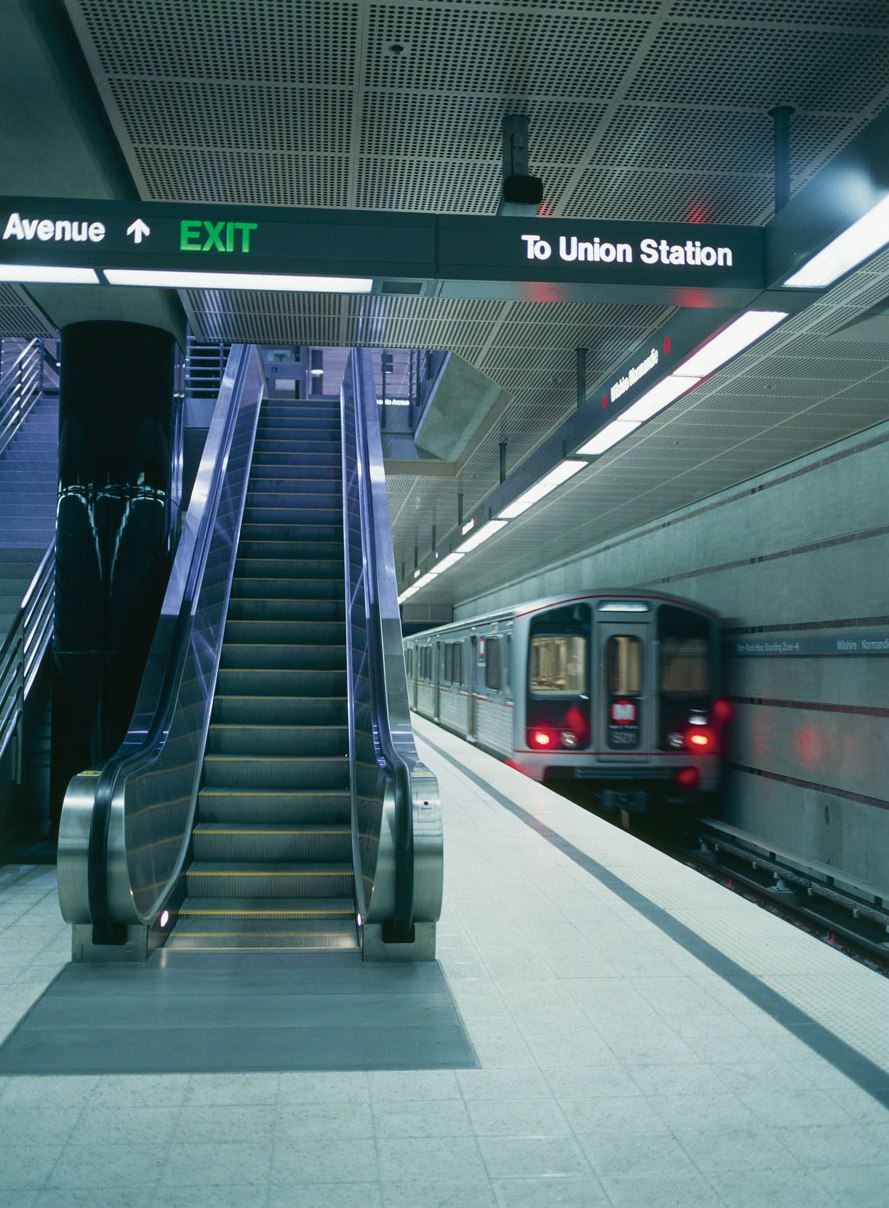

Escalator2

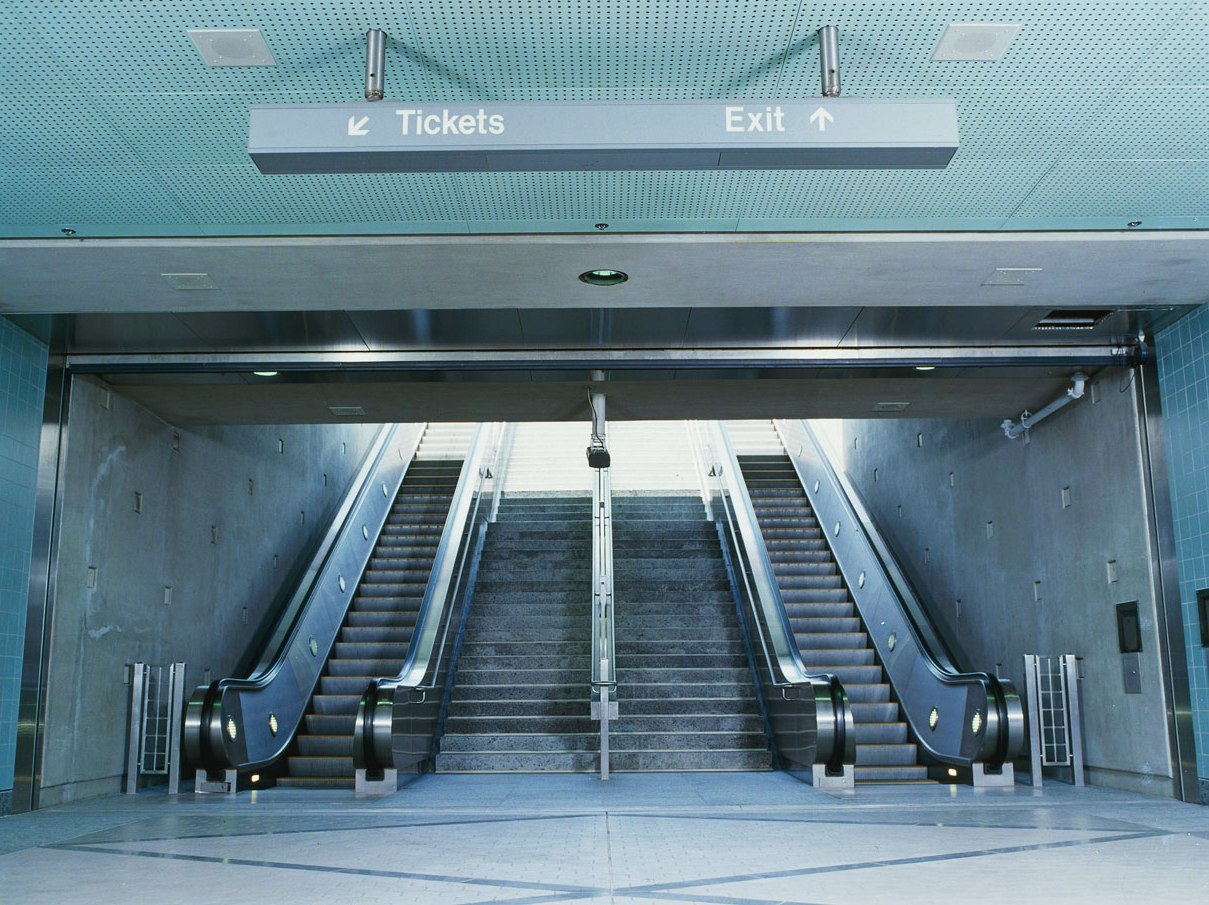

Escalator3

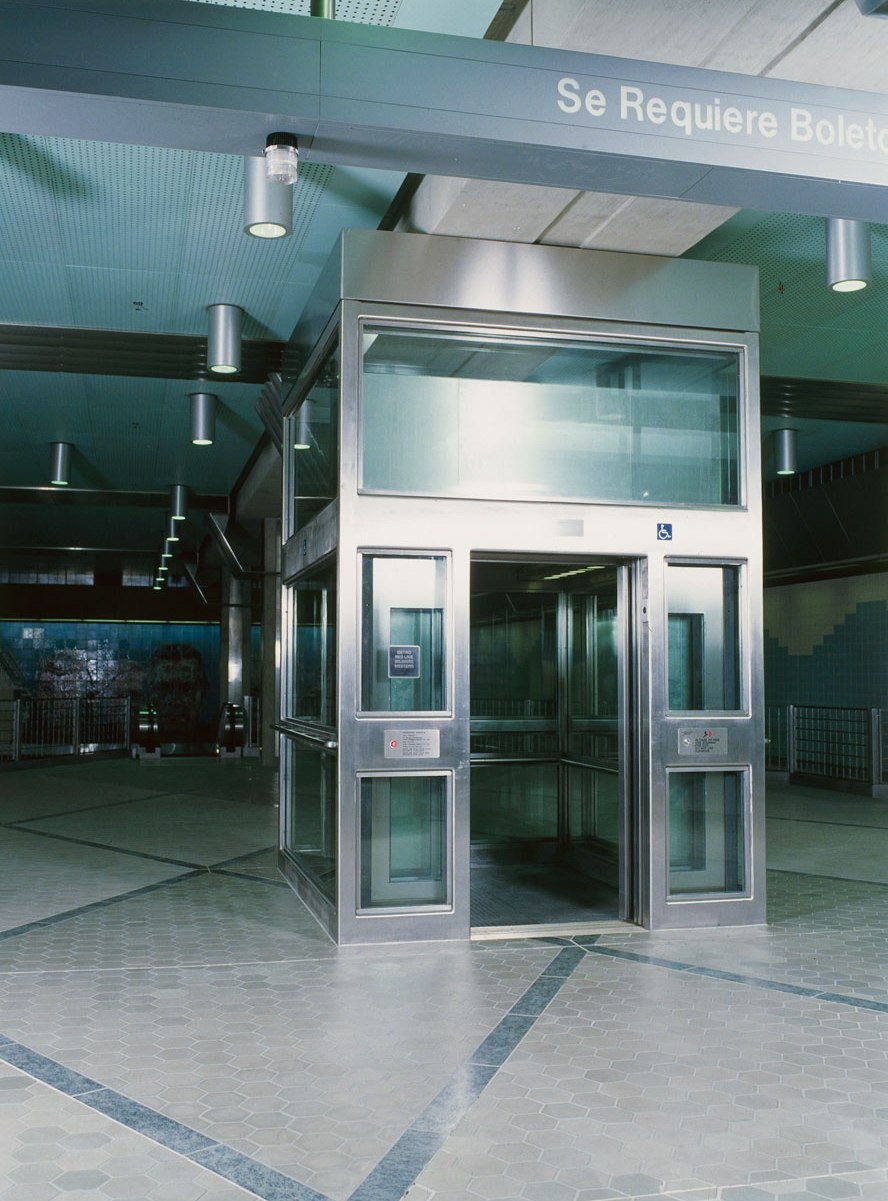

Elevator

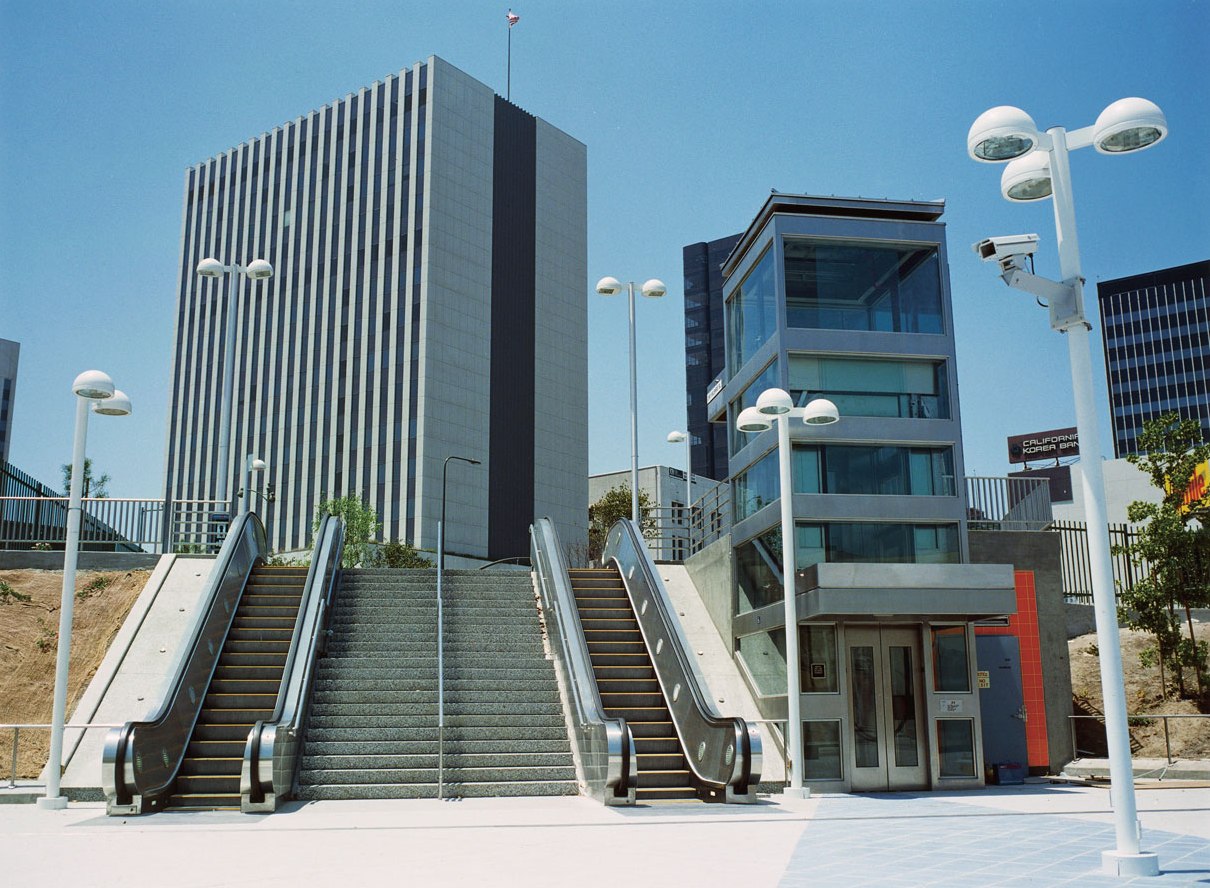

Exterior
The Red Line subway is being expanded in Los Angeles, U.S.A. In this transit system, Fujitec has contracted to install a total of 92 units, including ultra high-rise escalators with a full length of 46.6 meters, all-weather type escalators, as well as whole stainless steel elevators.
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| HYDRAULIC | Passenger | 3500 | 47 | 45 | 4 | 5 |
| HYDRAULIC | Passenger | 3500 | 47 | 45 | 4 | 23 |
| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| PLS | S | 1200 | - | 30 | 64 |
