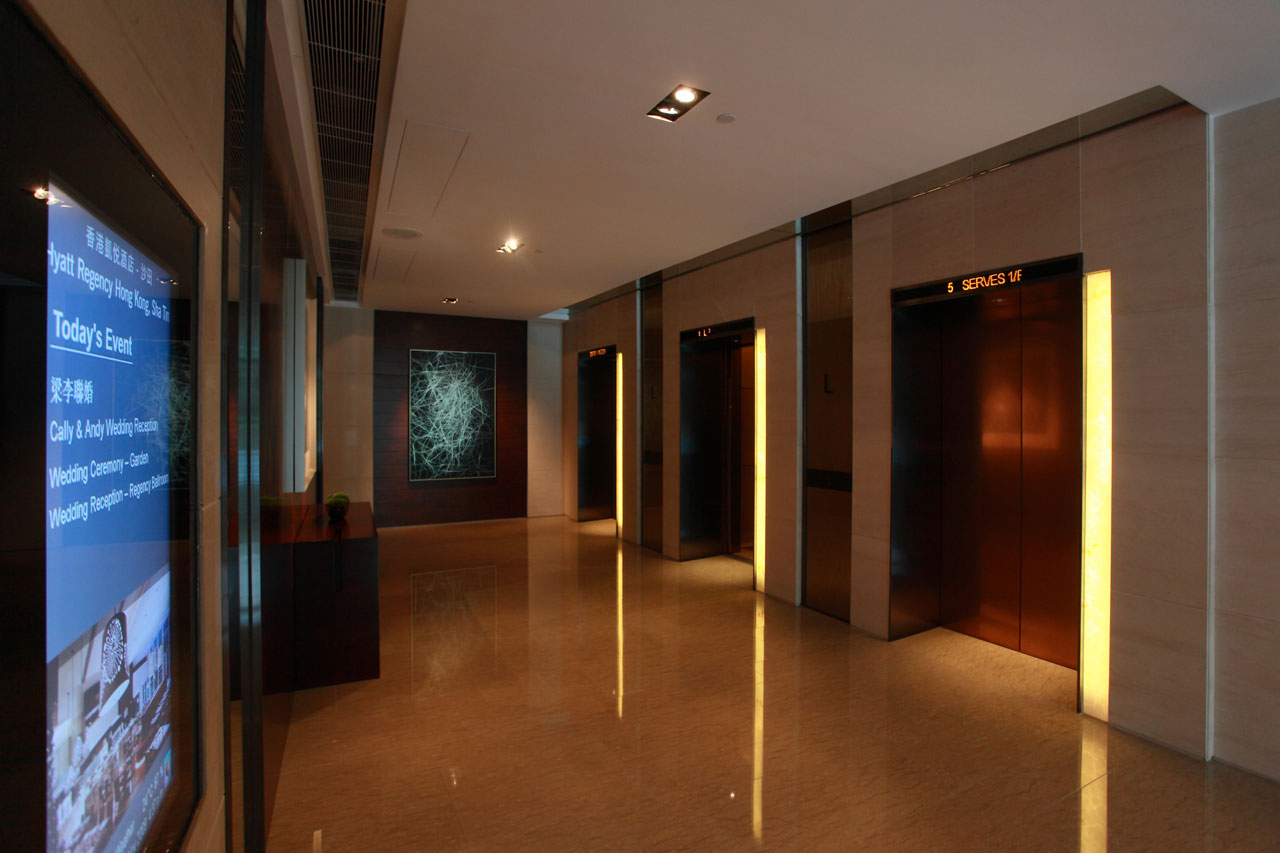

Elevator1

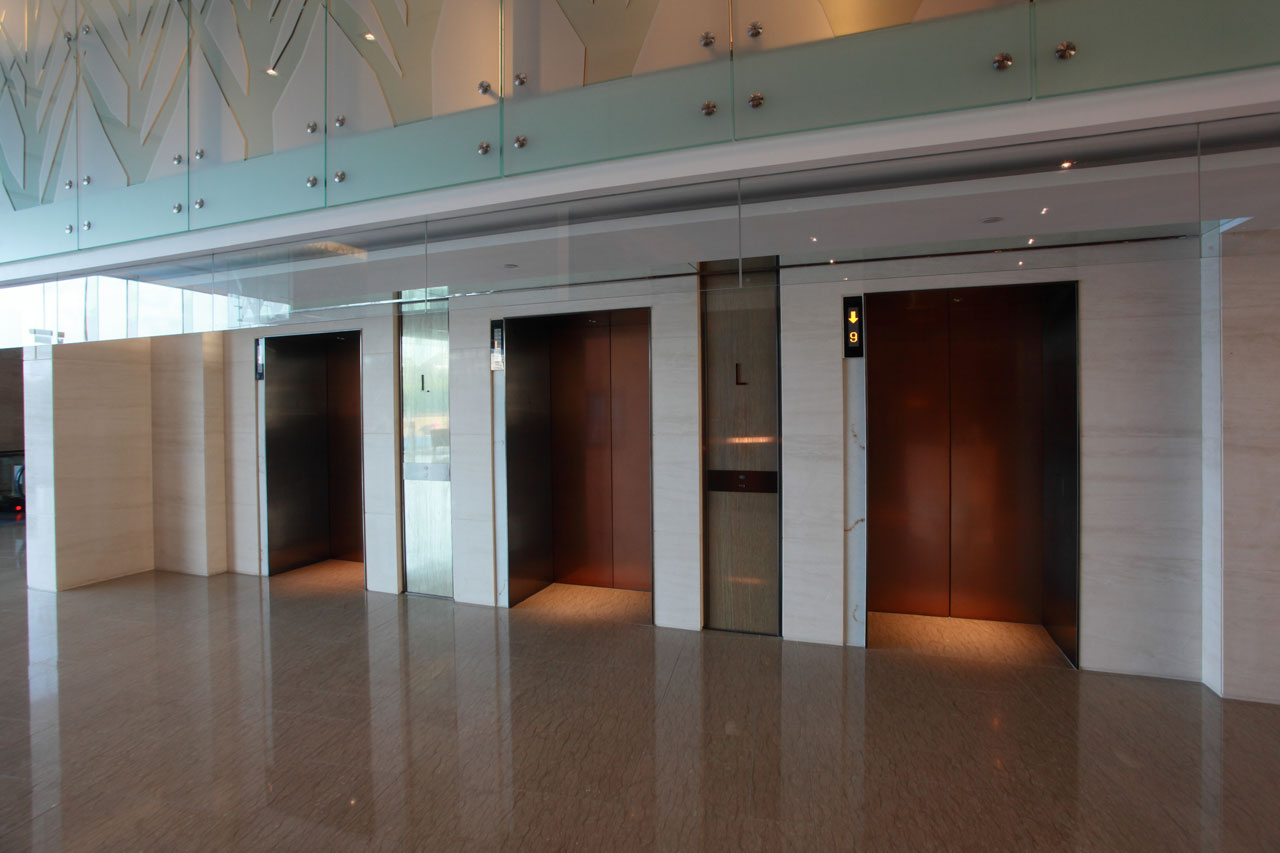

Elevator2

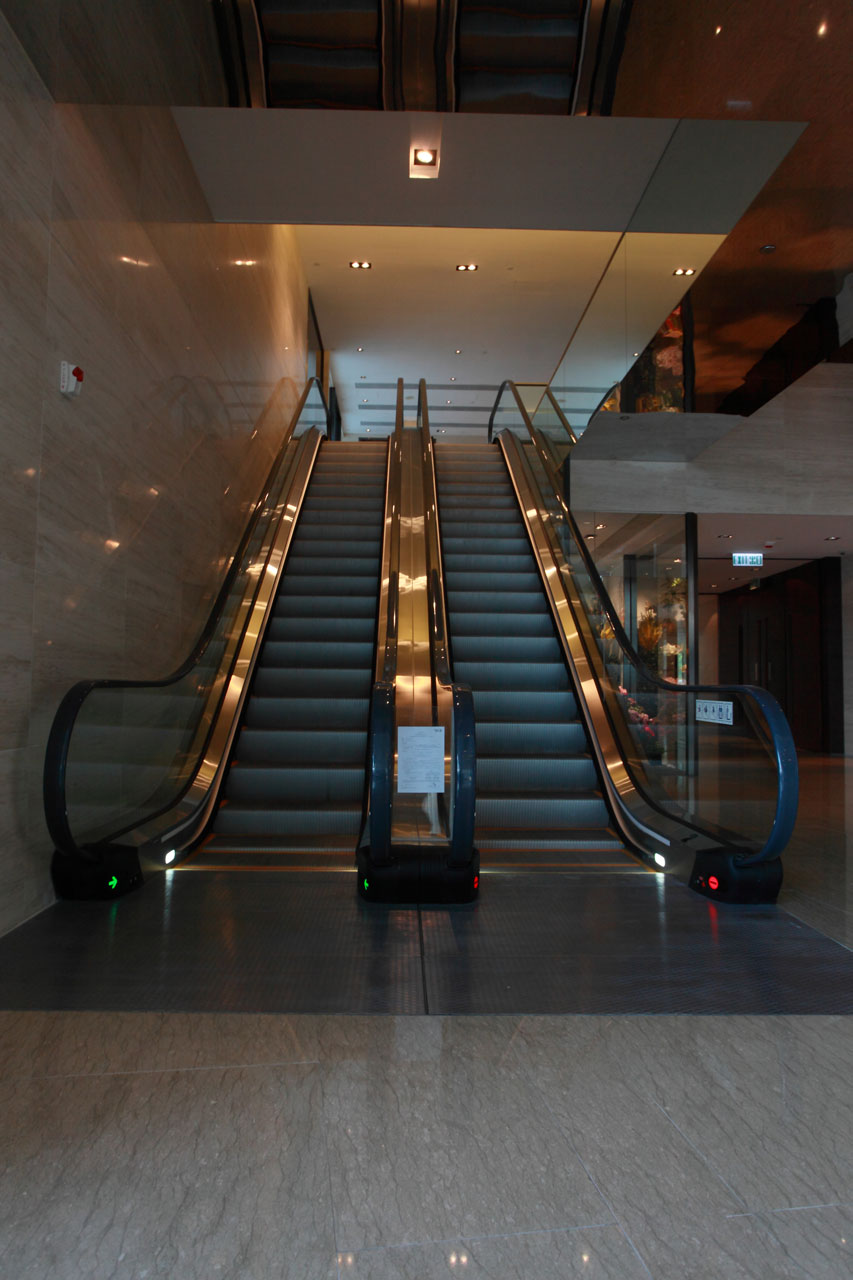

Escalator1

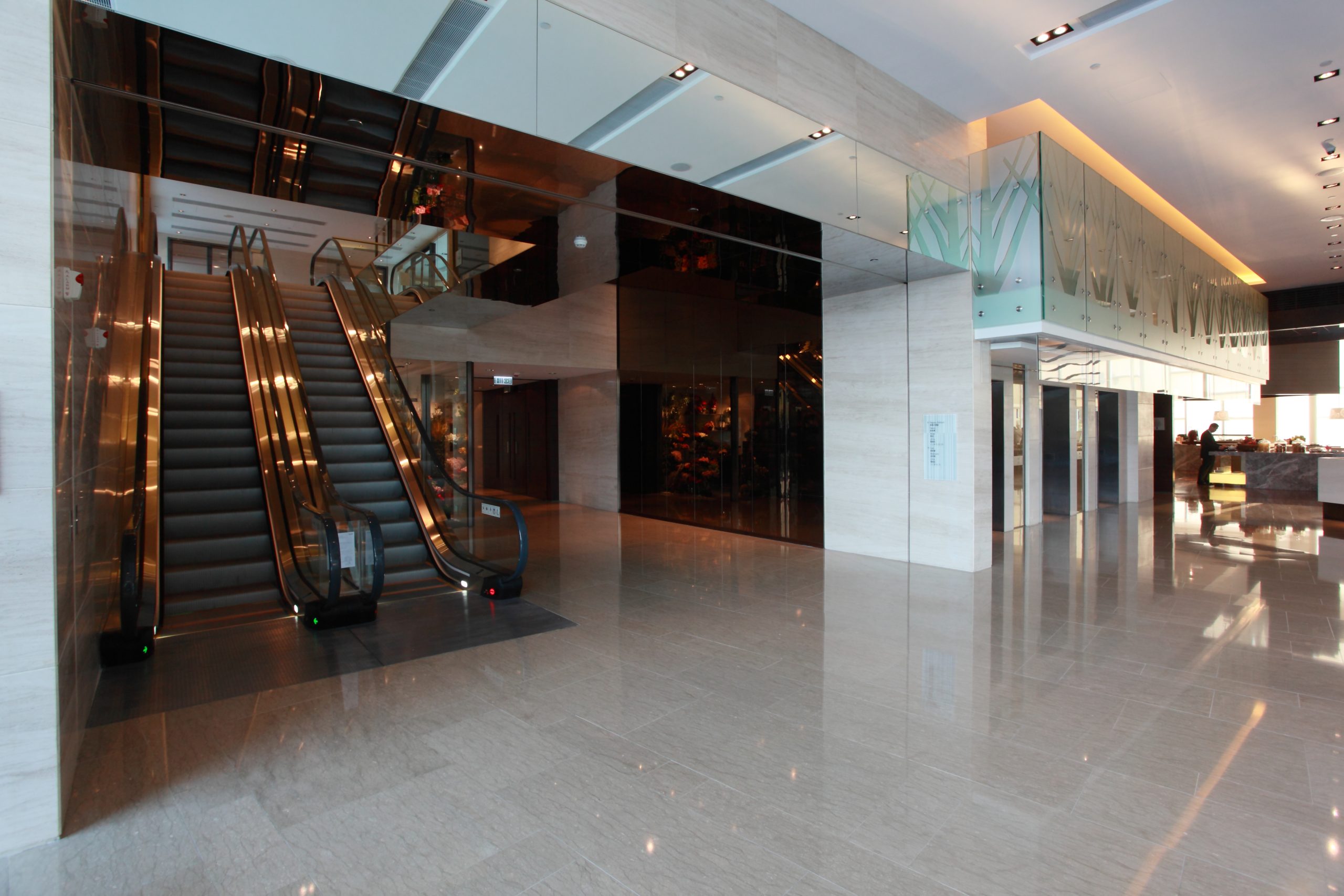

Escalator2

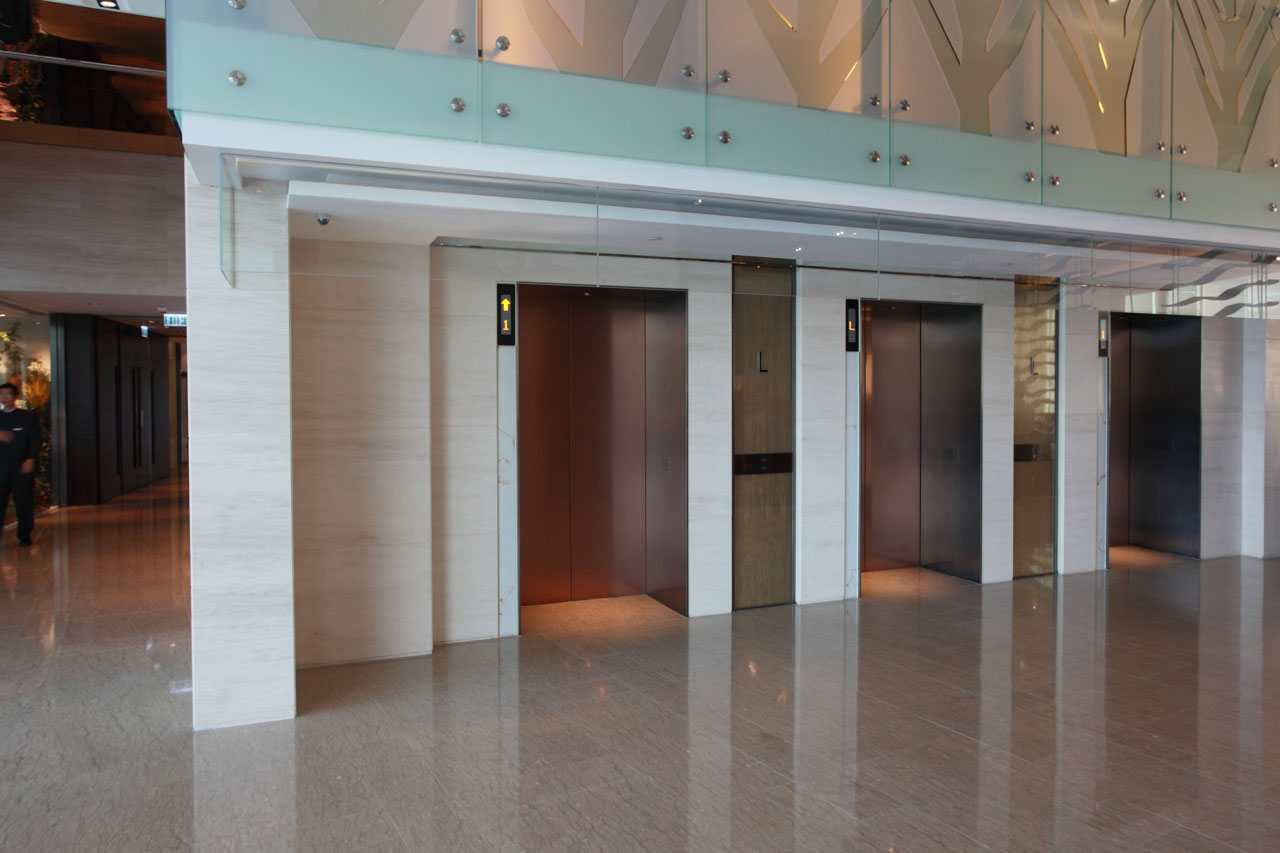

Elevator3
Elevator4
Elevator5

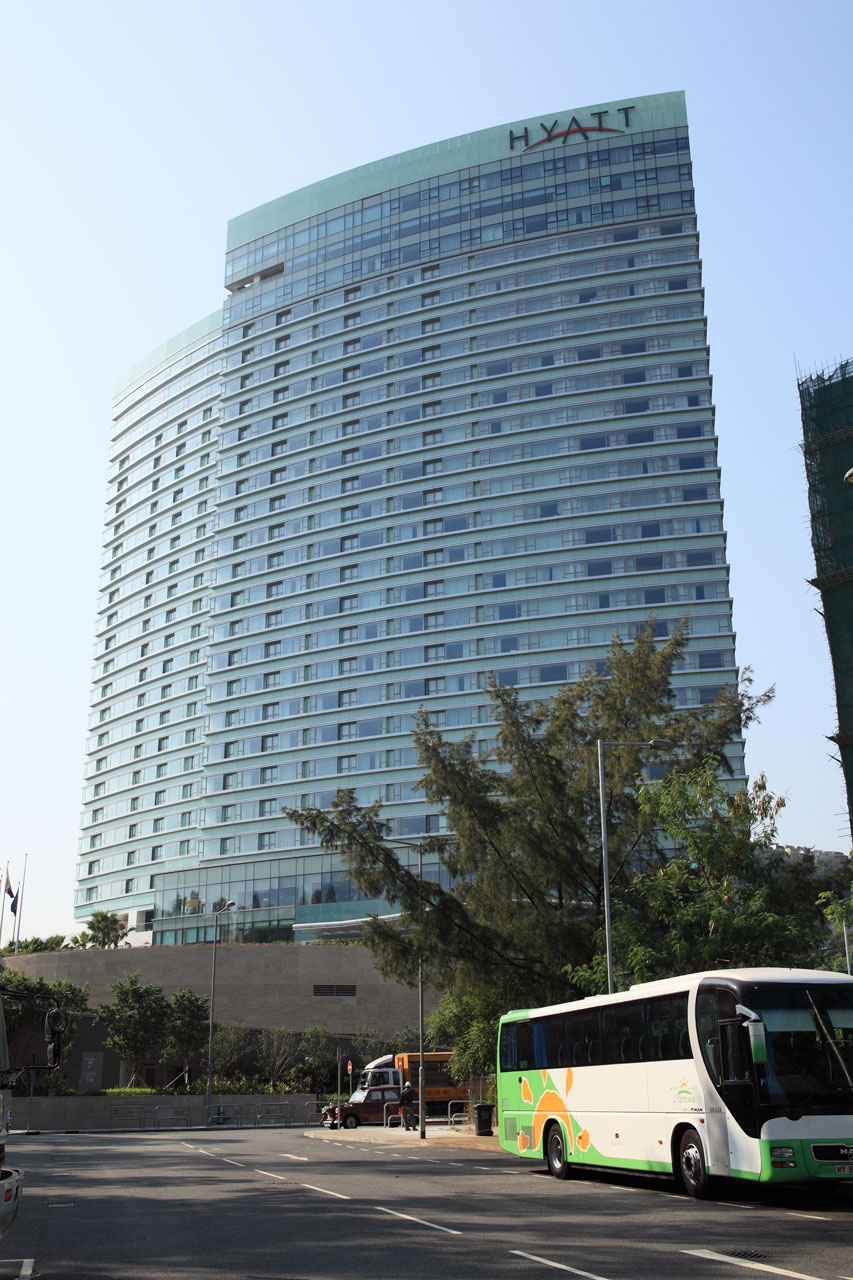

Exterior
The "Hyatt Regency Hong Kong, Sha Tin" is located in the New Territories near Hong Kong International Airport.
In the 26-story hotel with a gently curving, beautiful outer wall, Fujitec installed 11 elevators and five escalators.

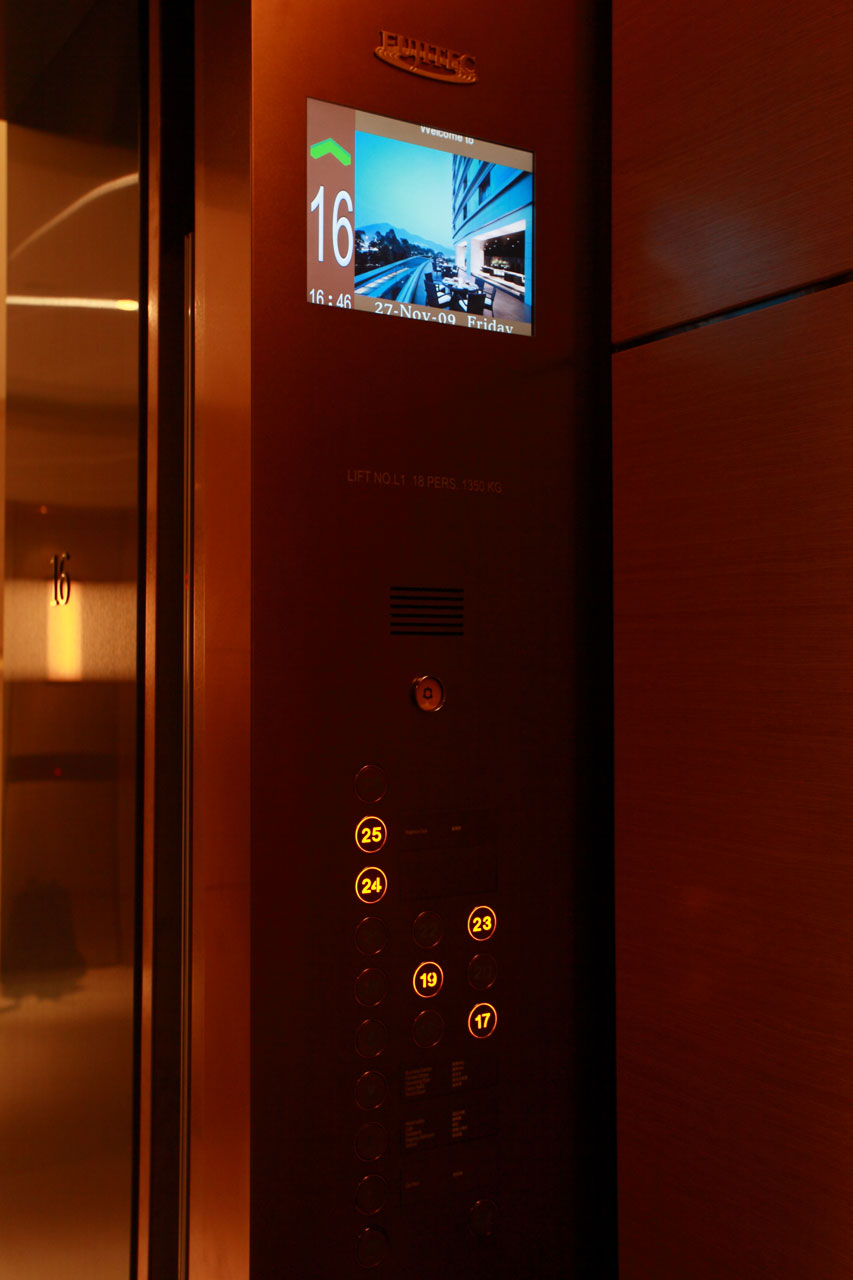

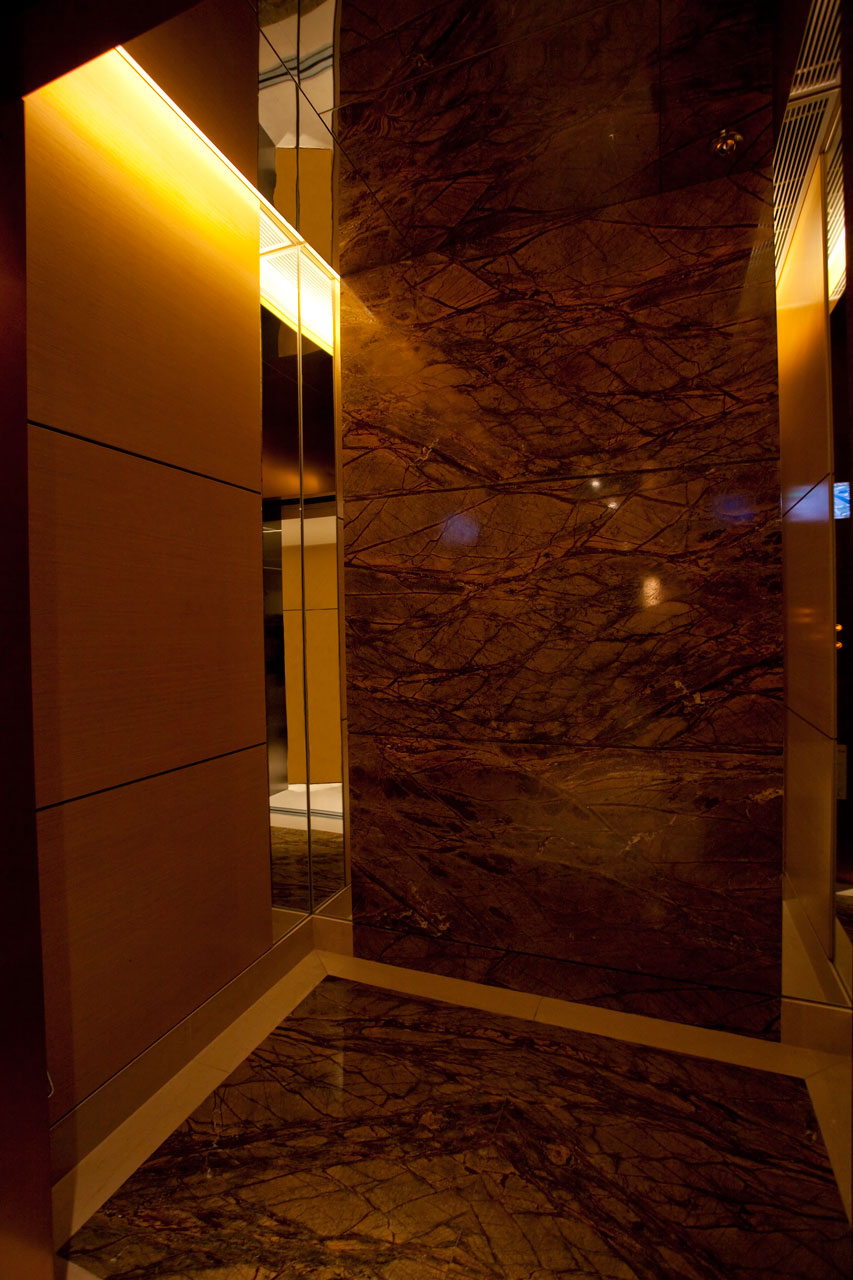

The cab interiors are finished with a dignified and stately design, creating a sophisticated atmosphere. In addition, the liquid crystal display inside each elevator offers a wide array of information to passengers.
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| AC-GL | Passenger | 1350 | 18 | 210 | 15 | 2 |
| AC-GL | Passenger | 1350 | 18 | 210 | 16 | 1 |
| AC-GL | Passenger | 1500 | 20 | 150 | 15 | 3 |
| AC-GL | Passenger | 1250 | 17 | 60 | 2 | 1 |
| AC-GL | Service | 1650 | 22 | 210 | 27 | 1 |
| AC-GL | Service | 1250 | 17 | 210 | 27 | 2 |
| MRL | Service | 900 | 12 | 60 | 4 | 1 |
| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| GS8000 | S | 1000 | 8600 | 30 | 1 |
| GS8000 | S | 1000 | 4500 | 35 | 2 |
| GS8000 | S | 1000 | 3800 | 35 | 2 |
