Urbannet Sapporo Link Tower

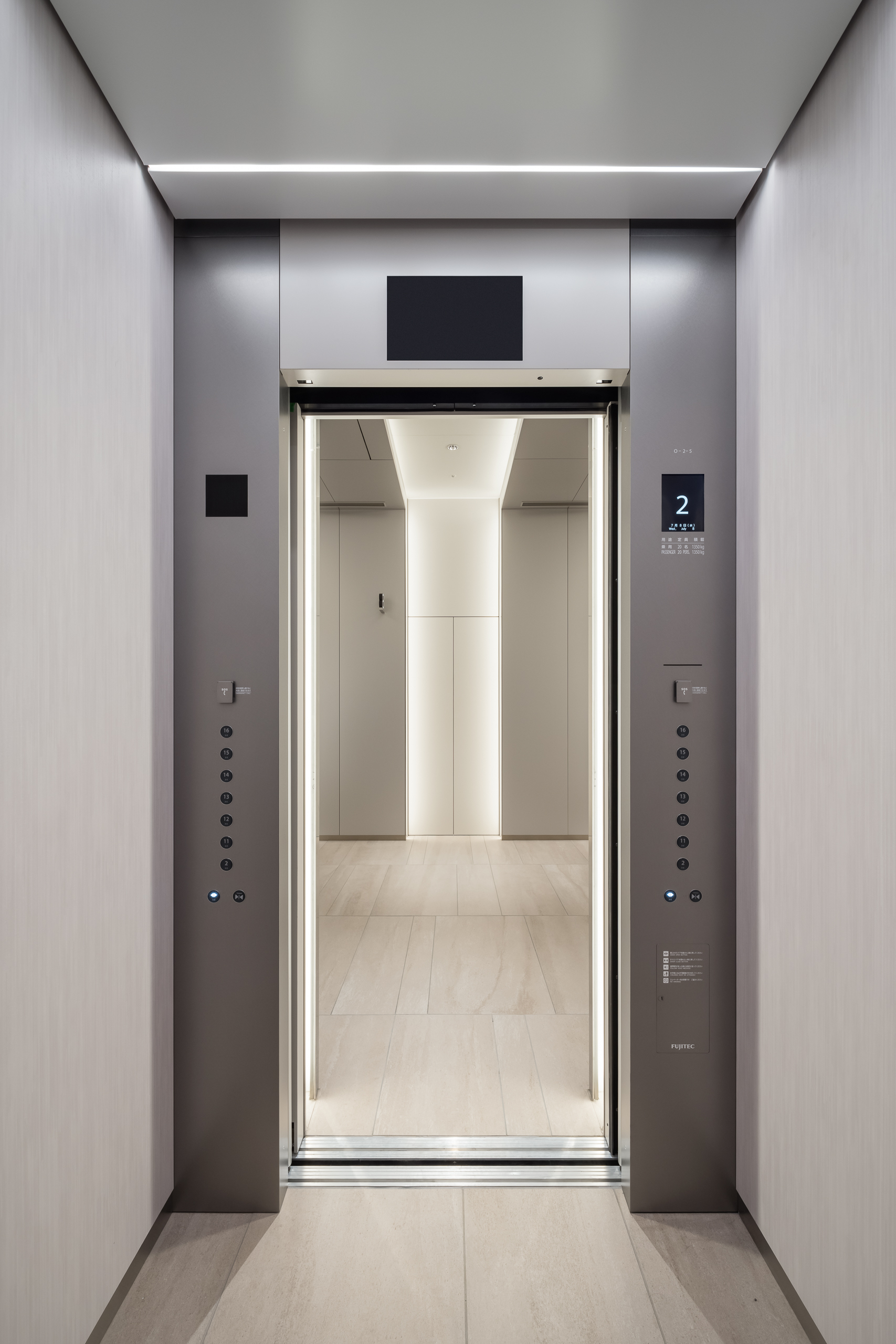

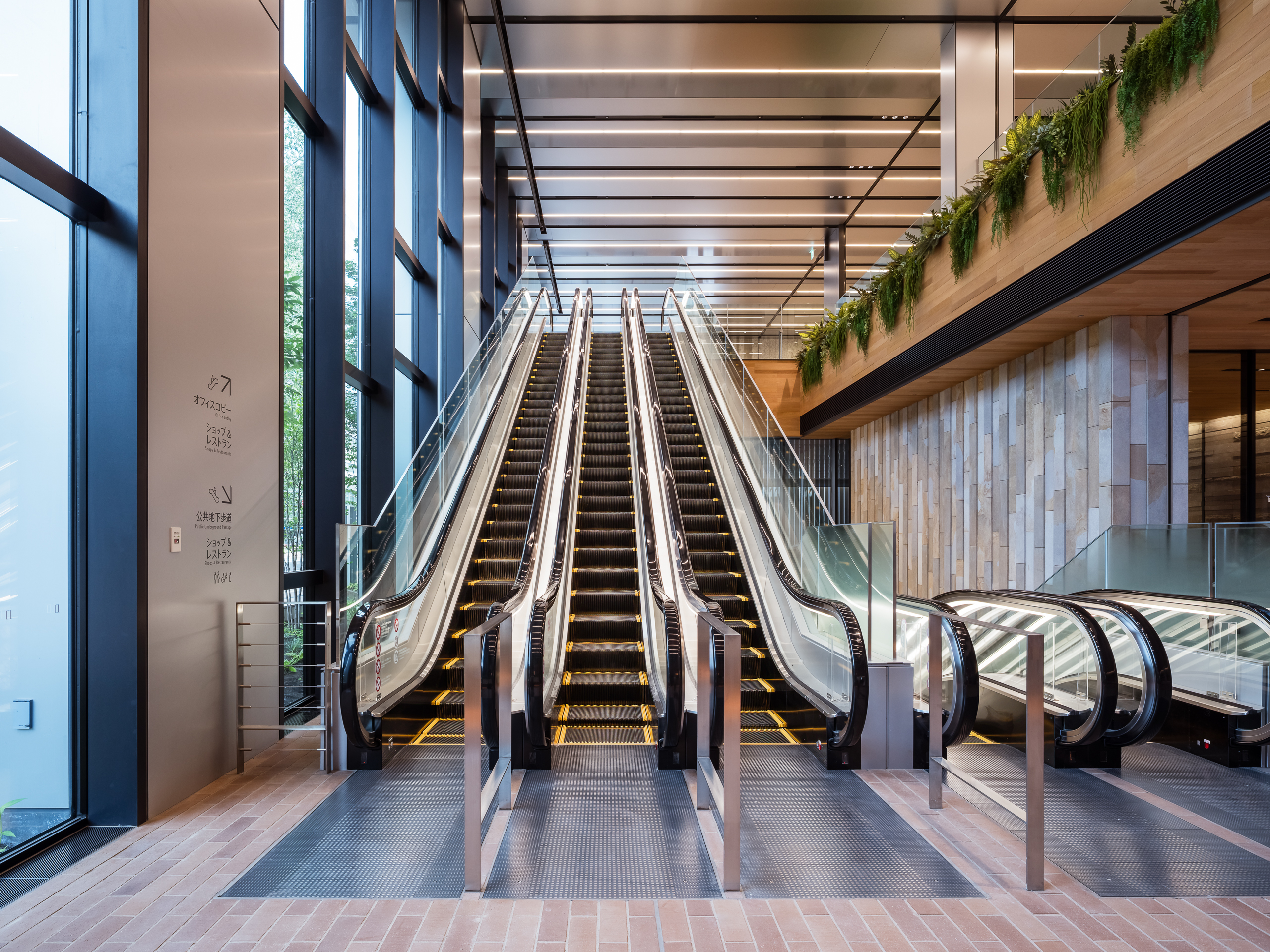

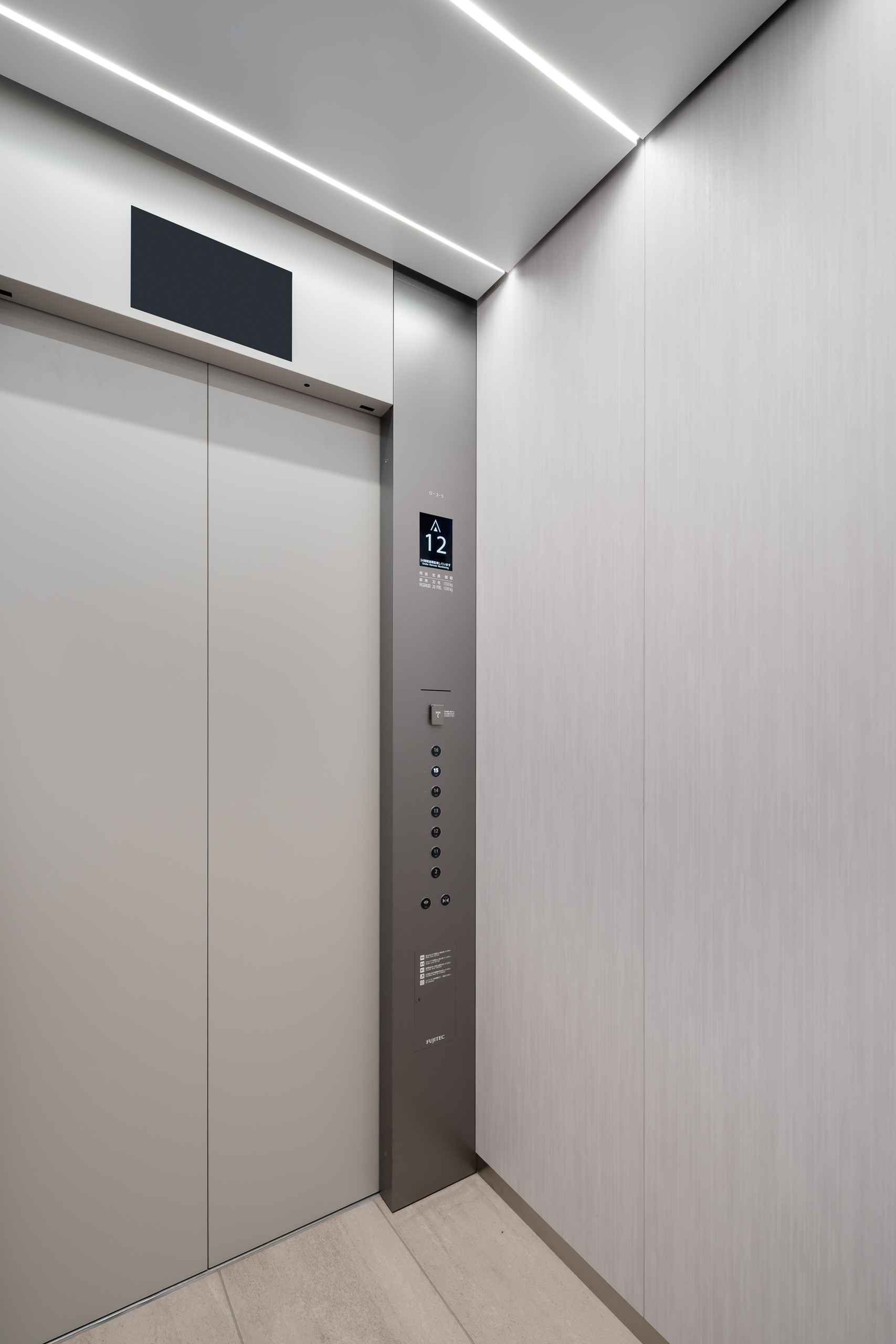

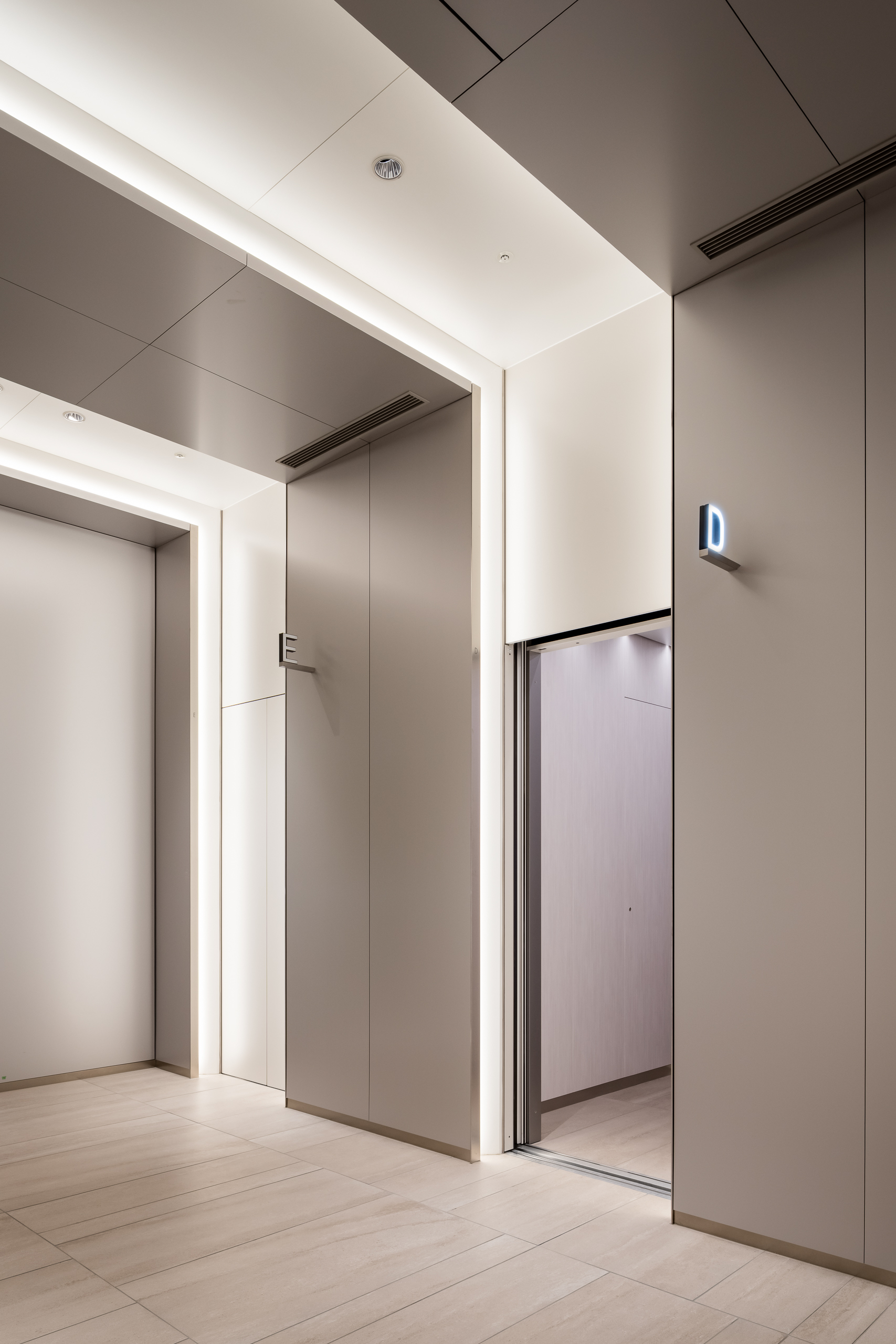

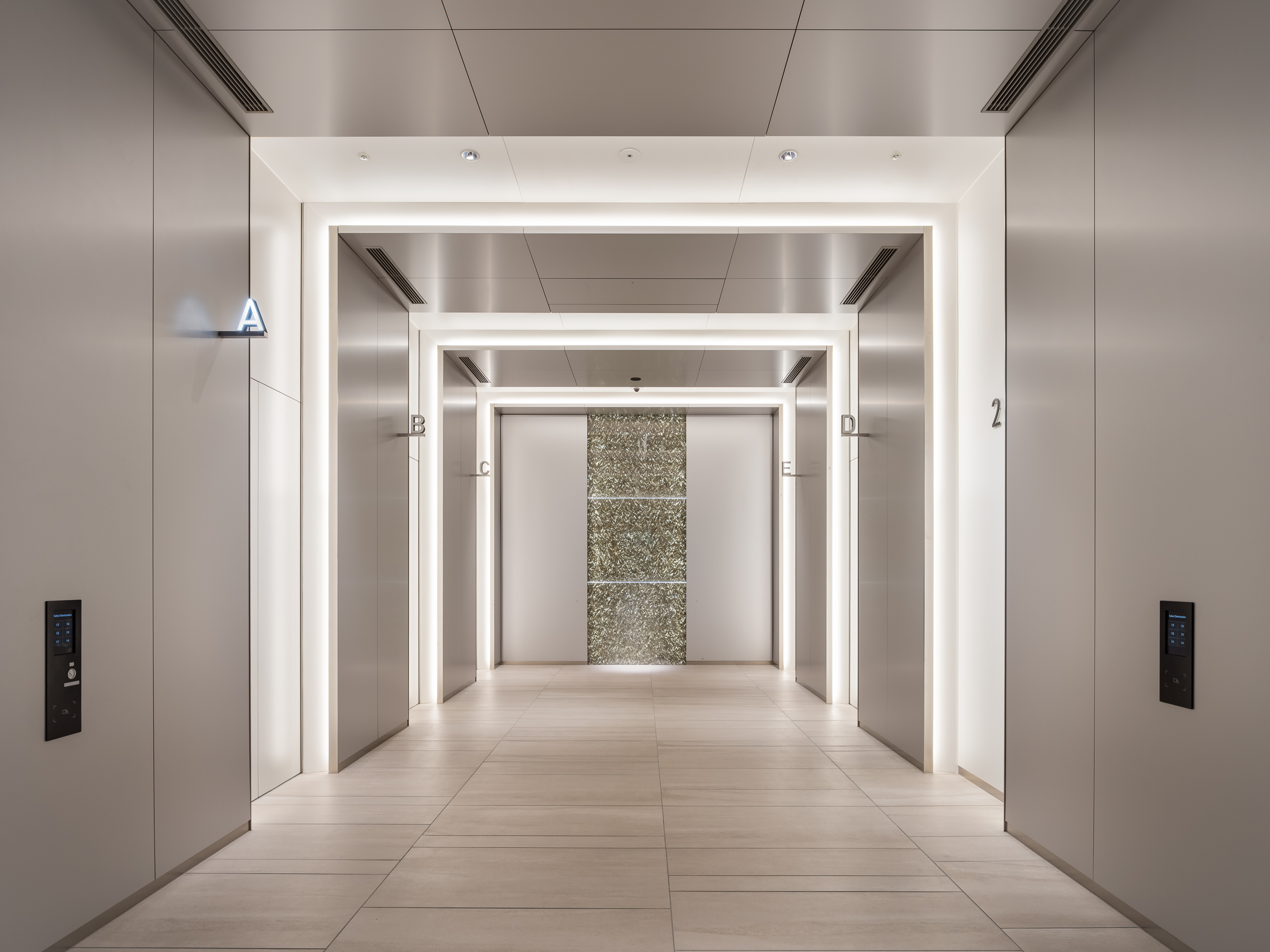

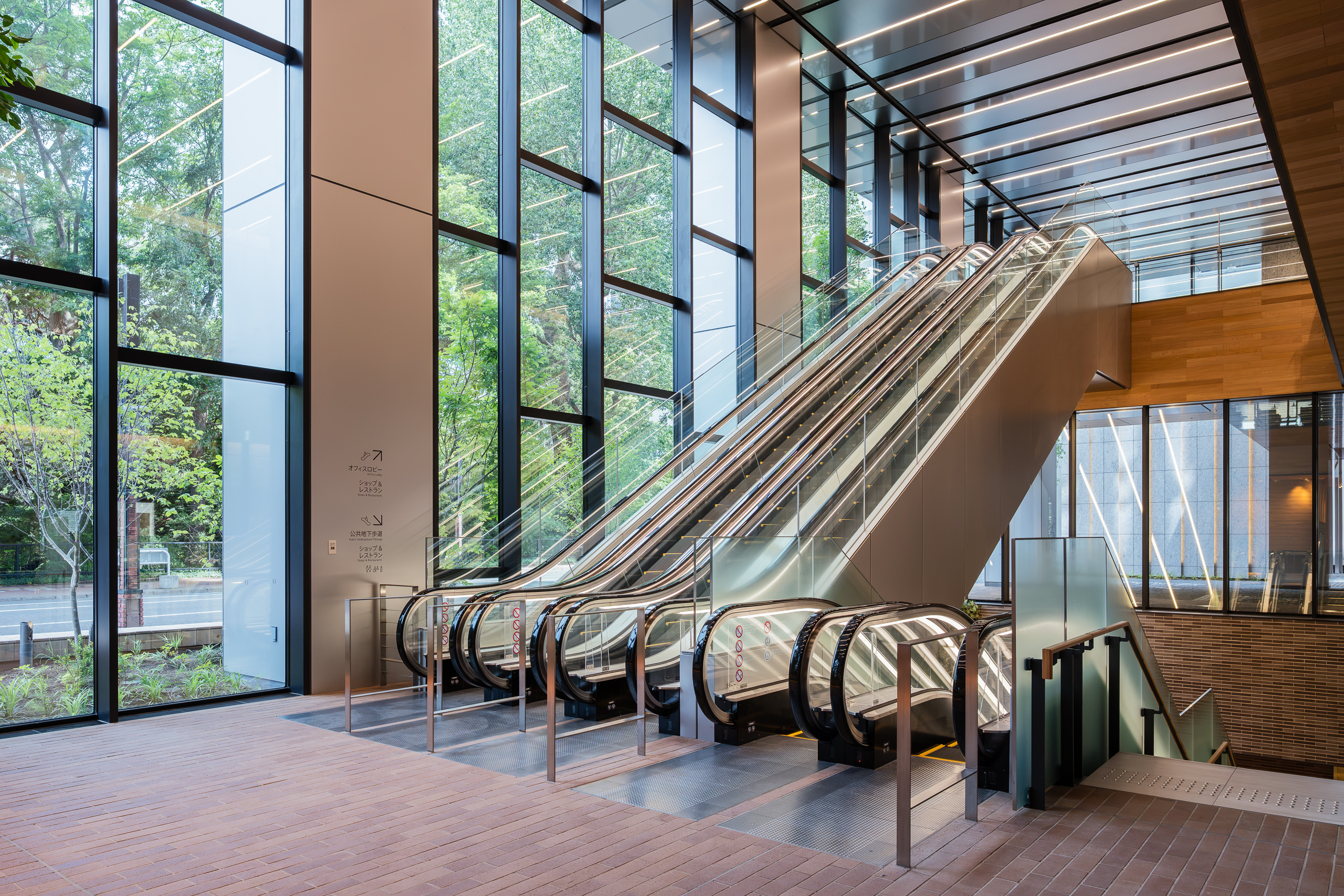

“Urban Net Sapporo Link Tower” is a large twenty-six (26) -story complex building located on Sapporo Ekimae-dori, comprising offices, retail facilities, and a hotel, etc. As a new landmark in Sapporo, it serves as a hub for vitality and interaction.Fujitec has supplied twenty-one (21) elevators and eleven (11) escalators for this building. The elevators are equipped with “EZ-SHUTTLE,” Japan’s first independently operating destination selection system, which efficiently guides passengers to their desired floors, thereby reducing congestion and improving travel efficiency.Additionally, the design integrates the car indication display with the lobby lantern, creating a stylish aesthetic that harmonizes with the office space. The escalators feature “Slim Fit,” which achieves one of the industry’s most compact designs, supporting comfortable and smooth movement in spaces with heavy public traffic.m Fit,” which achieves one of the industry’s most compact designs, supporting comfortable and smooth movement in spaces with heavy public traffic.

  • Elevator
  • Escalator
  • Office
  • Hotel
  • Commercial facility
  • Japan
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Step:600mm
  • 2020s
Building name
Urbannet Sapporo Link Tower
Location
Sapporo, Hokkaido
Owner
NTT Urban Development Corporation
Architect
KUME SEKKEI Co., Ltd.
Contractor
Taisei Corporation
Completion
2026

Specifications

Elevator Total units 21
Model Use Capacity (kg) Capacity (person) Speed (m/min) unit
PM-GL Passenger 1300 20 180 2
PM-GL Passenger 1350 20 150 5
PM-GL Passenger 1350 20 120 5
PM-GL Service 1700 26 180 1
PM-GL Service 1150 17 180 1
PM-GL Service 1600 24 120 1
Order XIOR Passenger 1000 15 105 3
Order XIOR Passenger 1000 15 60 1
Order XIOR Service 1600 24 60 1
Order XIOR Service 1500 15 60 1
Escalator Total units 11
Model Type Step width (mm) Rise (mm) Incline (degree) unit
GS-NX F 600 5750 35 2
GS-NX F 600 5000 35 2
GS-NX S 600 2150 35 2
Slimfit F 600 5750 30 3
Slimfit F 600 5200 30 2
