Hyogo Prefectural Nishinomiya General Medical Center

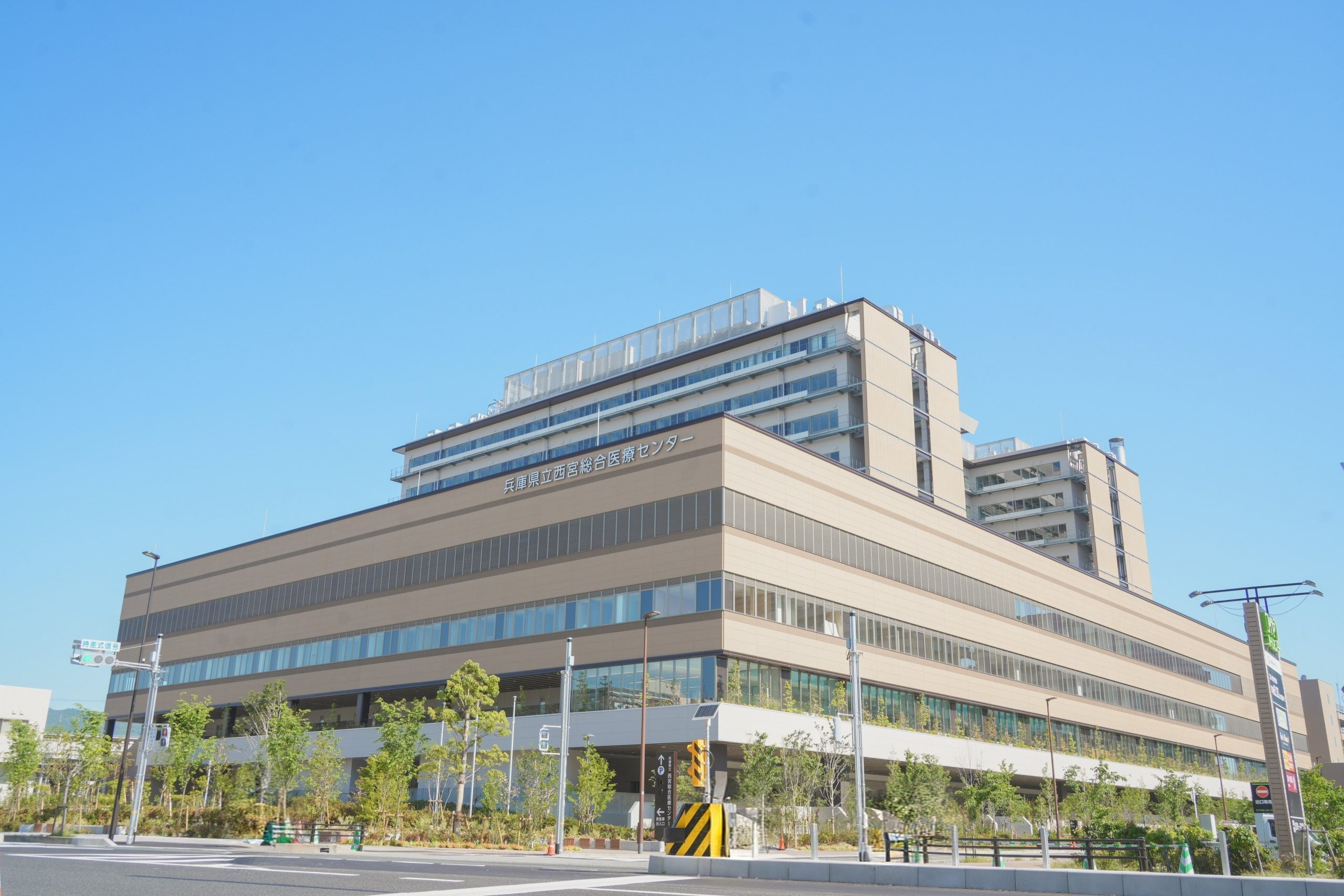

Hyogo Prefectural Nishinomiya General Medical Center is a comprehensive medical facility established in Nishinomiya City, Hyogo Prefecture, through the merger and reorganization of Hyogo Prefectural Nishinomiya Hospital and Nishinomiya Municipal Central Hospital.
Developed as a core regional hospital providing advanced acute-care and emergency medical services, it is equipped with state-of-the-art medical capabilities and a comprehensive clinical care system.

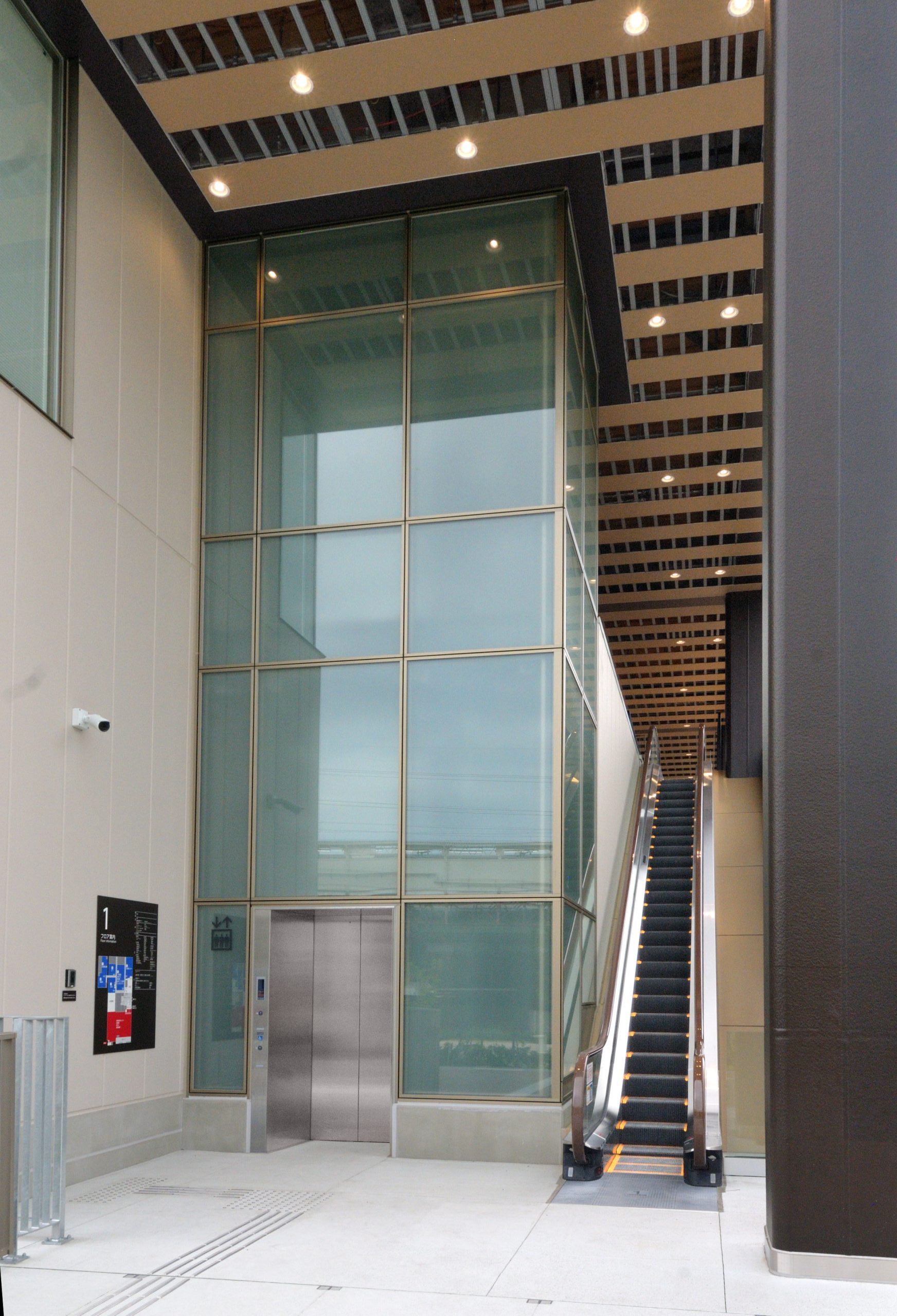

Fujitec has installed seventeen (17) elevators and three (3) escalators at this facility.

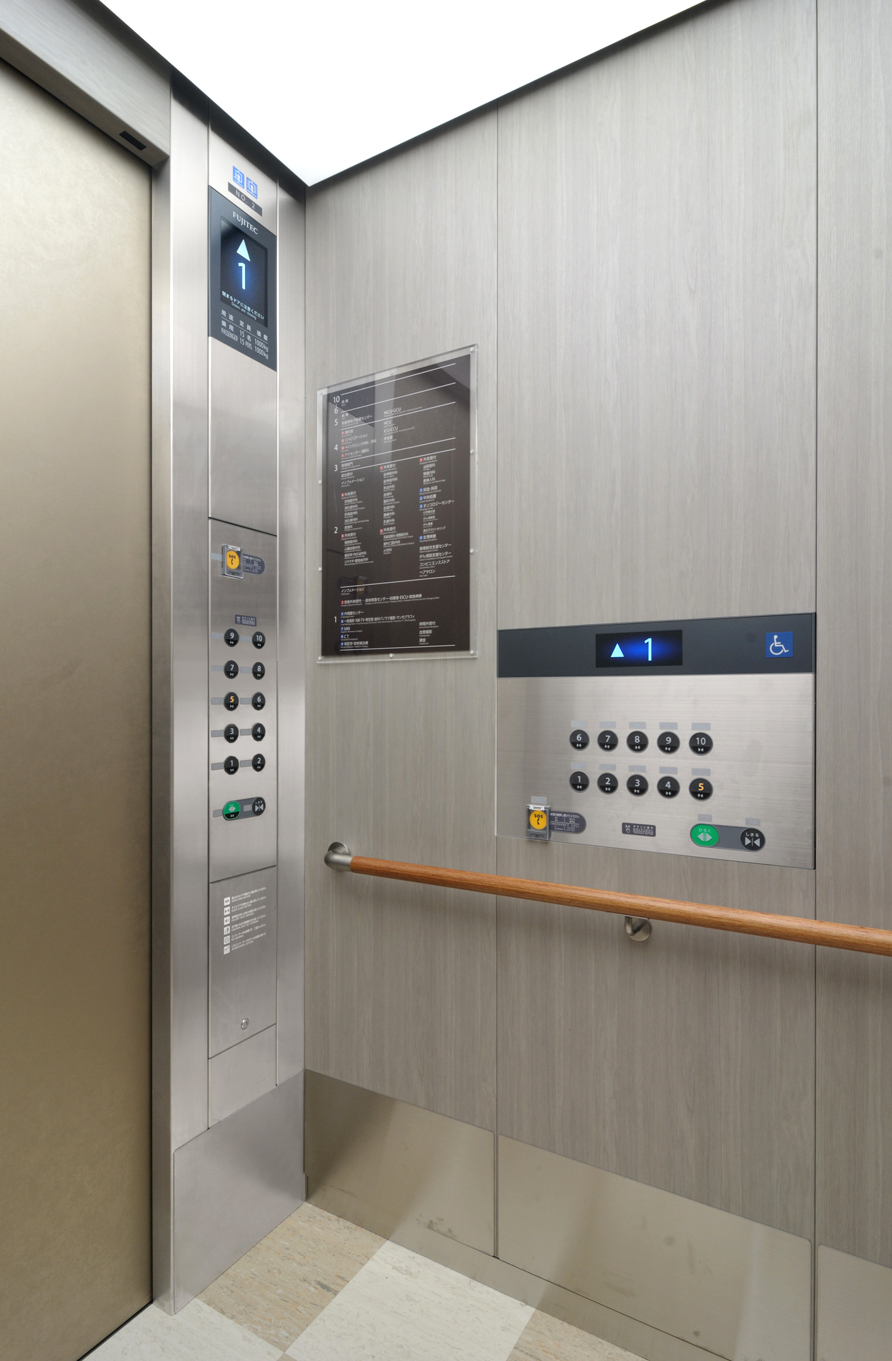

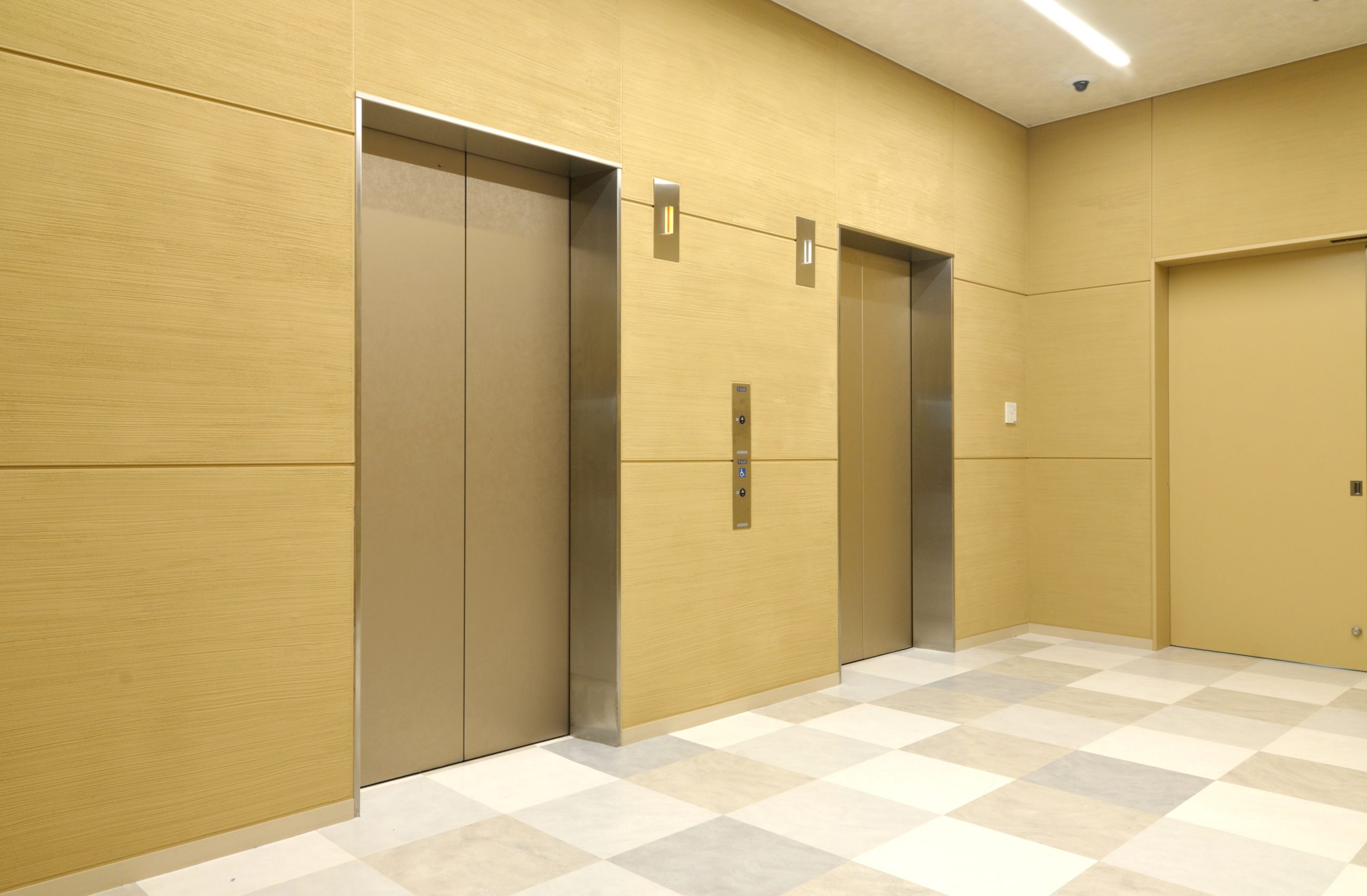

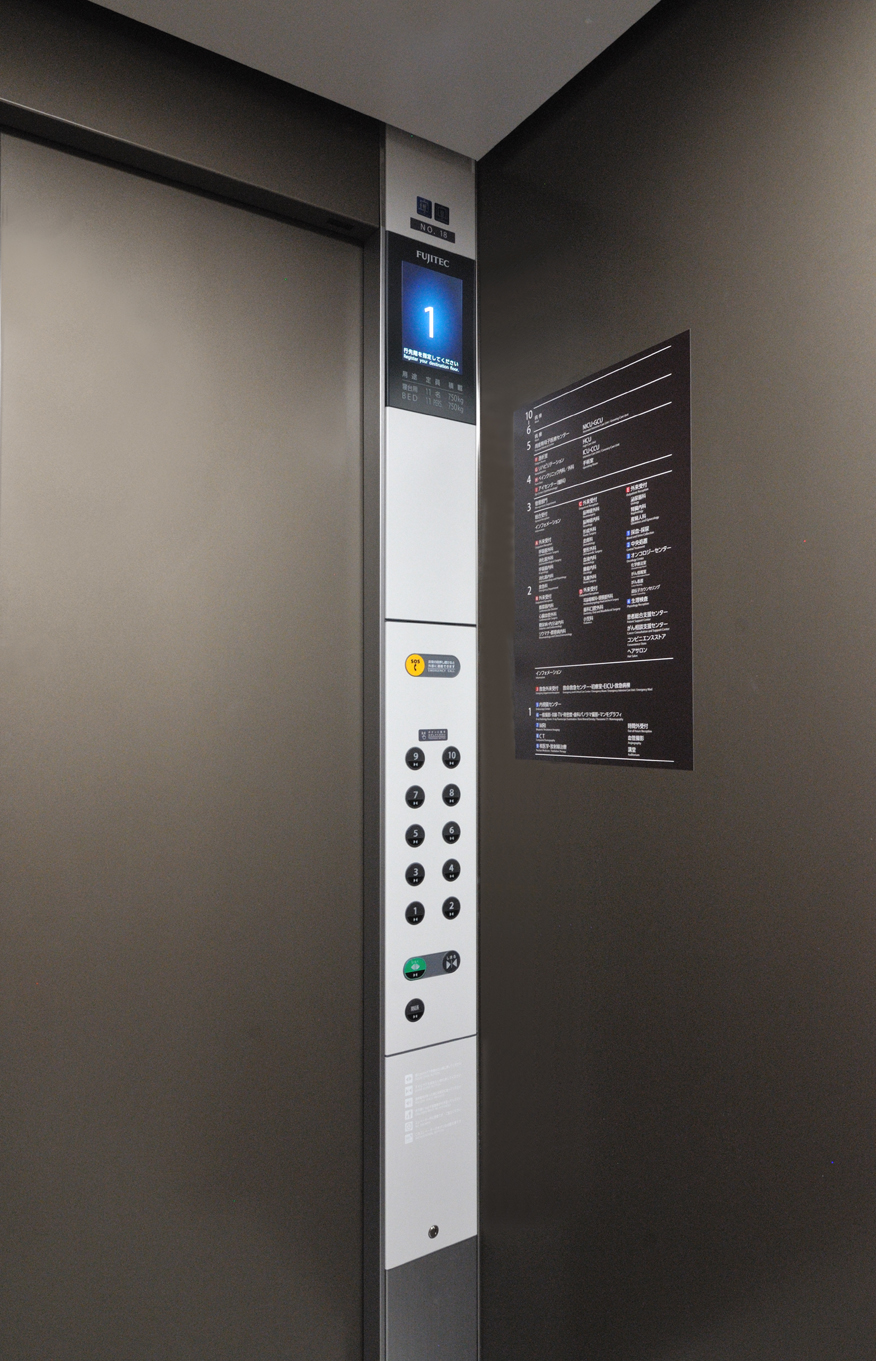

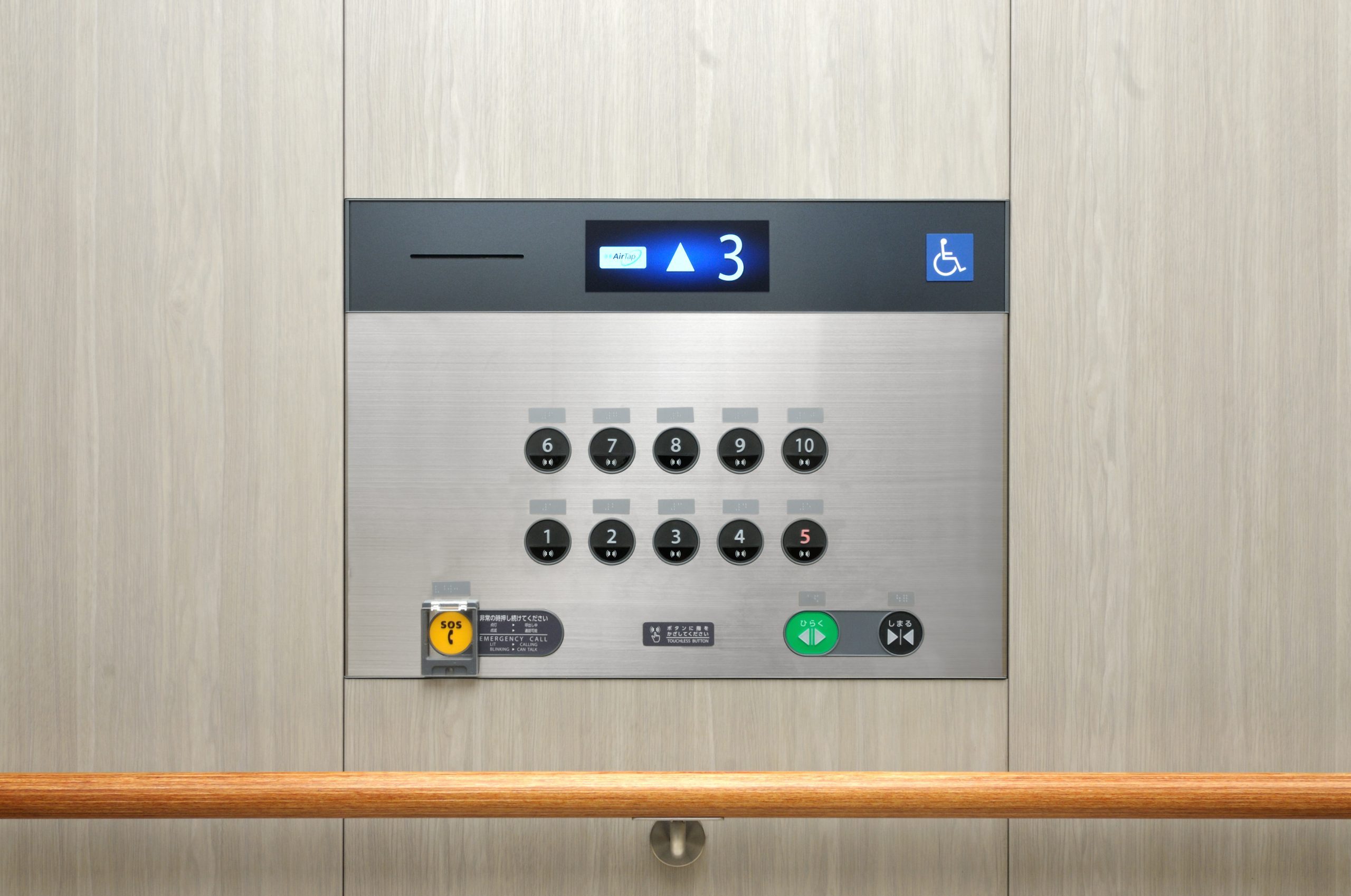

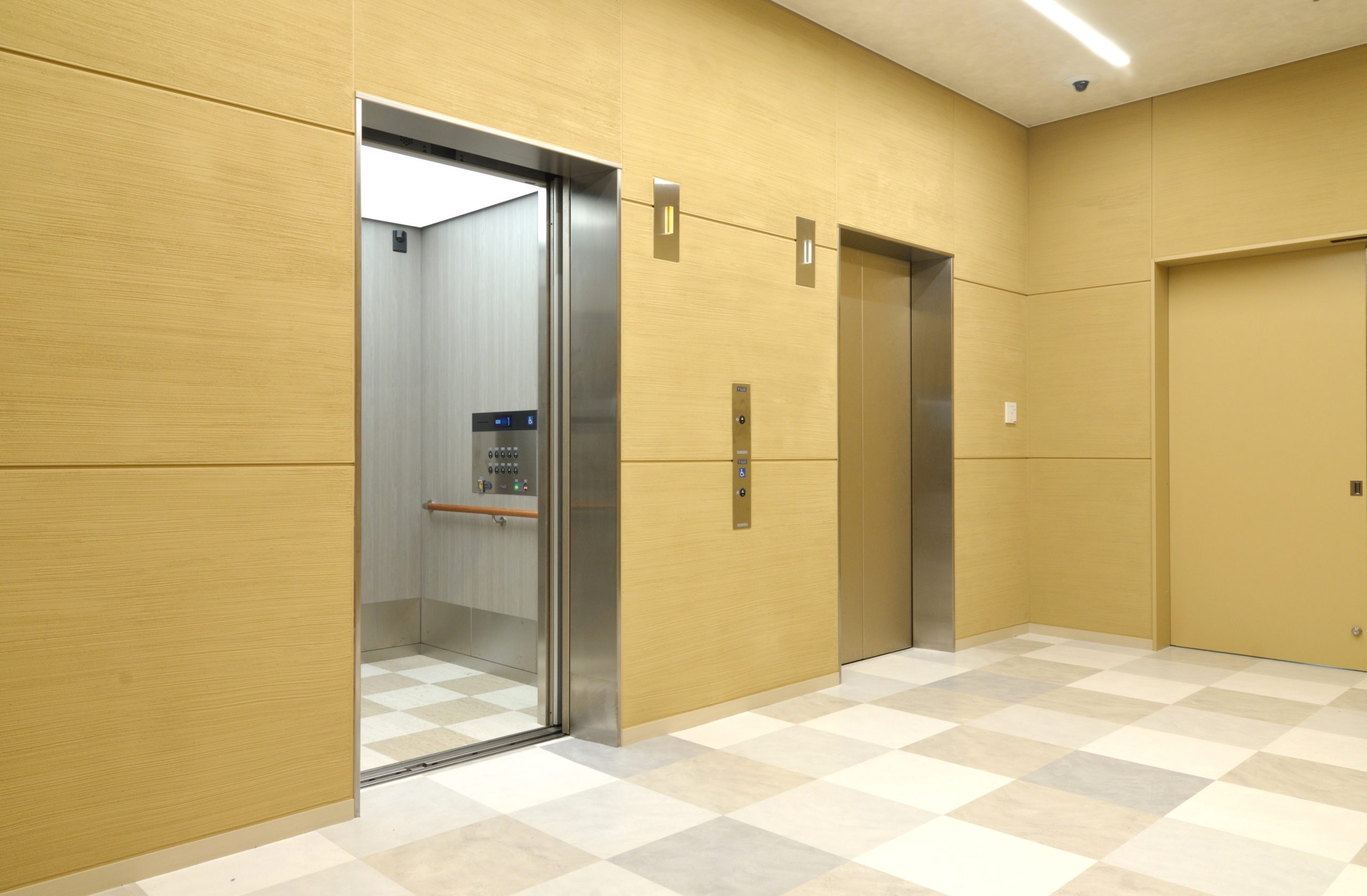

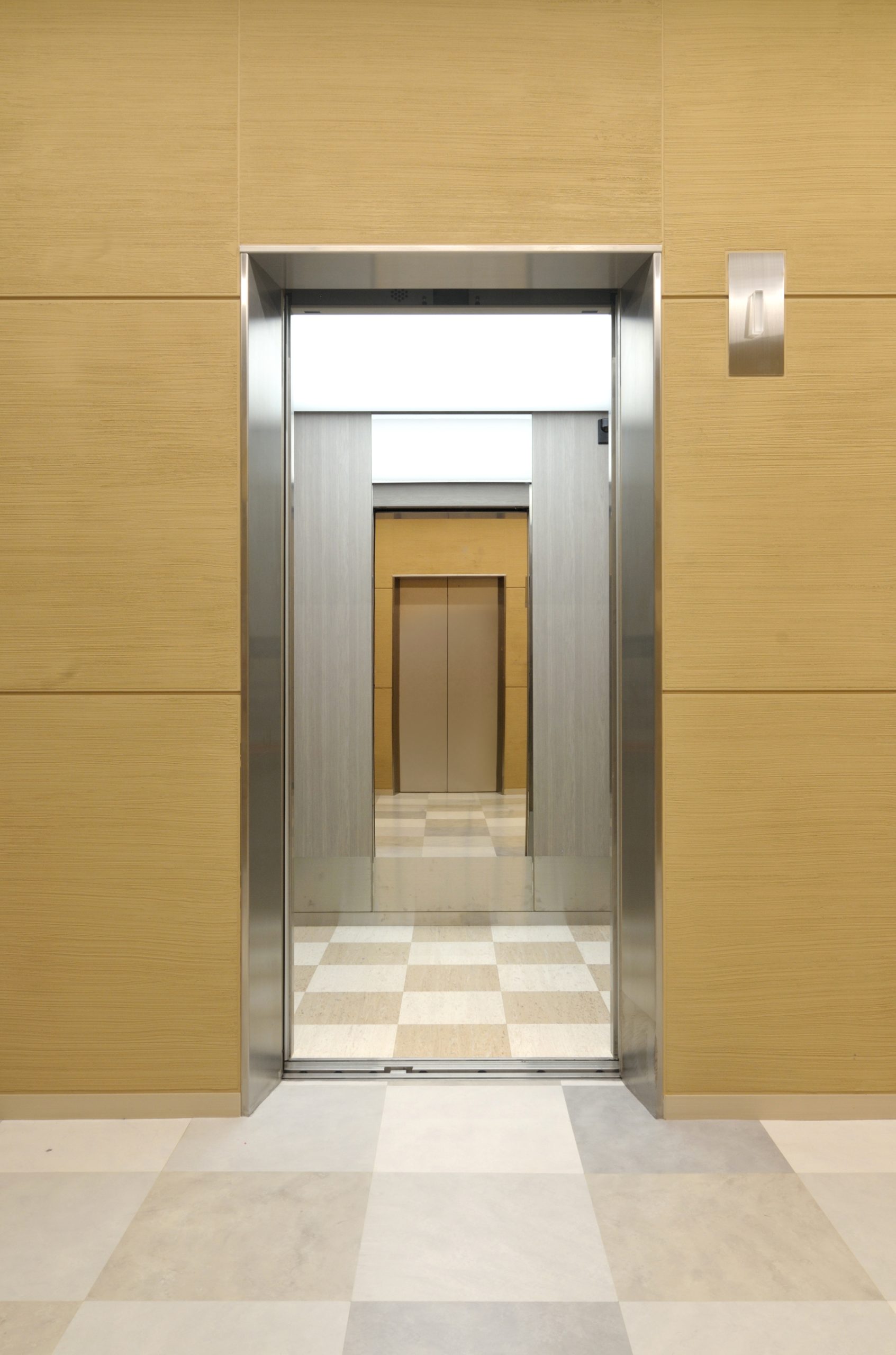

The elevators feature a wholly illuminated ceiling and wood-grain finishes, creating a clean and calming atmosphere befitting a hospital. Additionally, they are equipped with robot integration functionality that enables autonomous movement in coordination with service robots, supporting efficient transport within the hospital.

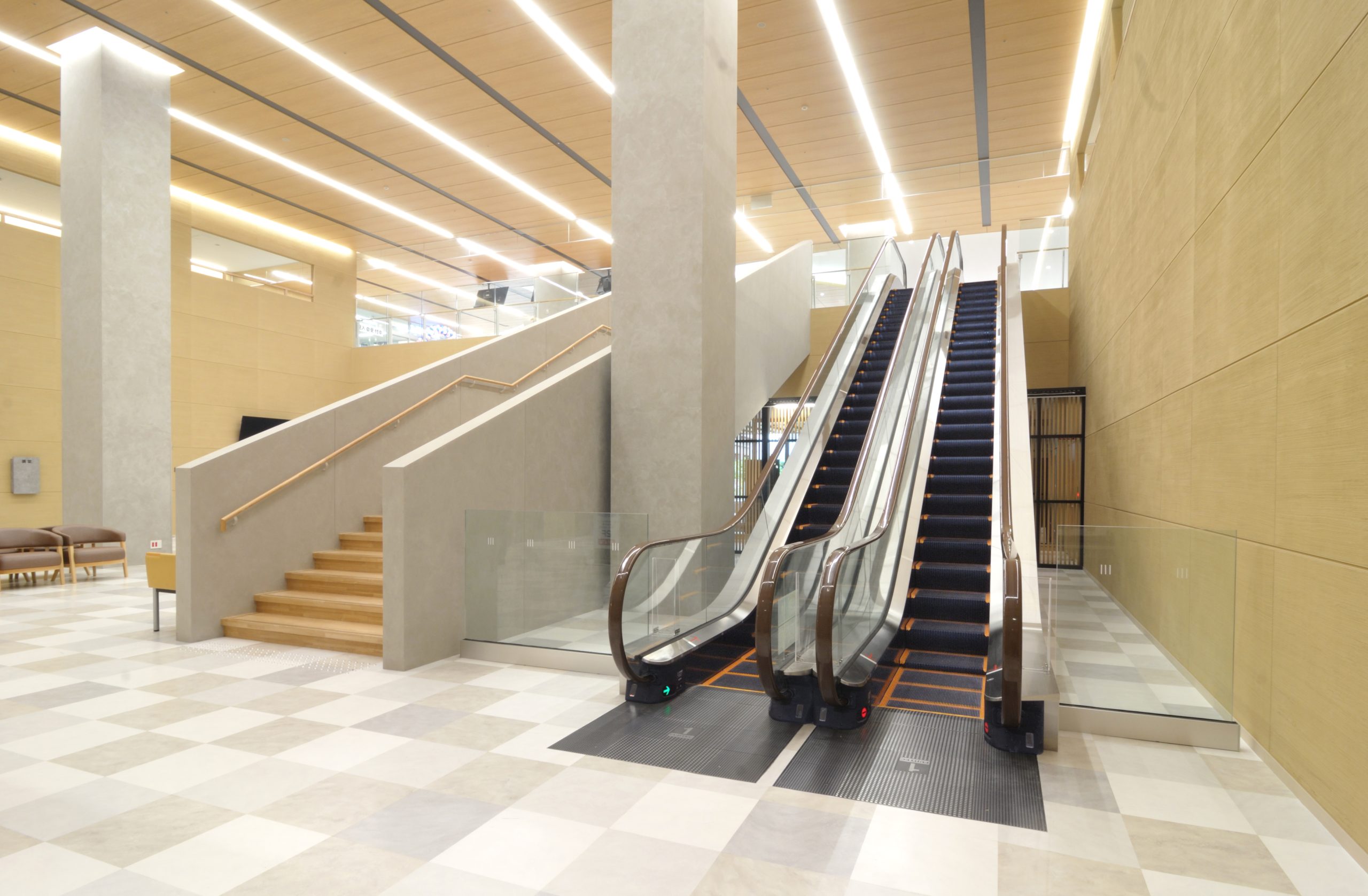

The escalators are equipped with “EverFresh,” a device that continuously disinfects the handrails during operation, contributing to an environment where users can feel safe and reassured.

  • Elevator
  • Escalator
  • Medical and Welfare facilities
  • Japan
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Step:600mm
  • 2020s
Building name
Hyogo Prefectural Nishinomiya General Medical Center
Location
Nishinomiya, Hyogo
Owner
Hyogo Prefecture
Architect
AXS SATOW INC.
Contractor
Kumagai–Arai–Takashina Joint Venture
Completion
2026

Specifications

Elevator Total units 17
Model Use Capacity (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
PM-GL Service 2650 40 60 10 1
Order XIOR Service 1150 17 105 10 3
Order XIOR Service 1150 17 90 11 1
Order XIOR Service 1150 17 60 5 1
Order XIOR Service 2000 30 105 11 1
XIOR Passenger 1000 15 60 10 4
XIOR Passenger 1000 15 45 2 1
XIOR Passenger 900 13 45 2 1
XIOR Passenger 750 11 45 2 2
XIOR Service 750 11 105 10 2
Escalator Total units 3
Model Type Step width (mm) Rise (mm) Incline (degree) unit
GS-NX S 600 5200 - 1
GS-NX S 600 5000 - 2
