The Chinese Medicine Hospital of Hong Kong

The Chinese Medicine Hospital of Hong Kong, located in Tseung Kwan O, Hong Kong, is the city’s first hospital specializing in traditional Chinese medicine. Developed as a comprehensive traditional Chinese medicine campus that integrates medical care, research, and education, it features hospital facilities offering outpatient services, rehabilitation, and inpatient beds, as well as the Government Chinese Medicines Testing Institute (GCMTI). It serves as a hub for promoting the integration of traditional Chinese medicine and modern medicine and contributing to the health and well-being of the local community.

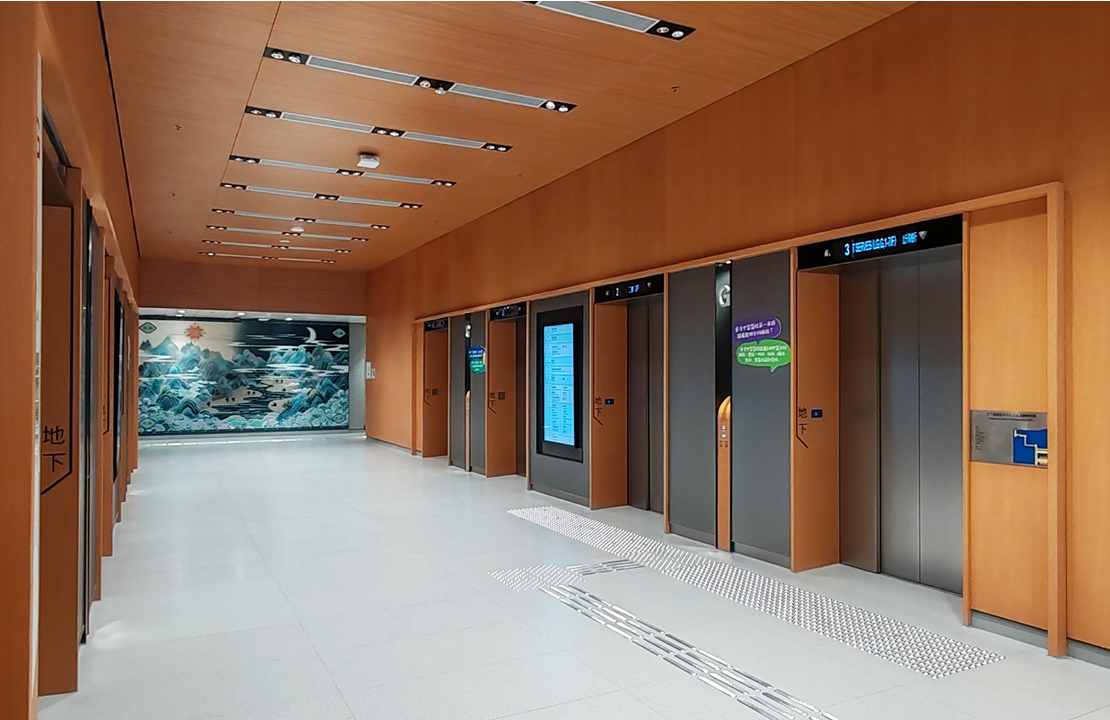

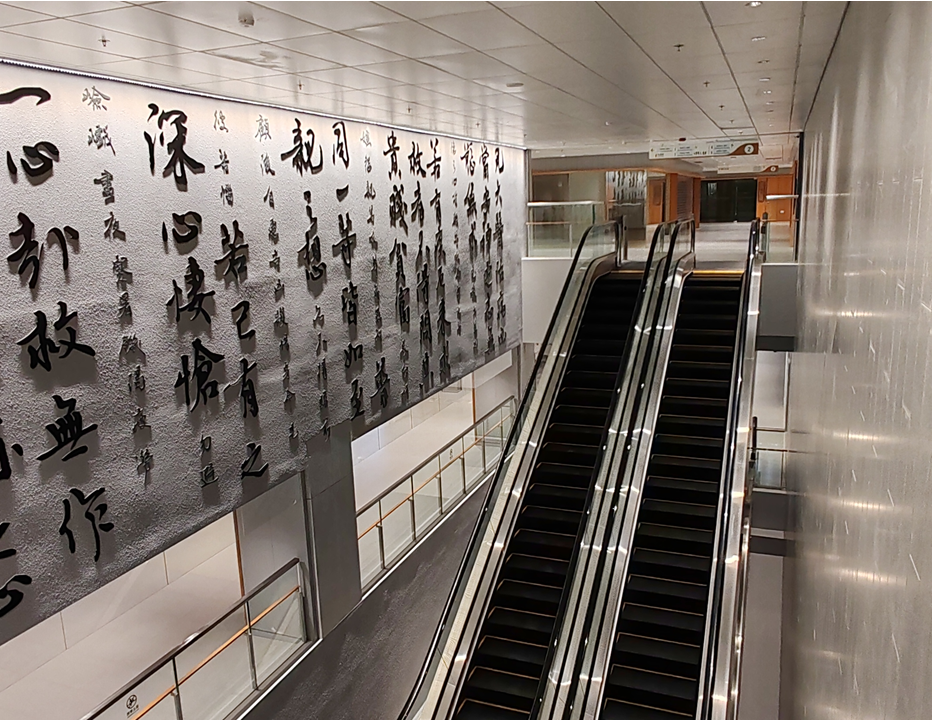

Fujitec has supplied forty-four (44) elevators and eight (8) escalators to this facility. The elevators in the main building are equipped with the “EZ-SHUTTLE” destination floor registration system, which efficiently guides passengers to their desired floors, thereby improving overall circulation efficiency within the facility. Additionally, elevator cars feature a wood-grain finish, creating a warm and calm atmosphere befitting a hospital.










  • Elevator
  • Escalator
  • Medical and Welfare facilities
  • Asia
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Step:1000mm
  • 2020s
Building name
The Chinese Medicine Hospital of Hong Kong
Location
Tseung Kwan O, Hong Kong
Owner
The Hospital Authority
Architect
Wong & Ouyang (HK) Ltd HKSAR Architectural Services Department
Contractor
China State Construction Engineering (Hong Kong) Limited
Completion
2025

Specifications

Elevator Total units 44
Model Use Capacity (kg) Capacity (person) Speed (m/min) unit
MRL Passenger 1250 16 105 3
MRL Passenger 1250 16 60 2
MRL Passenger 1350 18 60 1
MRL Passenger 2000 26 105 2
MRL Service 3000 33 60 2
MR Passenger 2000 26 150 8
MR Passenger 2500 33 150 8
MR Service 2500 33 150 6
MR Service 4350 58 150 1
MR Passenger 680 9 105 6
MR Service 2500 33 150 5
Escalator Total units 8
Model Type Step width (mm) Rise (mm) Incline (degree) unit
GS-8000 F 1000 6500 30 6
GS-8000 F 1000 4500 30 2
