HARAJUKU QUEST

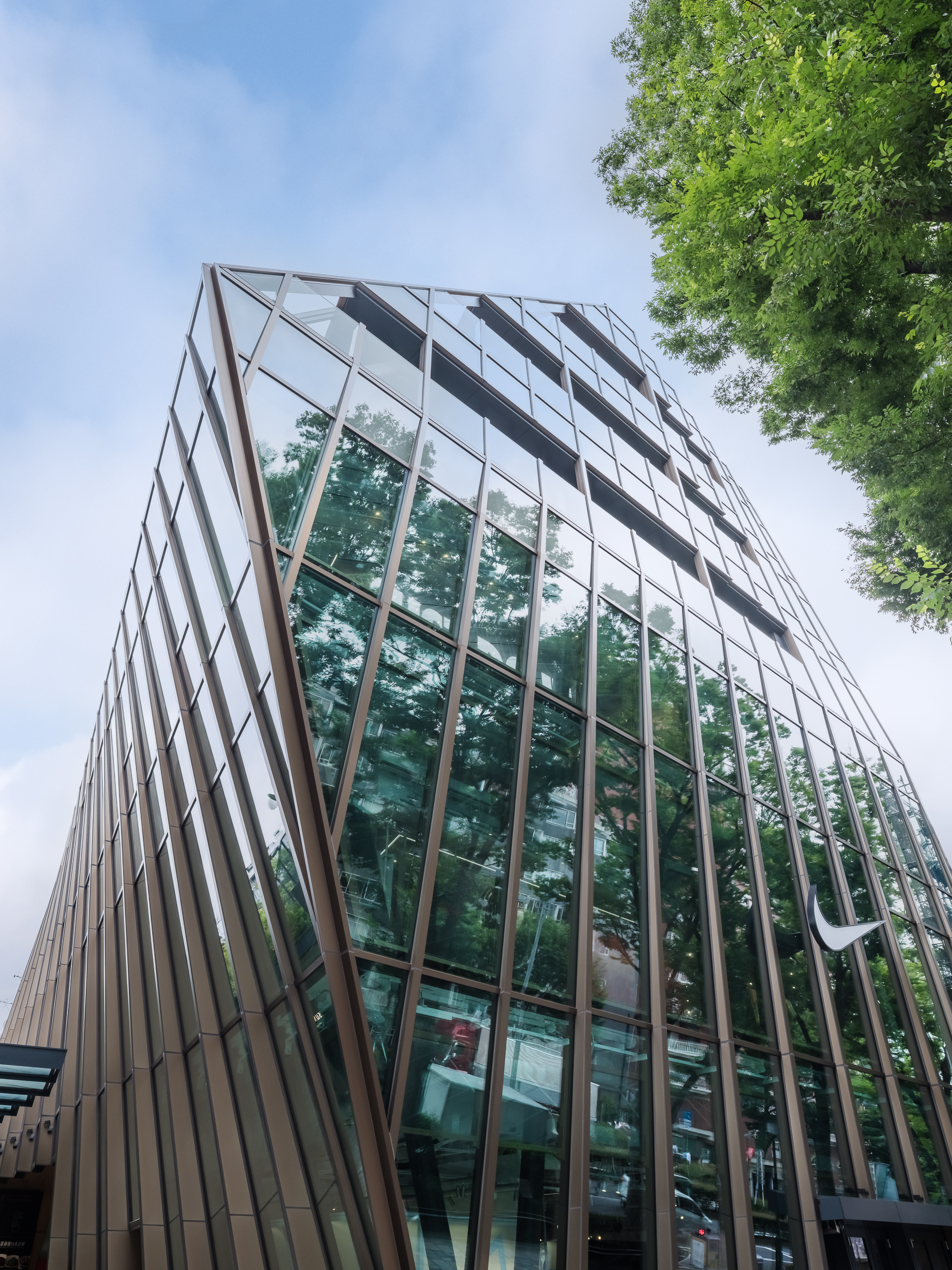

Harajuku Quest is a mixed-use commercial complex located in the Harajuku and Omotesando area. Relaunched as a facility that bridges the distinct characters of Harajuku and Omotesando, it features retail shops, restaurants, service outlets, and offices. It is characterized by an iconic exterior that harmonizes with the lively atmosphere of Omotesando and with passageways designed to enhance the flow of pedestrians through the area.

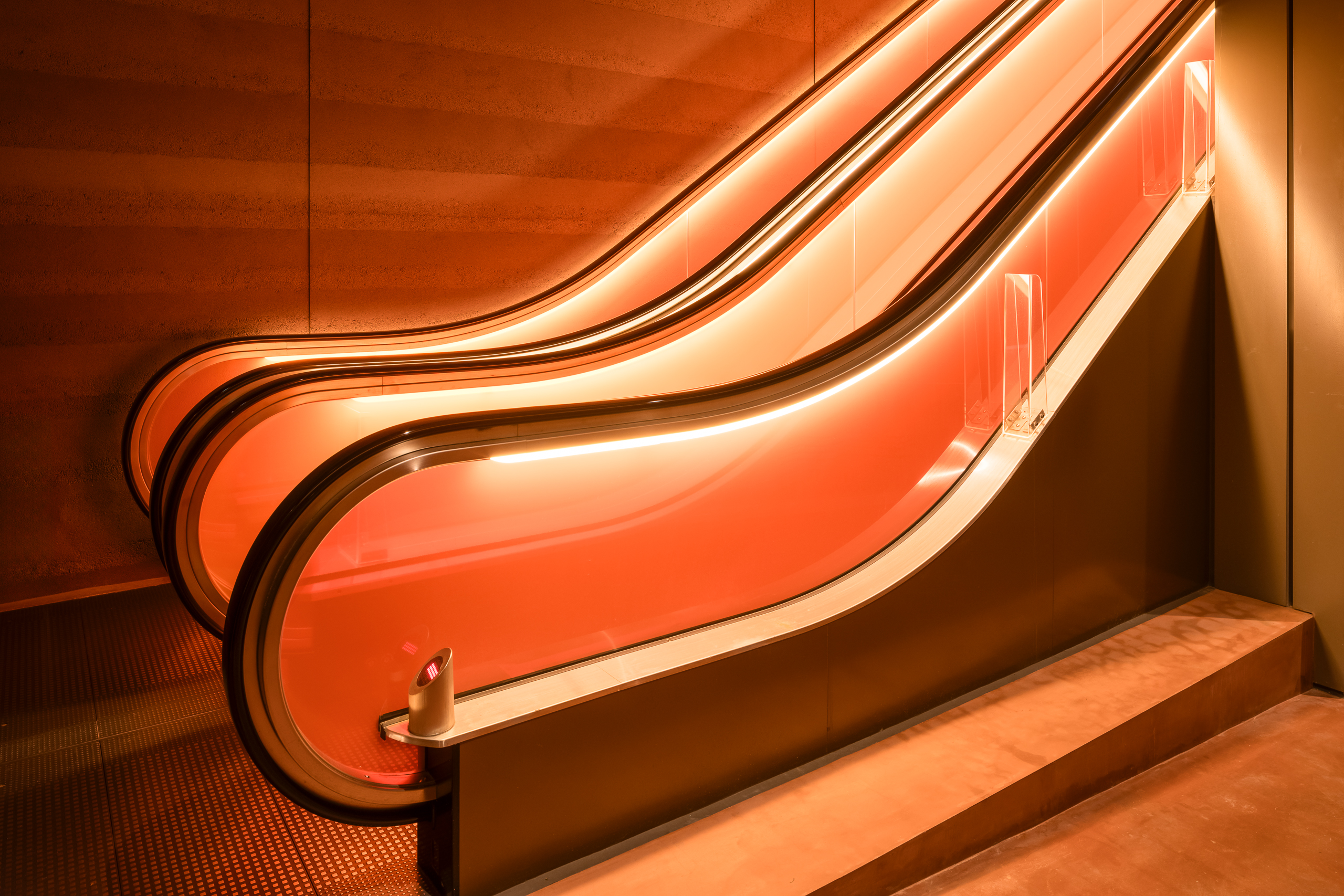

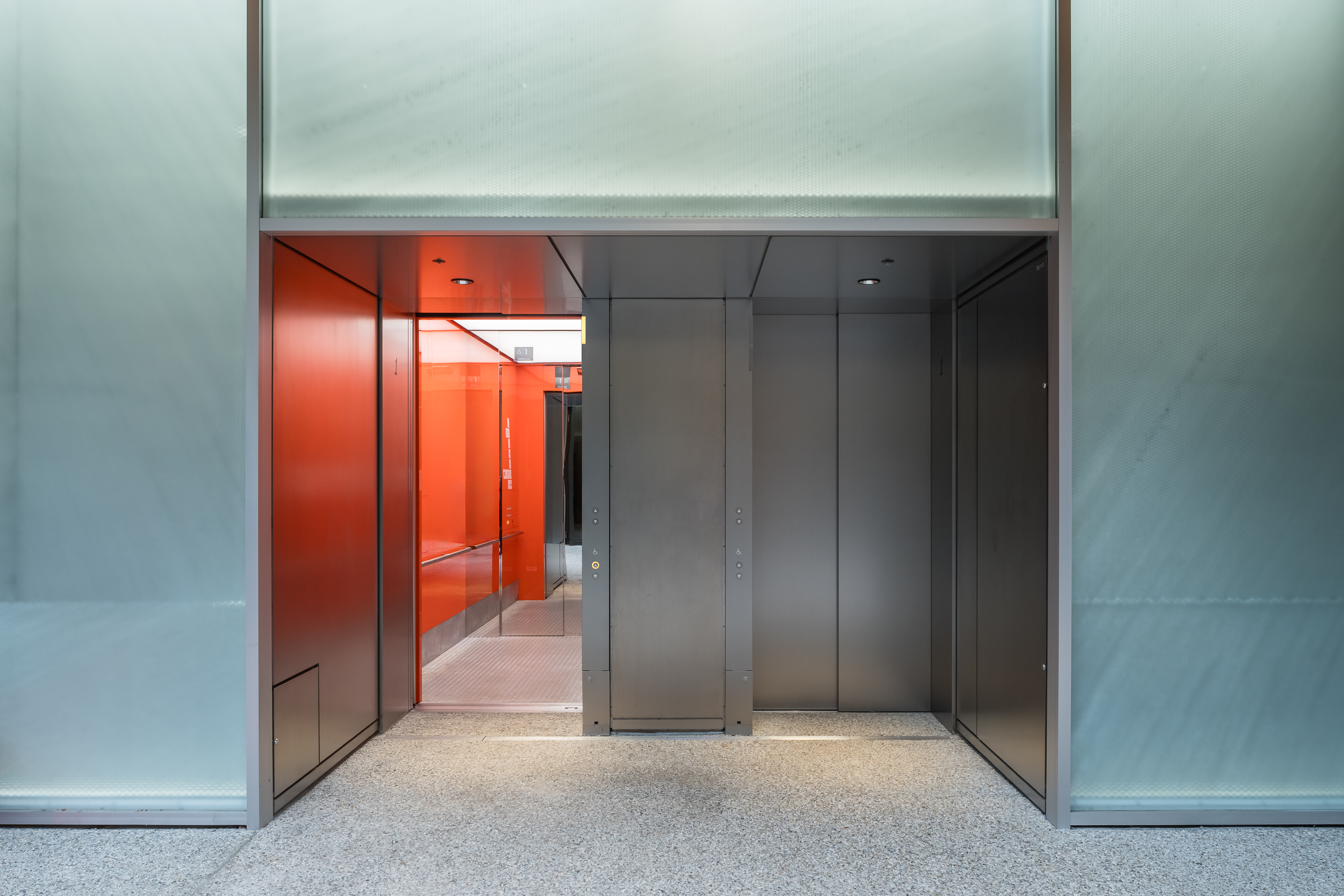

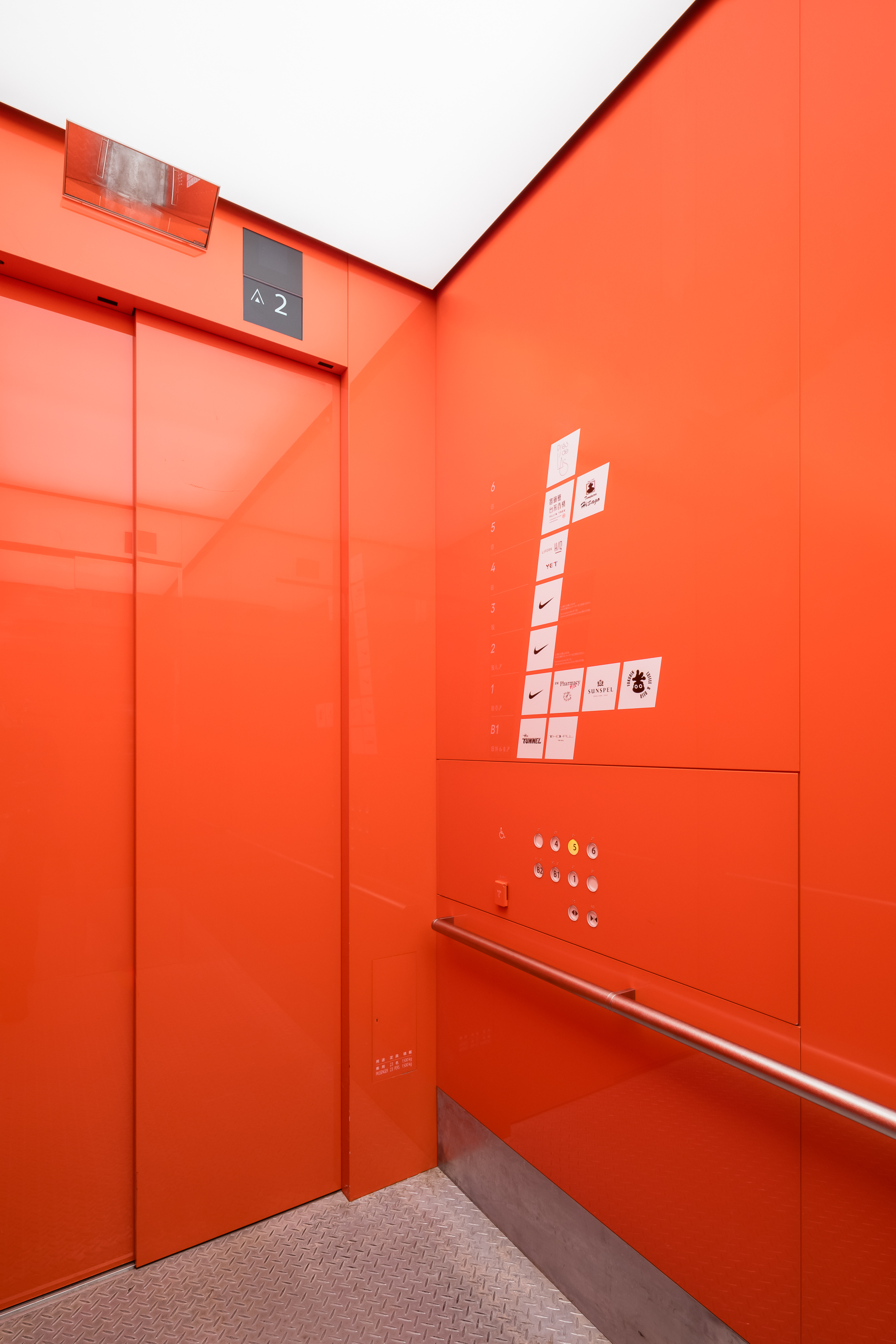

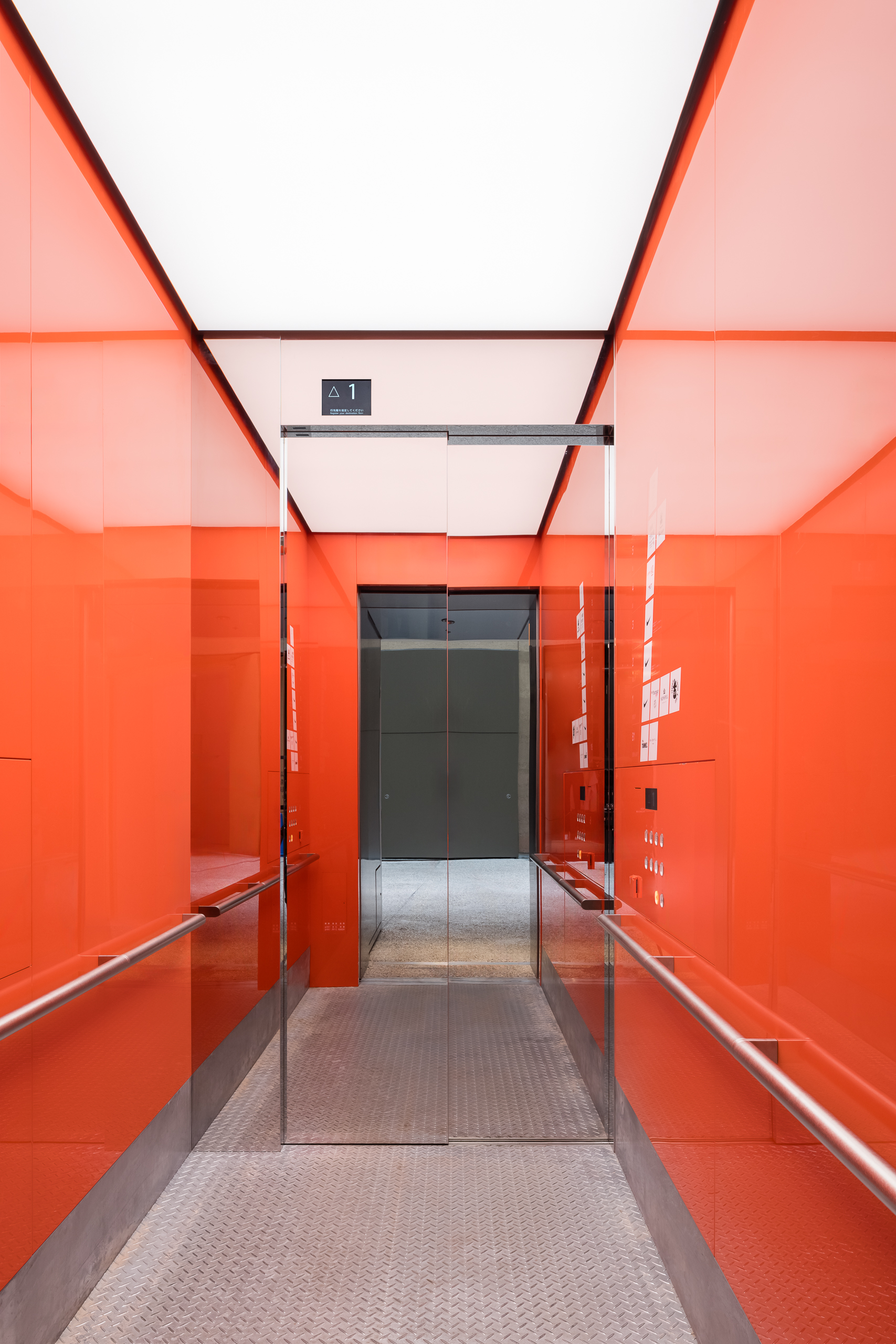

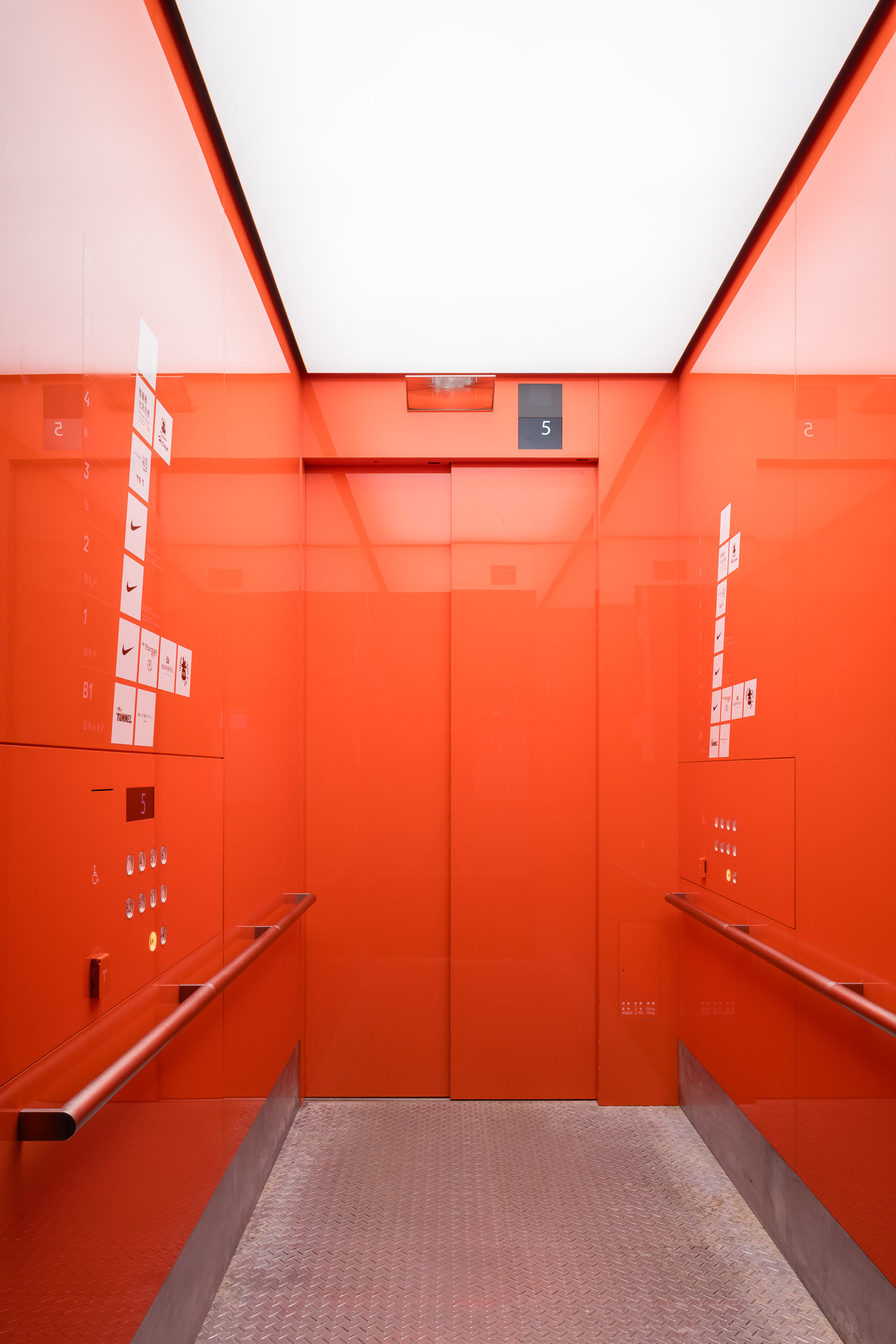

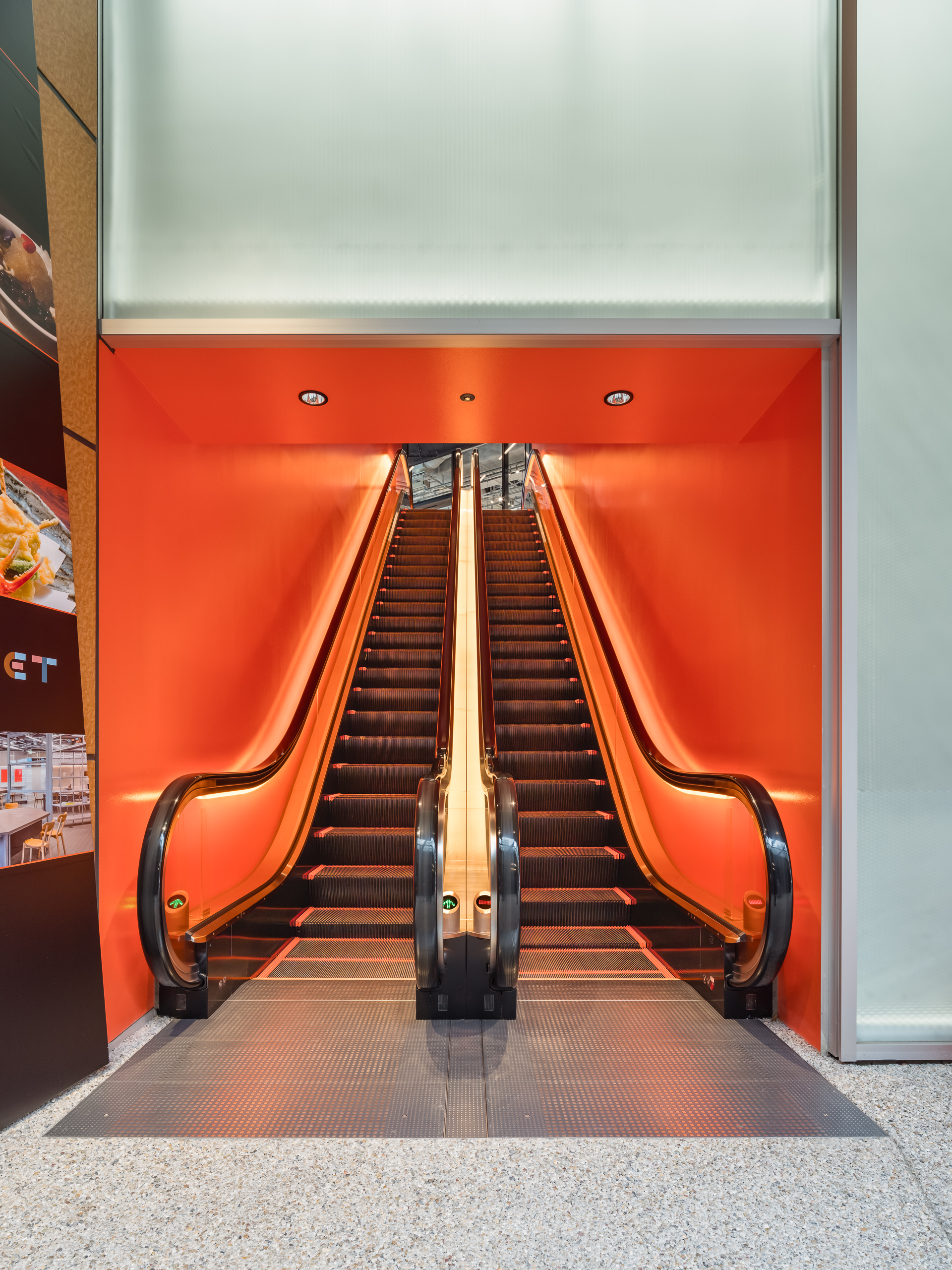

Fujitec supplied four (4) elevators and four (4) escalators for this facility. The elevators feature a design that incorporates accents of orange and employ cars equipped with doors at the front and rear sides and with mirror-finished panels to create a sophisticated appearance. Additionally, the escalators feature orange glass panels, creating an energetic transportation space that harmonizes with the facility’s overall design concept.





  • Elevator
  • Escalator
  • Office
  • Commercial facility
  • Japan
  • Lantern
  • Balustrade with light
  • Step:800mm
  • Outdoor
  • 2020s
Building name
HARAJUKU QUEST
Location
Harajyuku, Tokyo
Owner
NTT Urban Development Corporation/H-QUEST TMK (Tokutei Mokuteki Kaisha)
Architect
NTT Facilities, Inc.
Contractor
Kumagai Gumi Co., Ltd.
Completion
2025

Specifications

Elevator Total units 4
Model Use Capacity (kg) Capacity (person) Speed (m/min) unit
Order XIOR Passenger 1500 23 105 1
Order XIOR Passenger 1300 20 105 1
Order XIOR Service 1400 21 60 1
Order XIOR Service 1300 20 60 1
Escalator Total units 4
Model Type Step width (mm) Rise (mm) Incline (degree) unit
Slimfit F 800 5120 35 2
Slimfit F 800 4550 35 2
