Bobath Hospital

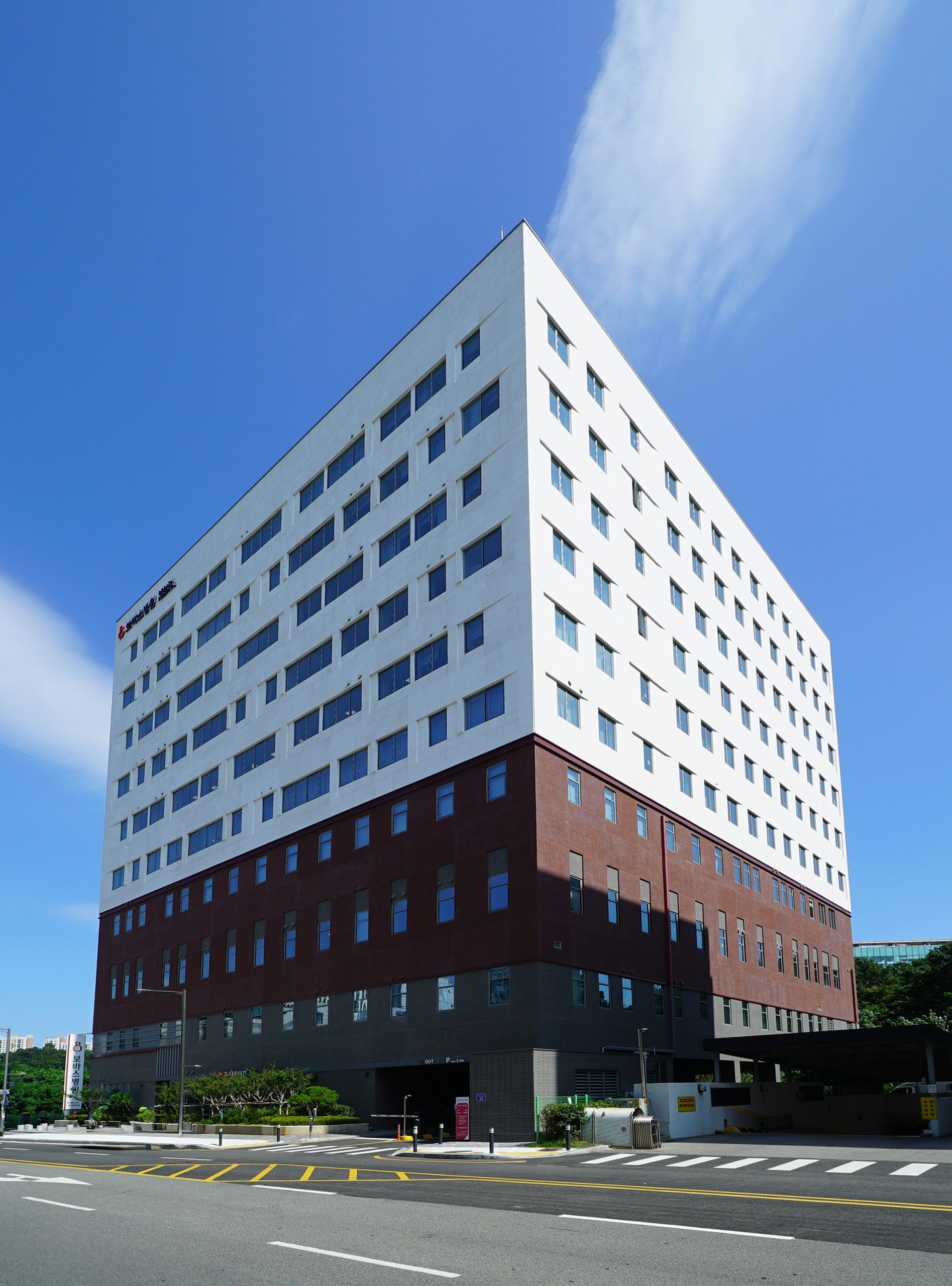

Bobath Memorial Hospital is located in Hanam City, adjacent to Seoul. Developed and constructed by Lotte Construction, a major South Korean construction firm, the hospital officially possesses authorization from the Bobath Foundation in the UK to use its name. The facility is designed to provide a comfortable medical environment that prioritizes the well-being of patients and visitors.

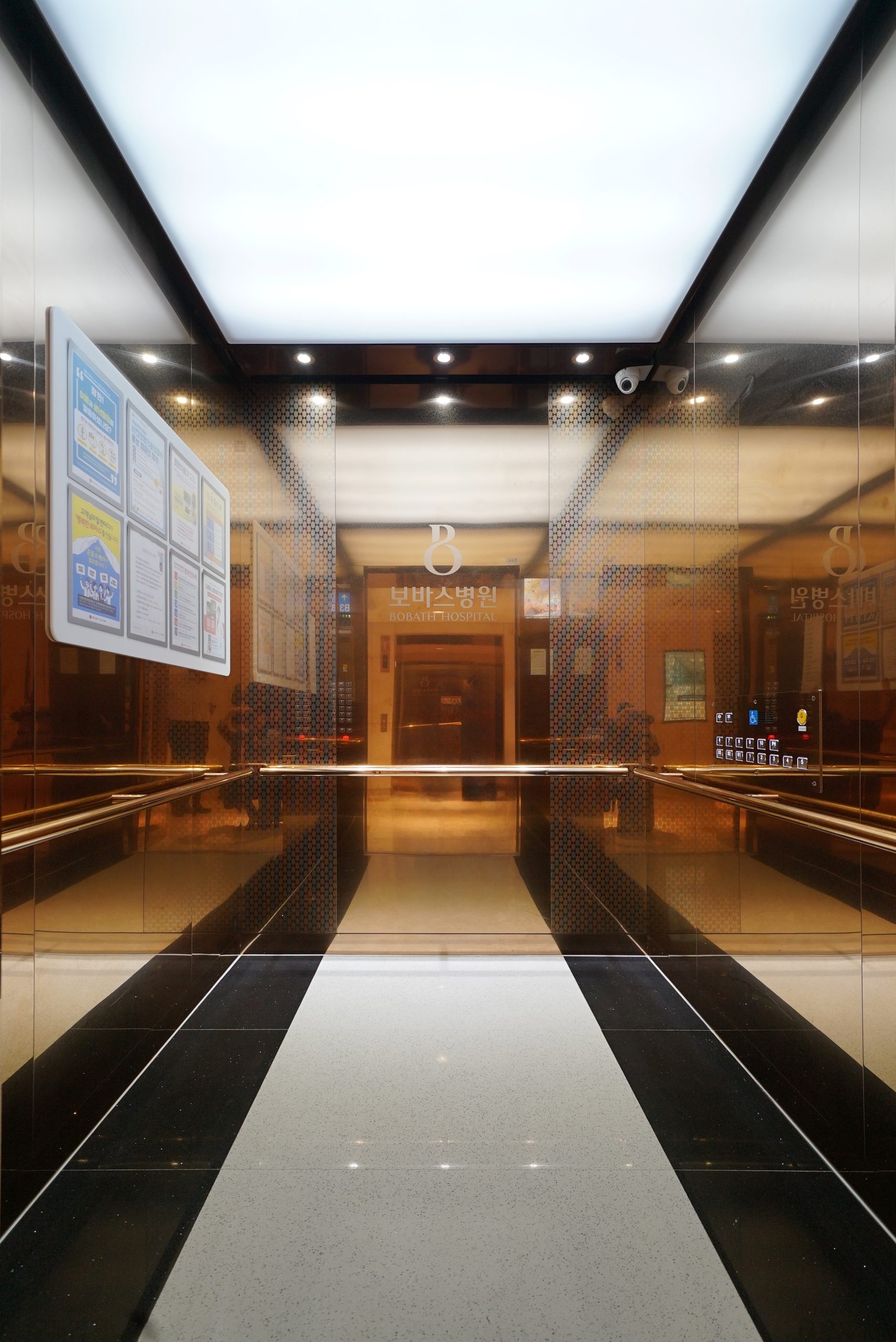

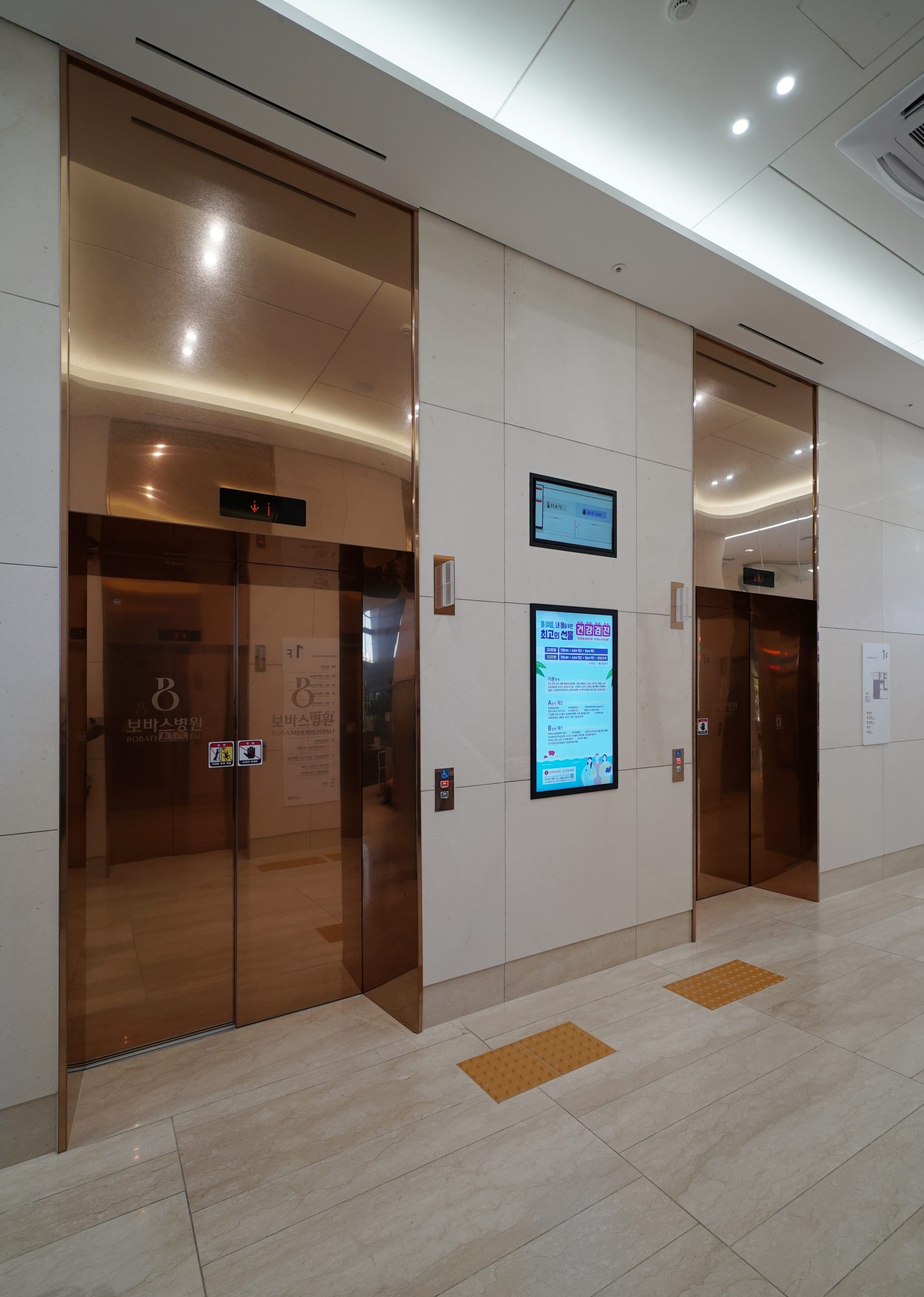

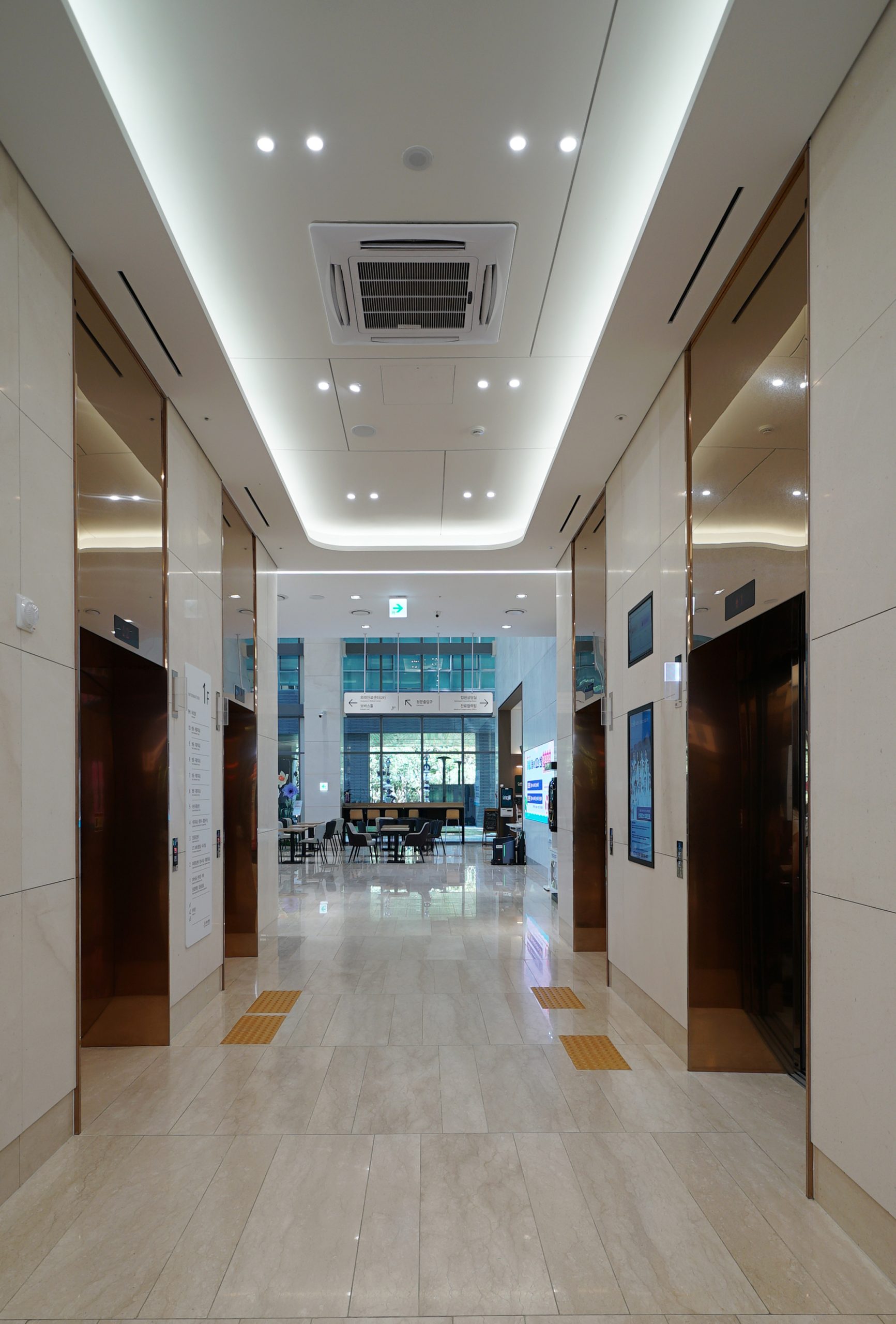

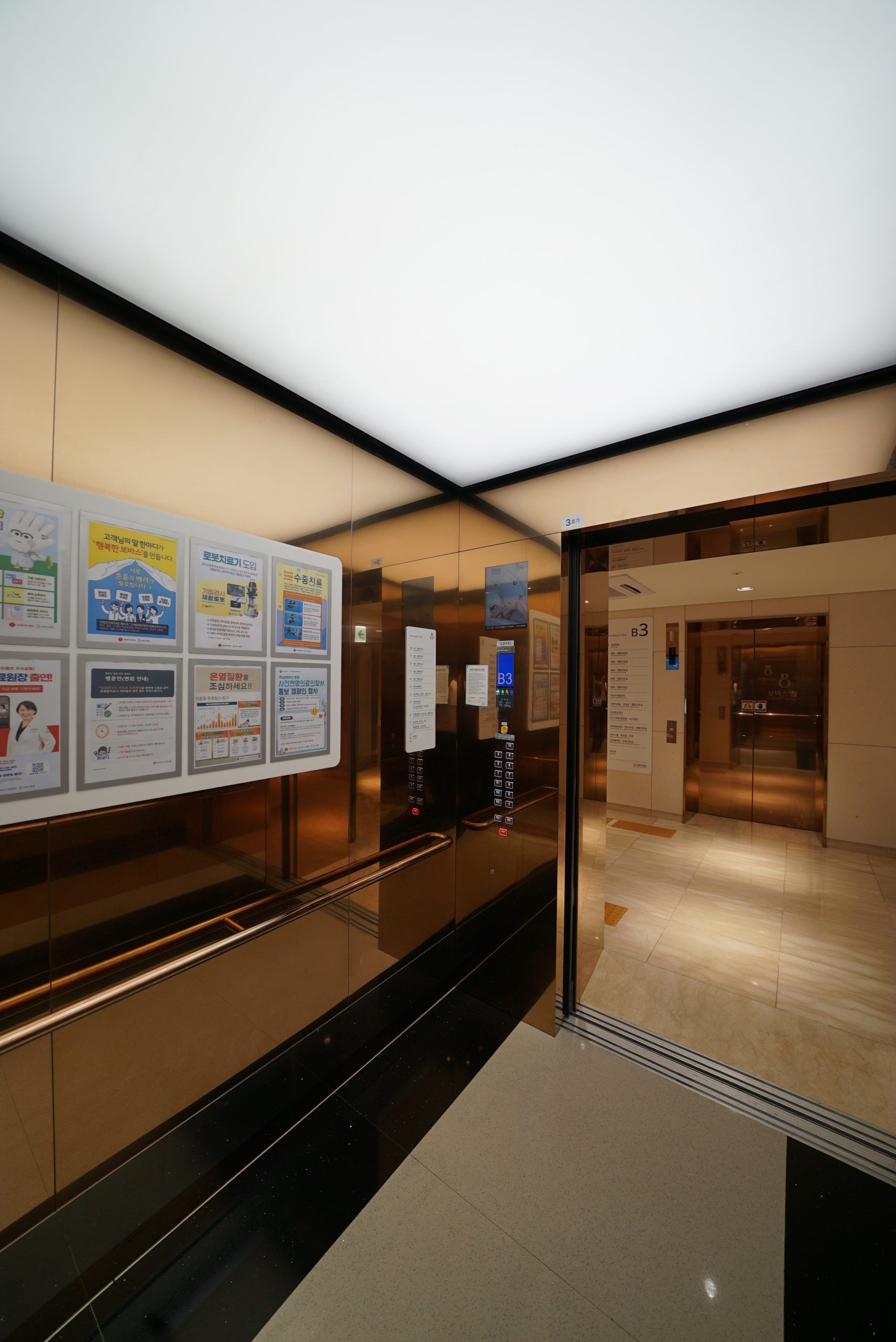

Fujitec has supplied nine (9) elevators and two (2) escalators to this facility. The elevators feature an elegant design centered on gold-colored stainless steel, creating a clean and serene atmosphere befitting a medical facility.

  • Elevator
  • Escalator
  • Medical and Welfare facilities
  • Asia
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Step:600mm
  • 2020s
Building name
Bobath Hospital
Location
SEOUL, KOREA
Owner
Lotte Medical Foundation
Architect
KUNWON Architects, Planners & Engineers
Contractor
LOTTE E&C
Completion
2024

Specifications

Elevator Total units 9
Model Use Capacity (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
ZEXIA Passenger 1350 18 105 14 2
ZEXIA Passenger 2000 26 105 13 2
ZEXIA Passenger 1600 21 105 13 1
ZEXIA Passenger 750 10 105 13 1
ZEXIA Passenger 1200 16 105 13 1
REXIA Passenger 750 10 60 5 1
Dumbwaiter Freight 70 - 25 2 1

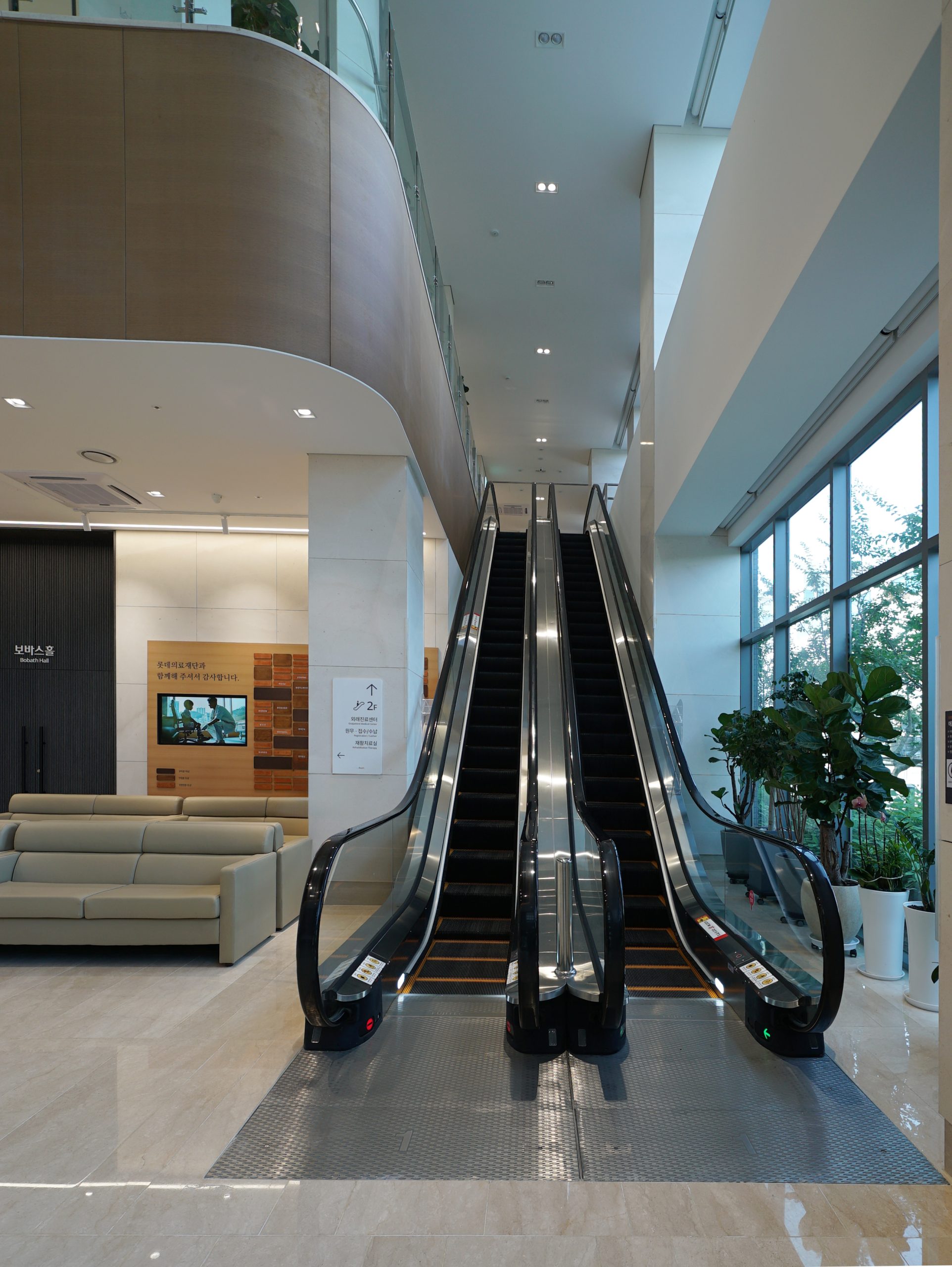

Escalator Total units 2
Model Type Step width (mm) Rise (mm) Incline (degree) unit
GS8000-NX S 600 5700 35 2
