JP TOWER OSAKA/KITTE OSAKA

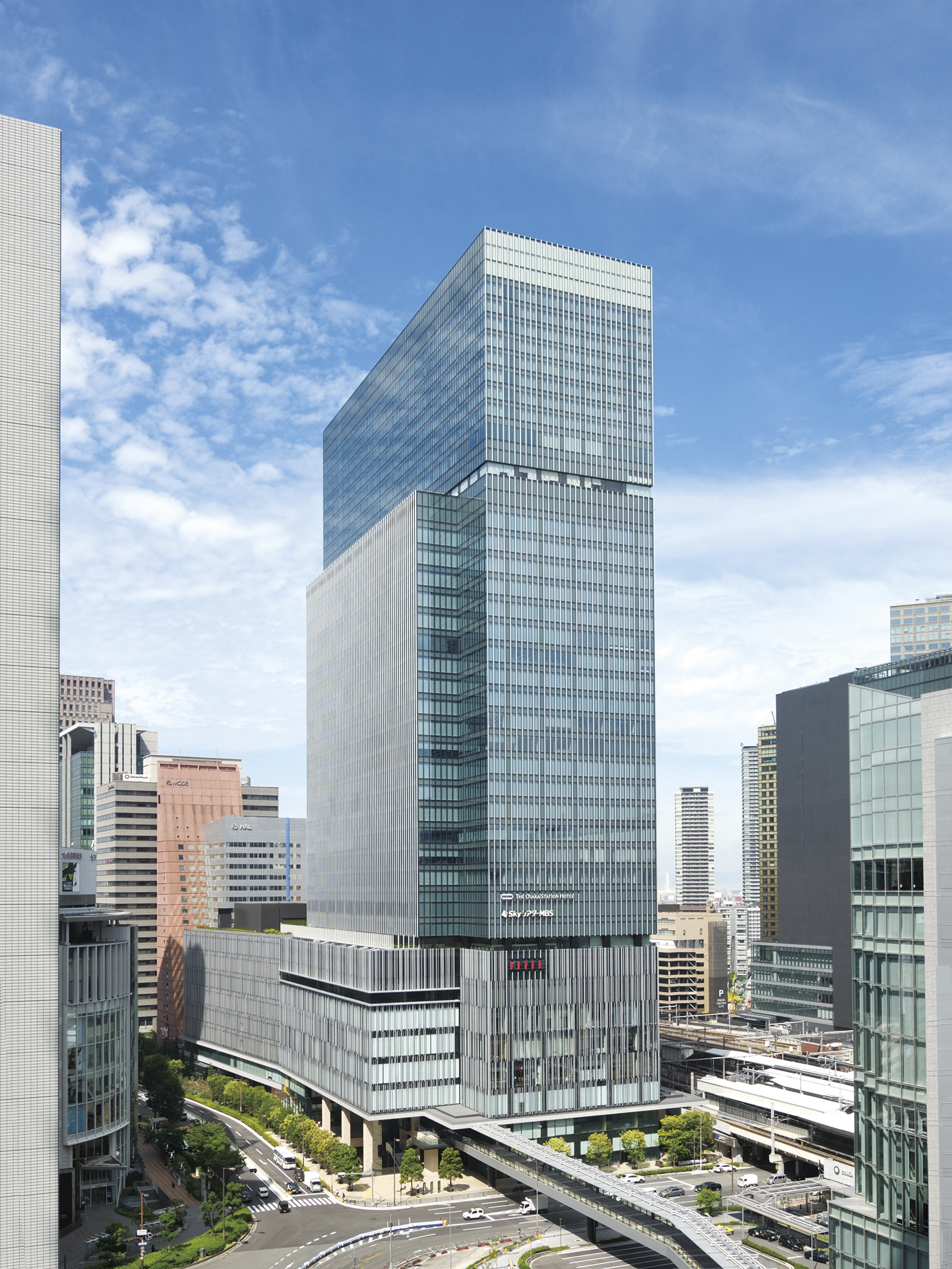

Built on the site of the former Osaka Central Post Office in the Umeda district of Osaka City, JP TOWER OSAKA is a large-scale complex-facility building with commercial facilities, office space, theaters, a famous hotel, etc.
A total of seventy-six (76) units of Fujitec products comprised of thirty-eight (38) elevators and thirty-eight (38) escalators have been installed in this multi-use building connected to JR Osaka Station, the largest train terminal in western Japan.

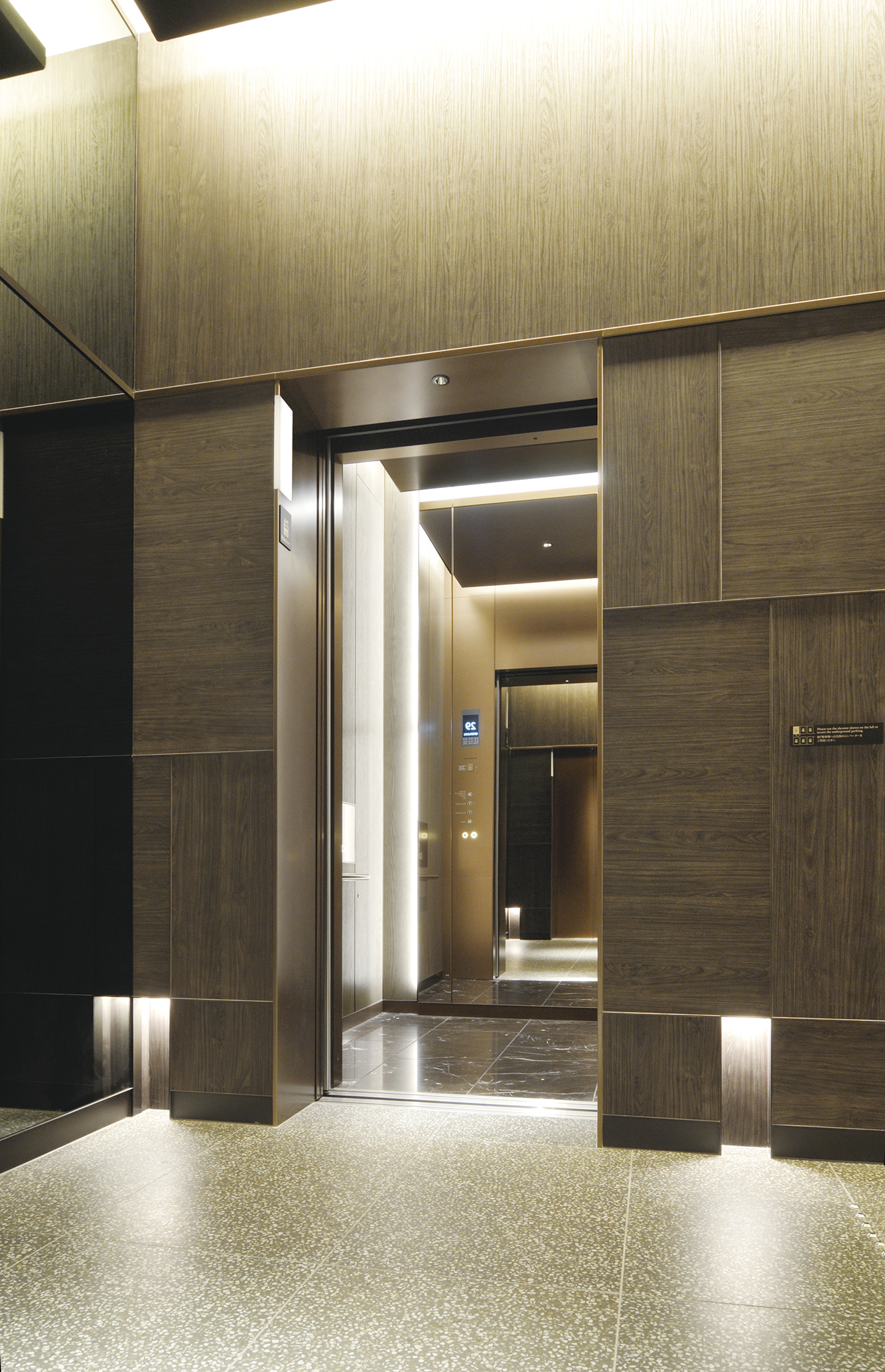

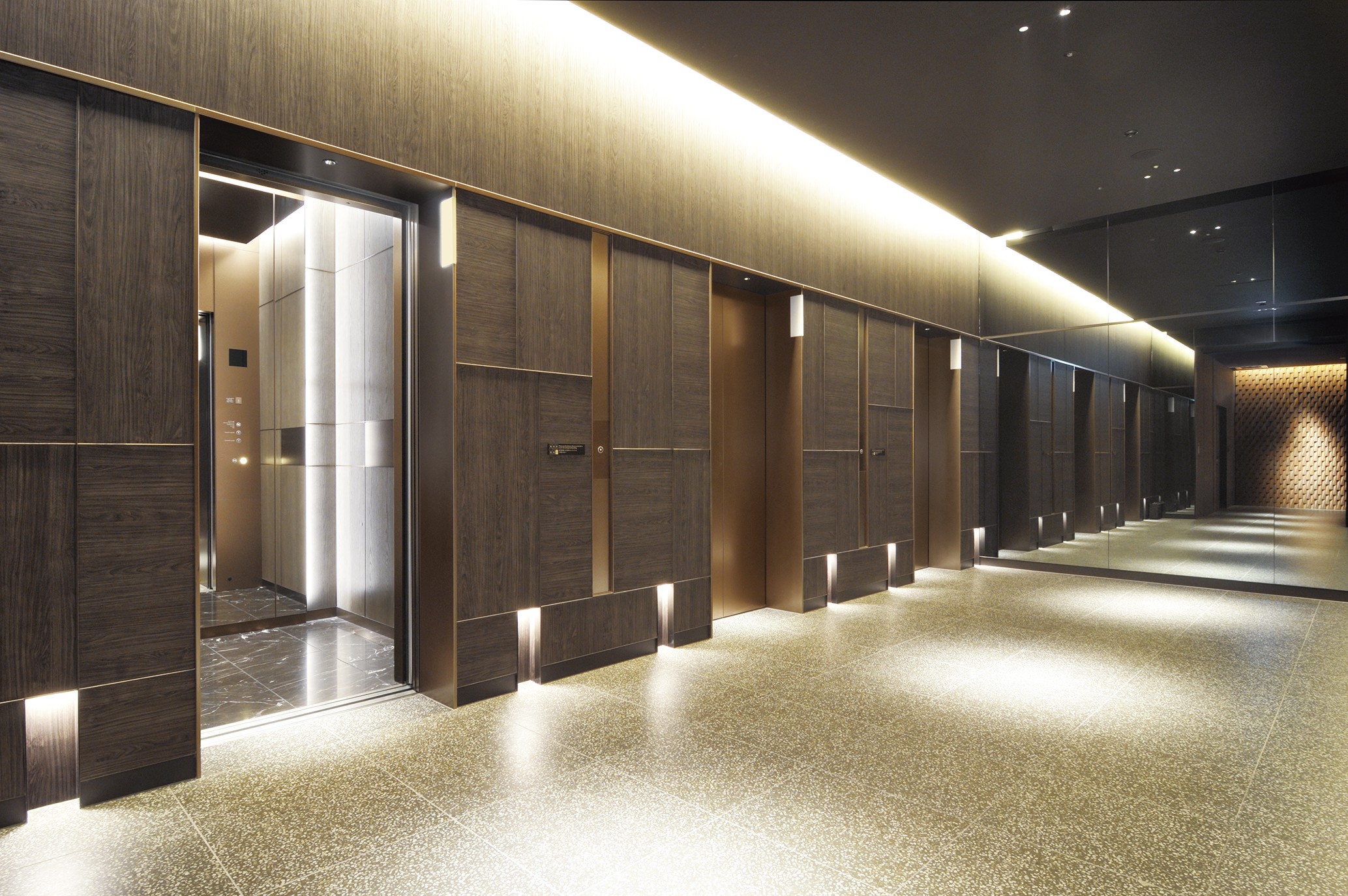

For the elevators in THE OSAKA STATION HOTEL, Autograph Collection, the interior of each elevator car is equipped with LED line lights, and its rear wall adopts a large mirror. This car's luxurious design makes users feel that the interior of each elevator car is more spacious. In addition, the material of the floor of each elevator car is matched with that of the elevator landing floors.
KITTE Osaka, the commercial facility of JP Tower Osaka, has a four-story atrium that was relocated and preserved from part of the former Osaka Central Post Office.The tented shops that surround the atrium space create the space for people to discover the attractions of various places in Japan, such as Japan's unique and good things and the cuisine cultures that exist in many regional areas in Japan.

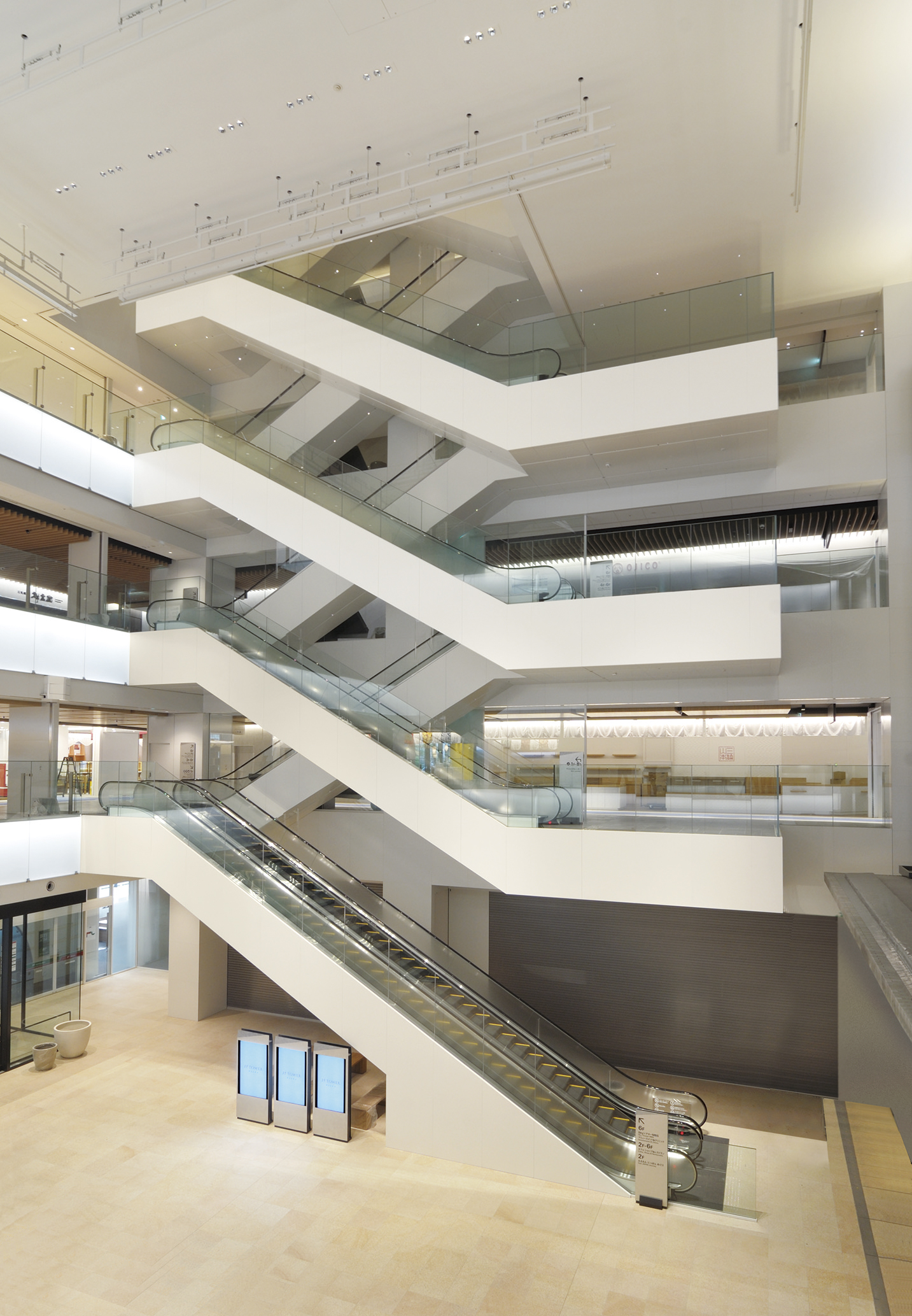

In this KITTY OSAKA, Fujitec's stylish escalators with glass side panels support the comfortable movement of people.

  • Elevator
  • Escalator
  • Office
  • Commercial facility
  • Japan
  • Lantern
  • Capacity:over 1150kg
  • Speed:over 150m/min
  • Step:1000mm
  • 2020s
Building name
JP TOWER OSAKA/KITTE OSAKA
Location
Osaka Prefecture
Owner
Japan Post Co., Ltd., West Japan Railway Company, Osaka Terminal Building Co., Ltd., JTB Corporation.
Architect
Nikken Sekkei Ltd.
Contractor
Umeda 3-chome Project (tentative name) Construction Work Joint Venture
Completion
2024

Specifications

Elevator Total units 38
Model Use Capacity (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
PM-GL Passenger 1350 20 210 7 1
PM-GL Passenger 1350 20 210 6 5
PM-GL Passenger 1350 20 210 10 6
PM-GL Service 2000 30 210 42 1
PM-GL Service 2000 30 210 41 1
PM-GL Service 1350 20 210 17 2
PM-GL Service 1150 17 210 41 1
Order XIOR Passenger 1550 23 105 4 1
Order XIOR Passenger 1350 20 105 4 1
Order XIOR Passenger 1600 24 90 8 2
Order XIOR Passenger 1600 24 90 7 4
Order XIOR Passenger 1000 15 60 6 1
Order XIOR Passenger 1000 15 60 3 1
Order XIOR Service 2000 30 90 12 1
Order XIOR Service 1600 24 90 8 5
Order XIOR Service 1600 24 60 3 1
Order XIOR Service 1600 24 60 2 2
XIOR Passenger 1000 15 90 3 1
XIOR Service 750 11 60 5 1
Escalator Total units 38
Model Type Step width (mm) Rise (mm) Incline (degree) unit
GS-NX S 1000 7000 30 6
GS-NX S 1000 5500 30 2
GS-NX S 1000 5200 30 24
GS-NX S 1000 5000 30 4
Slimfit S 1000 5000 30 2
