GRAND GREEN OSAKA

Grand Green Osaka is a complex premises with an office area, a hotel area, a core-function facility, a commercial facility, an urban park, and a residential area in the land of ninety thousand (90,000) square area located on the northern side of the JR (Japan Railways) Osaka station.
In these complex premises, Fujitec has installed a ground total of forty-seven (47) units: ten (10) escalators in the north annex, a total of sixteen (16) units comprised of elevators and escalators in the park tower of the southern annex, and a total of twenty-one (21) units inclusive of elevators and escalators in the gate tower of the southern annex.

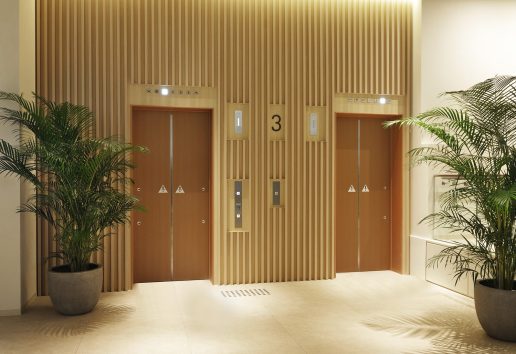

The interior room of the office elevators installed in the said gate tower is finished with glossy paint so as to bring a very stylish space and support the smart movement of office workers.

  • Elevator
  • Escalator
  • Office
  • Hotel
  • Commercial facility
  • Asia
  • Capacity:over 1150kg
  • Speed:over 150m/min
  • Step:600mm
  • Step:800mm
  • Step:1000mm
  • 2020s
Building name
GRAND GREEN OSAKA
Address
Osaka City, Osaka Prefecture
Client
GRAND GREEN OSAKA Developers
Design and supervision
Umekita Second-Area Design Supervision Business Joint Venture Group
Construction
Takenaka Corporation, OBAYASHI CORPORATION
Completion
2025

Specifications

Elevator Total units 19
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
PM-GL Passenger 1800 27 180 18 2
PM-GL Passenger 1800 27 180 16 4
PM-GL Service 1600 24 180 20 2
PM-GL Service 3000 - 45 4 1
Order XIOR Passenger 1250 19 105 6 4
Order XIOR Passenger 1250 19 105 5 2
Order XIOR Passenger 1250 19 60 2 1
Order XIOR Service 1600 24 105 6 1
Order XIOR Service 1600 24 90 6 2
Escalator Total units 28
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS-NX S 1000 6700 30 2
GS-NX S 1000 6100 30 4
GS-NX S 600 6100 30 2
GS-NX S 1000 5950 30 4
GS-NX S 1000 5500 30 2
GS-NX S 1000 5100 30 4
GS-NX S 600 5000 30 2
GS-NX S 600 4800 30 2
GS-NX S 600 2800 30 2
Slimfit S 800 5000 30 2
Slimfit S 800 4800 30 2
