GLION ARENA KOBE

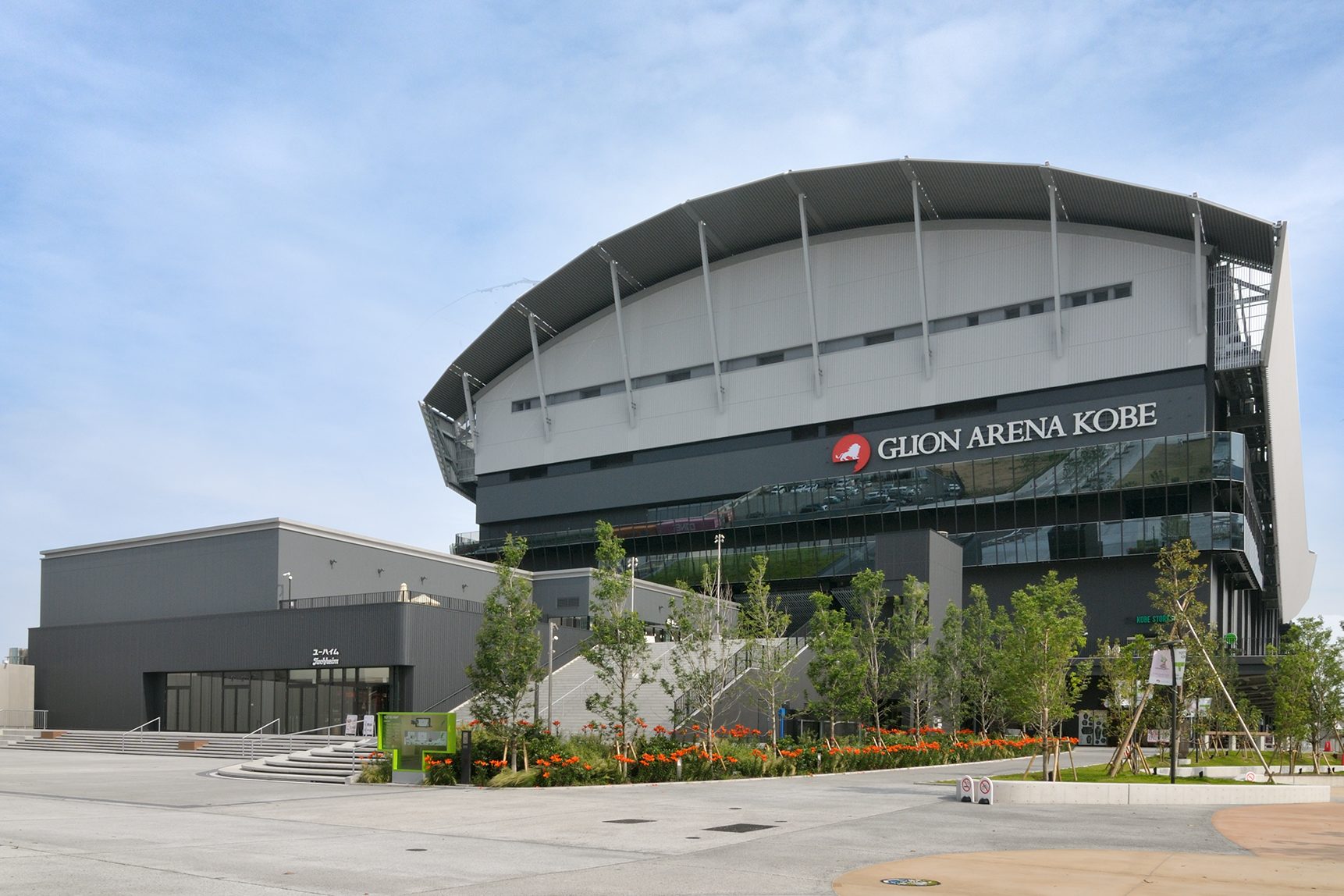

Glion Arena Kobe is a multi-purpose arena to accommodate ten thousand persons as one of the largest arenas in the Kansai Area of Japan. This arena is located near the ferry terminal of Kobe Sannomiya and a twenty (20)-minute walk from the JR (Japan Railways) Sannomiya station.
A professional basketball team of B. League, Kobe Storks, uses it as their base basketball court. Also, it is utilized for live events such as a musical concert, etc.

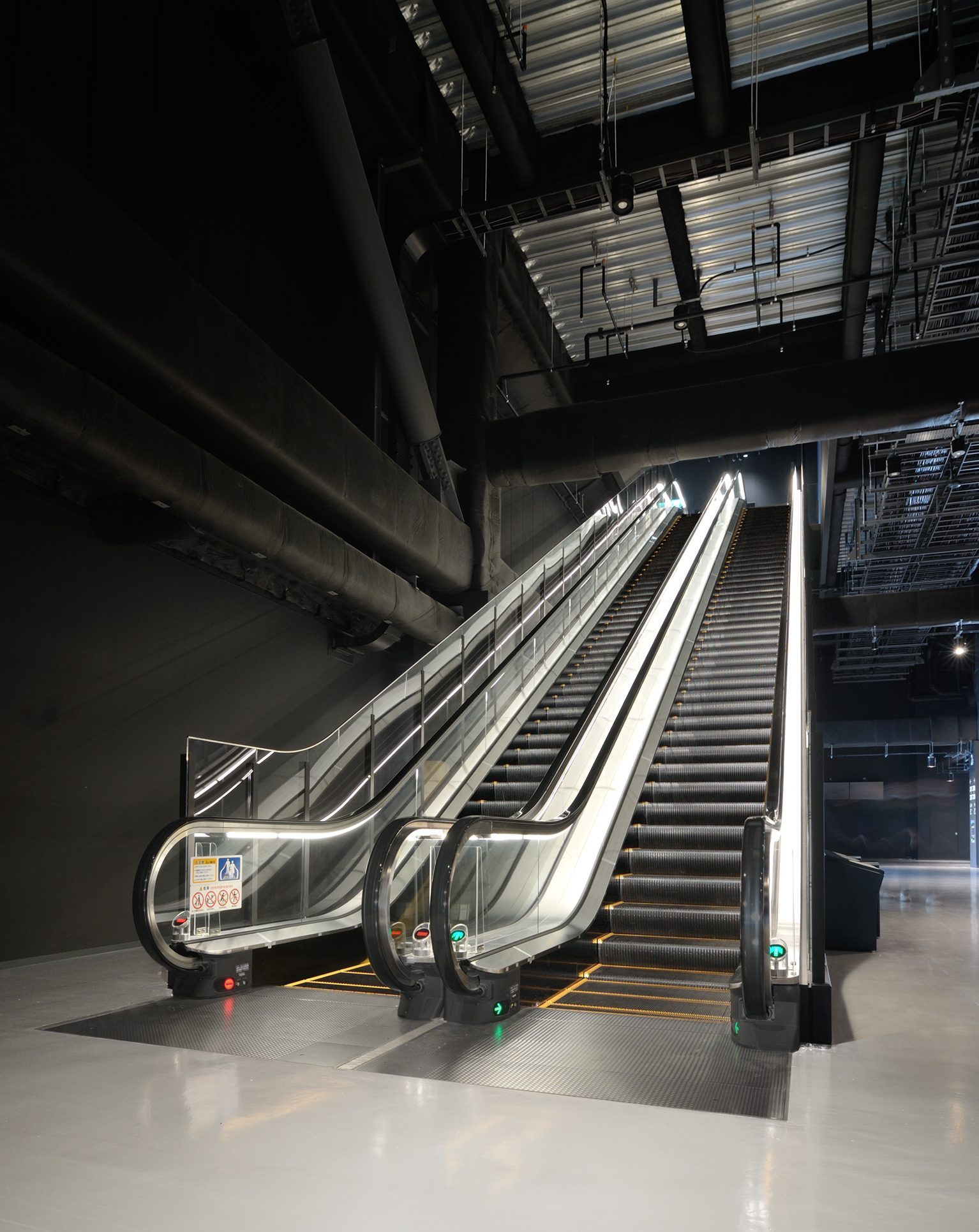

Fujitec has installed a total of fifteen (15) units including seven (7) elevators and eight (8) escalators. Considering one of the arenas’ features that lots of visitors intensively use the escalators during a certain short period, Fujitec adopted a heavy-load supportive specification for the escalators. They have a strength as twice as the standard escalators to support the heavy load.

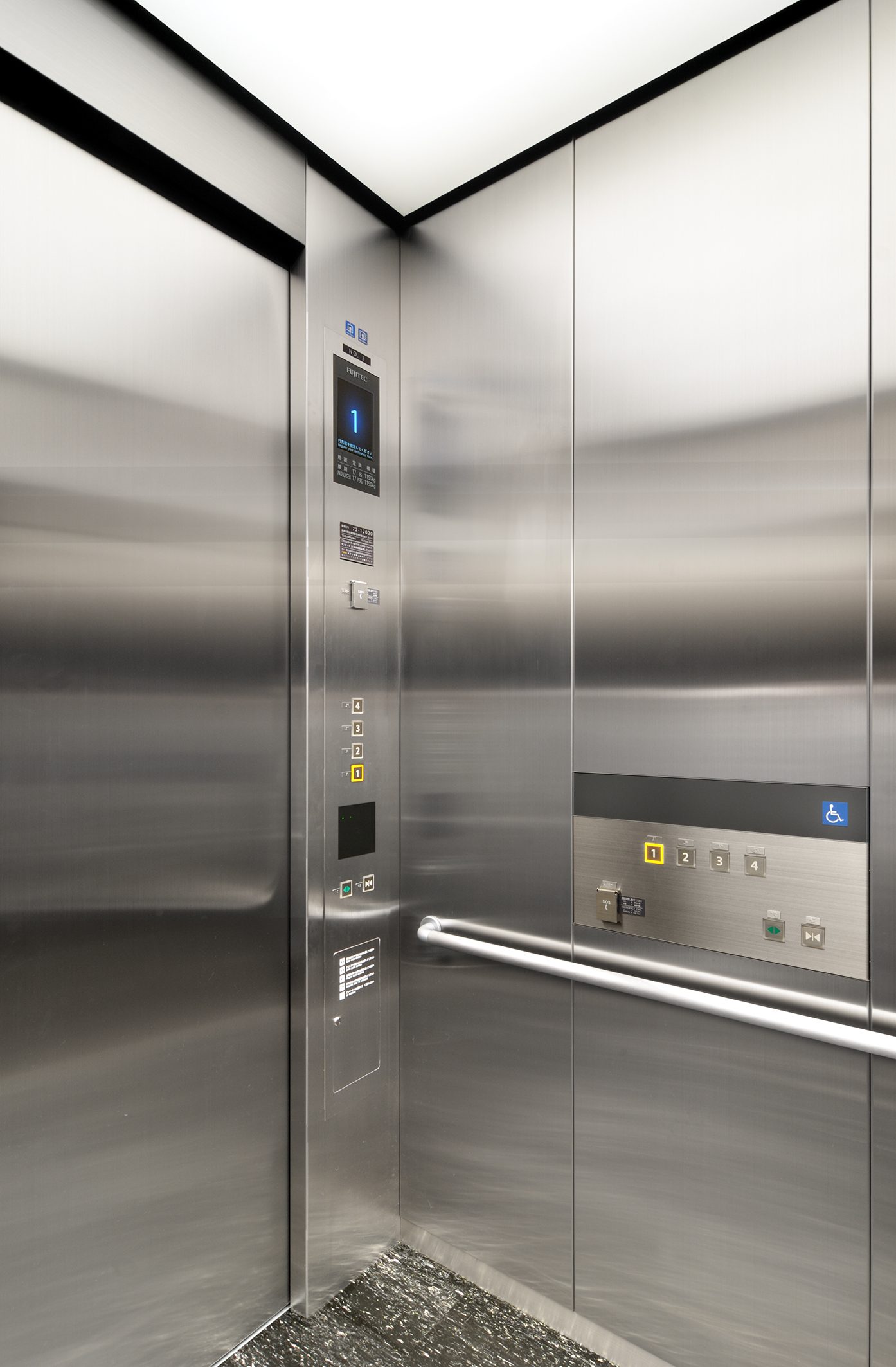

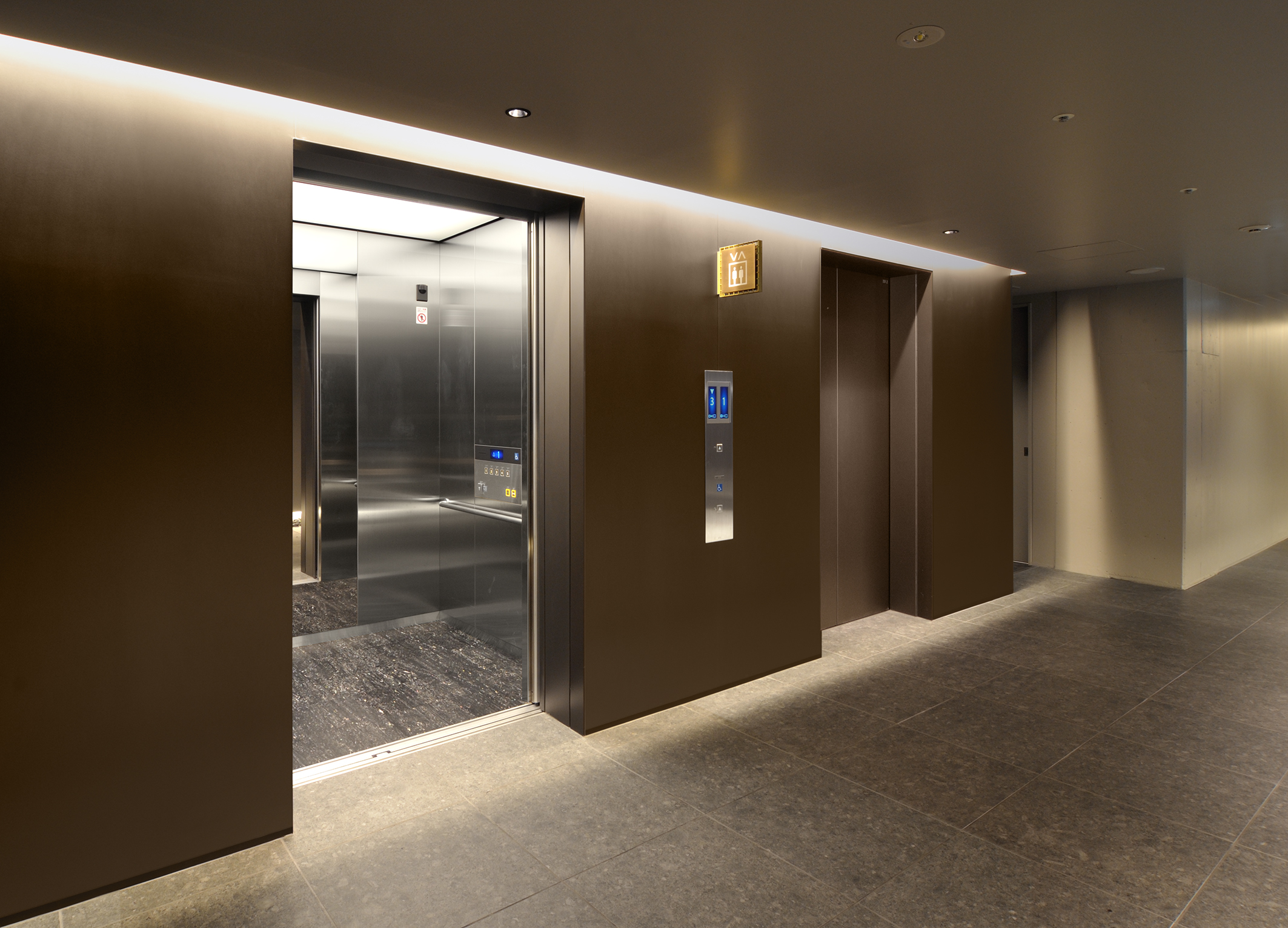

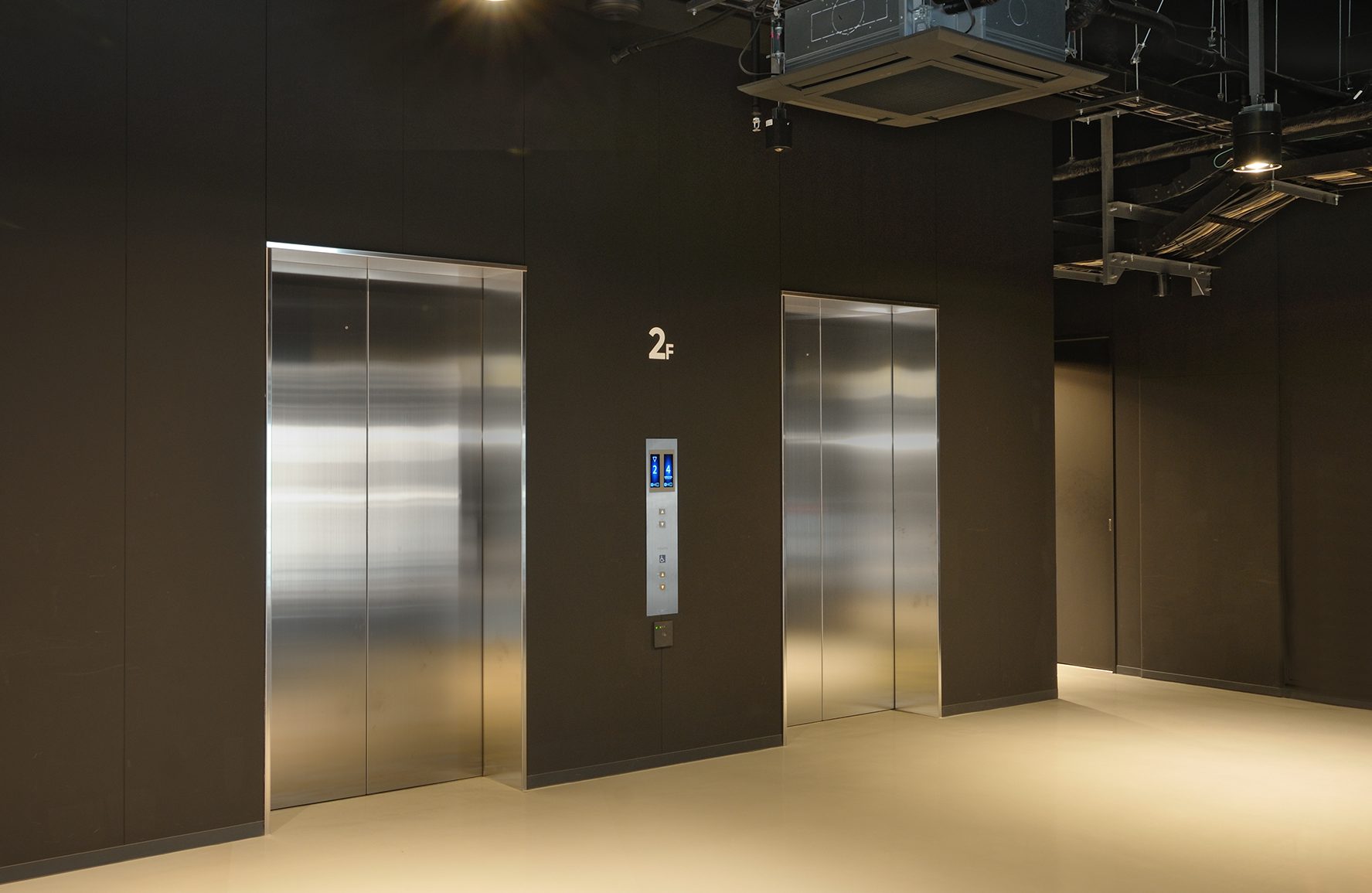

In addition, being matched to the stylish atmosphere of the arena facilities, each elevator has a unified design that narrow hairlines are applied on their stainless-steel surface.

  • Elevator
  • Escalator
  • Public facility
  • Japan
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Step:1000mm
  • Rise:over 8000mm
  • 2020s
Building name
GLION ARENA KOBE
Address
Hyogo prefercture
Client
NTT Urban Development Corporation
Design and supervision
OBAYASHI CORPORATION
Construction
OBAYASHI CORPORATION
Completion
2025

Specifications

Elevator Total units 7
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
Order XIOR passenger 1150 17 60 5 2
Order XIOR passenger 1150 17 60 4 2
Order XIOR service 1800 27 60 6 2
XIOR passenger 750 11 60 2 1
Escalator Total units 8
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS-NX F 1000 9000 30 4
GS-NX F 1000 4500 30 4
