Anabuki Arena Kagawa

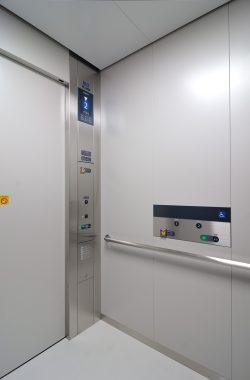

Standing in the close vicinity of the port of Takamatsu, Anabuki Arena Kagawa (Kagawa Prefectural Arena) is one of the largest arenas in the Chugoku and Shikoku regions. In addition to the main arena that can accommodate a maximum of ten thousand (10,000) people, it also has a sub-arena and martial arts facilities. These venues can be used for a variety of occasions, such as sporting events and concerts. In this facility, Fujitec installed six (6) elevators that are provided with accessible devices for wheelchair users and AirTap touchless buttons.
The facility overlooking the serene sea of Setouchi has become a hub of regional revitalization, bringing new vigor to the local communities.

  • Elevator
  • Public facility
  • Japan
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • 2020s
Building name
Anabuki Arena Kagawa
Address
Takamatsu, Kagawa
Client
Kagawa Prefecture
Design and supervision
SANAA
Construction
A consortium comprised of Obayashi Corporation, Goda Koumuten Co., Ltd. and Sugagumi Co., Ltd.
Completion
2024

Specifications

Elevator Total units 6
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
Order XIOR Passenger 1600 24 45 2 1
Order XIOR Passenger 1350 20 45 2 2
Order XIOR Servise 1300 20 45 2 2
XIOR Passenger 900 13 45 3 1
