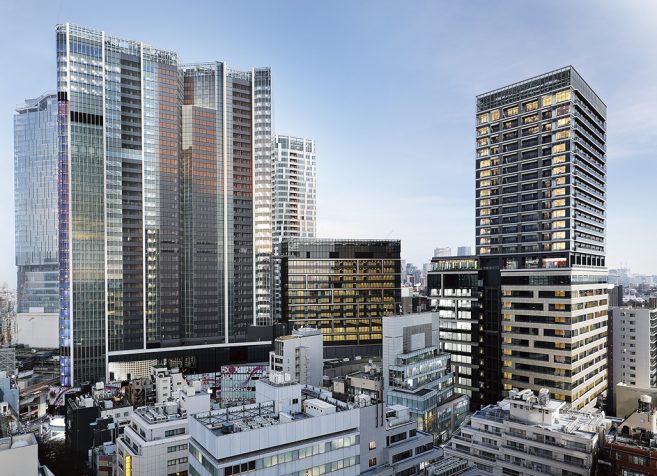

Shibuya Sakura Stage is a large complex facility building located in the approximately 2.6-hectare integrated area adjacent to the west side of Shibuya Station.
In this building, Fujitec installed a total of one hundred and two (102) units, which consists of forty-eight (48) elevators and fifty-four (54) escalators.

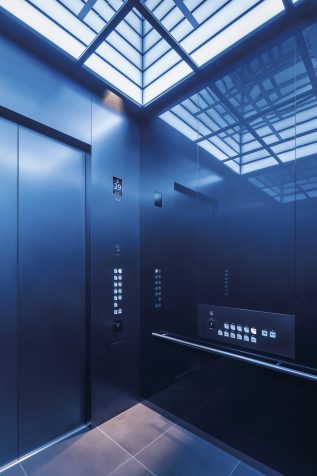

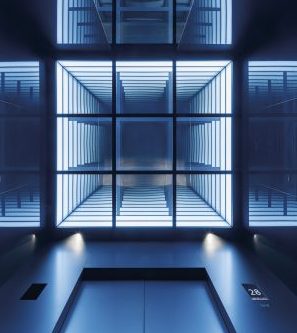

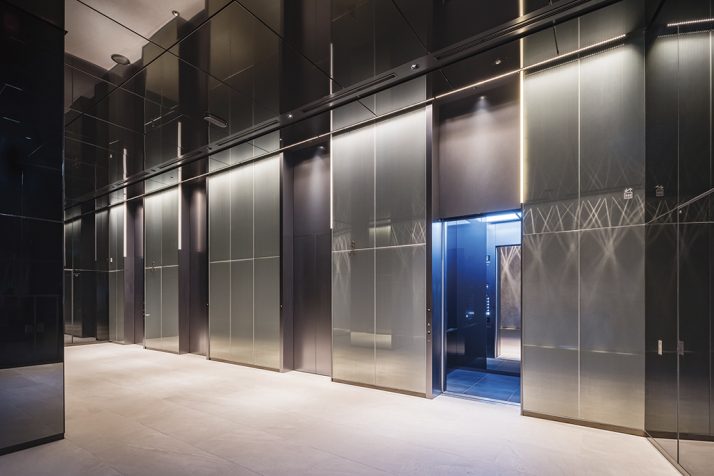

For the office elevators, mirror ceilings are used to project countless mirror images of light inside the elevator.

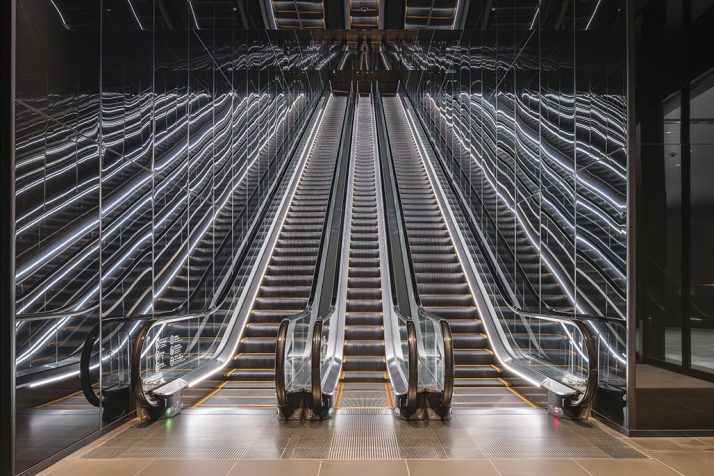

In addition, Fujitec's escalators contribute to the art installation at the office entrance with the LED lights installed on the escalator skirt guards.
The custom-made elevators and escalators filled with Fujitec's originality match the interior design of the building where various cultures are cultivated and realize the creation of the space where people move with an amazing and exciting feeling that can only be experienced in this Shibuya Sakura Stage.

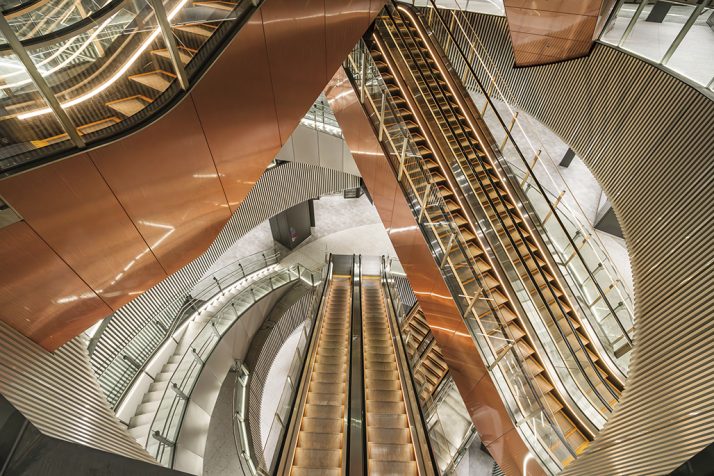

Furthermore, the escalators installed in the Urban Core, which was constructed vertically to run through the levels corresponding to six floors by overcoming the geographical difficulties caused by the valley shape of Shibuya Ward, contribute to the vertical movement of people.
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| PM-GL | Passenger | 3000 | 46 | 210 | 4 | 4 |
| PM-GL | Passenger | 1600 | 24 | 150 | 12 | 1 |
| PM-GL | Passenger | 1600 | 24 | 150 | 11 | 3 |
| PM-GL | Passenger | 600 | 9 | 150 | 15 | 3 |
| PM-GL | Passenger | 2500 | 38 | 120 | 11 | 8 |
| PM-GL | Passenger | 1150 | 17 | 120 | 11 | 2 |
| PM-GL | Passenger | 1150 | 17 | 120 | 10 | 2 |
| PM-GL | Passenger | 600 | 9 | 120 | 5 | 2 |
| PM-GL | Service | 2500 | 26 | 150 | 31 | 1 |
| Order XIOR | Passenger | 1600 | 24 | 105 | 3 | 3 |
| Order XIOR | Passenger | 1450 | 22 | 105 | 4 | 1 |
| Order XIOR | Passenger | 1150 | 17 | 105 | 8 | 2 |
| Order XIOR | Passenger | 1150 | 17 | 105 | 5 | 3 |
| Order XIOR | Passenger | 1000 | 15 | 105 | 6 | 1 |
| Order XIOR | Passenger | 1000 | 15 | 105 | 5 | 1 |
| Order XIOR | Passenger | 1600 | 24 | 60 | 2 | 1 |
| Order XIOR | Passenger | 1500 | 23 | 60 | 4 | 1 |
| Order XIOR | Passenger | 1450 | 22 | 60 | 3 | 1 |
| Order XIOR | Passenger | 900 | 13 | 60 | 6 | 1 |
| Order XIOR | Passenger | 750 | 11 | 60 | 5 | 1 |
| Order XIOR | Service | 1350 | 20 | 105 | 7 | 1 |
| Order XIOR | Service | 1150 | 17 | 105 | 16 | 1 |
| Order XIOR | Service | 1600 | 24 | 60 | 2 | 1 |
| XIOR | Passenger | 900 | 13 | 105 | 13 | 2 |
| XIOR | Passenger | 750 | 11 | 60 | 2 | 1 |
| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| GS-NX | S | 1000 | 11900 | 30 | 2 |
| GS-NX | S | 600 | 11900 | 30 | 1 |
| GS-NX | S | 1000 | 6500 | 30 | 2 |
| GS-NX | S | 600 | 6500 | 30 | 4 |
| GS-NX | F | 1000 | 6140 | 30 | 2 |
| GS-NX | S | 1000 | 5790 | 30 | 1 |
| GS-NX | F | 600 | 5790 | 30 | 1 |
| GS-NX | S | 1000 | 5755 | 30 | 1 |
| GS-NX | S | 1000 | 5470 | 30 | 2 |
| GS-NX | F | 1000 | 5450 | 30 | 2 |
| GS-NX | S | 600 | 5400 | 30 | 2 |
| GS-NX | S | 1000 | 5330 | 30 | 2 |
| GS-NX | S | 600 | 5330 | 30 | 2 |
| GS-NX | S | 600 | 5305 | 30 | 2 |
| GS-NX | S | 1000 | 5200 | 30 | 2 |
| GS-NX | S | 1000 | 5000 | 30 | 4 |
| GS-NX | S | 600 | 5000 | 30 | 6 |
| GS-NX | F | 1000 | 4860 | 30 | 2 |
| GS-NX | S | 600 | 4160 | 30 | 2 |
| GS-NX | S | 600 | 3740 | 30 | 2 |
| Slimfit | S | 800 | 6500 | 30 | 2 |
| Slimfit | S | 800 | 5400 | 30 | 6 |
| Slimfit | S | 800 | 5000 | 30 | 2 |
