Brillia Tower Dojima

Brillia Tower Dojima is an 11-minute walk from JR Osaka Station and a 6-minute walk from Nishi Umeda Station on the Yotsubashi Line of the Osaka Metro. This tower is a super high-rise complex tower located in the Dojima area, where the largest number of access routes to the terminal stations in the Kansai area, 16 stations on 14 lines, has been established.

The symbolic appearance of the tower, which is designed to resemble the sail of a yacht, is a new landmark in Osaka, which is called the "City of Waterways". The basement B1 to the floor 2 and the floors from 28 to 37 are occupied by the Four Season Hotel, which is entering the hotel business for the first time in Osaka Prefecture, while the basement B1 and the floors from 1 to 27 and from 38 to 49 are private residences, Brillia, with public facilities to satisfy various needs. About 50 works of art created by internationally prominent sculptors are placed in the common area of this tower, realizing such an area as a very sophisticated space.

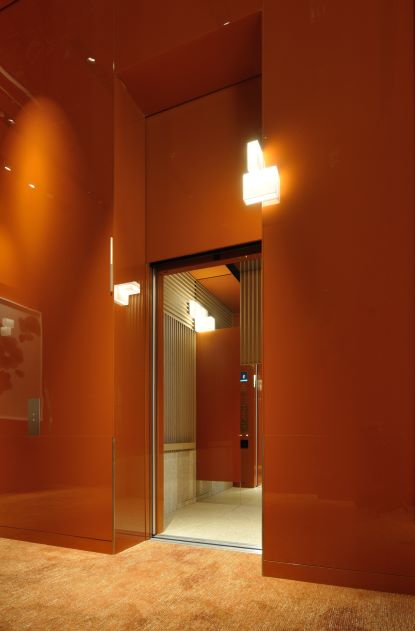

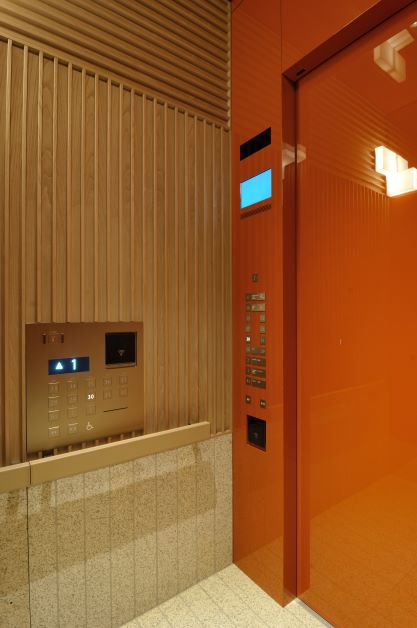

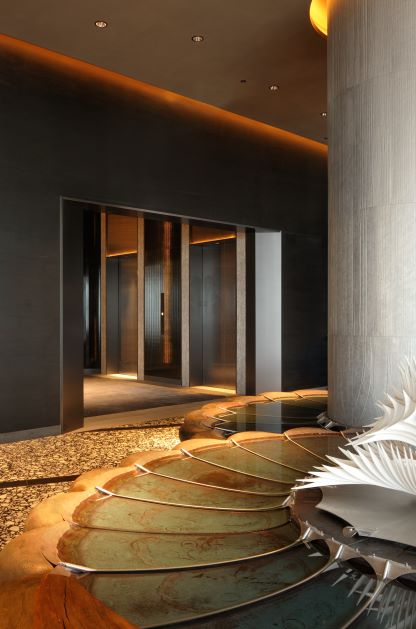

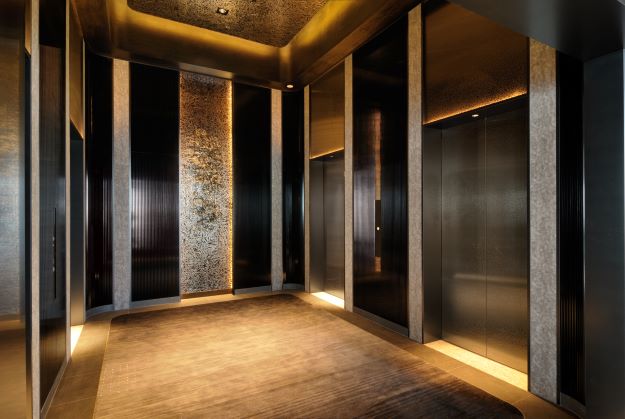

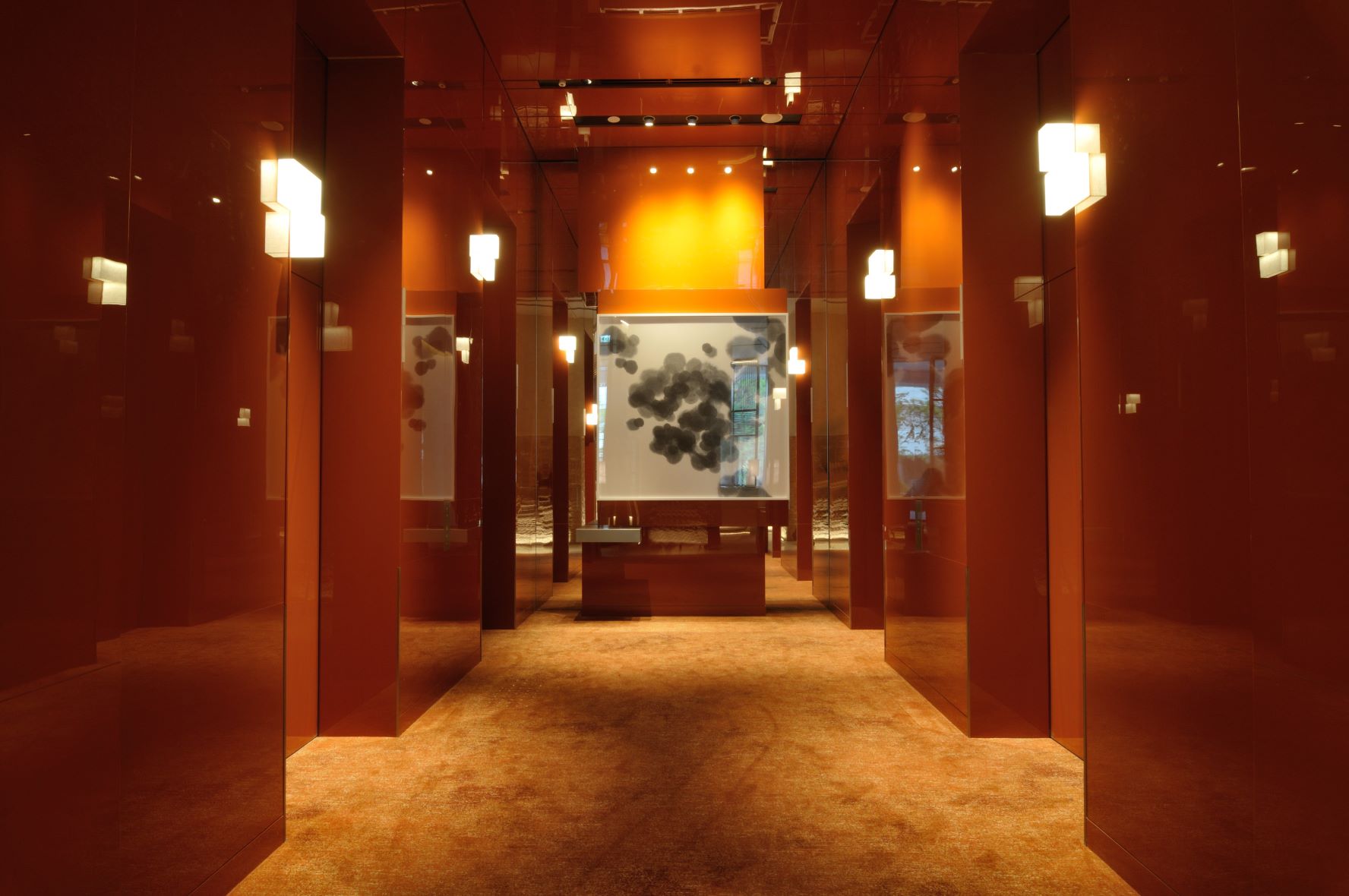

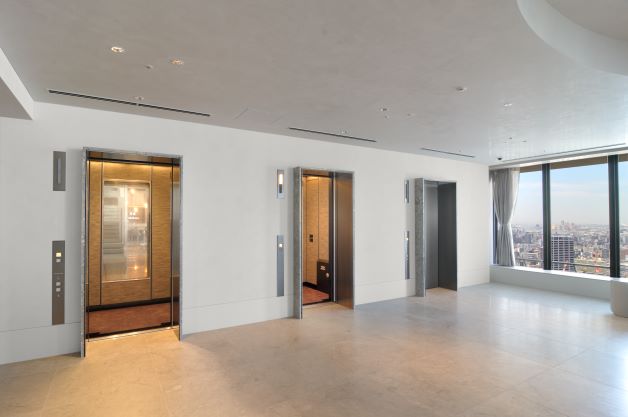

In this tower, Fujitec installed fifteen (15) elevators and one (1) escalator. In the hotel floors, stones and woods are decorated in the space with a harmonious atmosphere, expressing the harmonious sensibility rooted in Japanese culture, in which red color accents over the soft light from the indirect lighting equipment accentuate the beauty of the space. In the residence floors, the sense of dignified existence as a part of the design realizes a smart and sophisticated movement in daily life.

  • Elevator
  • Escalator
  • Residence
  • Hotel
  • Japan
  • Lantern
  • Capacity:over 1150kg
  • Speed:over 150m/min
  • Step:600mm
  • 2020s
Building name
Brillia Tower Dojima
Address
Dojima,Osaka
Client
Tokyo Tatemono Co., Ltd.
Design and supervision
Nikken Sekkei Ltd.
Construction
Takenaka Corporation
Completion
2024

Specifications

Elevator Total units 15
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
PM-GL Passenger 1150 17 240 15 4
PM-GL Passenger 900 13 240 20 1
PM-GL Passenger 900 13 240 18 2
PM-GL Passenger 900 13 120 28 3
PM-GL Service 2000 30 210 50 1
PM-GL Service 1500 17 210 49 1
PM-GL Service 1500 17 210 15 1
XIOR Passenger 900 13 60 2 1
Order XIOR Passenger 1200 18 60 2 1

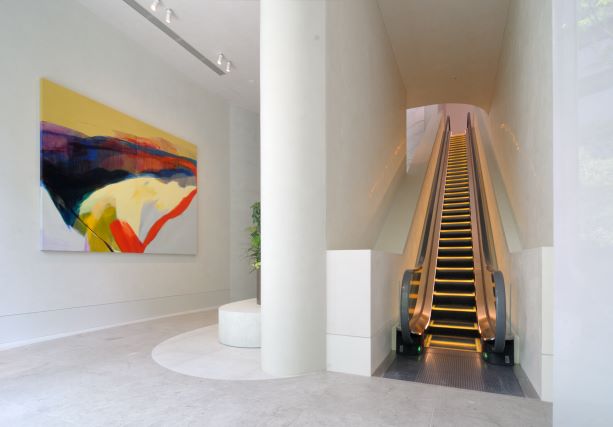

Escalator Total units 1
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS-NX S 600 7000 - 1
