Tokyu Plaza Harajyuku 「Harakado」

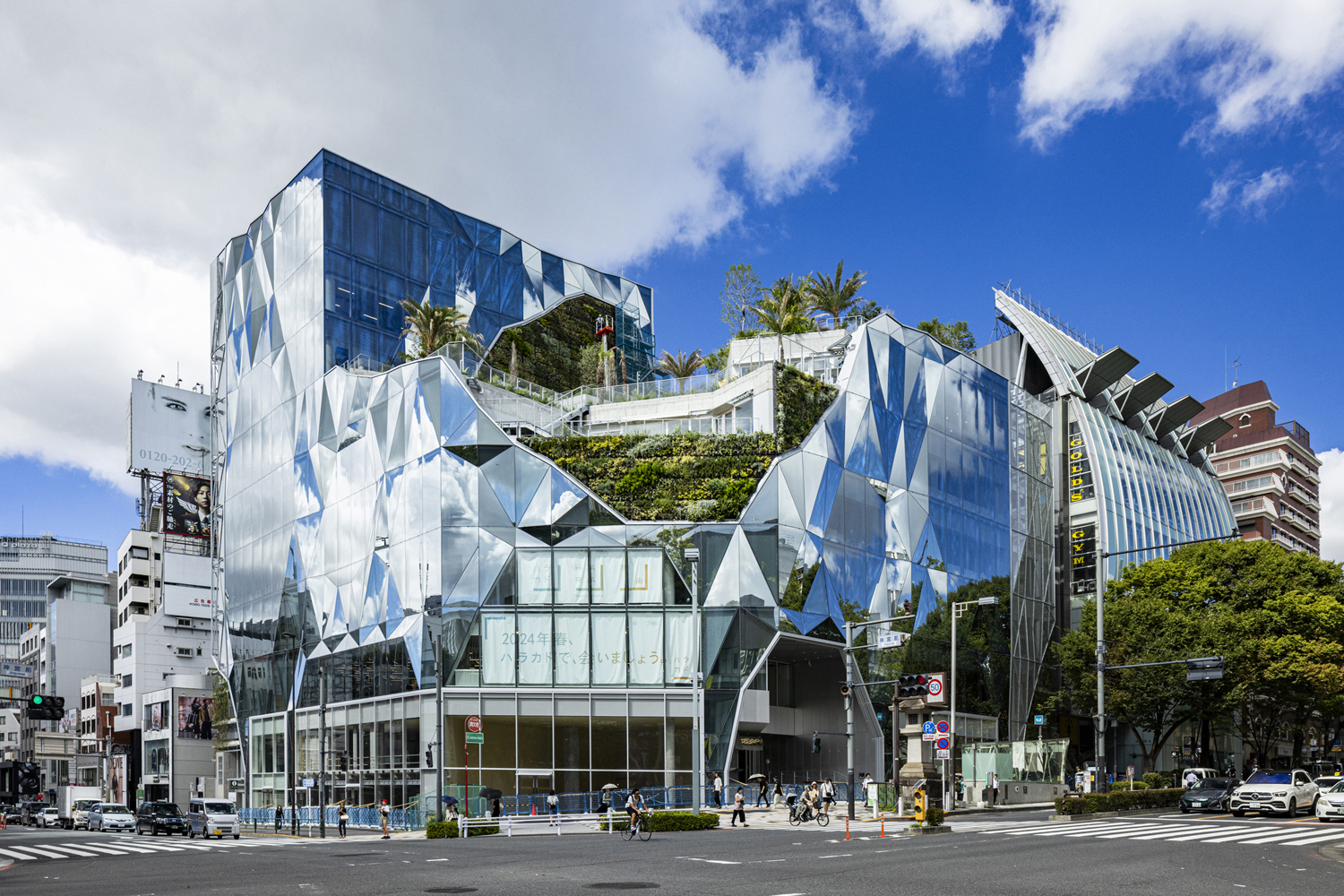

Located at the Jingumae intersection where Omotesando and Meiji Dori meet, Tokyu Plaza Harajuku "Harakado" is a place for creating and experiencing Harajuku culture, serving as a source of inspiration for a diverse range of people. The site has seventy-five (75) stores across nine (9) floors, including a public bathhouse, which is rare in a commercial facility, as well as unique retail and service shops and restaurants.

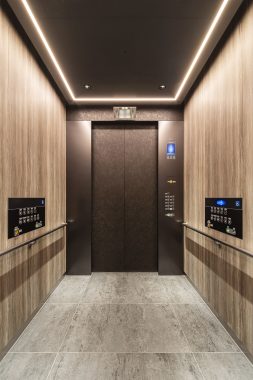

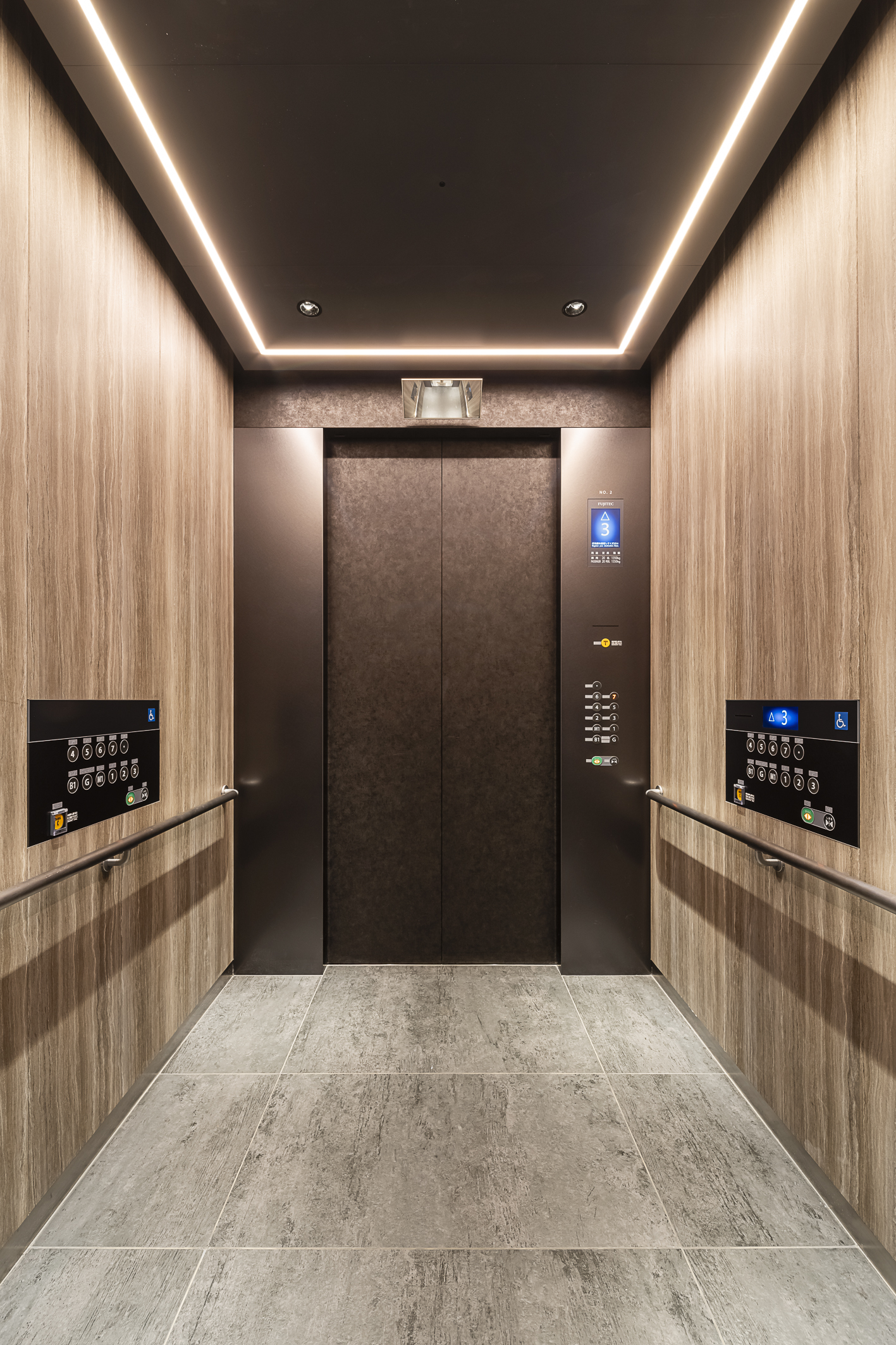

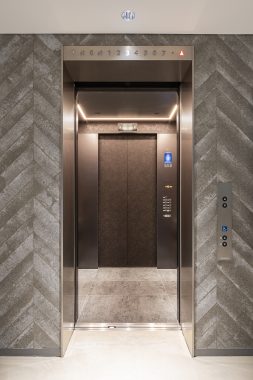

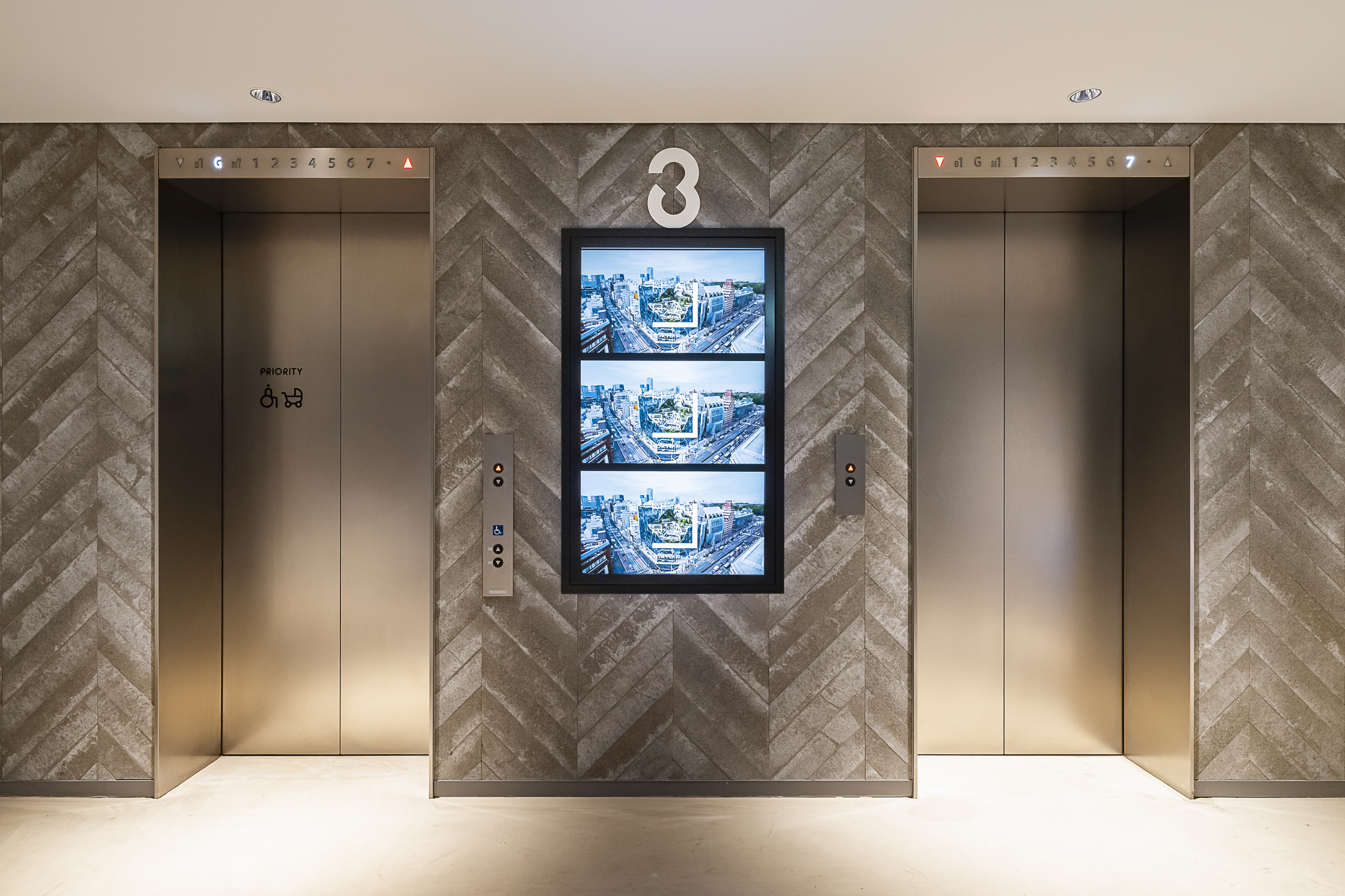

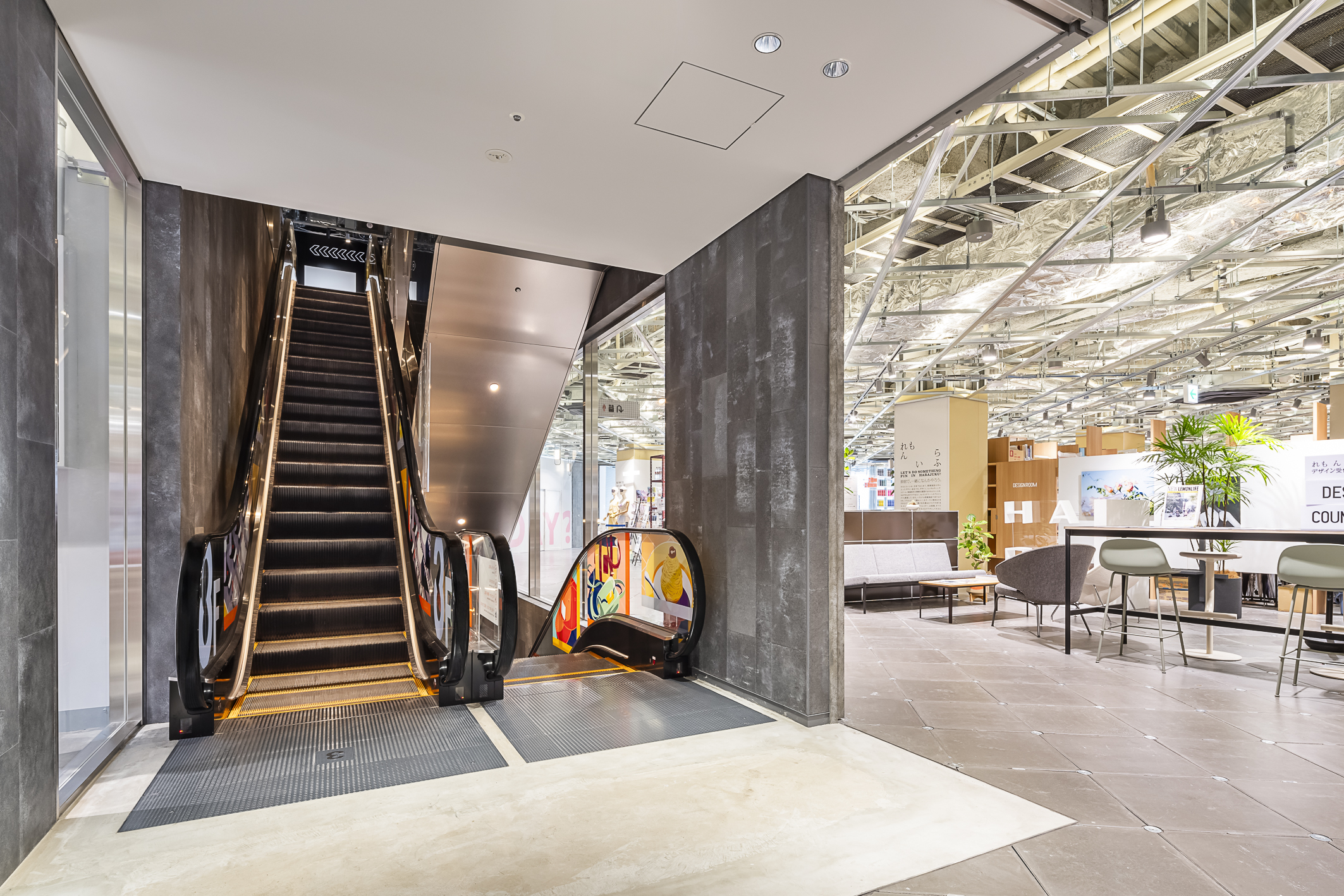

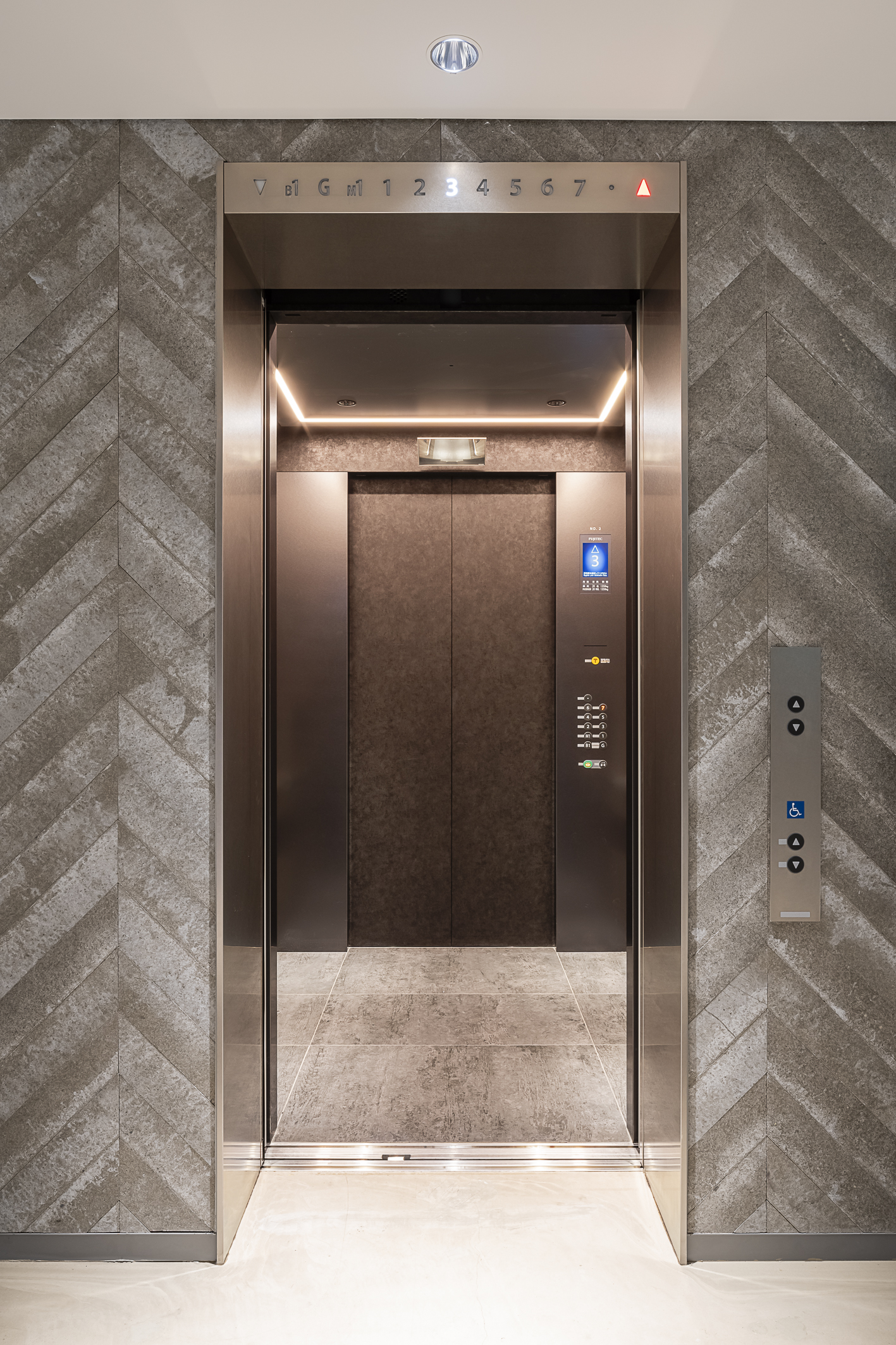

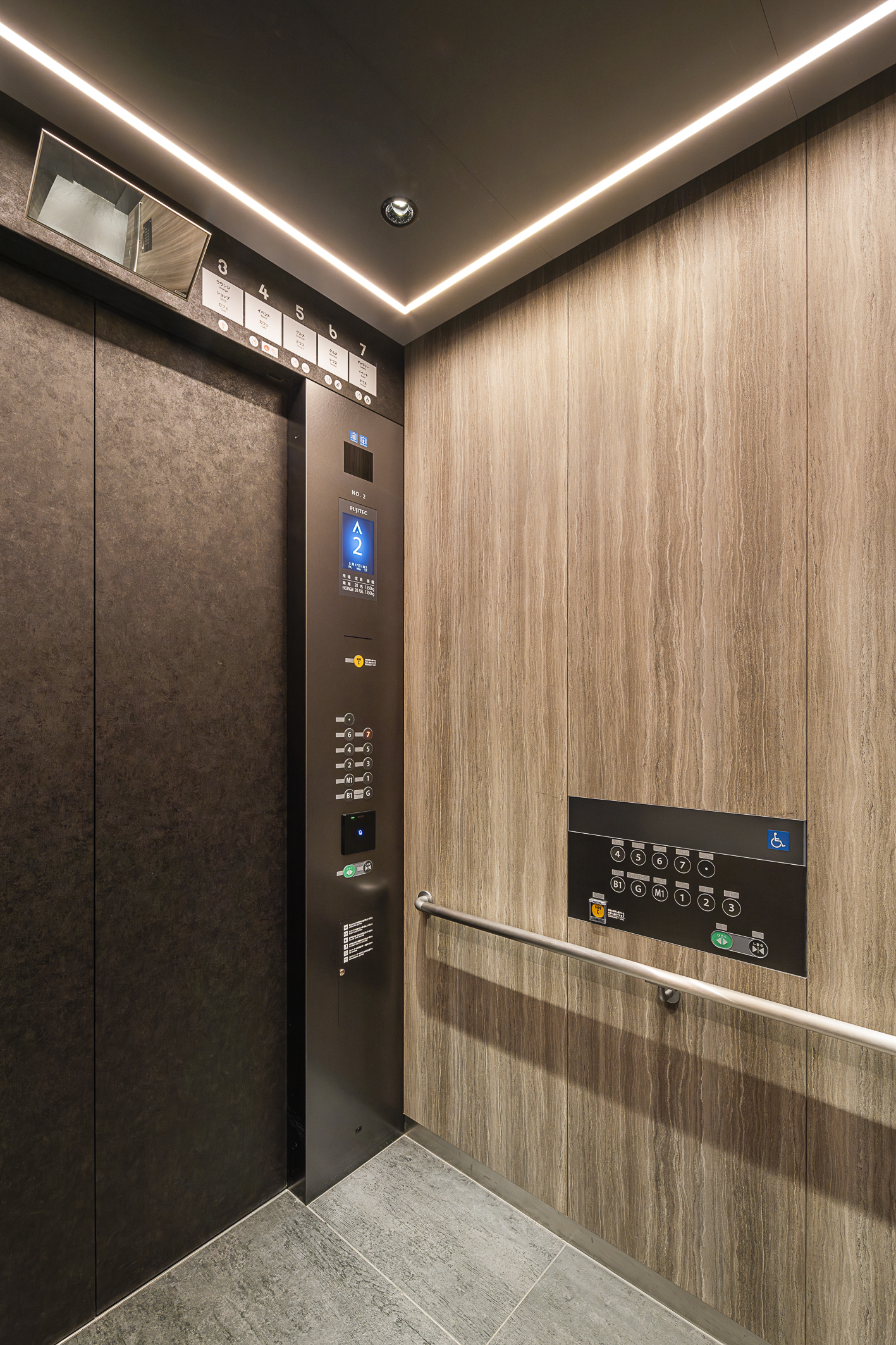

Fujitec installed six (6) elevators and sixteen (16) escalators into the facility. The escalators use "Slim Fit" technology, which maintains the same step width but reduces floor space. The elevators also feature security controls that can change the floors where the elevators stop depending on the time of day, allowing for the operation according to the business hours of each floor.

  • Elevator
  • Escalator
  • Commercial facility
  • Japan
  • Capacity:under 1150kg
  • Step:600mm
  • 2020s
Building name
Tokyu Plaza Harajyuku 「Harakado」
Address
Harajuku, Tokyo
Client
Jinroku Redevelopment Co., Ltd.
Owner
TOKYU LAND CORPORATION
Design and supervision
NIKKEN SEKKEI LTD/NOMURA Co., Ltd.
Construction
SHIMIZU CORPORATION / Tokyu Re・design Corporation
Completion
2024

Specifications

Elevator Total units 6
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
Order XIOR Passenger 1350 20 105 11 2
Order XIOR Service 1600 24 105 12 1
Order XIOR Service 1300 20 60 5 1
Order XIOR Service 1300 20 60 2 1
XIOR Passenger 1000 15 60 5 1
Escalator Total units 16
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
Slimfit S 1000 5000 30 1
Slimfit S 1000 4500 30 12
Slimfit S 600 4500 30 1
Slimfit S 1000 4000 30 1
Slimfit S 600 4000 30 1
