Tokyo Women’s Medical University Hospital General Outpatient Center

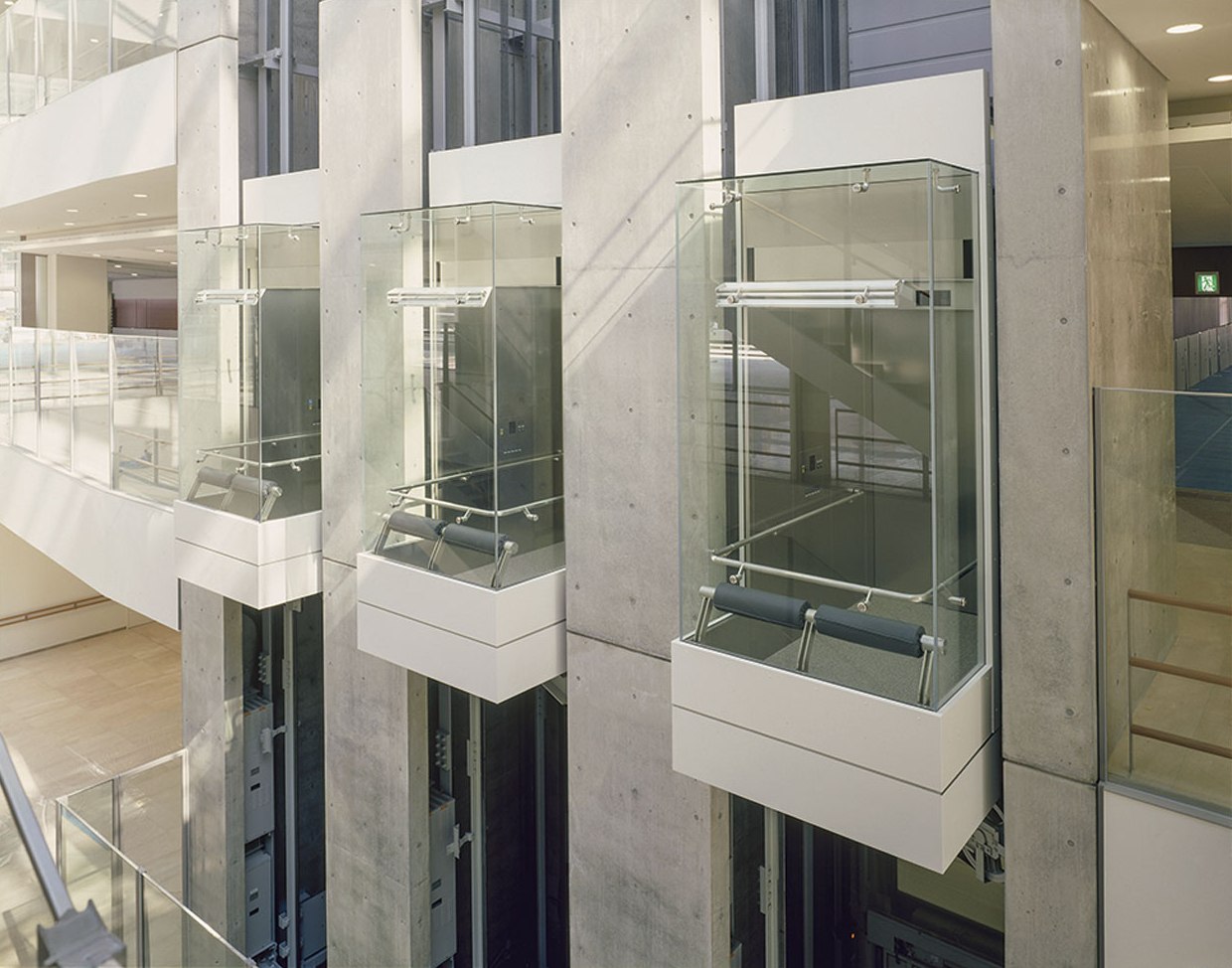

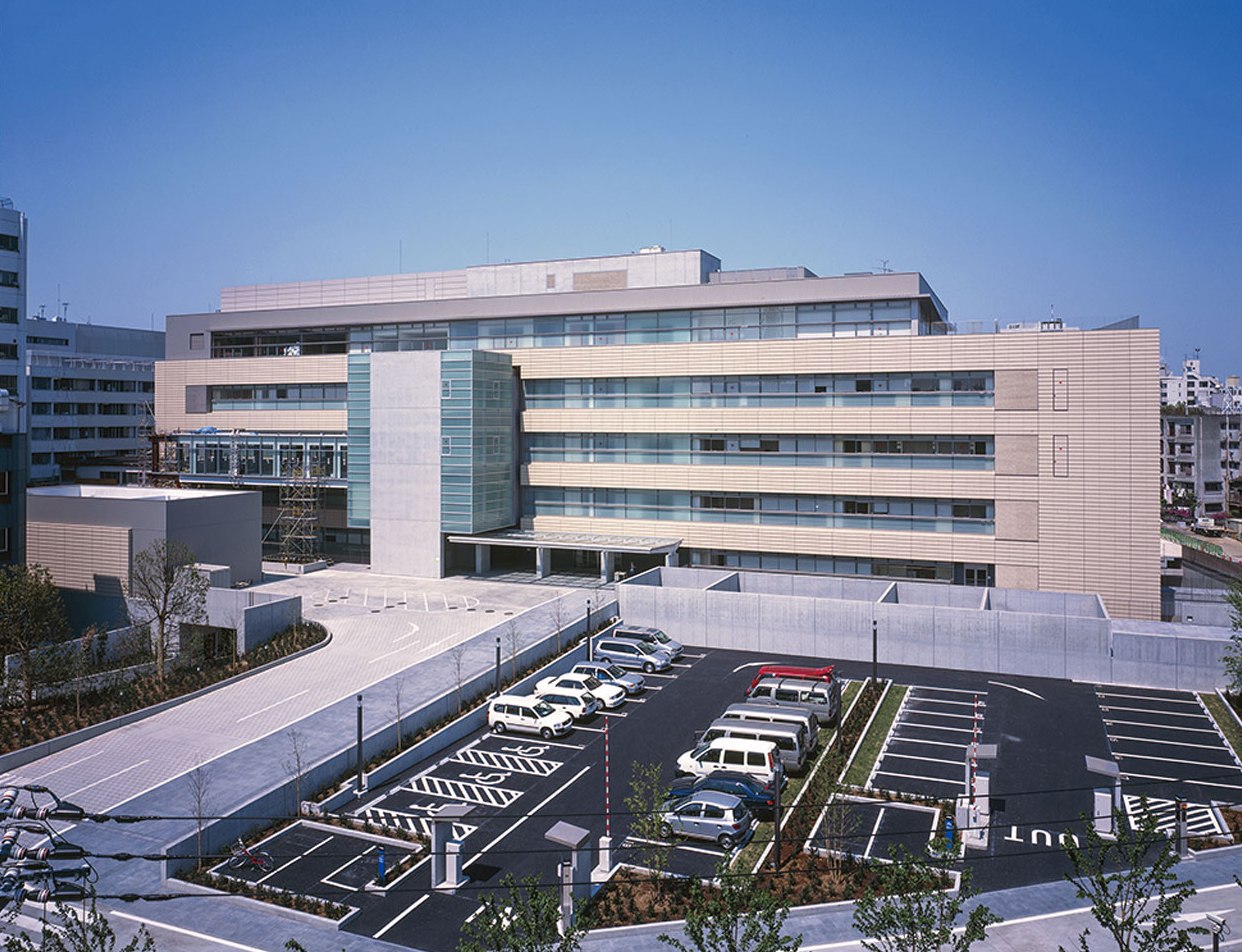

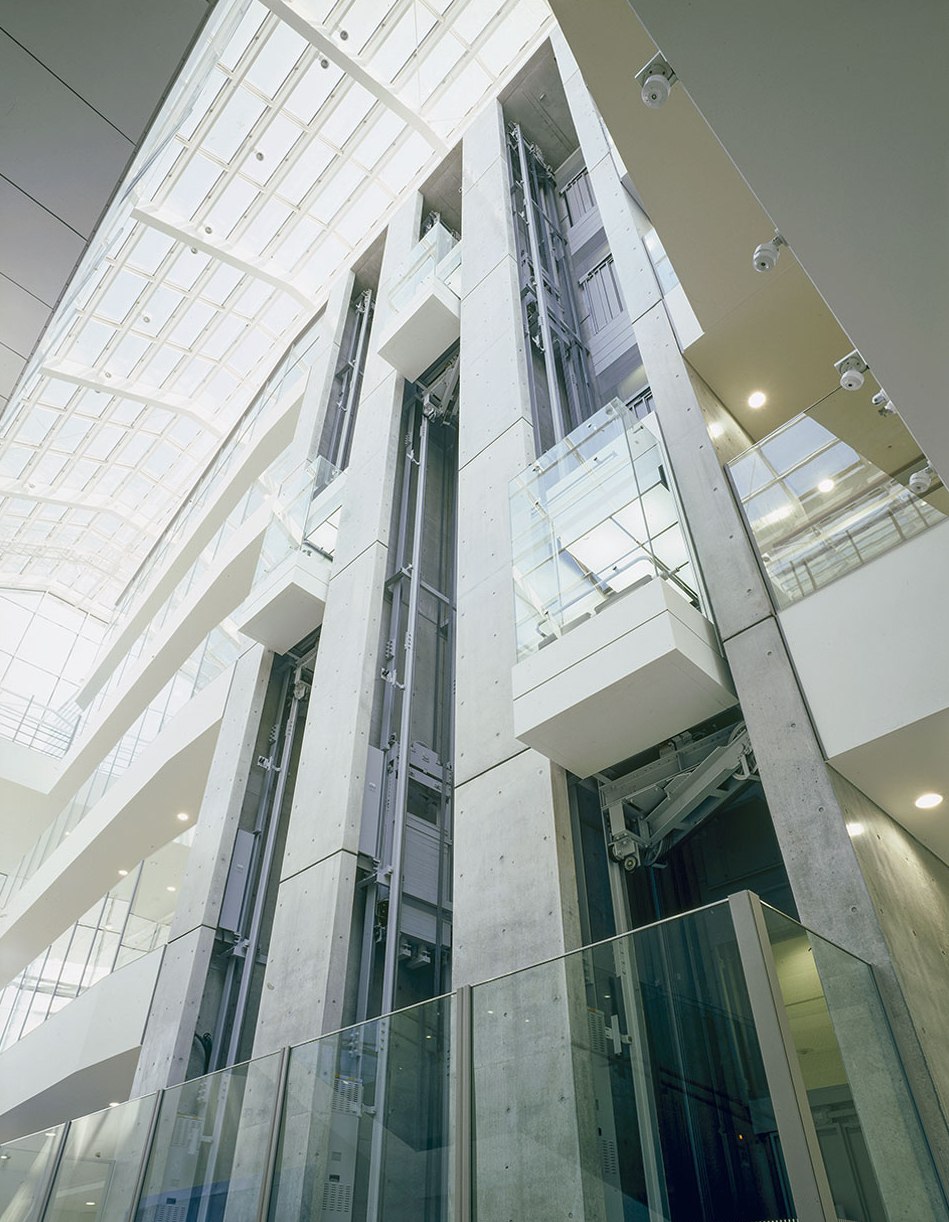

Tokyo Women’s Medical University is Japan’s only medical university for women. In 2003, the Ambulatory Care Center was opened in Shinjuku-ku, Tokyo as part of the initiative to celebrate the 100th anniversary of the university’s foundation. Housed in a building with six floors above ground and three underground, the center has approximately 40 departments and plays an active role as a medical hub. Fujitec elevators and escalators, including an open-hatch observation model, enable patients and visitors to move around the center.

  • Elevator
  • Escalator
  • Medical and Welfare facilities
  • Japan
  • Observation
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • 2000s
Building name
Tokyo Women’s Medical University Hospital General Outpatient Center
Address
Shinjuku, Tokyo
Client
Tokyo Women’s Medical University
Design and supervision
GKK Architects & Engineers Co., Ltd.
Construction
Shimizu Corporation ・ Toda Corporation ・ Nishimatsu Construction Co., Ltd. Joint-Venture Group
Completion
2003

Specifications

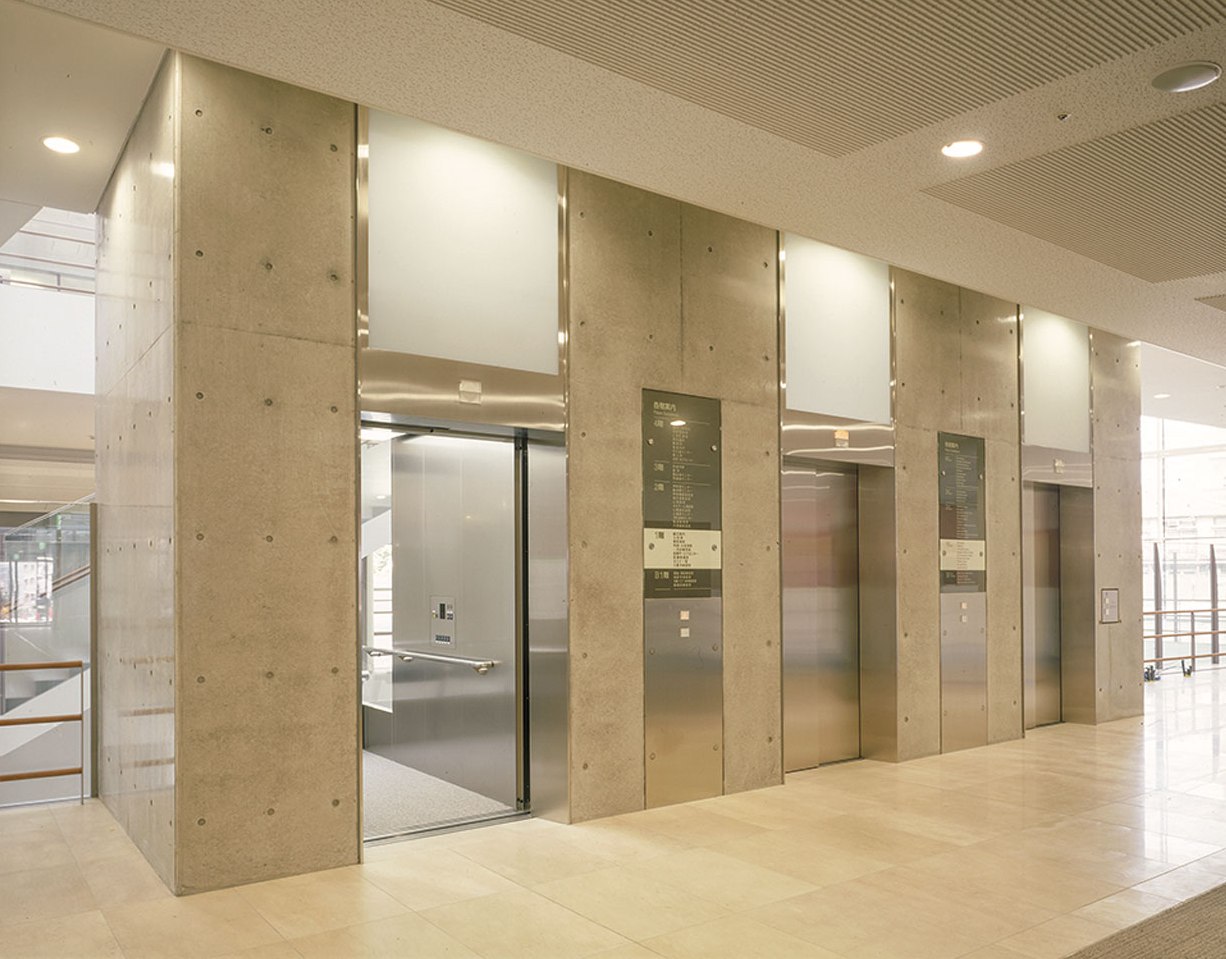

Elevator Total units 10
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
Order ECEED Passenger 1300 20 45 5 3
Order ECEED Passenger 1300 20 90 5 1
Order ECEED Service 1300 20 60 9 1
Order ECEED Service 1300 20 60 5 1
ECEED Bed 750 11 60 4 1
EXCELDYNE Service 1750 26 60 8 2
EXCELDYNE Service 1300 20 60 8 1

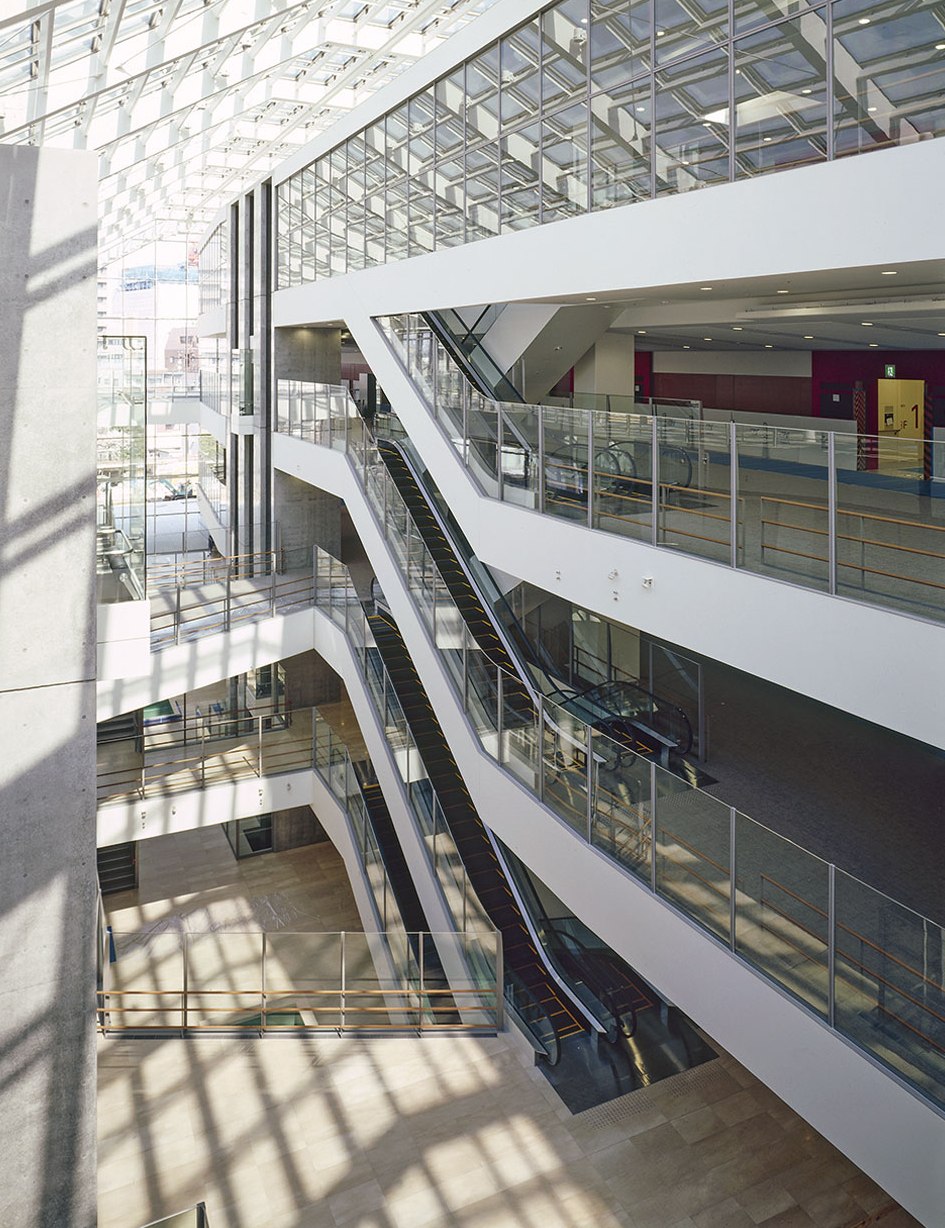

Escalator Total units 8
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
V S 1200 4800 30 8
