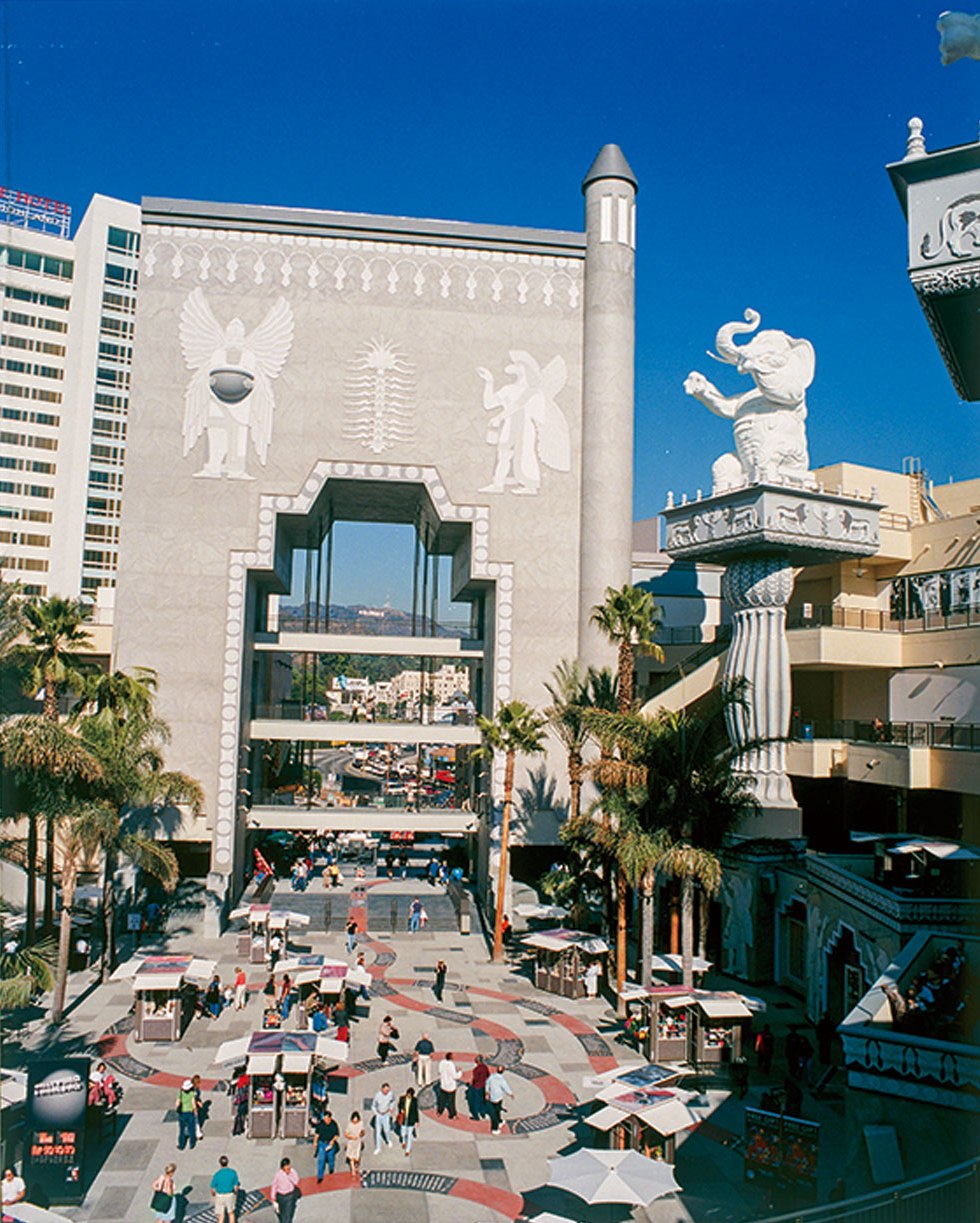

Exterior1

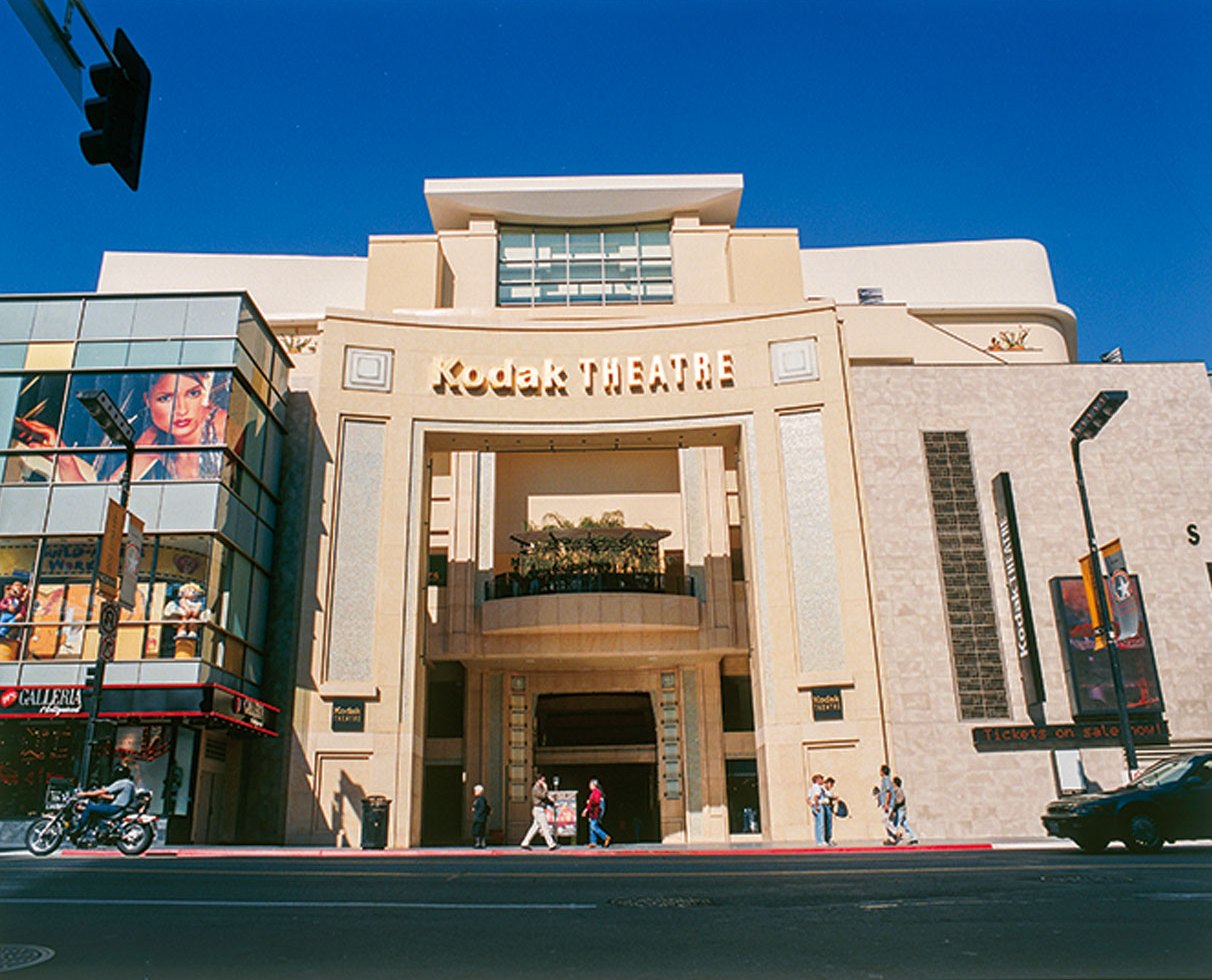

Exterior1

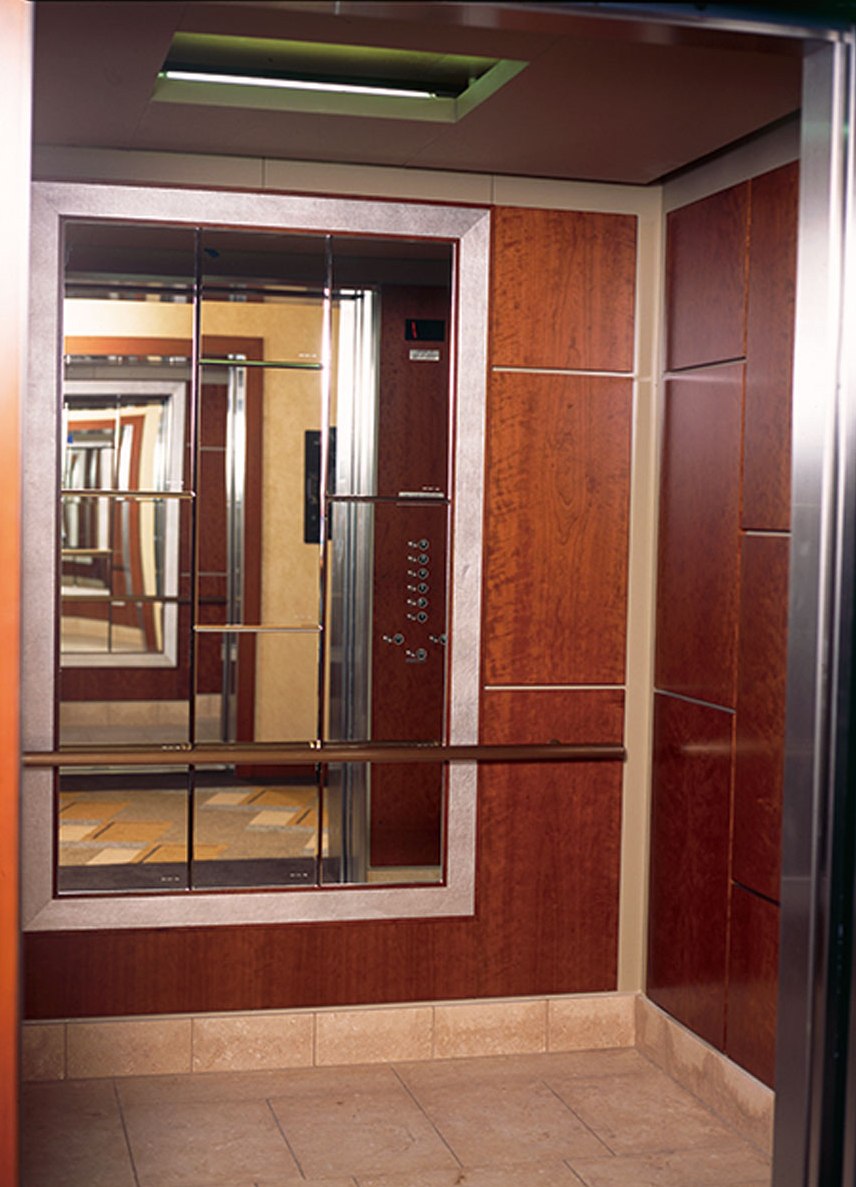

Elevator1

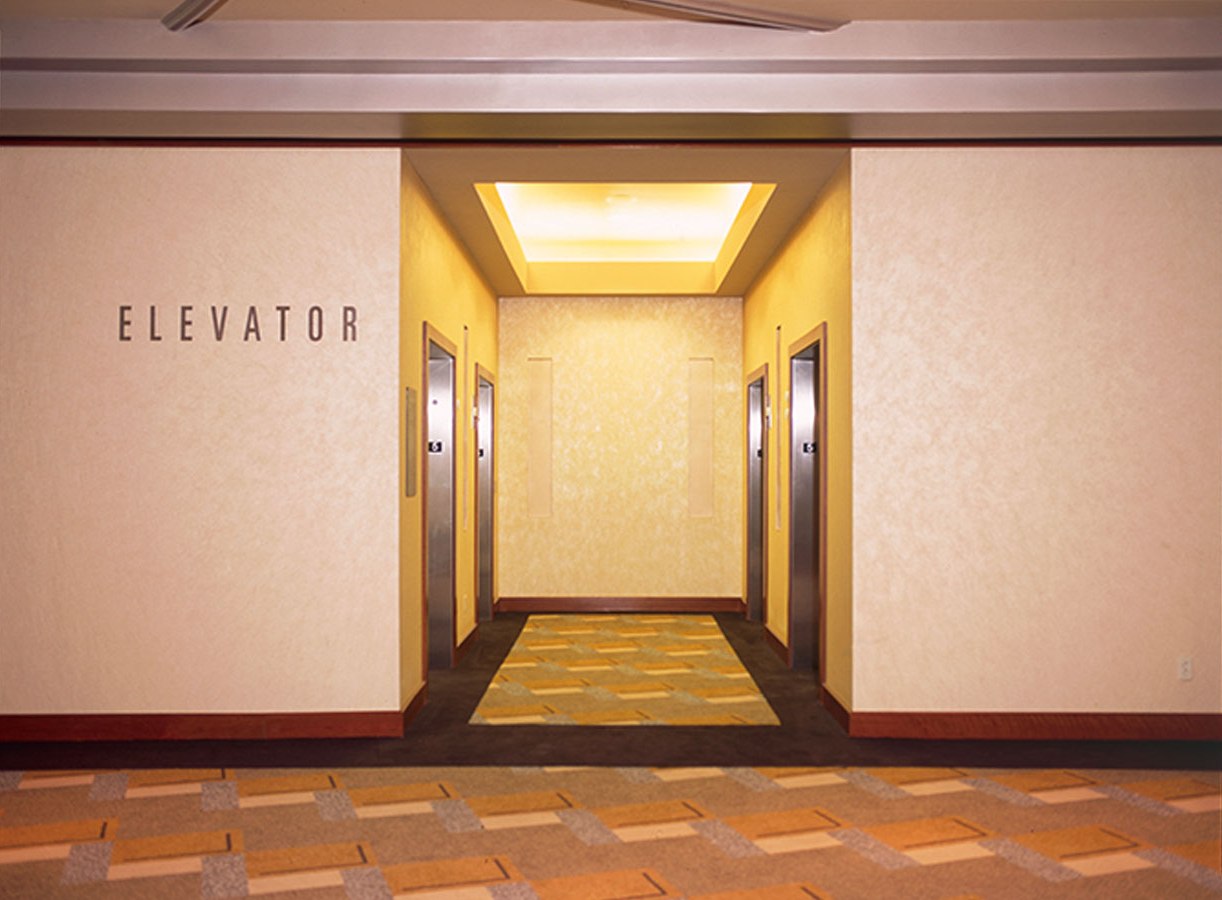

Elevator2

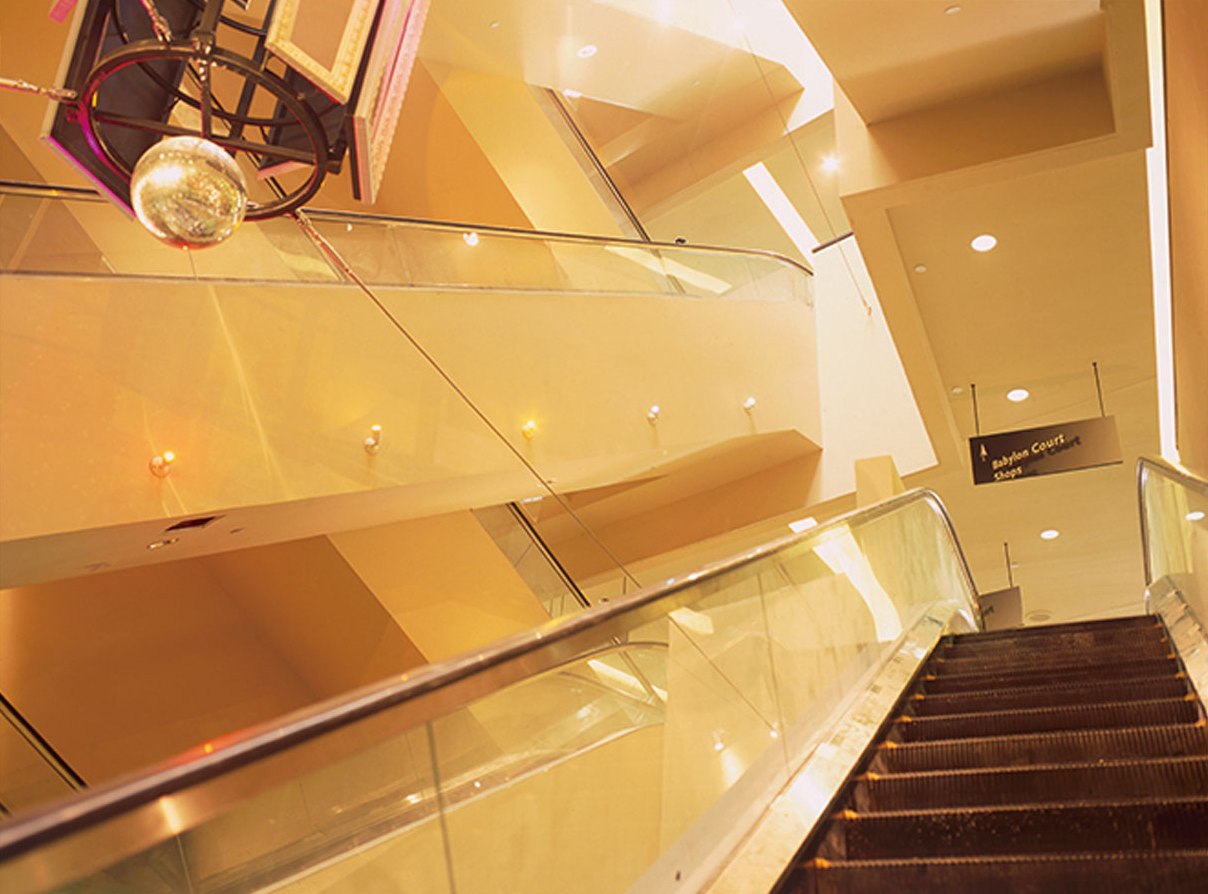

Escalator
Hollywood and Highland is a colossal entertainment complex erected in Los Angeles, the location of Hollywood and the film capital of the world. The 5-story complex has a total area of 617,000m2 and is served by 25 elevators and 26 escalators. Many visitors from all over the world visit this attractive complex as a new and exciting stop of their tours of Hollywood.
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| AC-GD | Passenger | 2040 | 27 | 150 | 10 | 1 |
| AC-GD | Passenger | 1810 | 24 | 150 | 10 | 2 |
| AC-GD | Service | 1810 | 24 | 105 | 7 | 1 |
| AC-GD | Service | 1810 | 24 | 105 | 6 | 1 |
| AC-GD | Passenger | 1810 | 24 | 105 | 5 | 1 |
| AC-GD | Passenger | 1590 | 21 | 105 | 6 | 1 |
| AC-GD | Service | 1810 | 24 | 105 | 5 | 1 |
| AC-GD | Passenger | 1810 | 24 | 105 | 6 | 1 |
| AC-GD | Service | 1810 | 24 | 105 | 6 | 1 |
| AC-GD | Service | 6810 | 91 | 45 | 4 | 1 |
| AC-GD | Passenger | 1590 | 21 | 105 | 5 | 3 |
| AC-GD | Passenger | 1590 | 21 | 105 | 6 | 1 |
| AC-GD | Passenger | 2040 | 27 | 105 | 6 | 1 |
| HYDRAULIC | Passenger | 1360 | 18 | 30 | 3 | 2 |
| HYDRAULIC | Service | 1590 | 21 | 30 | 2 | 1 |
| HYDRAULIC | Freight | 2720 | - | 15 | 2 | 1 |
| HYDRAULIC | Passenger | 1590 | 21 | 30 | 2 | 1 |
| HYDRAULIC | Passenger | 1130 | 15 | 30 | 2 | 2 |
| HYDRAULIC | Service | 2040 | 27 | 38 | 2 | 1 |
| HYDRAULIC | Freight | 1360 | - | 30 | 2 | 1 |
| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| V | S | 1000 | 3200 | 30 | 6 |
| V | S | 1000 | 3353 | 30 | 2 |
| V | S | 1000 | 5790 | 30 | 2 |
| V | S | 1000 | 5330 | 30 | 12 |
| V | S | 1000 | 3660 | 30 | 1 |
| V | S | 1000 | 5182 | 30 | 1 |
| V | S | 1000 | 6139 | 30 | 2 |
