World Financial Center

The World Financial Center is located on Manhattan Island, New York. Consisting of four high-rise buildings, the project was designed by world famous architect Cesar Pelli.

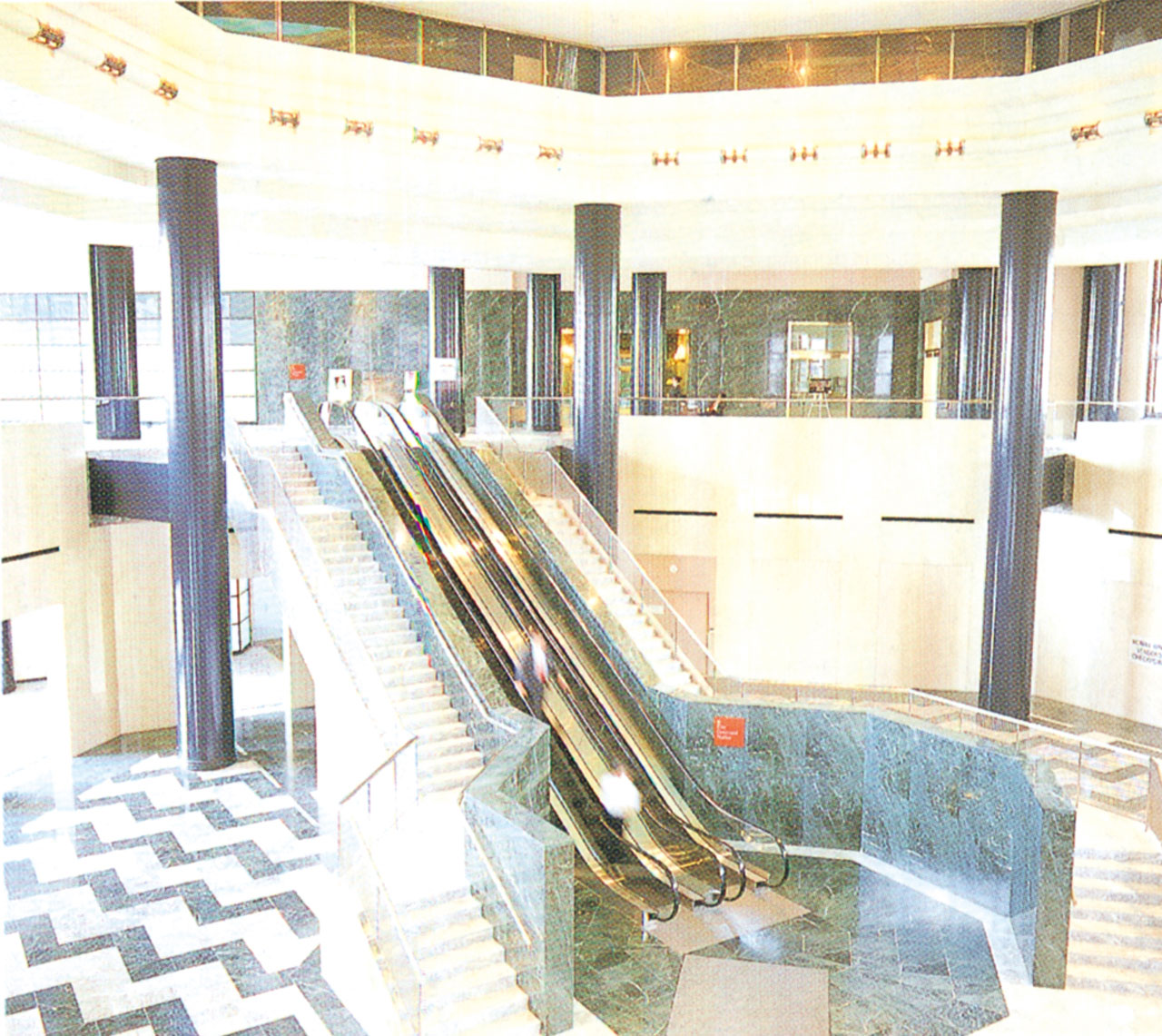

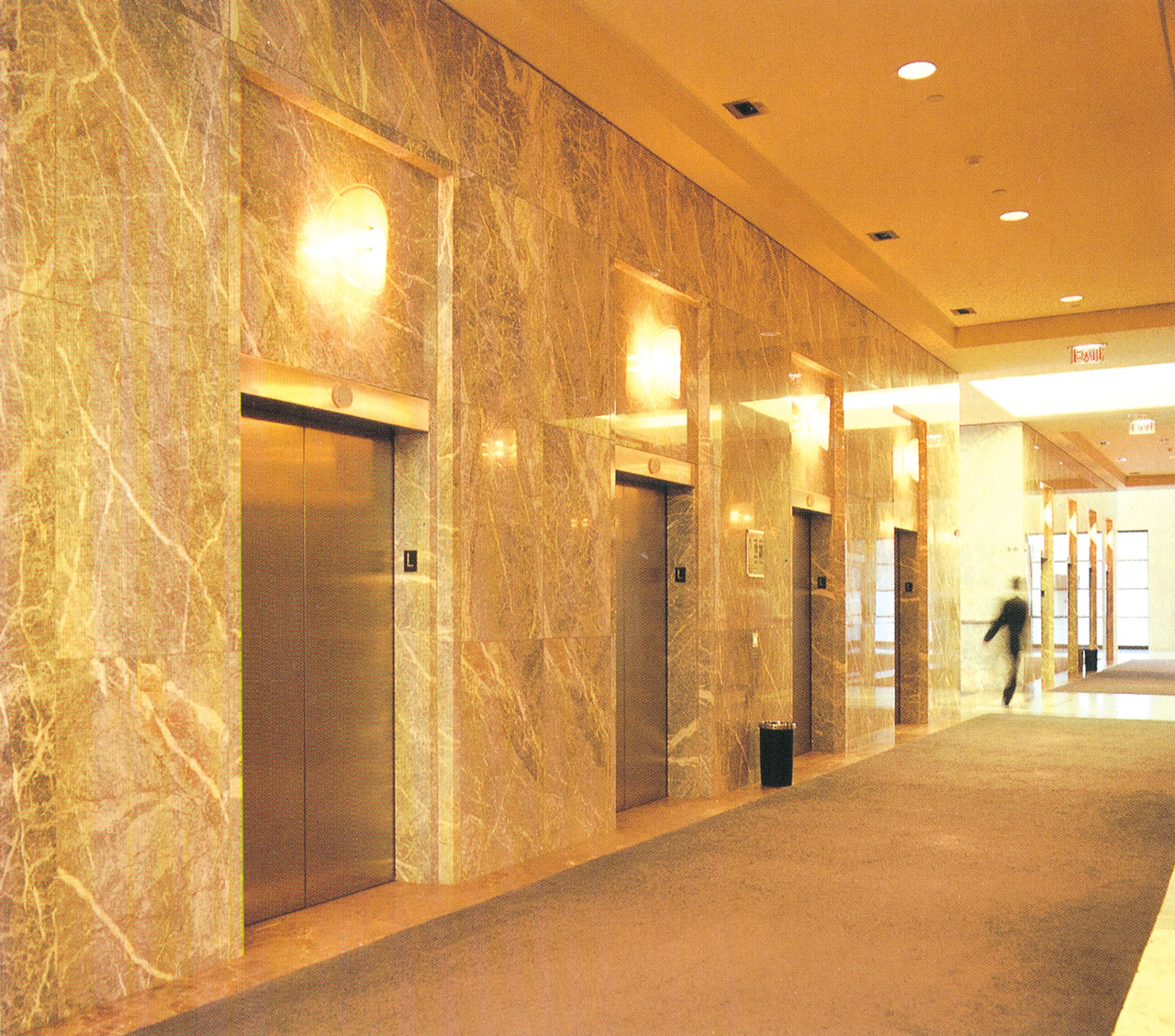

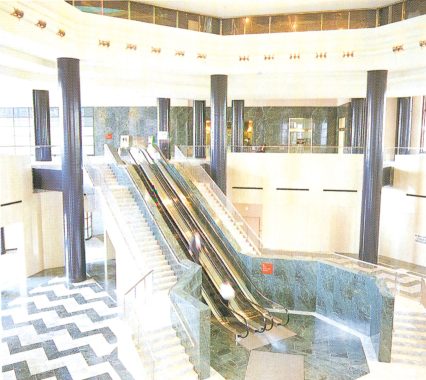

Fujitec installed 80 elevators, including high-speed models that travel up to 1,200 ft./min (360 mpm), and 14 escalators in buildings B and D. Plus, a highly sophisticated, visual communication system (ELVIC) provides real-time monitoring of operating status and control commands to elevators.

  • Elevator
  • Escalator
  • Office
  • North America
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Balustrade with light
  • Step：800mm
  • 1980s before
Building name
World Financial Center
Address
New York, U.S.A.
Client
Battery Park City Authority / Olympic & York Battery Park Co.
Design and supervision
Cesar Pelli & Associates, Inc.
Construction
Olympic & York Battery Park Co.
Completion
1988

Specifications

Elevator Total units 80
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)		 unit
DC-GL Passenger 1810 24 210 14 3
DC-GL Passenger 1810 24 210 15 4
DC-GL Passenger 1810 24 210 11 4
DC-GL Passenger 1810 24 210 10 3
DC-GL Passenger 1810 24 300 12 3
DC-GL Passenger 1810 24 300 13 4
DC-GL Passenger 1810 24 360 10 3
DC-GL Passenger 1810 24 360 11 4
AC-GD Passenger 1810 24 60 2 1
DC-GL Service 1810 24 210 45 1
DC-GL Service 3180 42 210 48 1
DC-GL Service 3180 42 210 47 2
AC-GD Service 1590 21 75 4 2
AC-GD Service 4540 61 30 4 1
AC-GD Freight 4540 - 30 4 1
AC-GD Passenger 1810 24 105 4 4
DC-GL Passenger 1810 24 150 5 4
DC-GL Passenger 1810 24 150 9 5
DC-GL Passenger 1810 24 150 10 1
DC-GL Passenger 1810 24 150 12 2
DC-GL Passenger 1810 24 240 11 5
DC-GL Passenger 1810 24 240 12 2
DC-GL Passenger 1810 24 300 13 5
DC-GL Passenger 1810 24 300 14 2
DC-GL Service 3400 45 210 40 1
DC-GL Service 1810 24 210 38 1
AC-GD Service 1590 21 60 2 1
DC-GL Service 1810 24 150 4 1
DC-GL Service 2270 30 210 25 1
DC-GL Passenger 1810 24 150 4 4
DC-GD Passenger 1590 21 105 7 2
HYDRAULIC Service 1810 24 45 3 2
Escalator Total units 14
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
PLS F 800 6100 30 4
PLS F 1200 6710 30 4
PLS F 1200 6100 30 2
PLS F 1200 6710 30 2
PLS F 1200 6100 30 2
