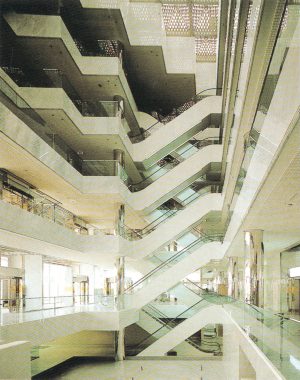

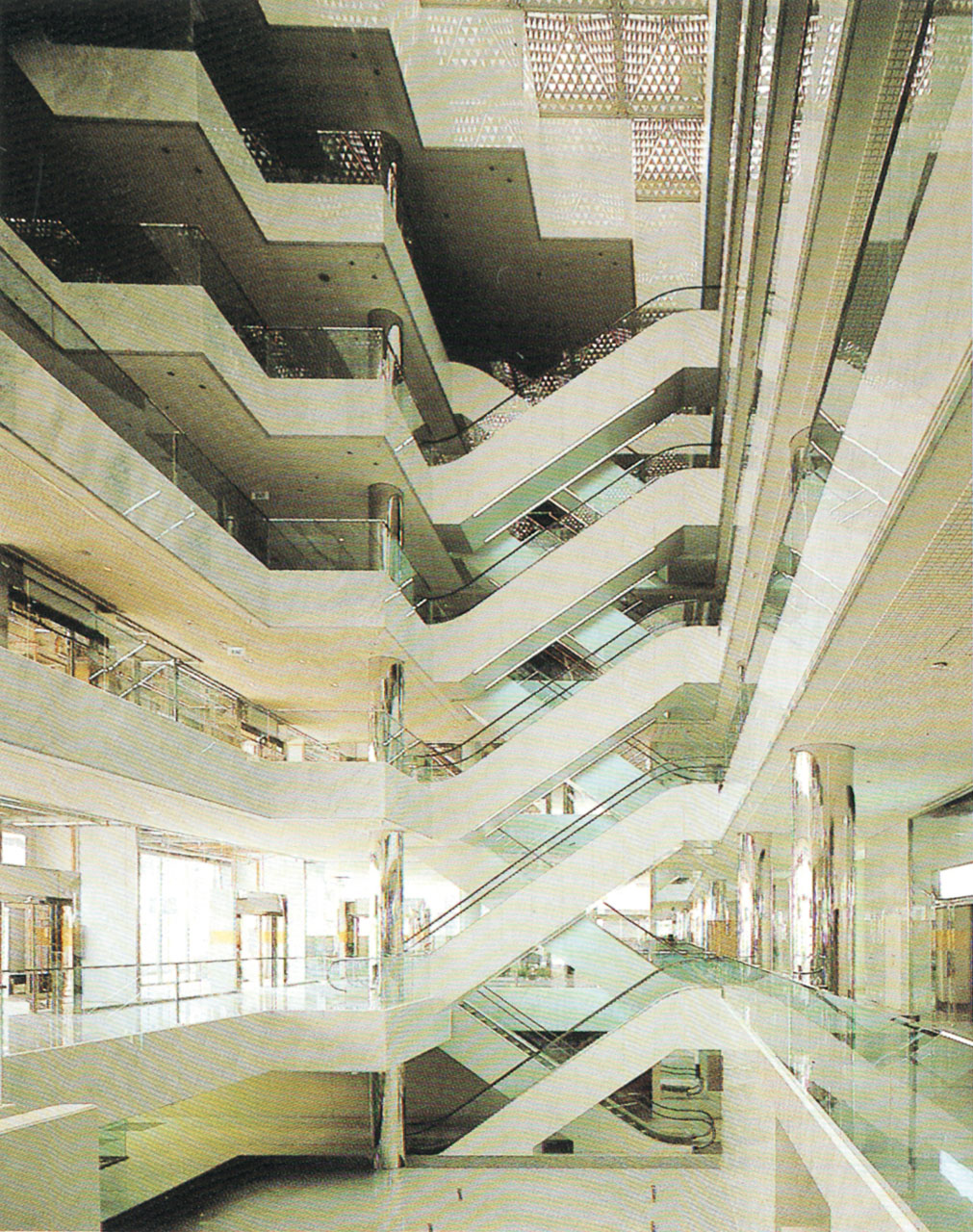

Escalator

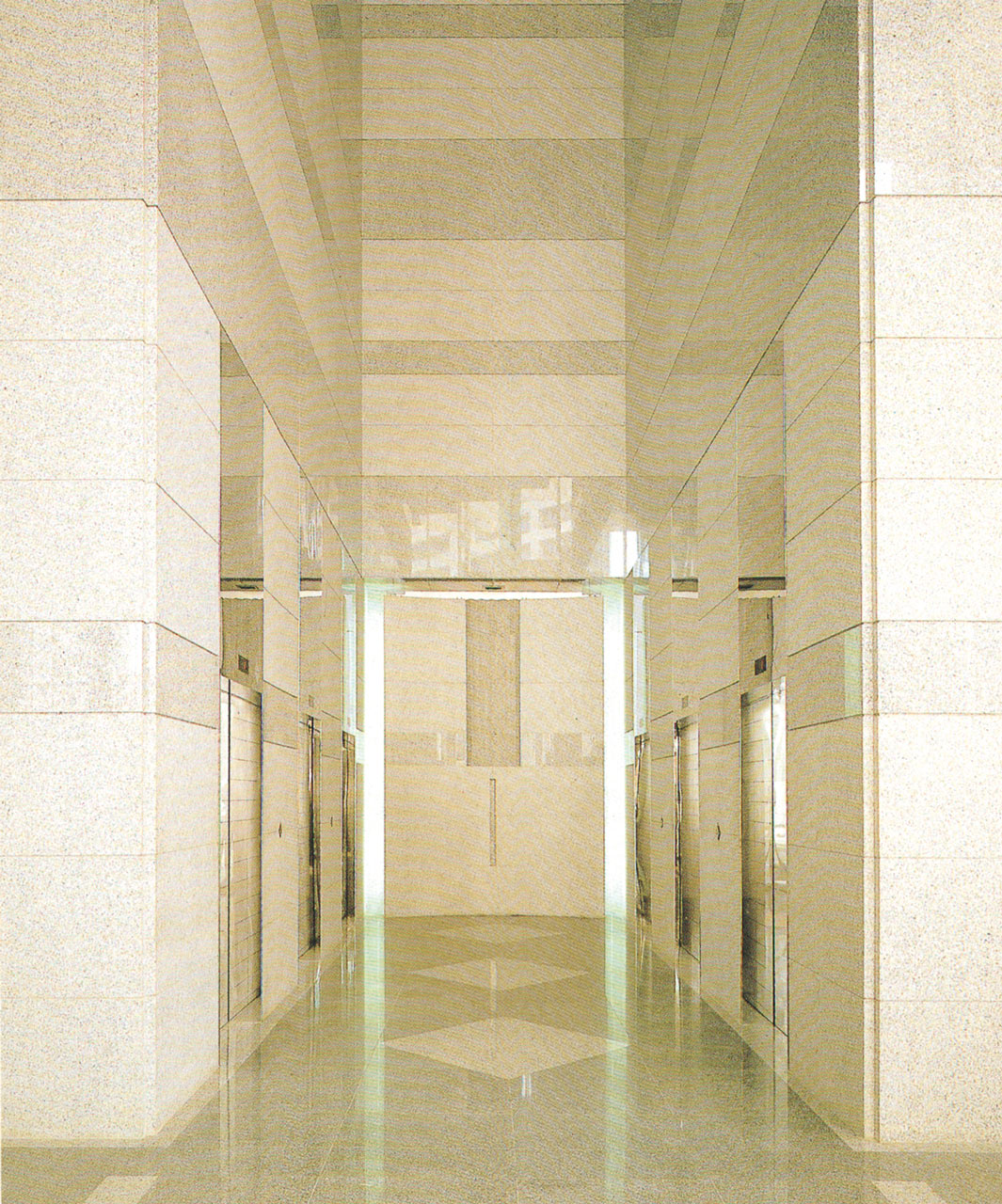

Elevator

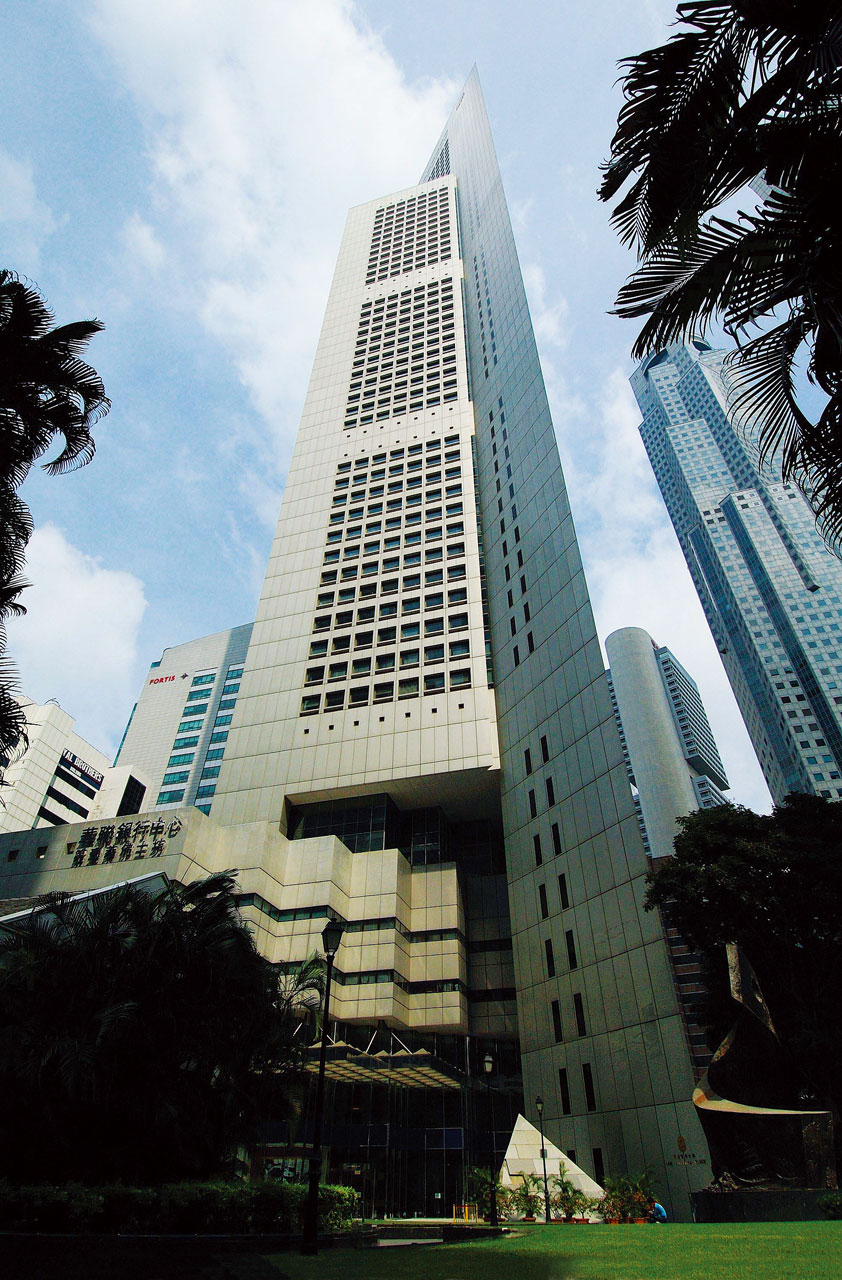

Exterior
Located in the heart of Singapore's historical and prestigious financial district, the 63-story 920ft (280m) Overseas Union Bank Headquarters, completed in 1986, is one of the tallest buildings in Asia.
The integrated two-triangular, multi-use design by Kenzo Tange Associates further enhances the surroundings as one of Singapore's landmarks.
Fujitec has installed 12 escalators and 31 elevators including gearless units with speeds of 1,400fpm (420mpm).
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| DC-GL | Passenger | 1155 | 15 | 420 | 50 | 2 |
| DC-GL | Passenger | 1155 | 15 | 420 | 23 | 6 |
| DC-GL | Passenger | 1155 | 15 | 300 | 18 | 6 |
| DC-GL | Service | 1155 | 15 | 300 | 63 | 1 |
| DC-GL | Passenger | 1155 | 15 | 210 | 21 | 2 |
| DC-GL | Passenger | 1155 | 15 | 210 | 20 | 2 |
| AC-VV | Service | 1360 | 18 | 90 | 9 | 2 |
| AC-VV | Passenger | 1020 | 14 | 90 | 12 | 2 |
| AC-VV | Passenger | 1020 | 14 | 45 | 6 | 2 |
| AC-VV | Passenger | 750 | 10 | 90 | 9 | 2 |
| AC-VV | Passenger | 750 | 10 | 45 | 5 | 1 |
| AC-VV | Passenger | 610 | 8 | 30 | 3 | 1 |
| HYDRAULIC | Passenger | 750 | 10 | 45 | 4 | 2 |
| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| PLS | S | 1000 | 4000 | 35 | 6 |
| PLS | S | 1000 | 4500 | 35 | 2 |
| PLS | S | 1000 | 5200 | 35 | 2 |
| PLS | S | 600 | 5230 | 30 | 2 |
