China World Trade Center

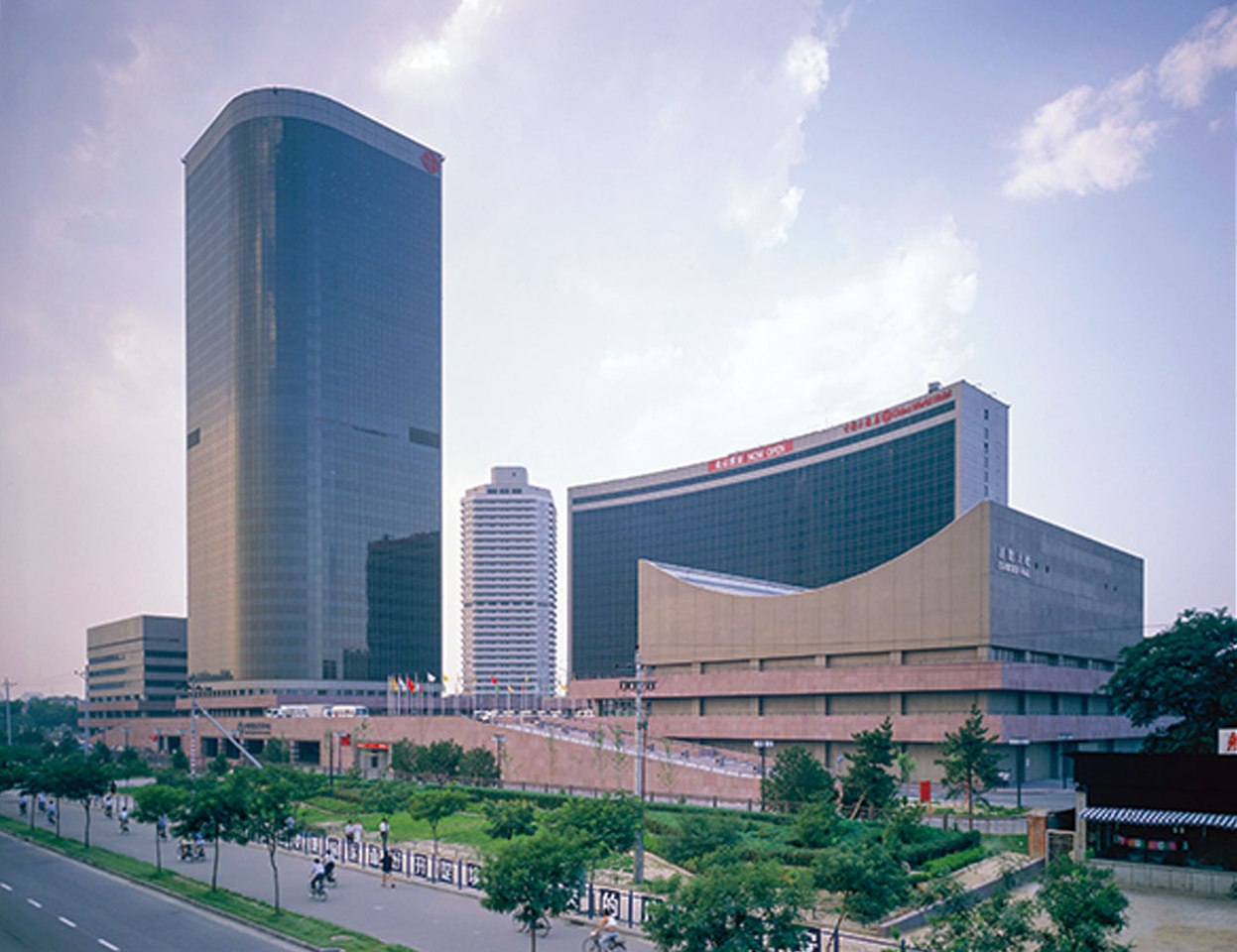

Centered around a 40-story high-rise office building, this project consists of hotels, an exhibition hall, and high-rise apartment buildings. In this Center, a total of 115 Fujitec installations: 77 elevators, including super high-speed models traveling up to 420 mpm, and 38 escalators are installed.

  • Elevator
  • Escalator
  • Office
  • Residence
  • Hotel
  • Asia
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Balustrade with light
  • 1990s
Building name
China World Trade Center
Address
Beijing, China
Client
China Wiorld Trade Center
Design and supervision
Nikken Sekkei Ltd.
Construction
Societe Auxiliaire d' Enterprises
Completion
1990

Specifications

Elevator Total units 77
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)		 unit
DC-GL Passenger 1600 21 420 12 4
DC-GL Passenger 1600 21 300 11 4
DC-GL Passenger 1600 21 240 11 4
DC-GL Passenger 1600 21 180 21 8
DC-GL Passenger 1600 21 180 12 4
DC-GL Passenger 1350 18 150 7 3
DC-GL Passenger 1000 13 150 29 6
HYDRAULIC Passenger 1600 21 30 2 1
HYDRAULIC Passenger 900 12 30 4 2
DC-GL Service 1350 18 150 40 2
DC-GL Service 1250 17 150 22 3
DC-GL Service 1250 17 150 23 2
DC-GL Service 1700 22 150 32 2
DC-GL Service 1600 21 120 8 2
HYDRAULIC Freight 1600 - 30 3 3
HYDRAULIC Freight 1600 - 30 2 2
HYDRAULIC Freight 2000 - 20 2 1
HYDRAULIC Freight 2000 - 20 3 1
AC-GL Passenger 1600 21 180 12 4
AC-GL Passenger 1600 21 240 12 4
AC-GL Passenger 1600 21 300 11 4
AC-GL Passenger 1600 21 420 11 4
AC-GL Service 1350 18 180 40 2
AC-GD Service 1350 18 60 4 1
HYDRAULIC Service 1350 18 60 4 1
HYDRAULIC Passenger 1350 18 60 3 2
HYDRAULIC Passenger 1350 18 60 4 1

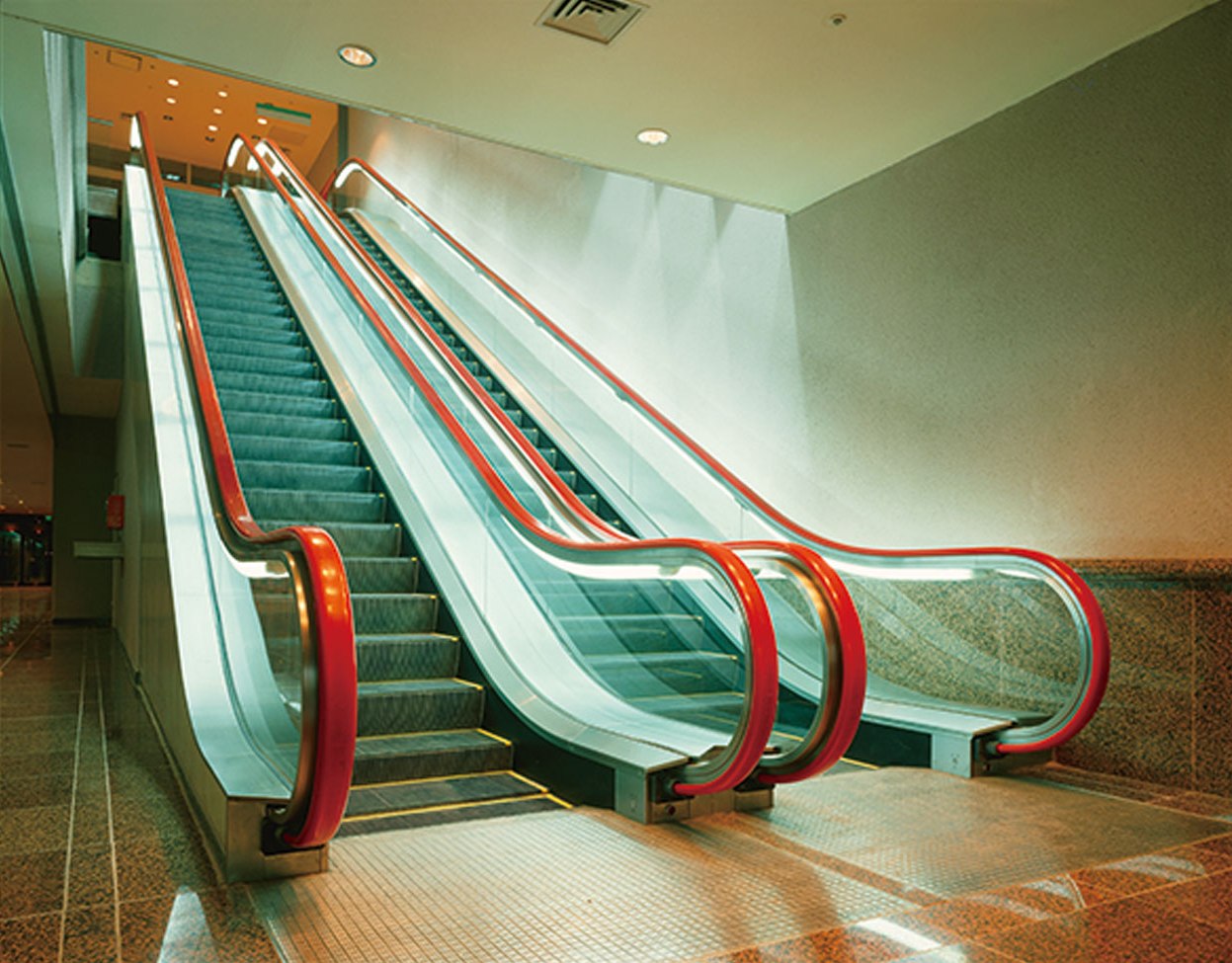

Escalator Total units 38
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
PLS F 1200 6000 30 8
PLS F 1200 5400 35 2
PLS F 1200 4800 30 8
PLS F 1200 4250 35 2
V S 1200 5100 30 3
V S 1200 5700 30 3
V S 1200 4900 30 2
V S 1200 4000 30 2
V S 1200 4450 30 2
V S 1200 4570 30 2
V S 1200 4800 30 2
V S 1200 5040 30 2
