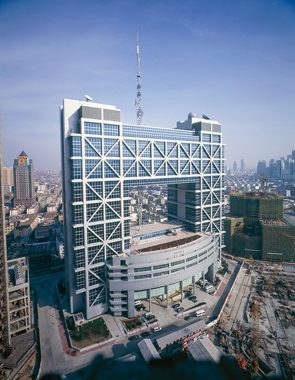

The Shanghai Stock Exchange Building rises high over the financial district of Pudong, Shanghai City, China.
The building, with 28 floors above ground and 3 below, is one of China's high-profile national projects. It is occupied primarly by the offices of the Shanghai Stock Exchange, which is Shanghai's "Face of Revolution & Liberalization."

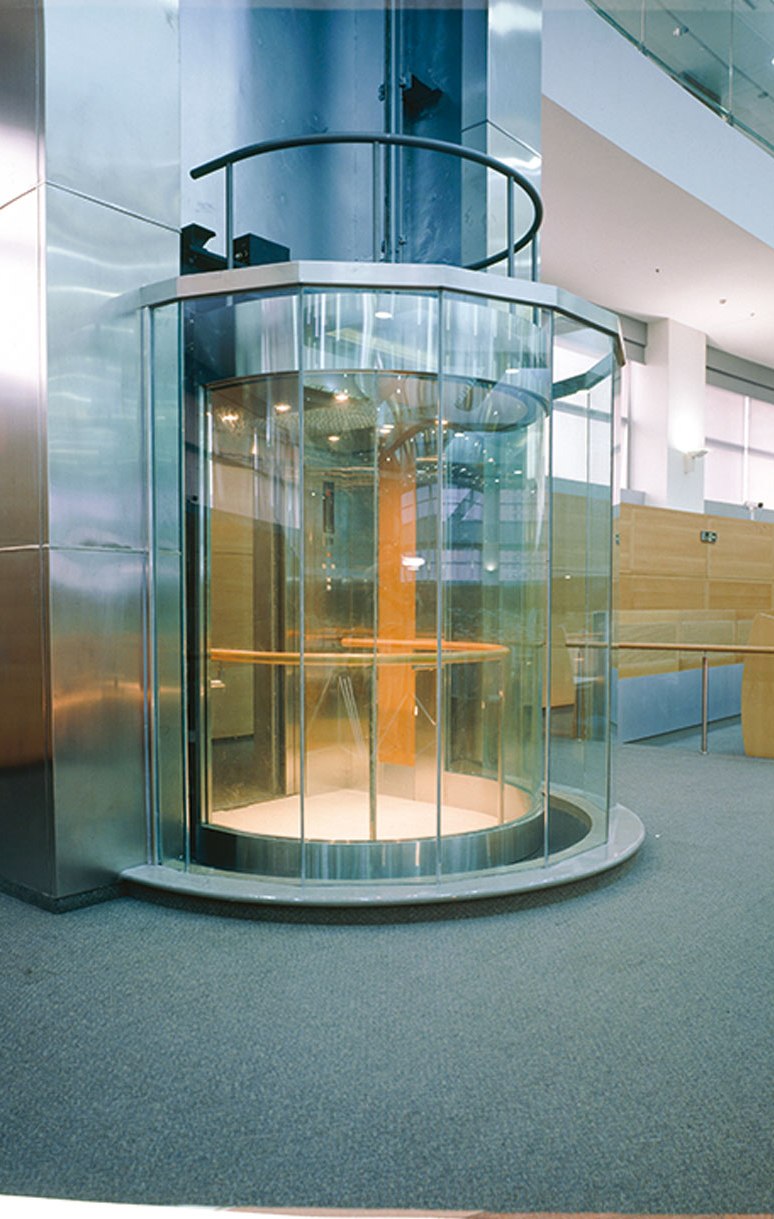

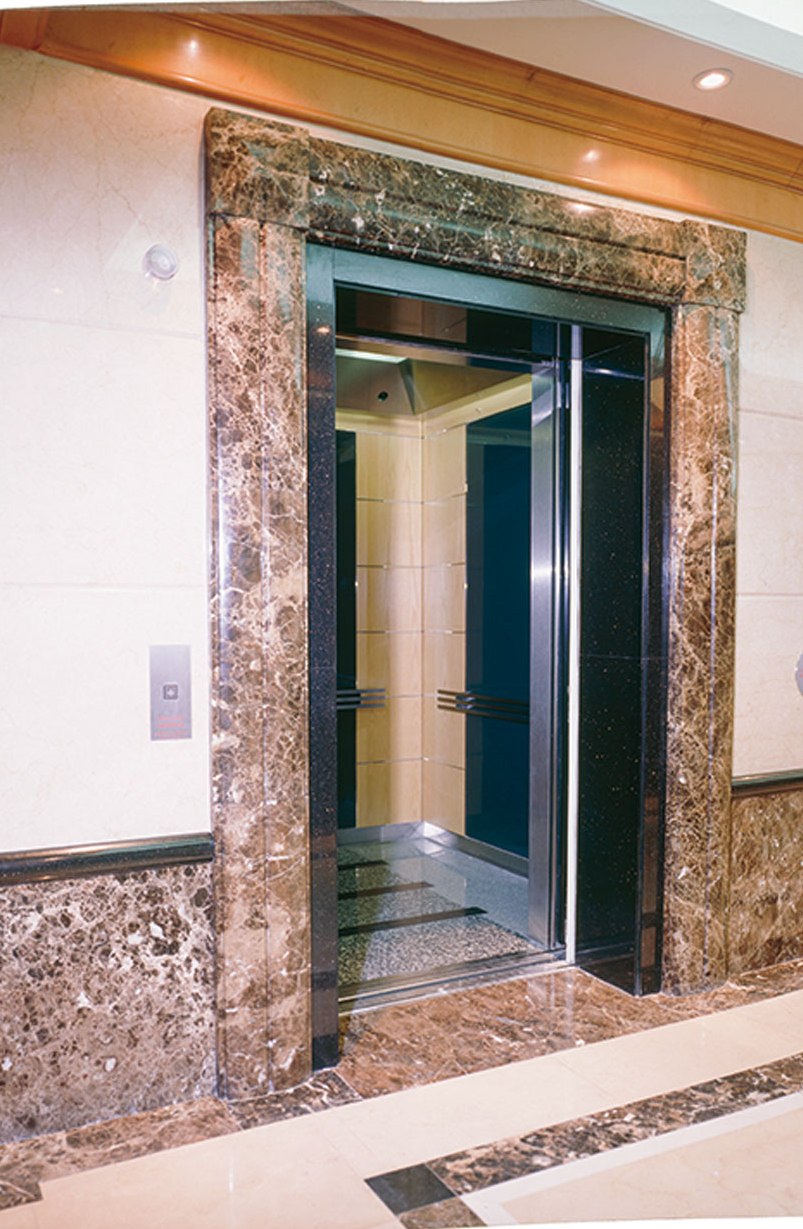

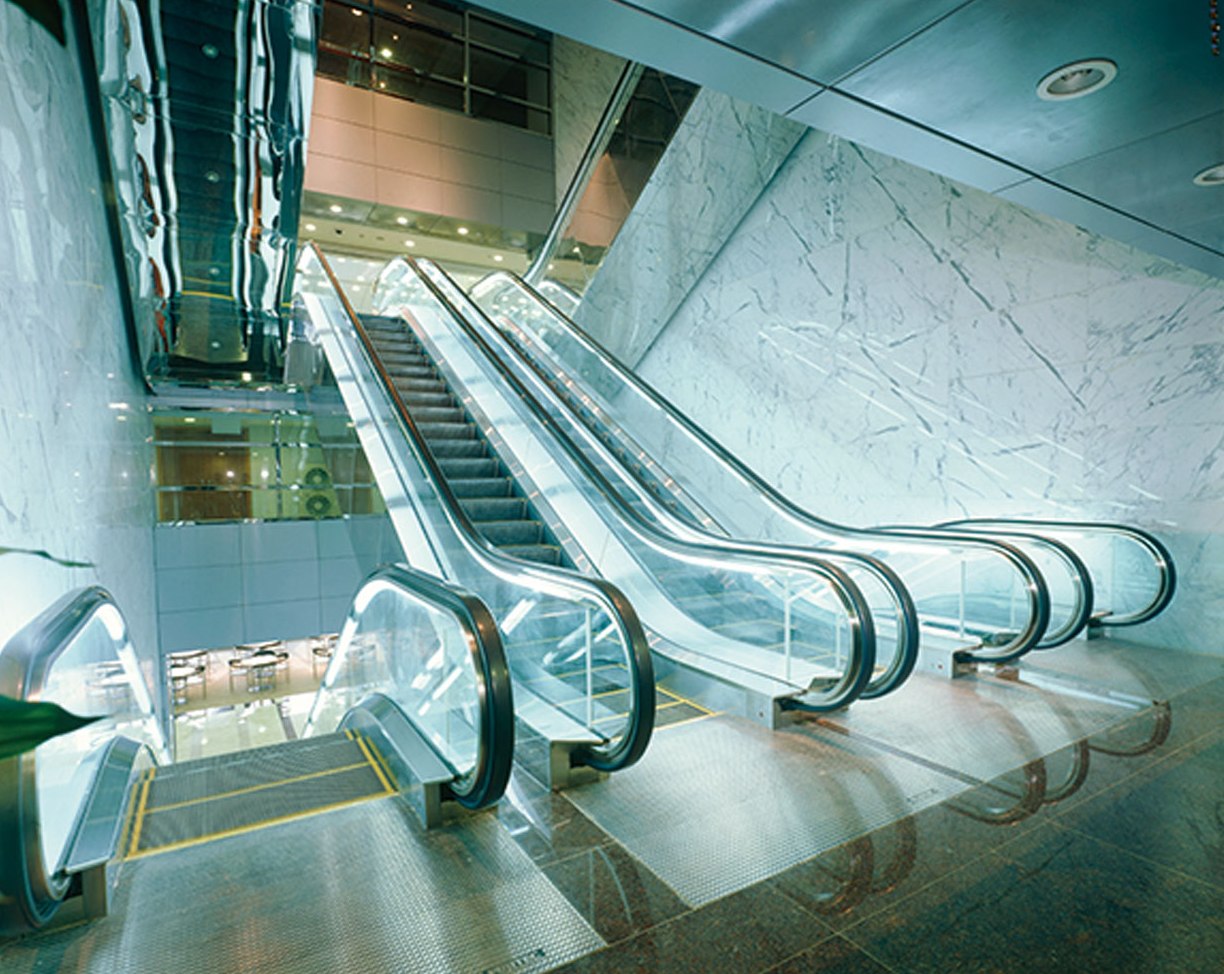

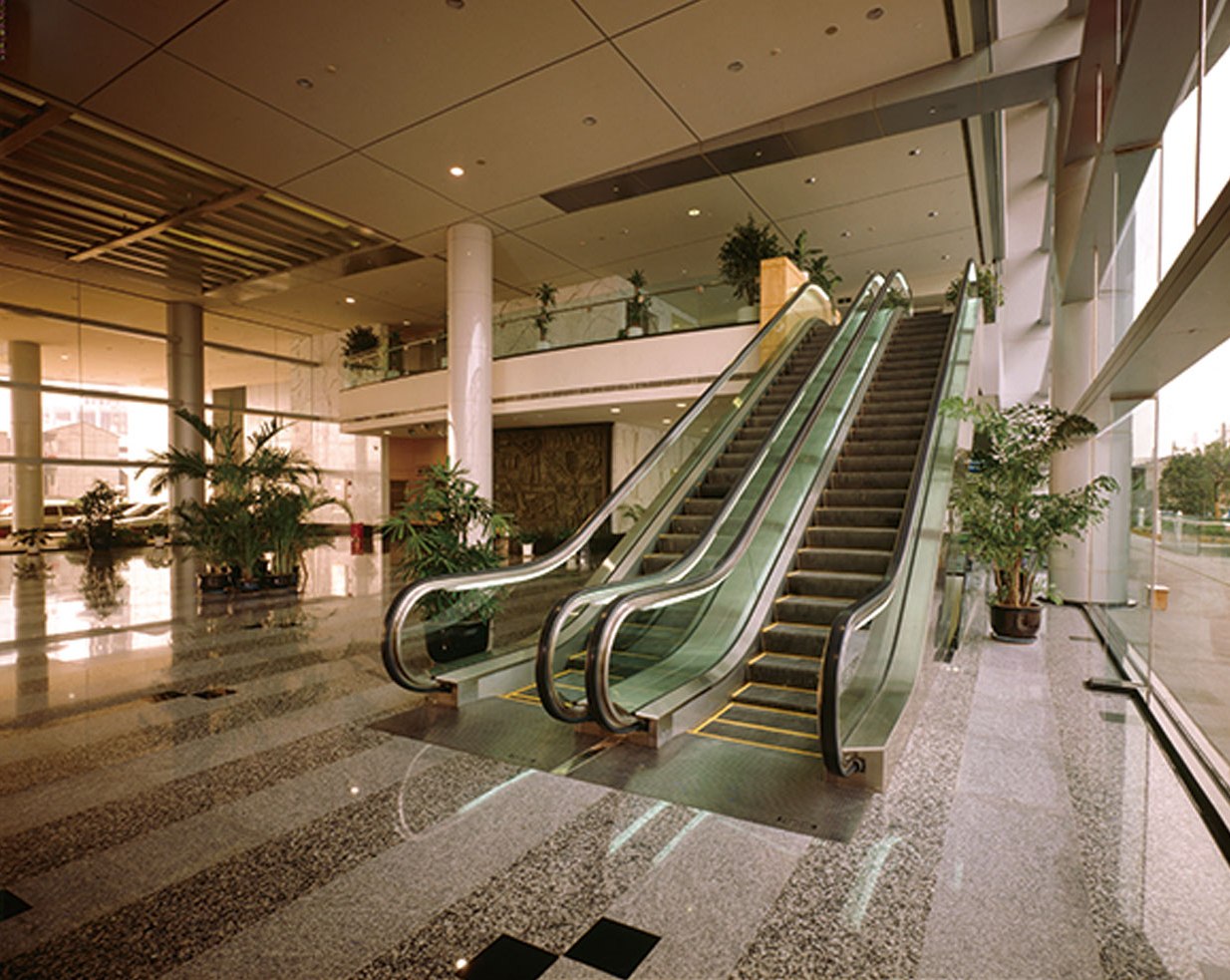

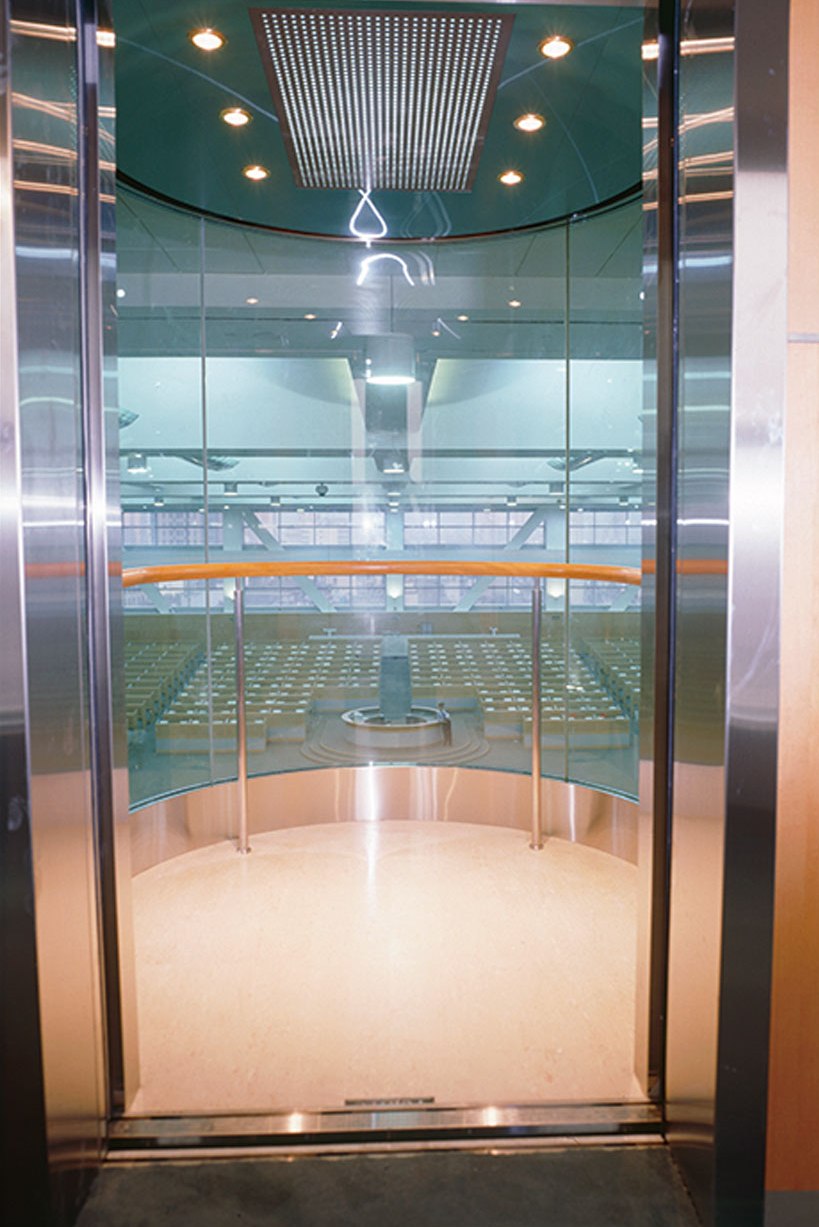

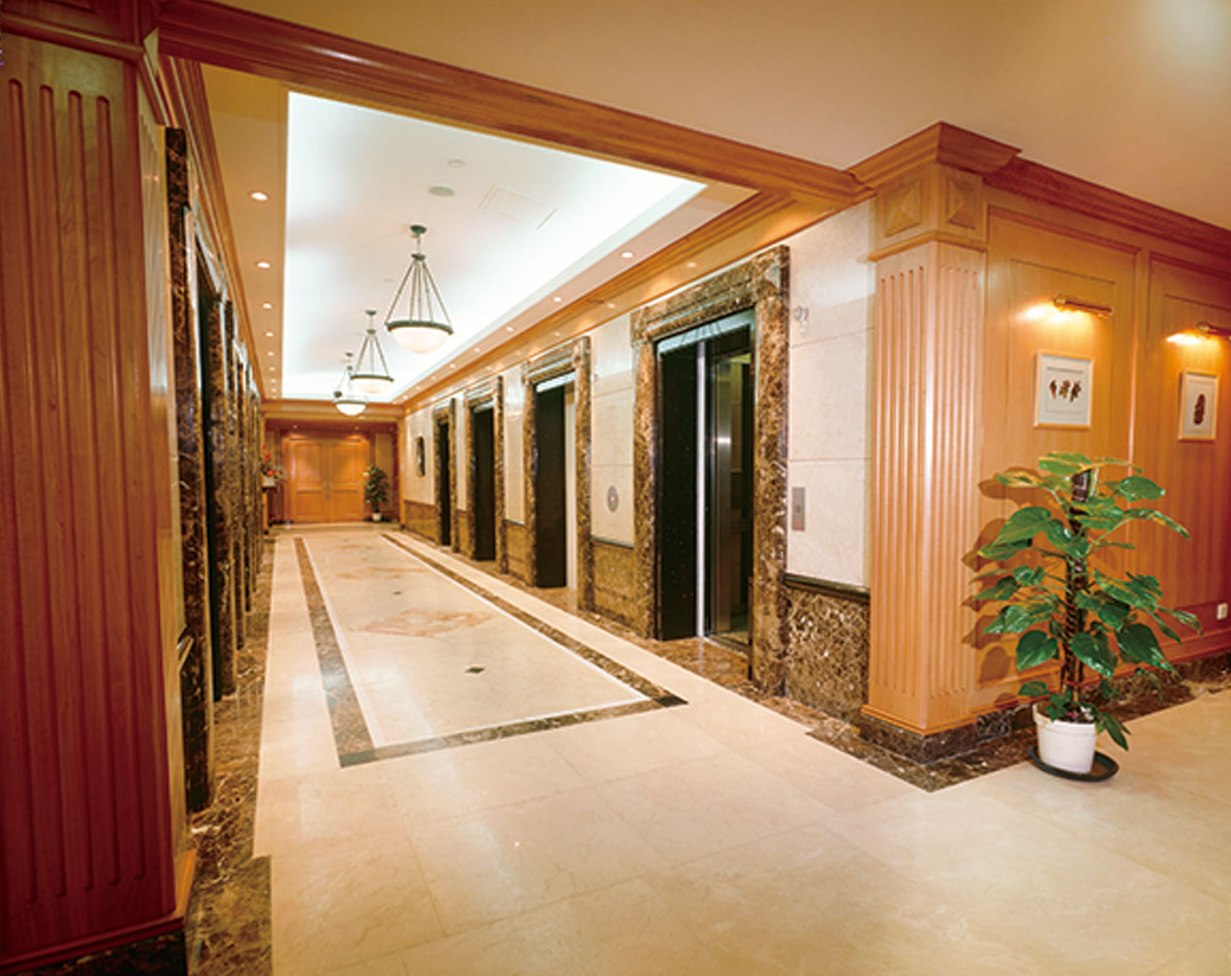

In this building, Fujitec installed 16 escalators and 22 elevators including high-speed models up to 240 mpm.
The state-of-the-art Fujitec brands are highly acclaimed and are well-matched for this full-scale, "intelligent building" that stands at the center of the Chinese economy.
Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
---|---|---|---|---|---|---|
AC-GL | Passenger | 1600 | 21 | 240 | 19 | 6 |
AC-GL | Passenger | 1600 | 21 | 240 | 21 | 6 |
AC-GL | Passenger | 1600 | 21 | 150 | 9 | 2 |
AC-GL | Passenger | 1600 | 21 | 150 | 9 | 1 |
AC-GL | Passenger | 1600 | 21 | 150 | 10 | 1 |
AC-GL | Passenger | 1800 | 24 | 150 | 30 | 1 |
HYDRAULIC | Passenger | 1140 | 15 | 45 | 4 | 2 |
HYDRAULIC | Freight | 1140 | - | 30 | 2 | 1 |
HYDRAULIC | Passenger | 1250 | 17 | 20 | 2 | 1 |
Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
---|---|---|---|---|---|
PLS | F | 1000 | 5000 | 30 | 2 |
PLS | F | 1000 | 4500 | 30 | 2 |
PLS | F | 1000 | 3950 | 30 | 8 |
PLS | F | 1000 | 5000 | 30 | 4 |
