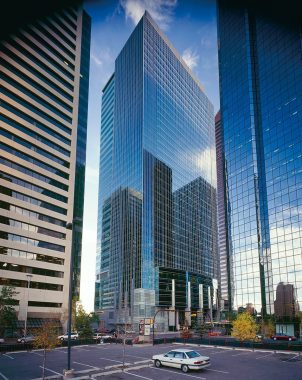

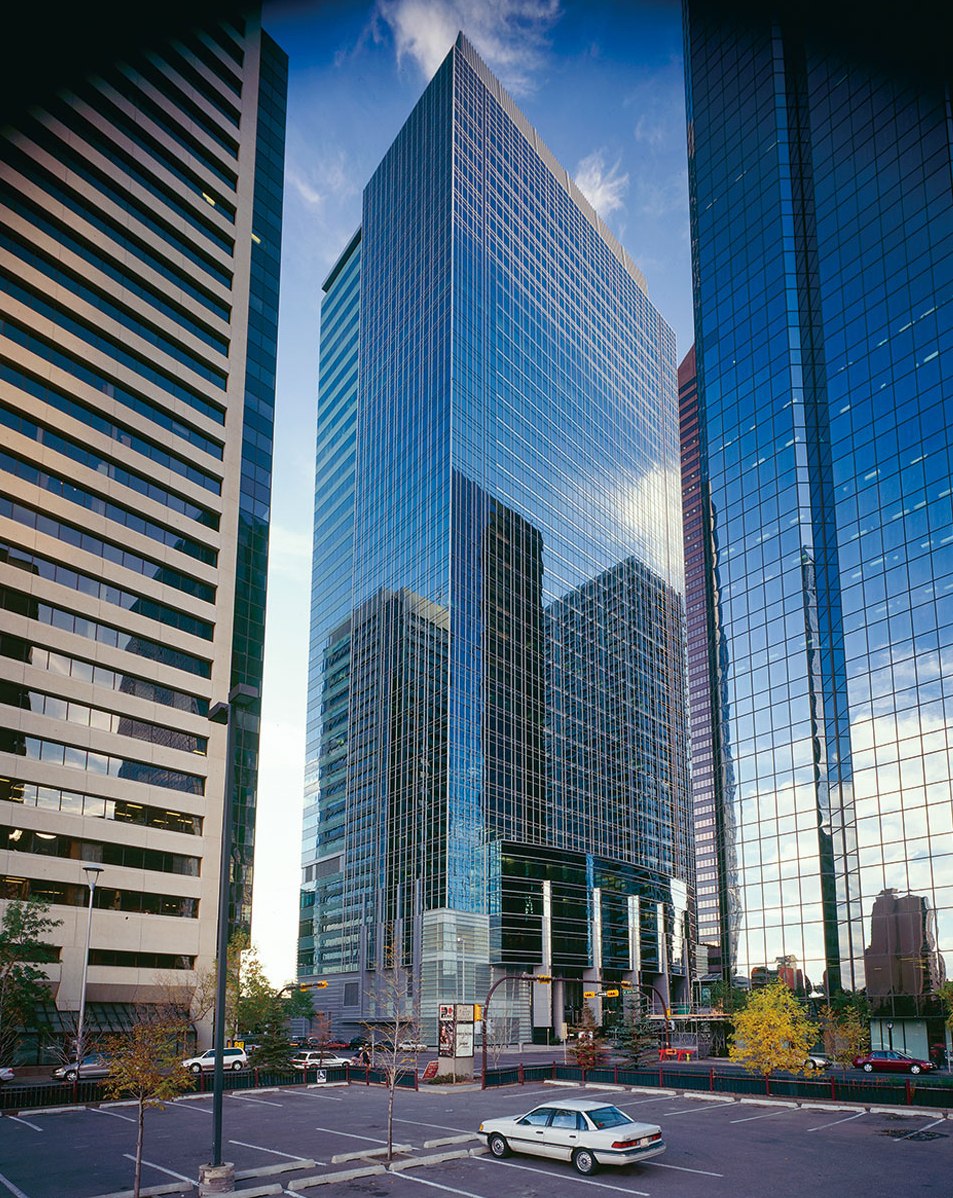

Exterior

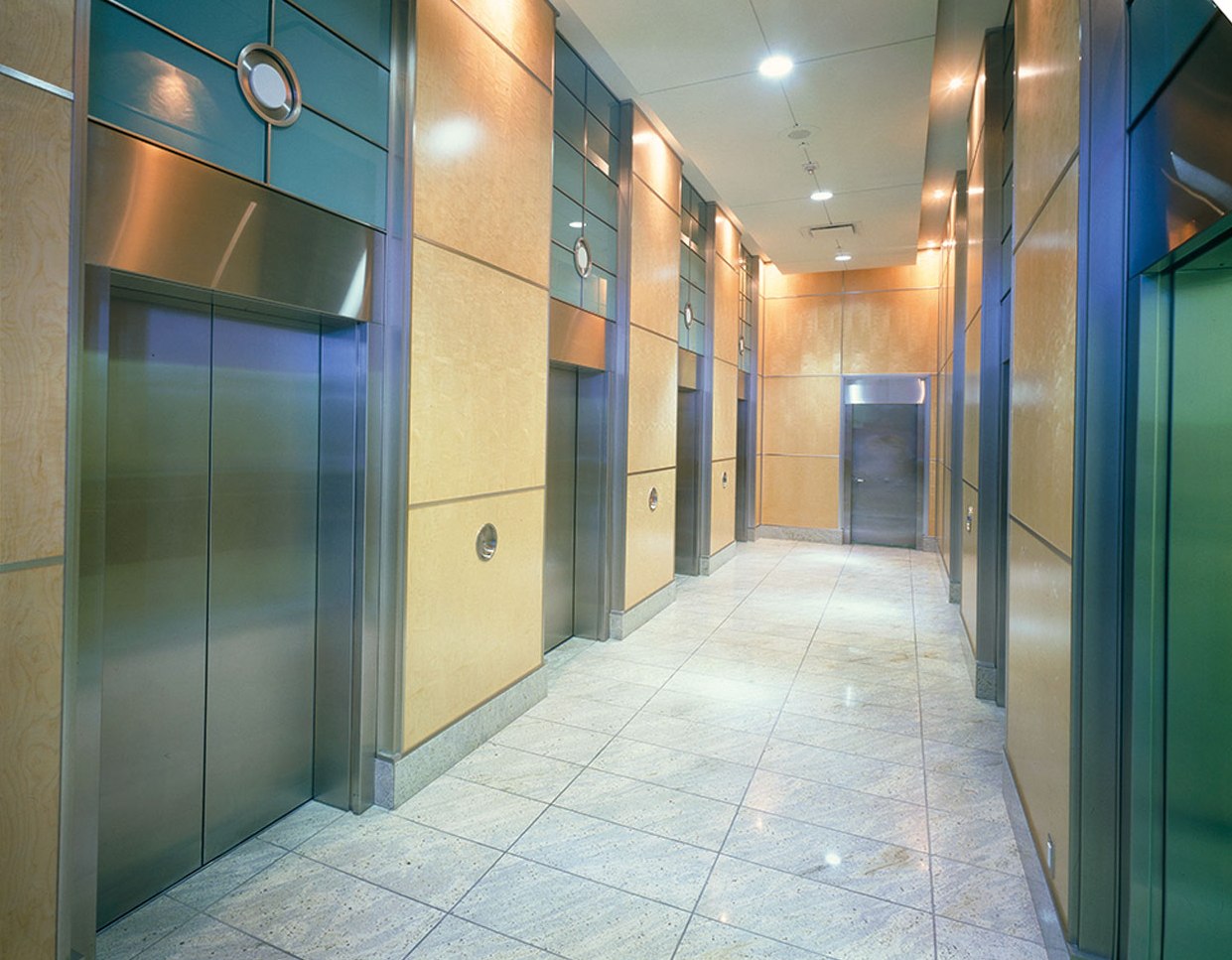

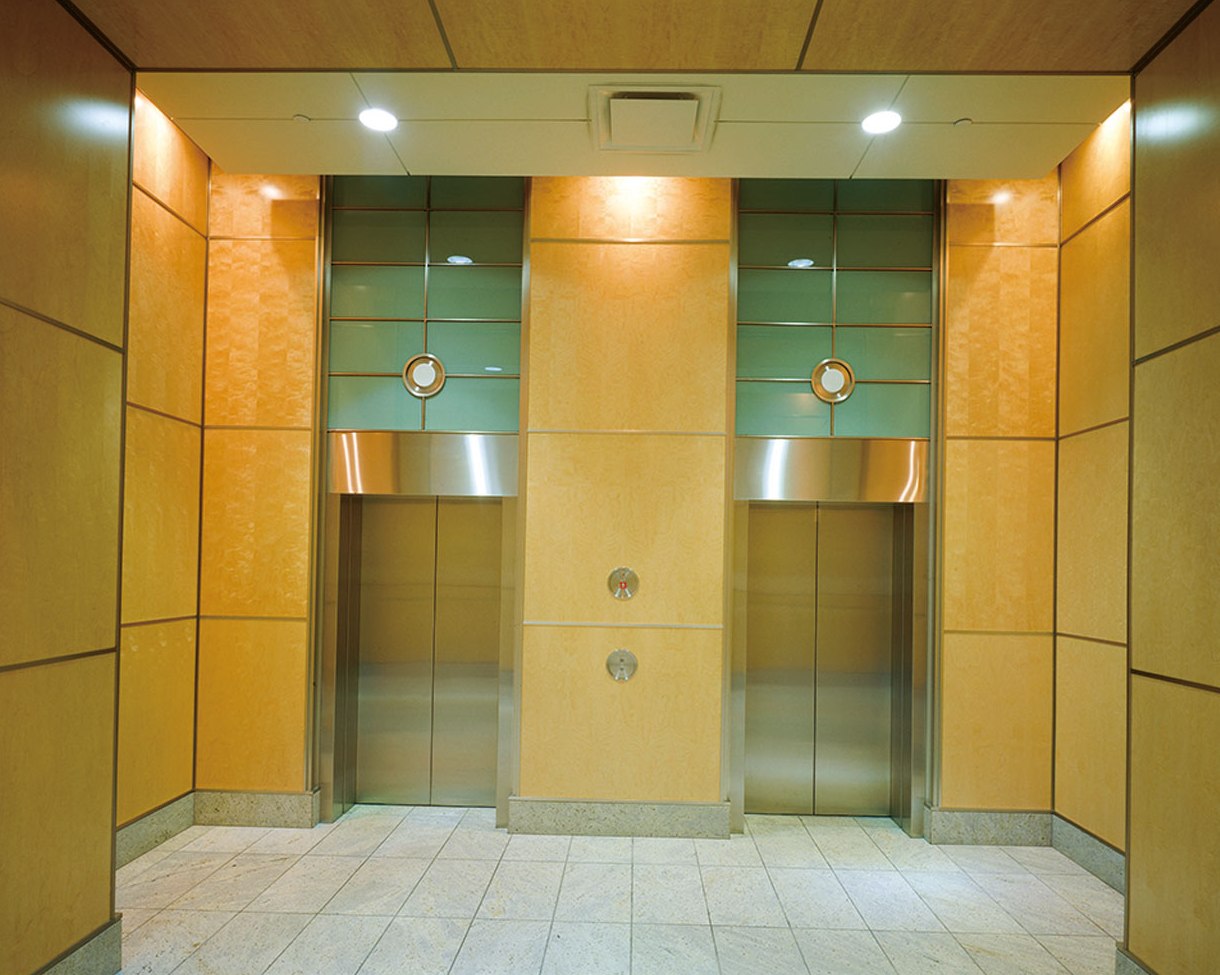

Elevator1
Elevator2
Elevator3
Elevator4
TransCanada Tower is a 35-story state-of-the-art office building in the heart of downtown Calgary, Canada. The building is the headquarters for the major energy company TransCanada Ltd. In this building, a total of 23 Fujitec installations consisting of two escalators and 21 elevators are operating including high-speed models traveling up to 300 mpm.
Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
---|---|---|---|---|---|---|
DC-GL | Passenger | 1580 | 21 | 300 | 14 | 7 |
DC-GL | Passenger | 1580 | 21 | 240 | 13 | 6 |
DC-GL | Service | 2040 | 27 | 210 | 40 | 2 |
DC-GL | Passenger | 1580 | 21 | 150 | 11 | 4 |
AC-GD | Passenger | 1580 | 21 | 105 | 7 | 2 |
Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
---|---|---|---|---|---|
V | S | 1000 | 6100 | 30 | 2 |
