Wisma 46

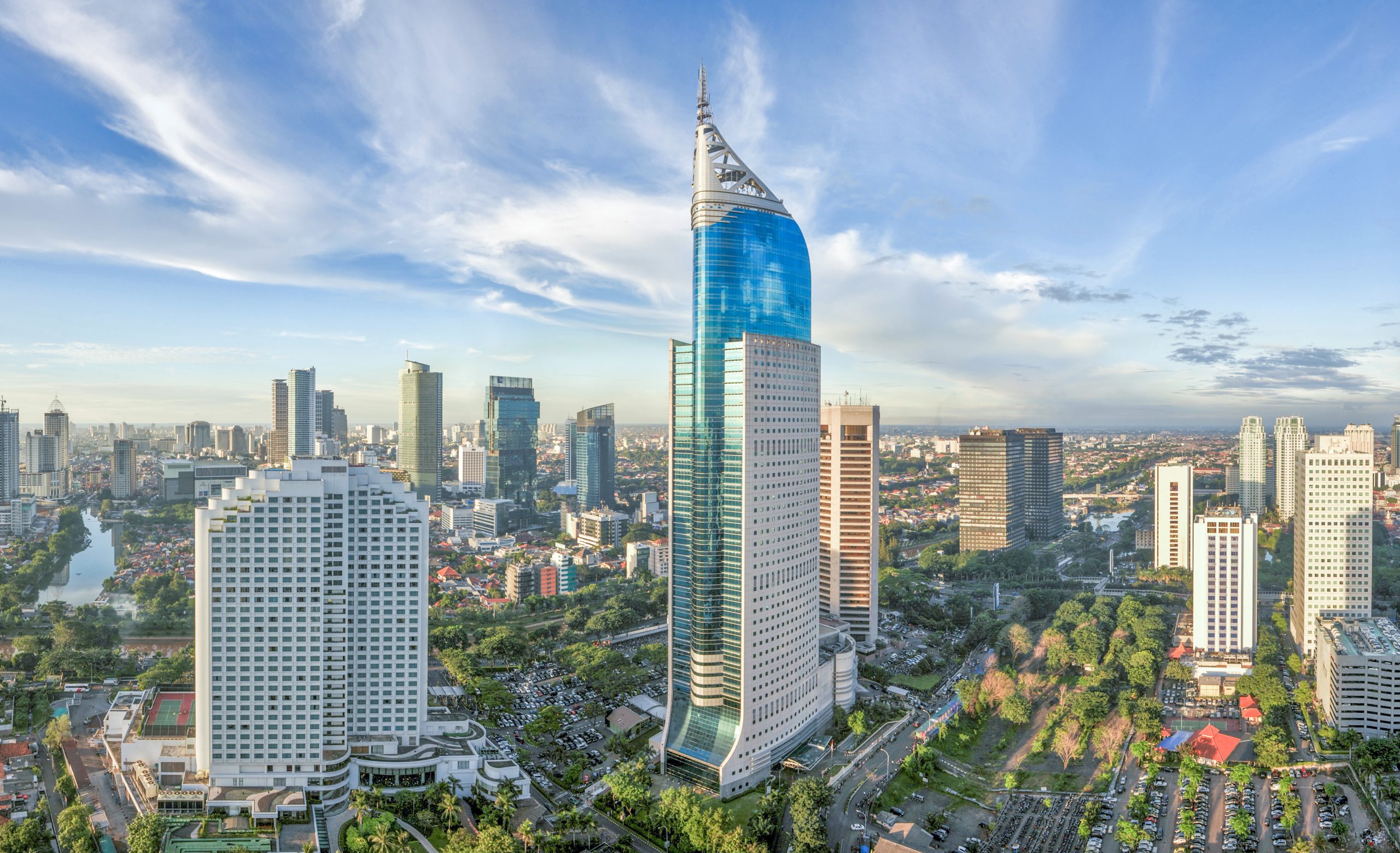

Wisma 46 is one of the most iconic office buildings in Jakarta. The building is a famous symbol of the business district and is shaped like a fountain pen. Wisma 46 is an office building featuring functions to support business needs, including a convention hall, meeting rooms, and virtual offices. The building also offers various banking services, delivery services, a clinic and restaurants.
(Green Building Council Indonesia GREENSHIP certification pending)

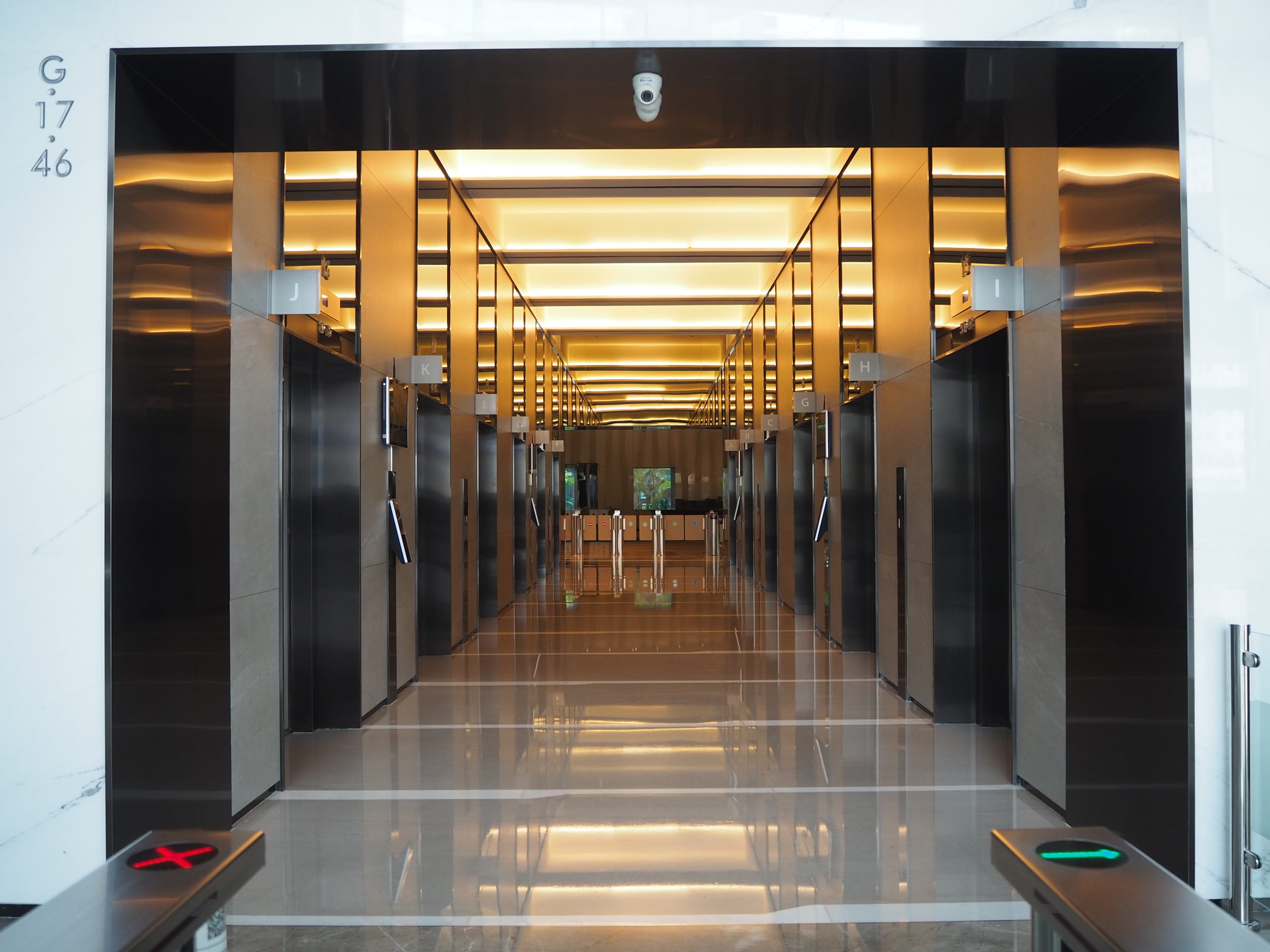

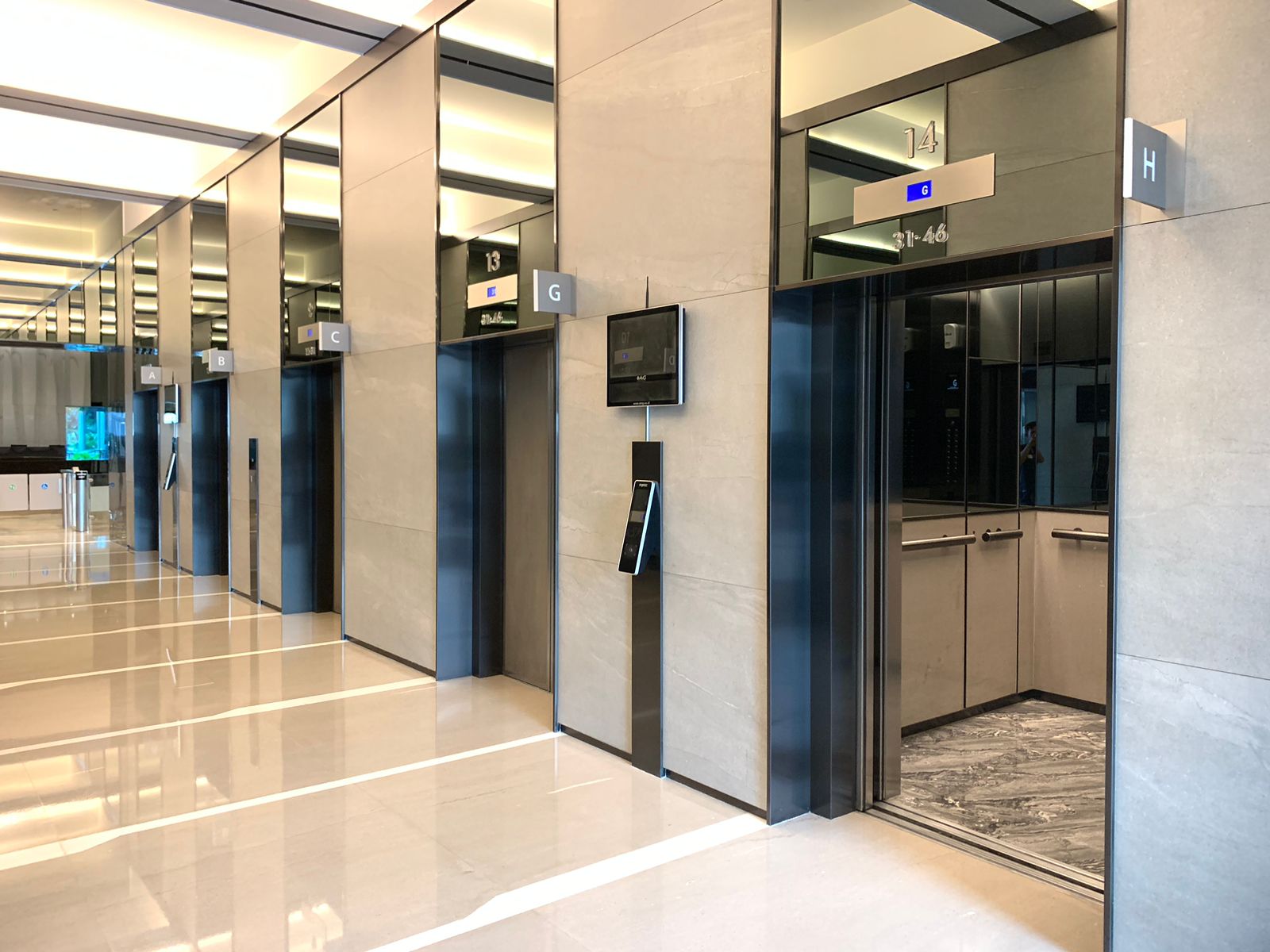

In this office building, nineteen (19) elevators modernized by Fujitec are in operation. Elevators delivered include 6 elevators that operate at a speed of 360 meters per minute, the fastest speed available at Fujitec Indonesia.
Fujitec delivered the original elevators during building construction in 1996, and has overseen maintenance over the years. The Wisma 46 elevators were renovated to improve safety and functionality, as the Fujitec elevators originally installed had been in operation for over 25 years. These elevators are the first at Fujitec Indonesia to introduce the EZSHUTTLE control system, which eases traffic from long elevator wait times. The EZSHUTTLE system assigns elevator cars to passengers automatically according to their destination floors, improving operation efficiency.

  • Elevator
  • Office
  • Asia
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • 1990s
Building name
Wisma 46
Address
Jakarta, Indonesia
Owner
PT. Swardharma Prima Utama
Design and supervision
Zeidler Roberts Partnership (Zeidler Partnership Architects), DP Architects Pte Ltd.
Construction
PT. Waskita Karya
Completion
1996 (Renew in 2024)

Specifications

Elevator Total units 24
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
ELSIA Passenger 1800 26 360 17 6
ELSIA Passenger 1800 26 300 16 5
ELSIA Passenger 1800 26 300 17 1
ELSIA Passenger 1800 26 240 17 5
ELSIA Passenger 1800 26 240 18 1
ELSIA Service 2000 - 240 49 1
AC-GD Passenger 900 13 90 11 2
REXIA Passenger 1200 16 90 6 2
REXIA Passenger 1200 16 90 4 1
