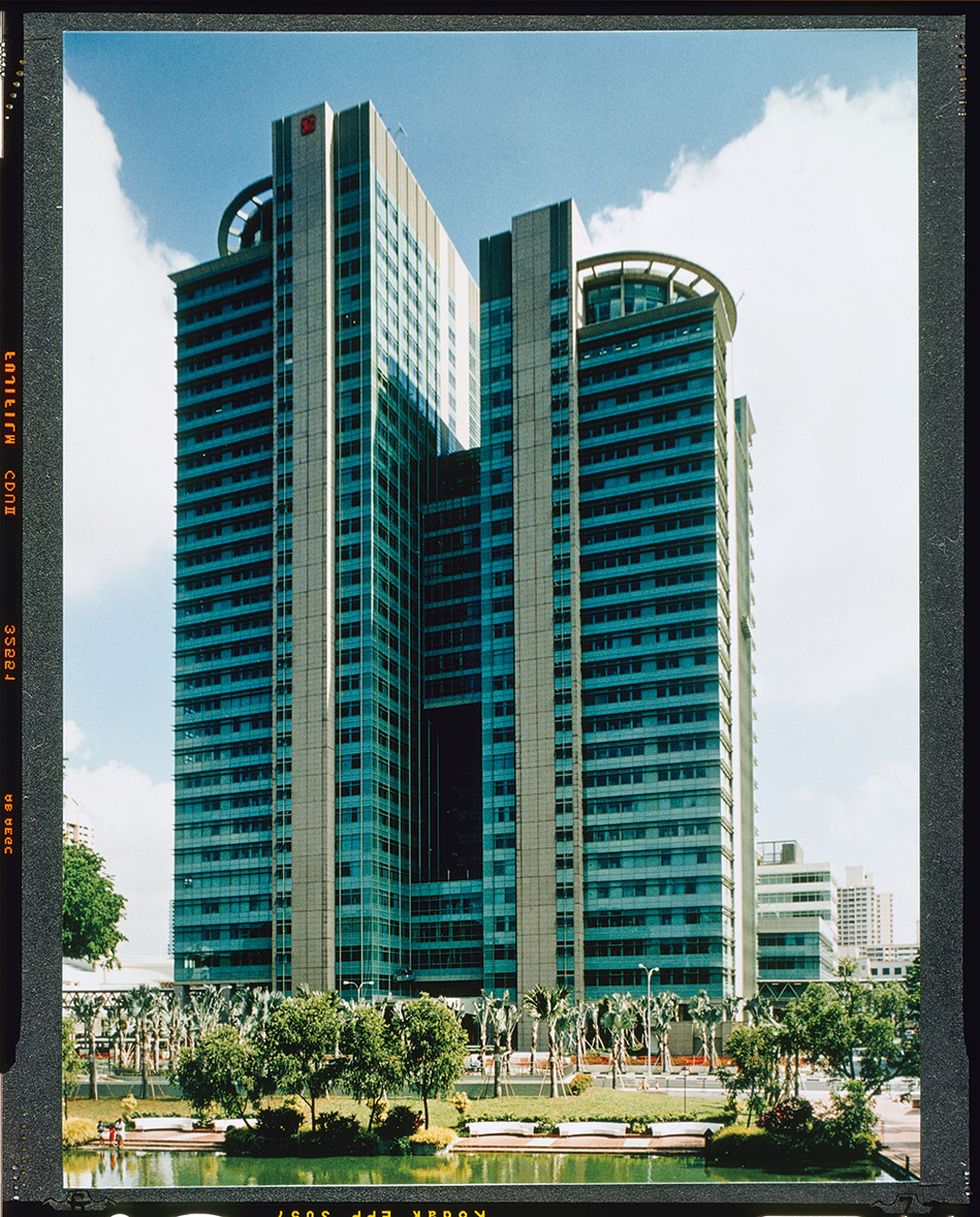

Exterior
The Housing and Development Board (HDB) HUB rises high above Toa Payoh Town, the heartland of Singapore. This large-scale complex consists of the HDB headquarters building, offices and commercial facilities.
A total of 51 Fujitec elevators serve HUB, including super high-speed models that travel up to 420 mpm and 13 escalators.
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| AC-GL | Passenger | 1630 | 22 | 420 | 18 | 6 |
| AC-GL | Passenger | 1630 | 22 | 360 | 16 | 6 |
| AC-GL | Passenger | 1630 | 22 | 210 | 18 | 5 |
| AC-GL | Passenger | 1630 | 22 | 180 | 36 | 1 |
| AC-GL | Passenger | 1630 | 22 | 180 | 14 | 5 |
| AC-GL | Passenger | 1630 | 22 | 180 | 31 | 1 |
| AC-GL | Passenger | 1090 | 15 | 150 | 12 | 4 |
| AC-GL | Passenger | 1090 | 15 | 150 | 12 | 4 |
| AC-GL | Passenger | 1090 | 15 | 120 | 8 | 2 |
| AC-GL | Passenger | 1630 | 22 | 120 | 8 | 2 |
| AC-GL | Passenger | 1090 | 15 | 90 | 4 | 3 |
| AC-GL | Passenger | 1630 | 22 | 60 | 3 | 2 |
| AC-GD | Passenger | 1090 | 15 | 60 | 4 | 2 |
| AC-GD | Passenger | 1090 | 15 | 60 | 5 | 1 |
| AC-GD | Passenger | 1090 | 15 | 60 | 6 | 2 |
| AC-GD | Freight | 1350 | - | 60 | 3 | 1 |
| AC-GD | Passenger | 1090 | 15 | 60 | 6 | 1 |
| AC-GD | Freight | 1350 | - | 60 | 4 | 1 |
| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| PLS | F | 1200 | 4550 | 30 | 1 |
| PLS | F | 1200 | 4340 | 30 | 2 |
| PLS | F | 1200 | 4200 | 30 | 8 |
| PLS | F | 1200 | 4000 | 30 | 2 |
