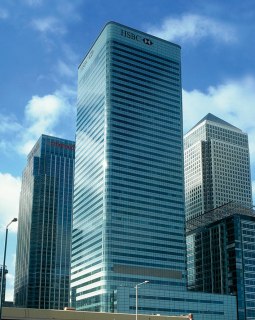

Exterior

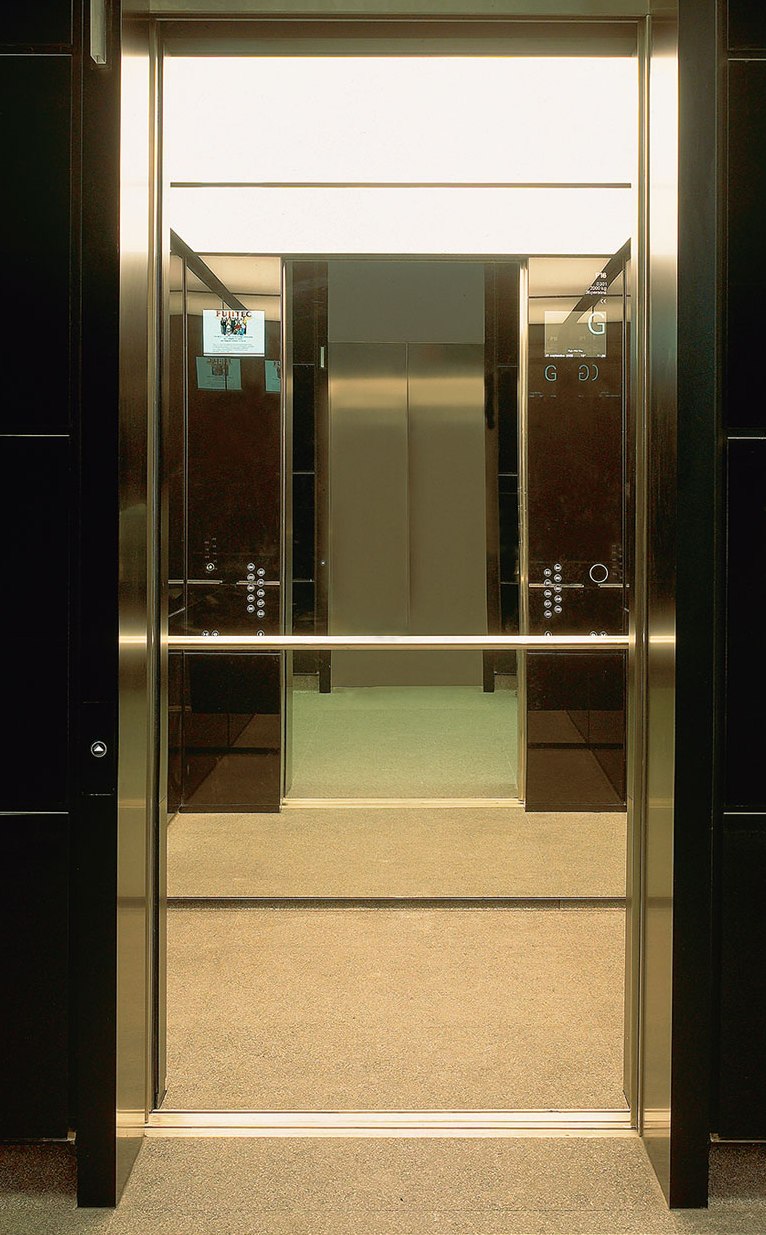

Elevator1

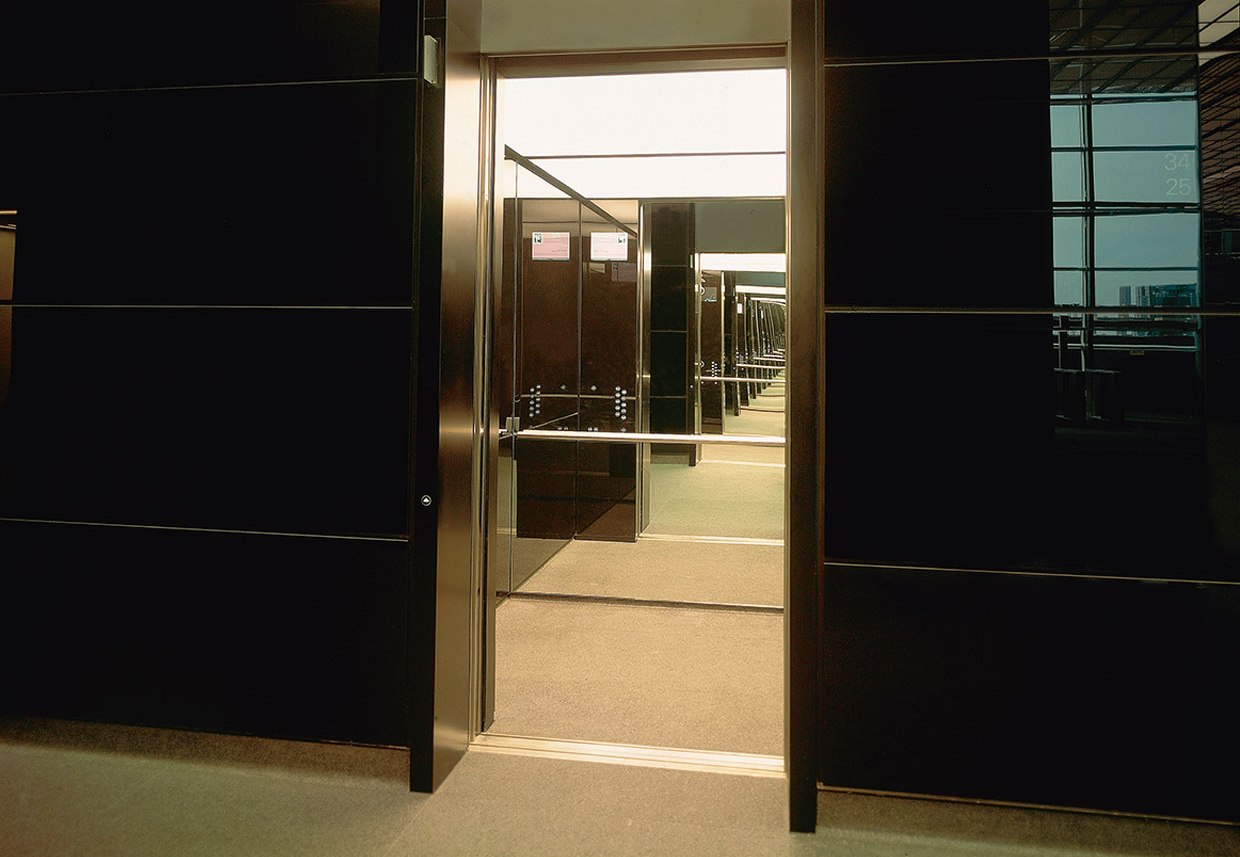

Elevator2
Elevator3

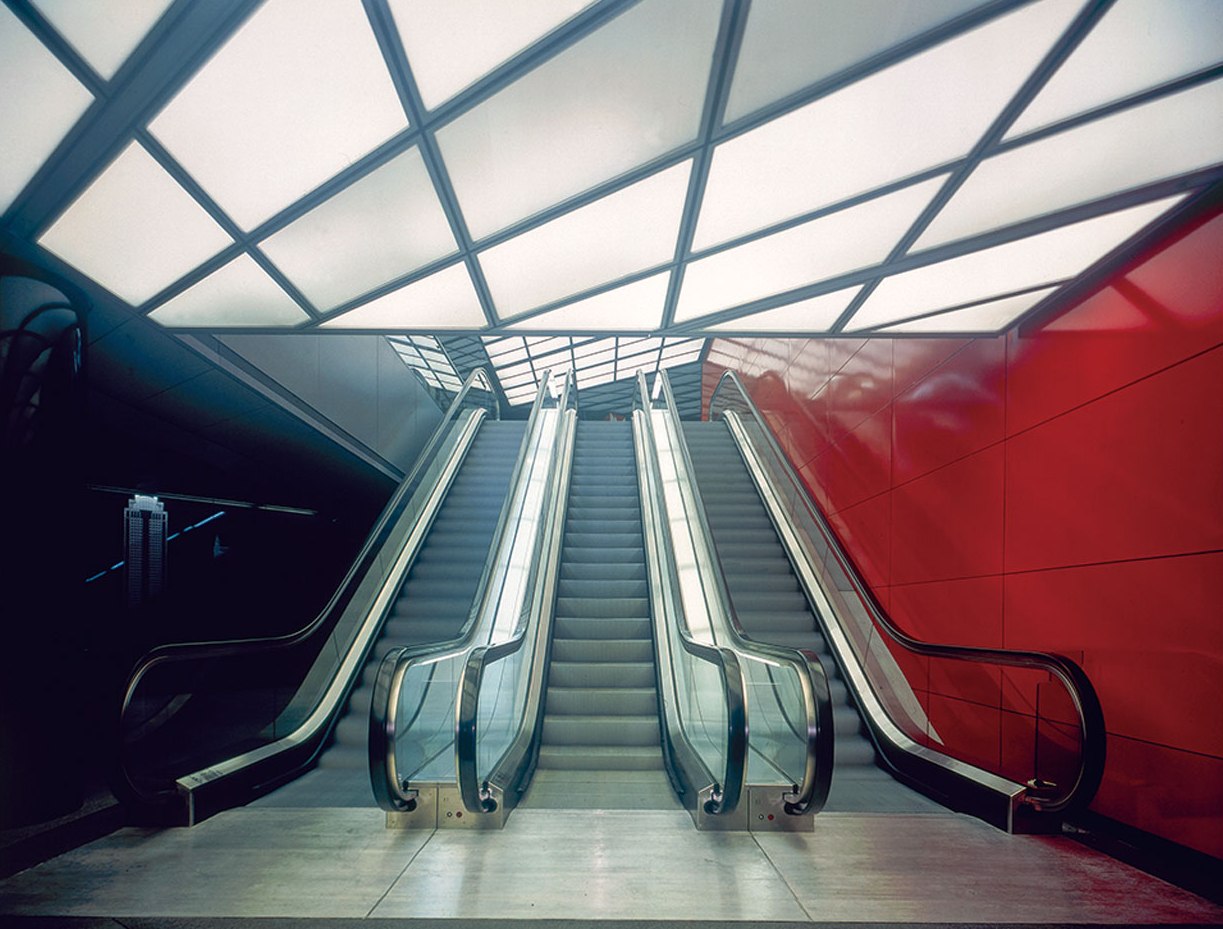

Escalator1

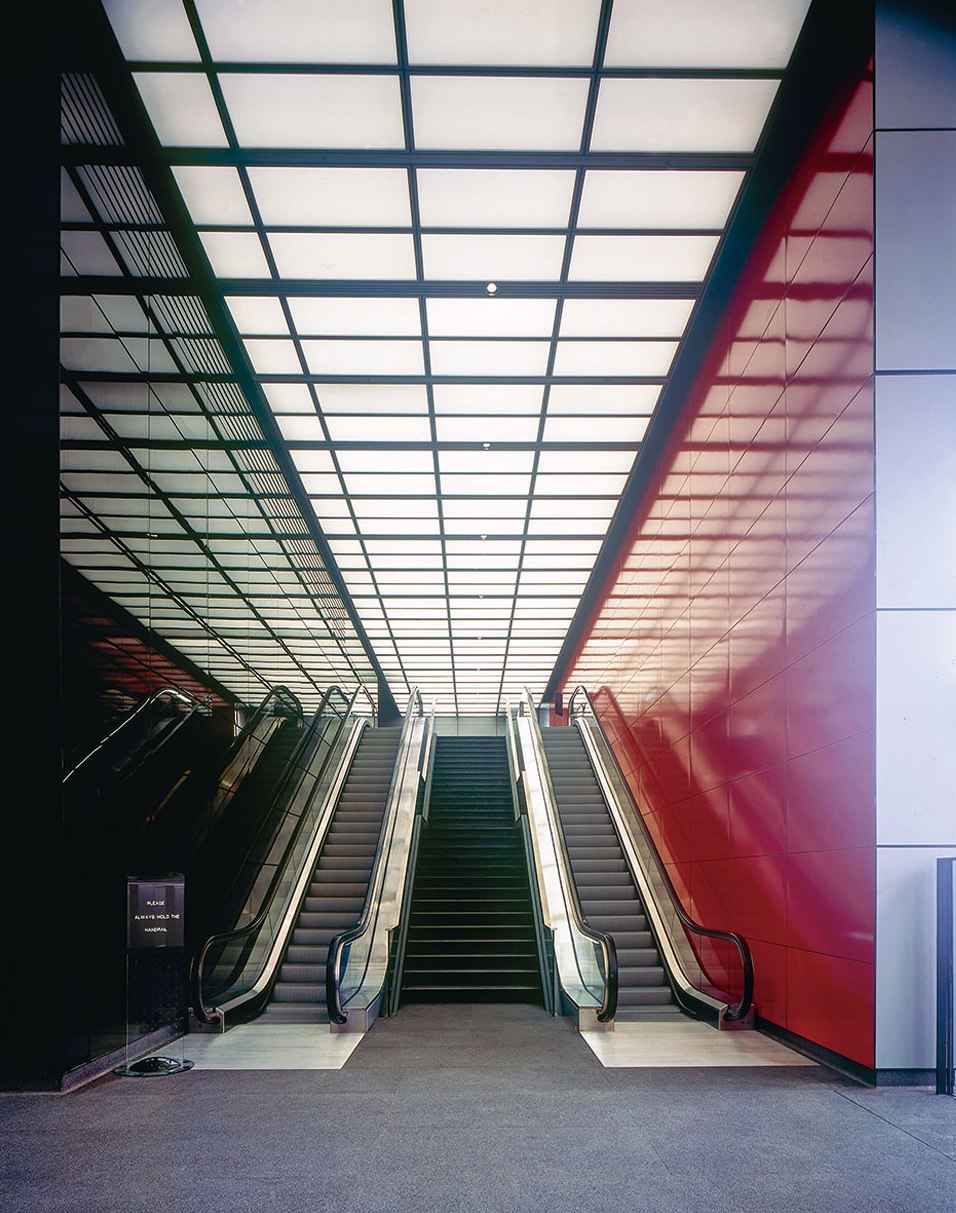

Escalator2
Located along the Thames River in London, UK, the Canary Wharf development gathers many of the world's leading financial institutions. This building was designed by the distinguished British architect group Foster and Partners for the headquarters building of the HSBC, a world leading financial institution.
With 45 floors above ground and 4 floors below, the building is served 35 high-grade elevators, including super high-speed models that travel up to 420 mpm, and 11 escalators.
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| AC-GL | Passenger | 2000 | 27 | 420 | 10 | 6 |
| AC-GL | Passenger | 2000 | 27 | 360 | 11 | 6 |
| AC-GL | Passenger | 2000 | 27 | 300 | 12 | 6 |
| AC-GL | Passenger | 2000 | 27 | 240 | 14 | 6 |
| AC-GL | Passenger | 1250 | 17 | 240 | 47 | 1 |
| AC-GD | Passenger | 1250 | 17 | 60 | 4 | 1 |
| AC-GL | Passenger | 800 | 11 | 240 | 45 | 1 |
| AC-GL | Service | 3000 | 40 | 210 | 48 | 2 |
| AC-GL | Service | 3000 | 40 | 210 | 24 | 1 |
| AC-GD | Passenger | 1350 | 18 | 150 | 6 | 2 |
| AC-GD | Service | 2000 | 27 | 96 | 8 | 1 |
| AC-GD | Passenger | 630 | 8 | 60 | 8 | 1 |
| HYDRAULIC | Service | 2000 | 27 | 30 | 2 | 1 |
| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| V | F | 1200 | 10000 | 30 | 2 |
| V | F | 1200 | 6000 | 30 | 4 |
| V | F | 1200 | 5000 | 30 | 2 |
| V | F | 1200 | 4600 | 30 | 3 |
