Shanghai Bank Tower

Shanghai Bank Tower is located in the Pudong district, which is the international financial center of Shanghai. Shanghai is the central city for the Chinese economy.
In this building, 25 Fujitec elevators, including super high-speed models traveling up to 360 mpm, are in operation.

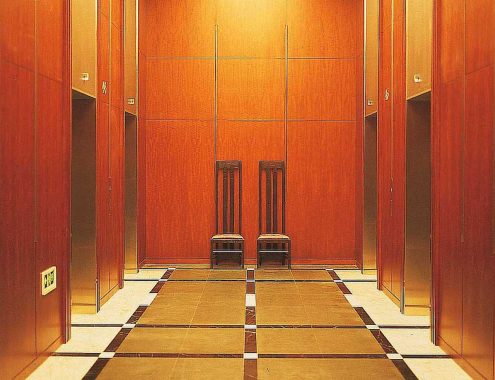

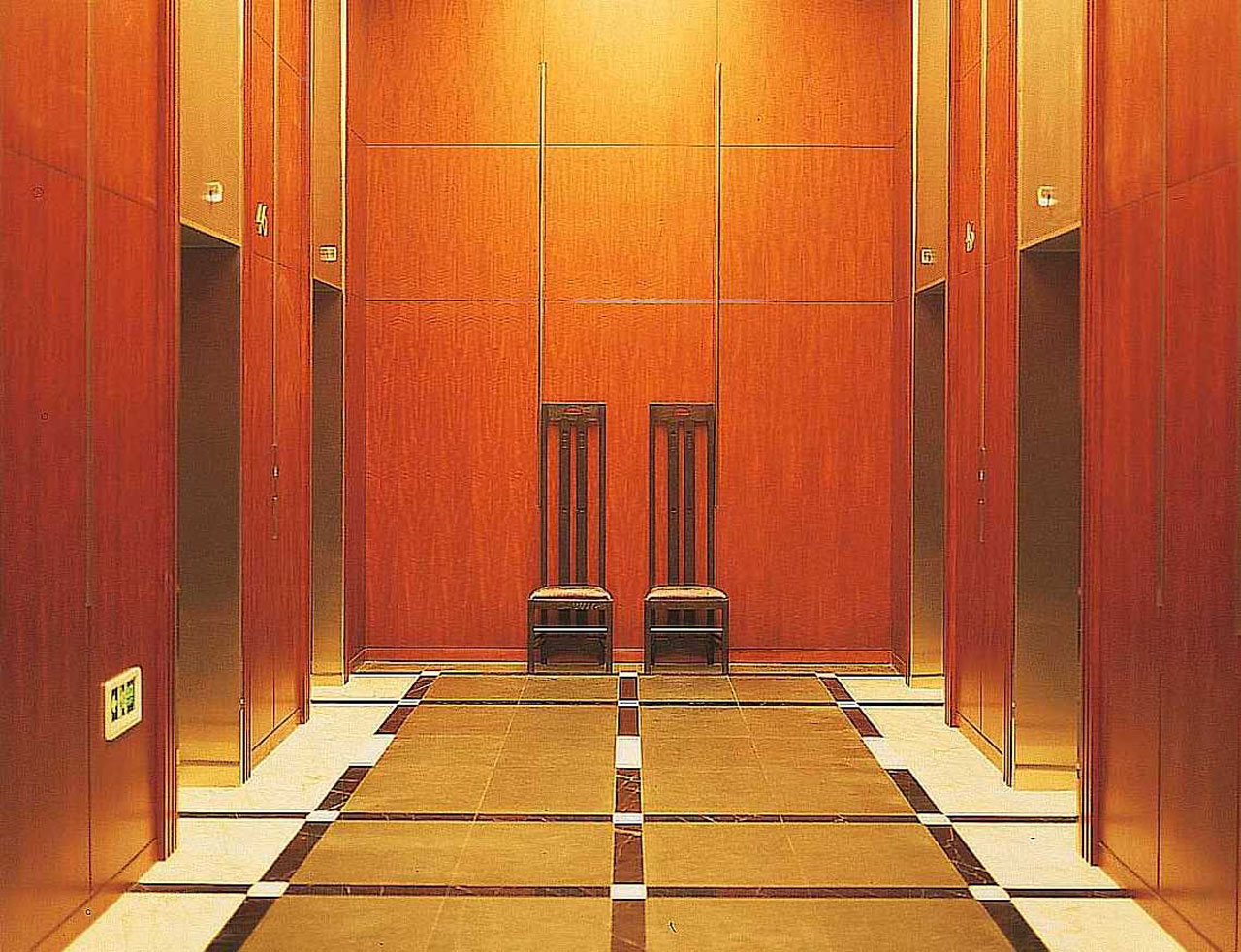

In the elevator hall, the transom panels extending to the ceiling are strikingly impressive, and the splendidly designed car interiors create a classy atmosphere.

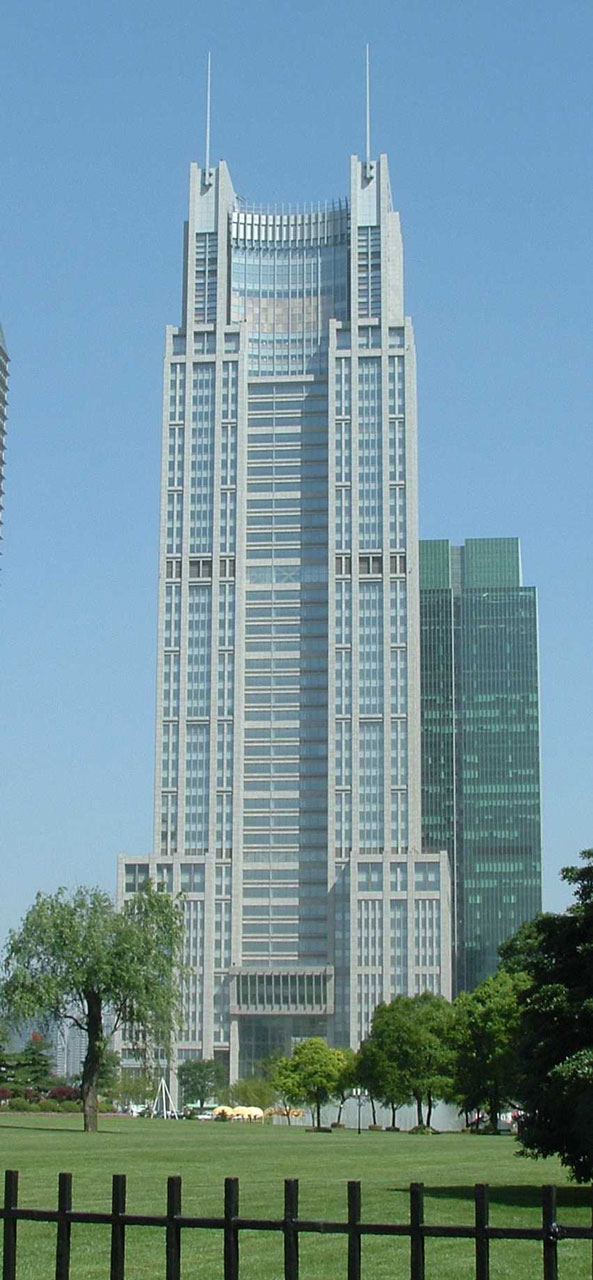

The high-class office building, with a total area of 108,000m2 and a height of 230 meters, serves as a new landmark in the Pudong district.

  • Elevator
  • Office
  • Asia
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • 2000s
Building name
Shanghai Bank Tower
Address
Shanghai, China
Client
Shanghai Xinsheng Development Co., Ltd / Bank of Shanghai Co., Ltd.
Design and supervision
KENZO TANGE ASSOCIATES / East China Architectural Design & Reseach Institute Co., Ltd.
Construction
Shanghai No.1 Construstion Co., Ltd.
Completion
2008

Specifications

Elevator Total units 25
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
AC-GL Passenger 1600 21 360 24 4
AC-GL Passenger 1600 21 360 20 2
AC-GL Passenger 1600 21 360 12 2
AC-GL Passenger 1600 21 210 21 2
AC-GL Passenger 1600 21 210 13 2
AC-GL Passenger 1600 21 210 13 4
AC-GD Passenger 1350 18 105 6 1
AC-GD Passenger 800 11 60 2 2
AC-GD Service 1350 18 240 50 2
AC-GL Service 1350 18 105 4 4
