Starlight Place

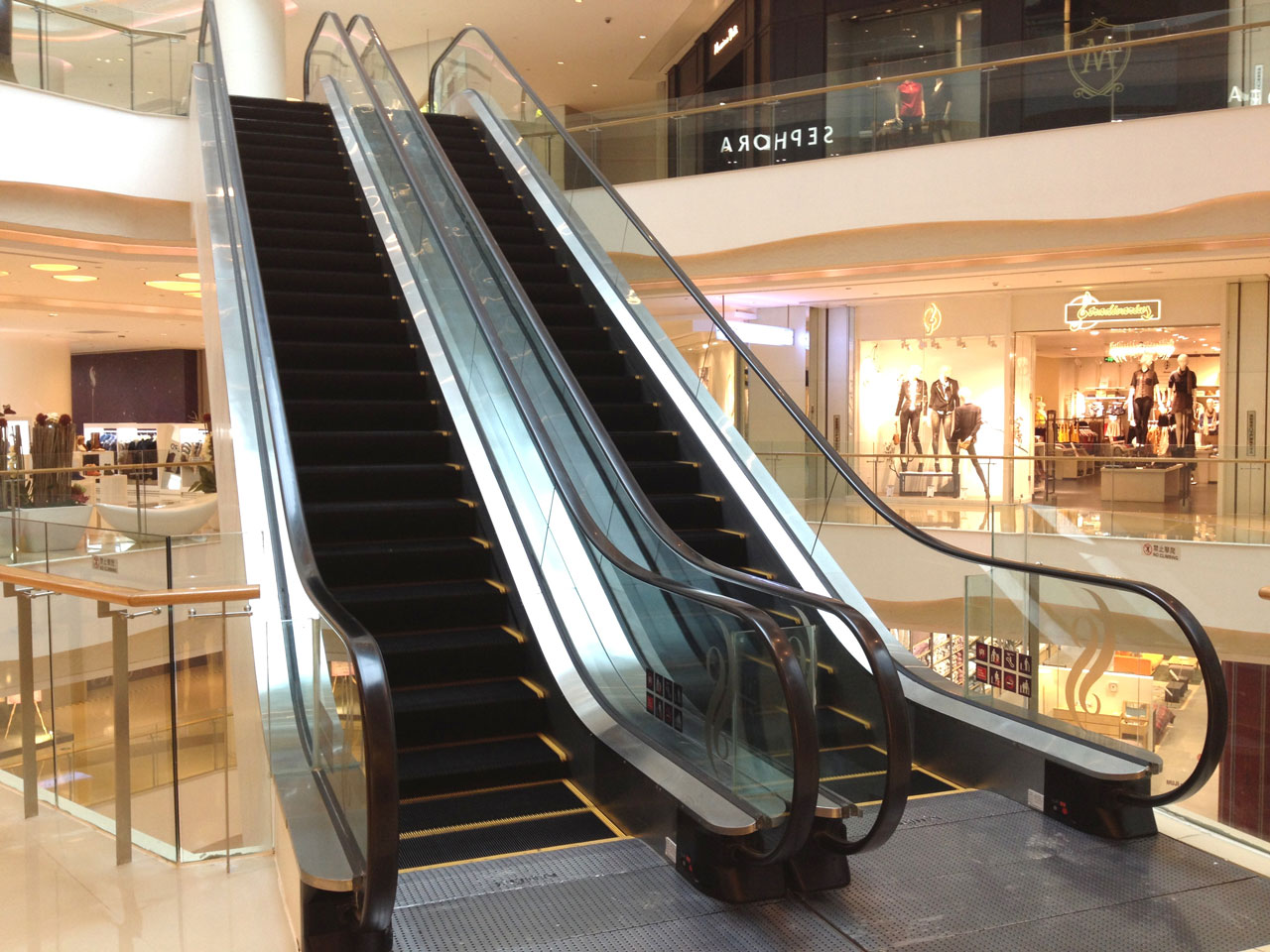

Escalator1

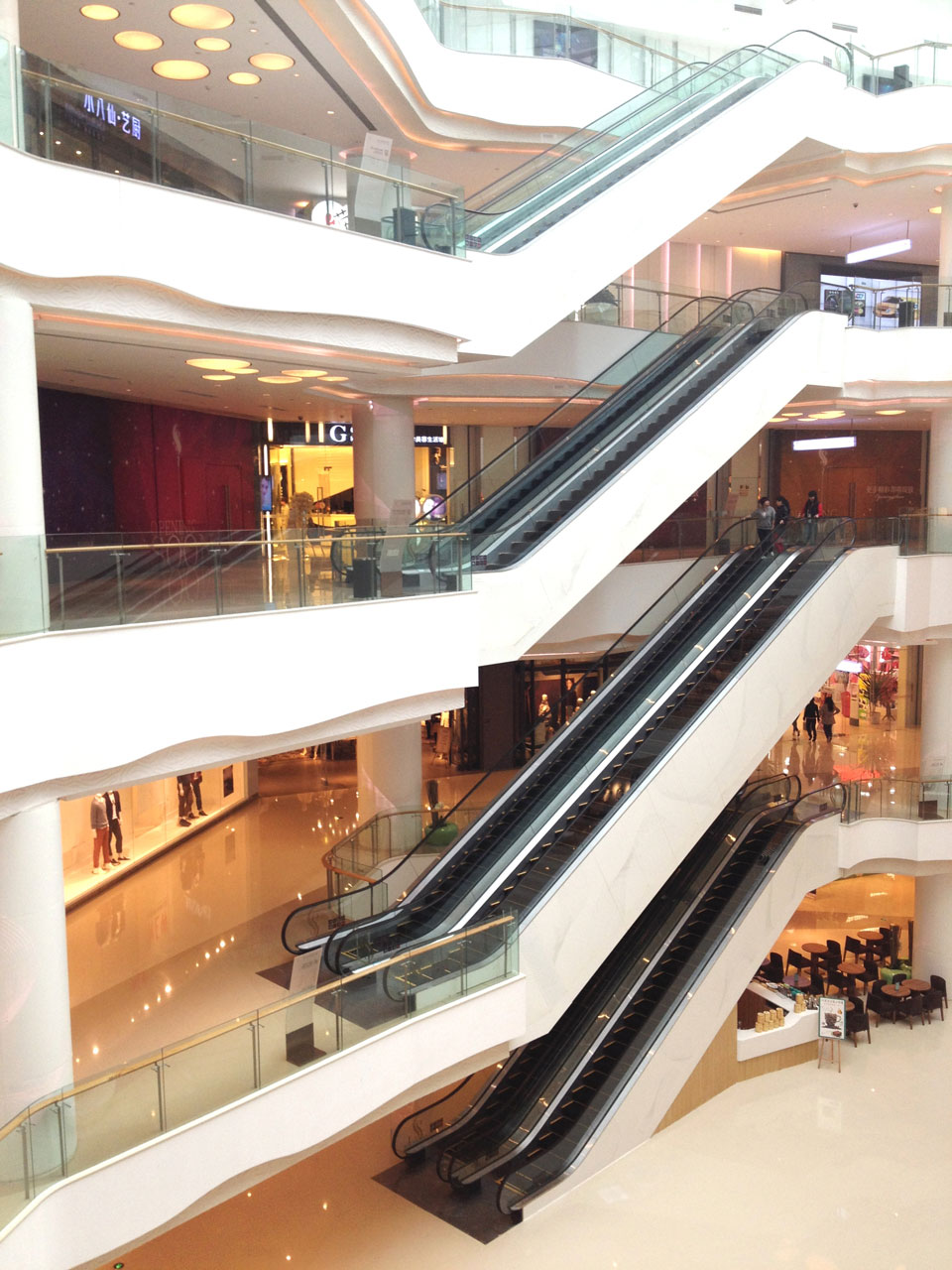

Escalator2

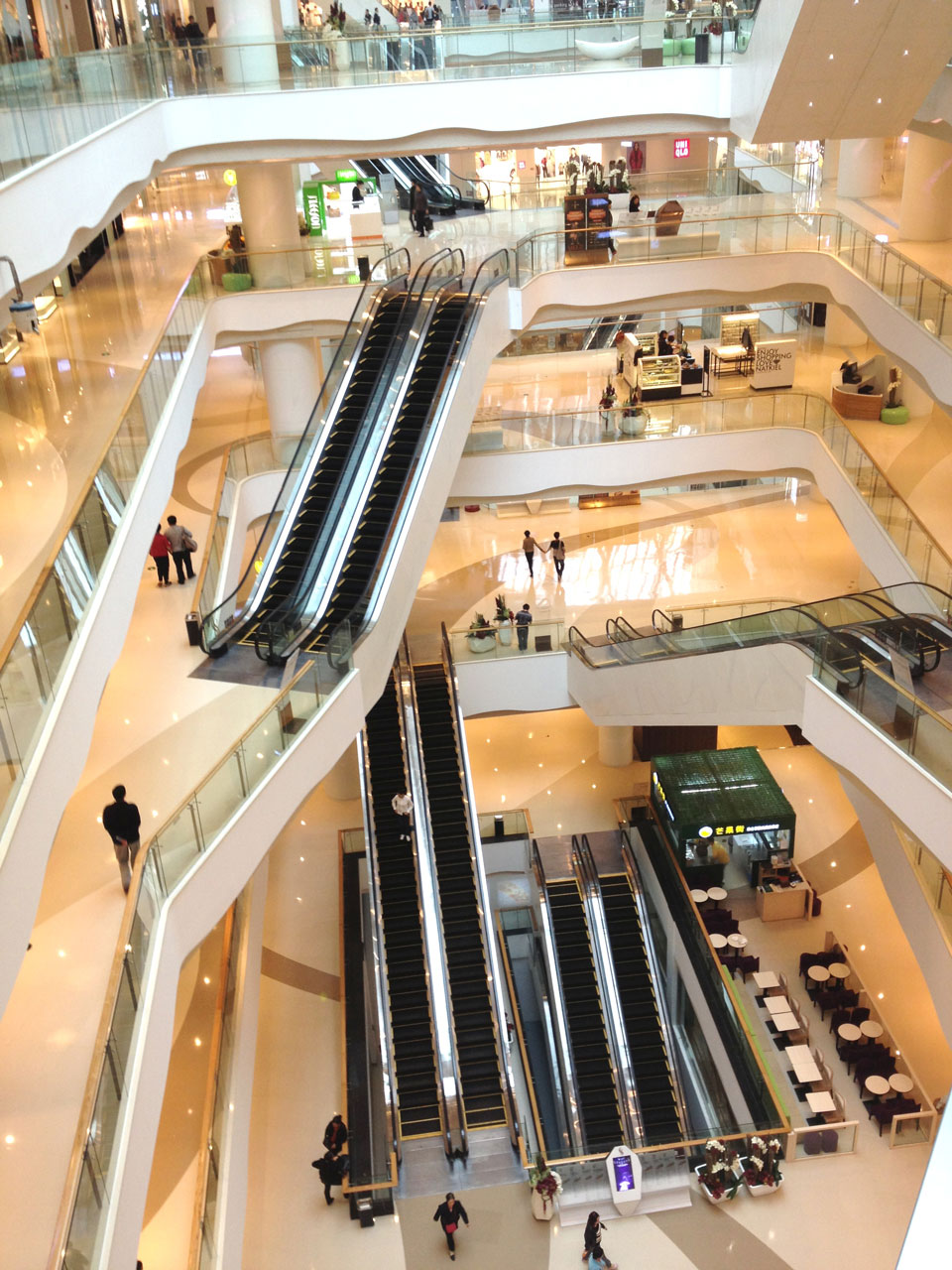

Escalator3

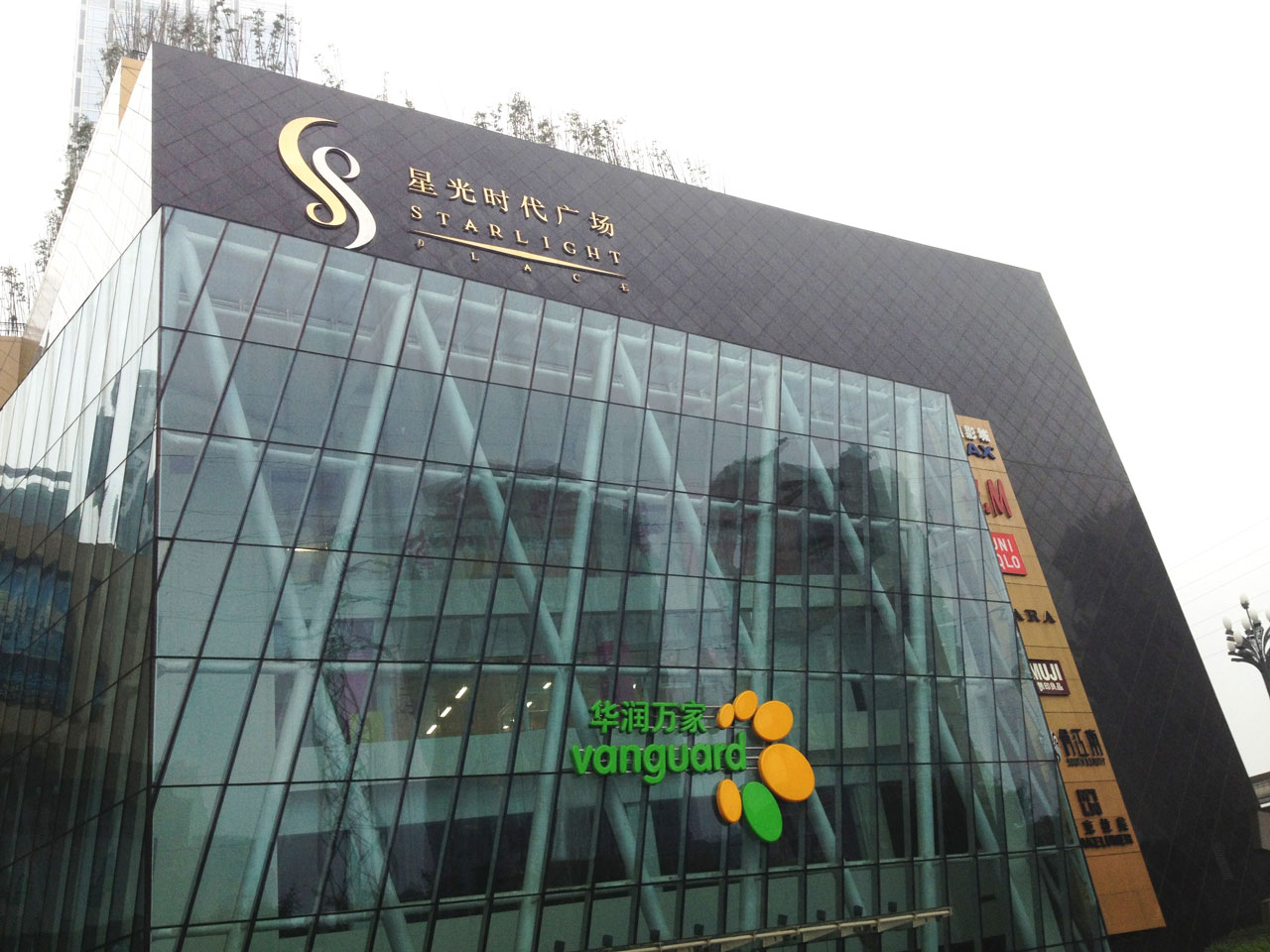

Exterior1

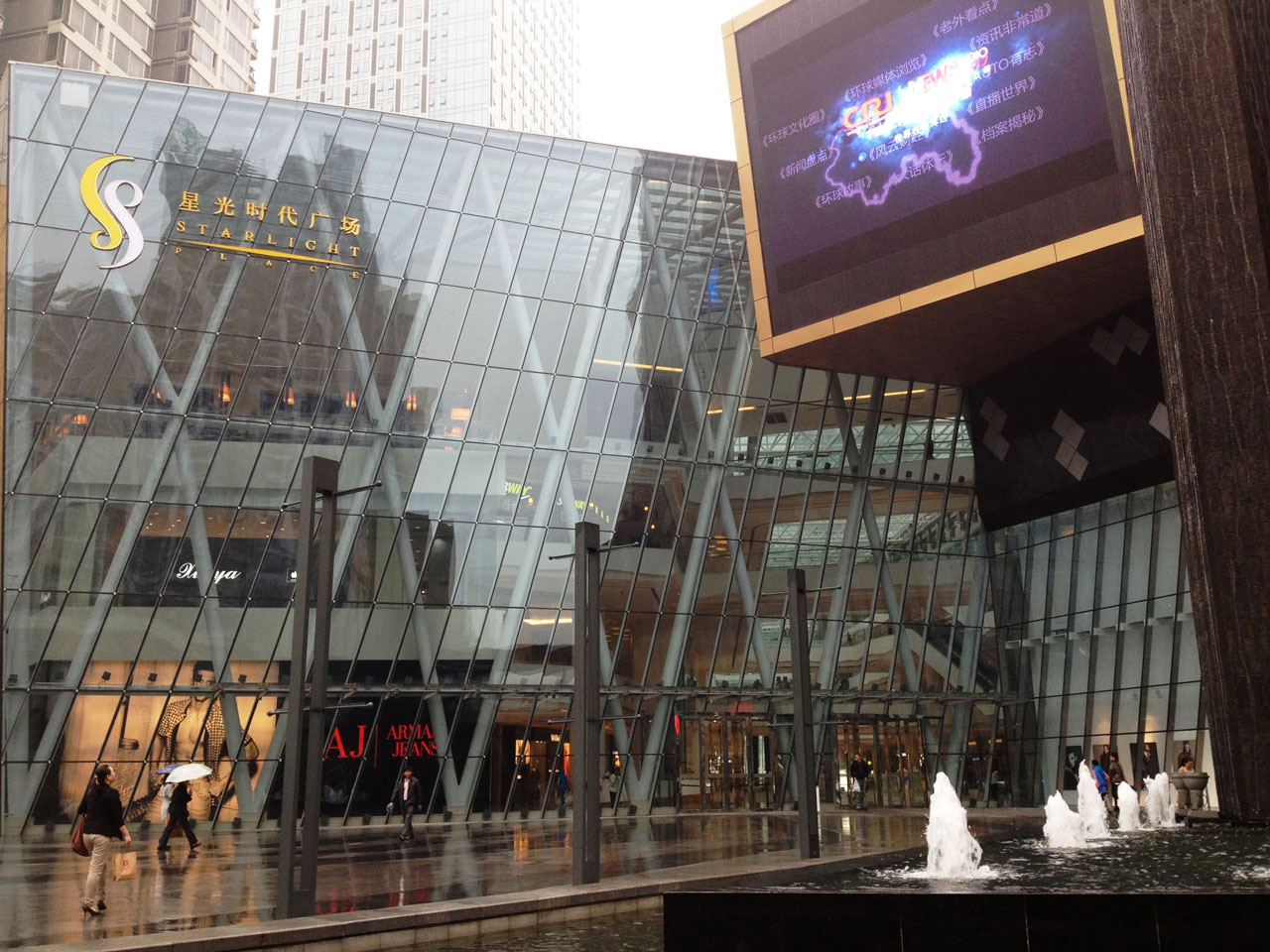

Exterior2

Stralight Place is located in Chongqing, which is the biggest city in south west area in China. There are 200 shops and big Cinema Complex in this building.

Building name: Starlight Place

Address: Chongqing, China

Client: The Chongqing Sinceregroup Yuanchuang Real Estate Development Company Limited

Design and supervision: Aedas Architects Limited

Construction: Chongqing Constant Offshore Construction Group Co., Ltd.

Completion: 2011

Specifications

Escalator Total units 65

Model	Type	Step width (mm)	Floor height (mm)	Incline (degree)	unit
GS8000-NX	F	1000	3650	30	1
GS8000-NX	S	1000	3900	30	4
GS8000-NX	S	1000	6000	35	6
GS8000-NX	S	1000	6000	30	10
GS8000-NX	S	1000	5000	30	17
GS8000-NX	S	1000	5400	30	10
GS8000-NX	S	1000	6500	30	5
GS8000-NX	F	1000	11900	30	2
GS8000-NX	F	1000	16000	30	2
GS8000-NX	S	1000	4400	30	2
GS8100(Moving Walk)	F	1000	3900	12	2
GS8100(Moving Walk)	F	1000	6000	12	2
GS8100(Moving Walk)	F	1000	6000	12	2
