The Central Government Complex (Tamar)

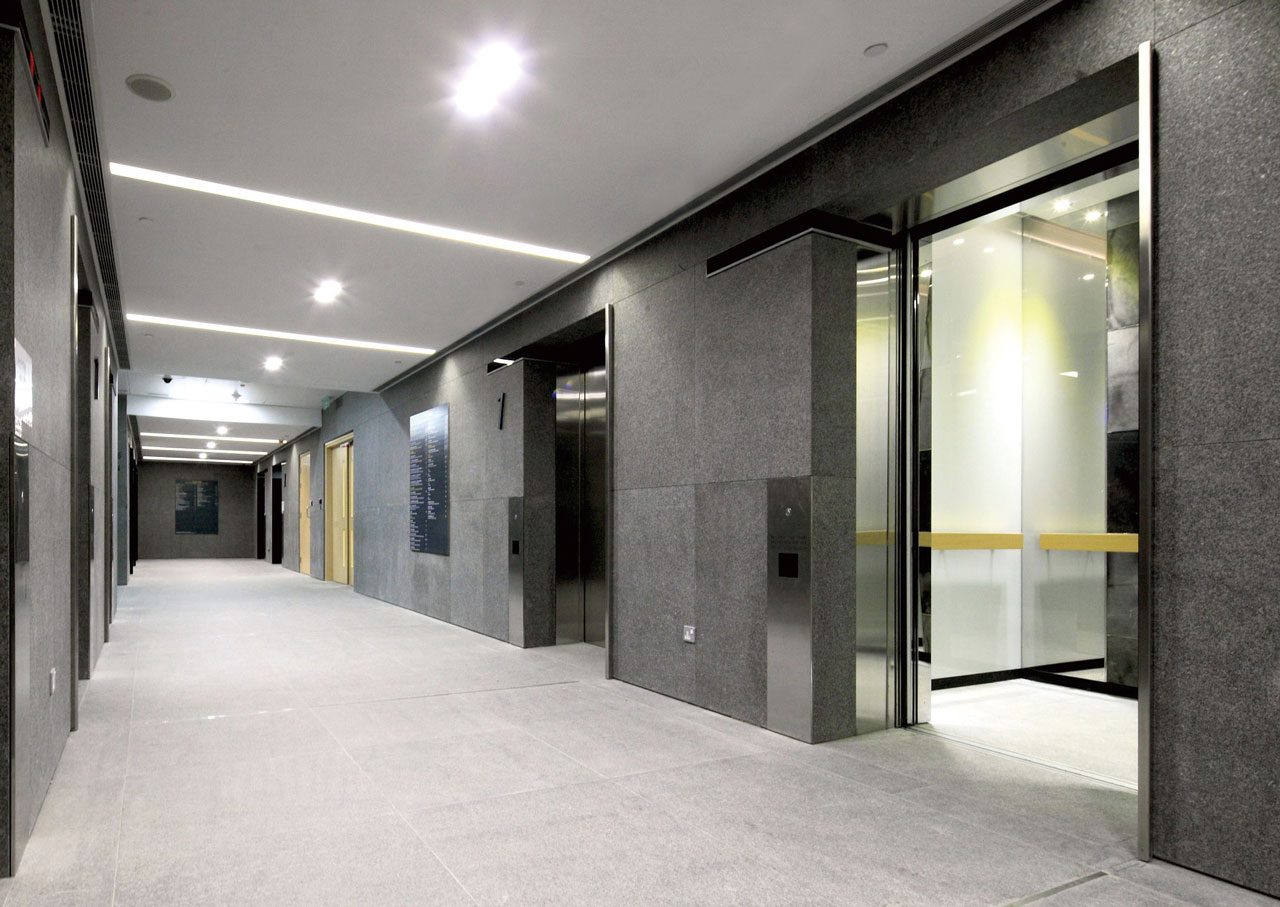

Elevator

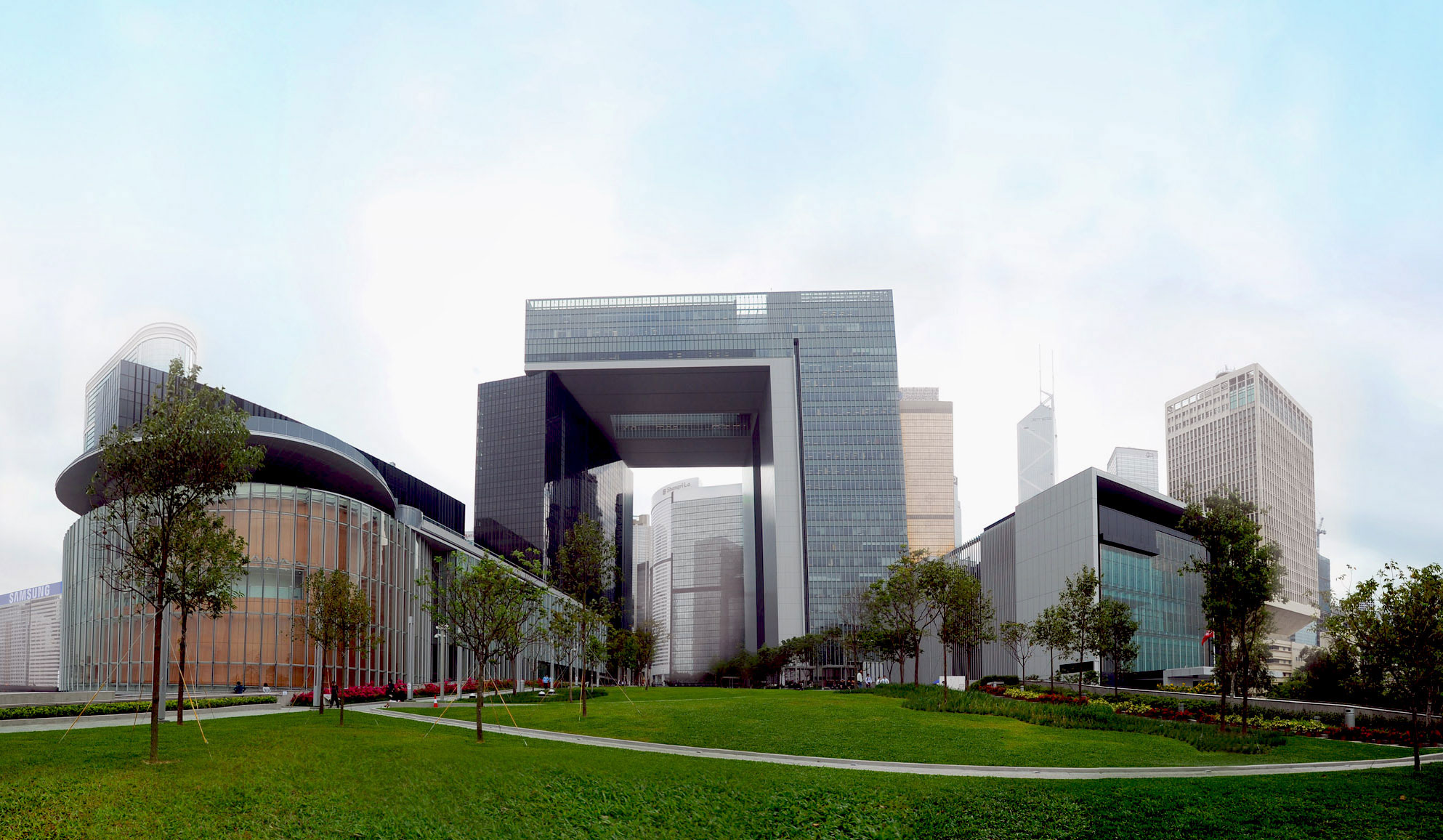

Exterior

This is located in the central district of Hong Kong. In its 4.2ha premises, this complex is consists of an arch-like government office building which resemble Triumphal Arch in Paris, symbolizing Hong Kong's open door policy "open politics to the citizen" and "multi-cultures". The legislative council, parliament house and the office buildings have become a new landmark of Hong Kong.

Building name: The Central Government Complex (Tamar)

Address: Hong Kong, China

Client: Architectural Services Department

Design and supervision: Rocco Design Architects Ltd

Construction: Gammon-Hip Hing Joint Venture

Completion: 2011

Specifications

Elevator Total units 58

Model	Use	Loading (kg)	Capacity (person)	Speed (m/min)	Stop number of floors (floor)	unit
AC-GL	Passenger	1600	21	210	29	3
AC-GL	Passenger	1600	21	360	5	4
AC-GL	Passenger	1600	21	300	11	6
AC-GL	Service	2000	27	150	29	1
AC-GL	Passenger	1600	21	180	29	2
AC-GL	Passenger	1600	21	360	10	5
AC-GL	Passenger	1600	21	300	13	5
AC-GL	Service	2000	27	150	29	1
AC-GL	Passenger	1600	21	240	12	1
AC-GL	Passenger	1600	21	240	11	4
AC-GD	Passenger	1600	21	150	11	6
MRL	Passenger	1350	18	105	12	2
AC-GD	Passenger	1600	21	150	14	1
AC-GD	Passenger	1600	21	150	12	1
MRL	Passenger	1350	18	105	5	2
MRL	Passenger	1350	18	105	4	1
MRL	Passenger	1350	18	105	6	2
MRL	Passenger	1350	18	105	5	1
MRL	Passenger	1350	18	105	5	2
MRL	Passenger	1600	21	105	7	1
MRL	Passenger	900	12	105	2	2
MRL	Passenger	900	12	105	2	1
MRL	Passenger	1600	21	60	3	1
MRL	Passenger	1500	20	60	2	2
MRL	Passenger	1000	13	60	2	1

Escalator Total units 25

Model	Type	Step width (mm)	Floor height (mm)	Incline (degree)	unit
GS8000-NX	S	1000	8600	30	3
GS8000-NX	S	1000	5000	30	2
GS8000-NX	S	1000	5650	30	3
GS8000-NX	S	1000	5000	30	3
GS8000-NX	S	1000	4100	30	2
GS8000-NX	S	1000	8200	30	2
GS8000-NX	S	1000	4100	30	4
GS8000-NX	F	1000	10650	30	2
GS8000-NX	F	1000	10370	30	2
GS8000-NX	F	1000	8720	30	2
