Tan Tock Seng Hospital

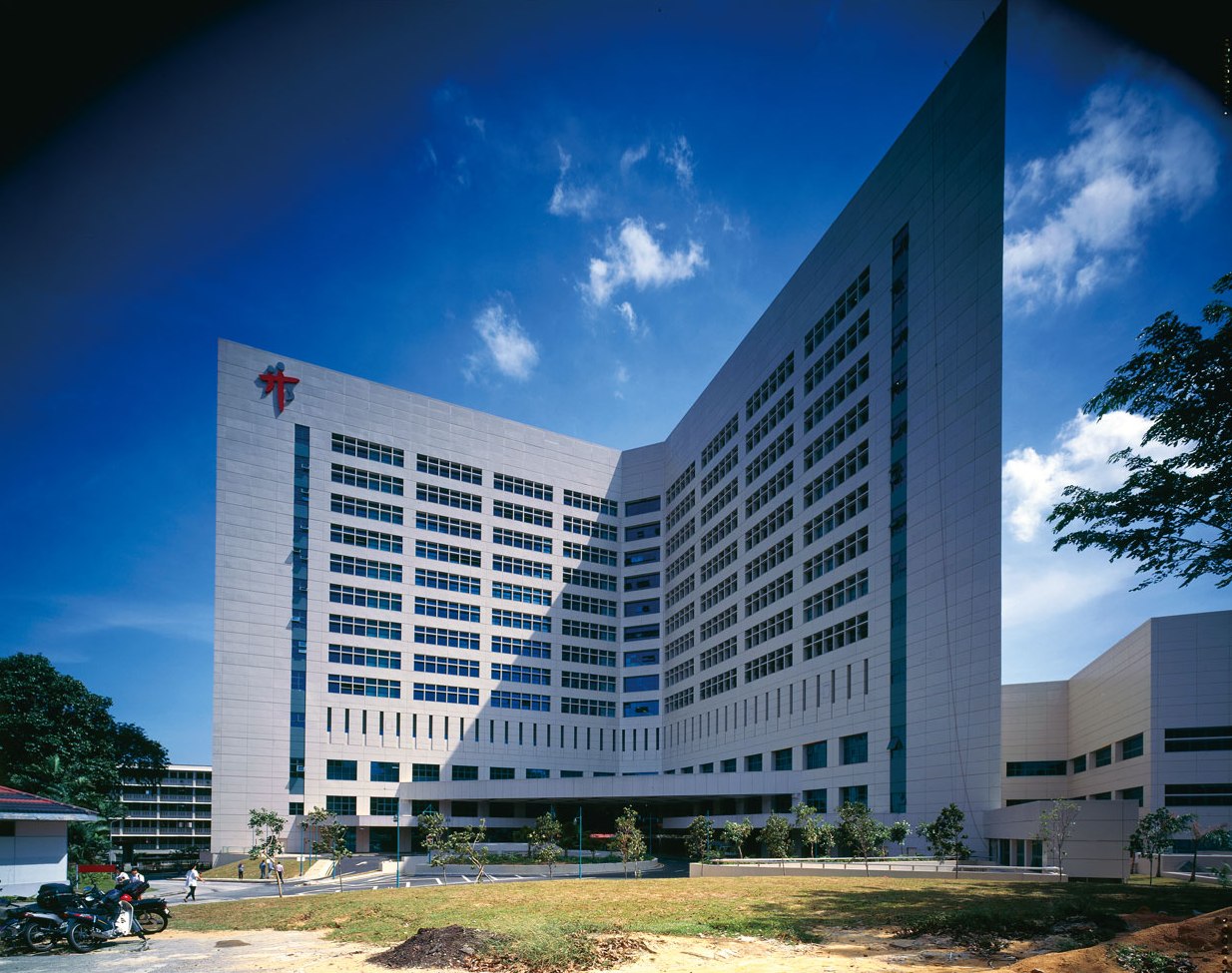

Tan Tock Seng Hospital is one of Singapore's largest national hospitals. The hospital, with 15 floors above ground and three below, is fully equipped with state-of-the-art medical equipment. Fujitec has installed 8 escalators and 45 elevators, including high-speed models that travel up to 210 mpm. Of particular interest, is the application of our leading-edge Network Monitoring System for elevators. This system enables the remote monitoring and control of elevator operations from a personal computer through the Local Area Network (LAN). The system contributes greatly to the efficient control of elevators in this medical facility.

  • Elevator
  • Escalator
  • Medical and Welfare facilities
  • Asia
  • Capacity:over 1150kg
  • Capacity:under 1150kg
Building name
Tan Tock Seng Hospital
Address
Singapore
Client
Tan Tock Seng Hospital
Design and supervision
Indeco Consultants Pte Ltd
Construction
Ssangyong-Guam Ho JV
Completion
----

Specifications

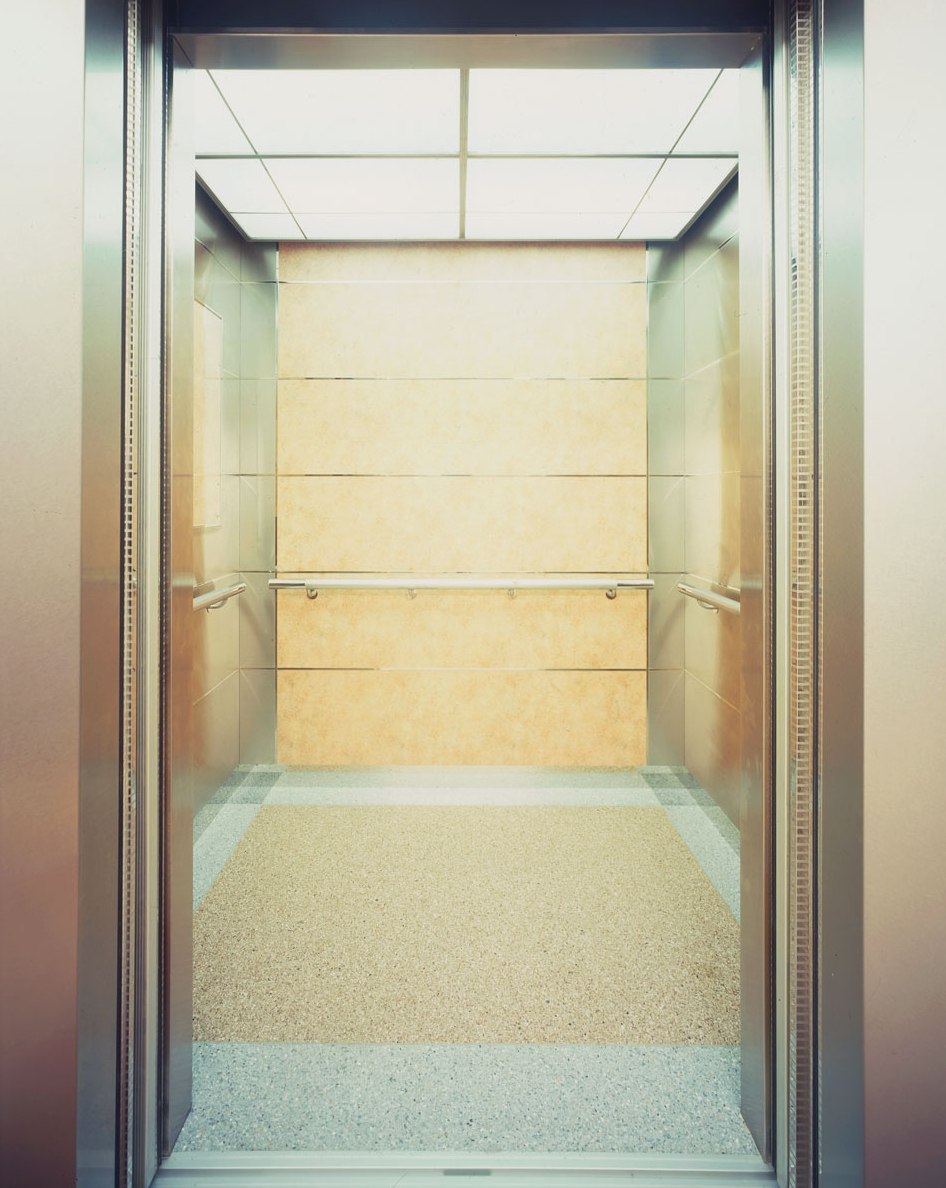

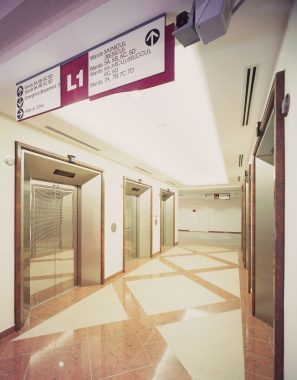

Elevator Total units 44
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
AC-GL Passemger 1090 15 210 15 6
AC-GL Passemger 1090 15 210 14 6
AC-GD Passemger 1360 18 150 12 2
AC-GD Passemger 1360 18 150 11 2
AC-GD Passemger 1630 22 60 5 2
AC-GD Passemger 1630 22 60 4 2
AC-GD Passemger 545 7 150 16 1
AC-GD Passemger 545 7 150 18 1
AC-GD Passemger 885 12 105 10 2
AC-GD Passemger 1565 21 90 6 1
AC-GD Passemger 1225 16 90 4 1
AC-GD Bed 1630 22 150 16 4
AC-GD Bed 1630 22 150 18 2
AC-GD Bed 1770 24 90 4 1
AC-GD Bed 1770 24 90 3 1
AC-GD Bed 1630 22 90 10 2
AC-GD Bed 1630 22 90 6 1
AC-GD Service 1360 18 90 10 2
HYDRAULIC Service 1630 22 30 2 2
AC-GD Service 1835 24 45 2 1
AC-GD Service 1360 18 45 2 2

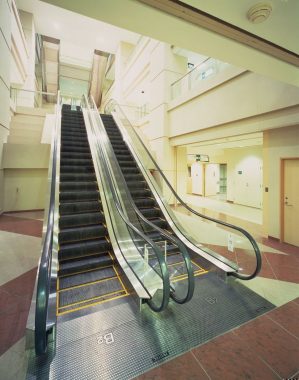

Escalator Total units 8
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
PLS S 1200 5000 35 8
