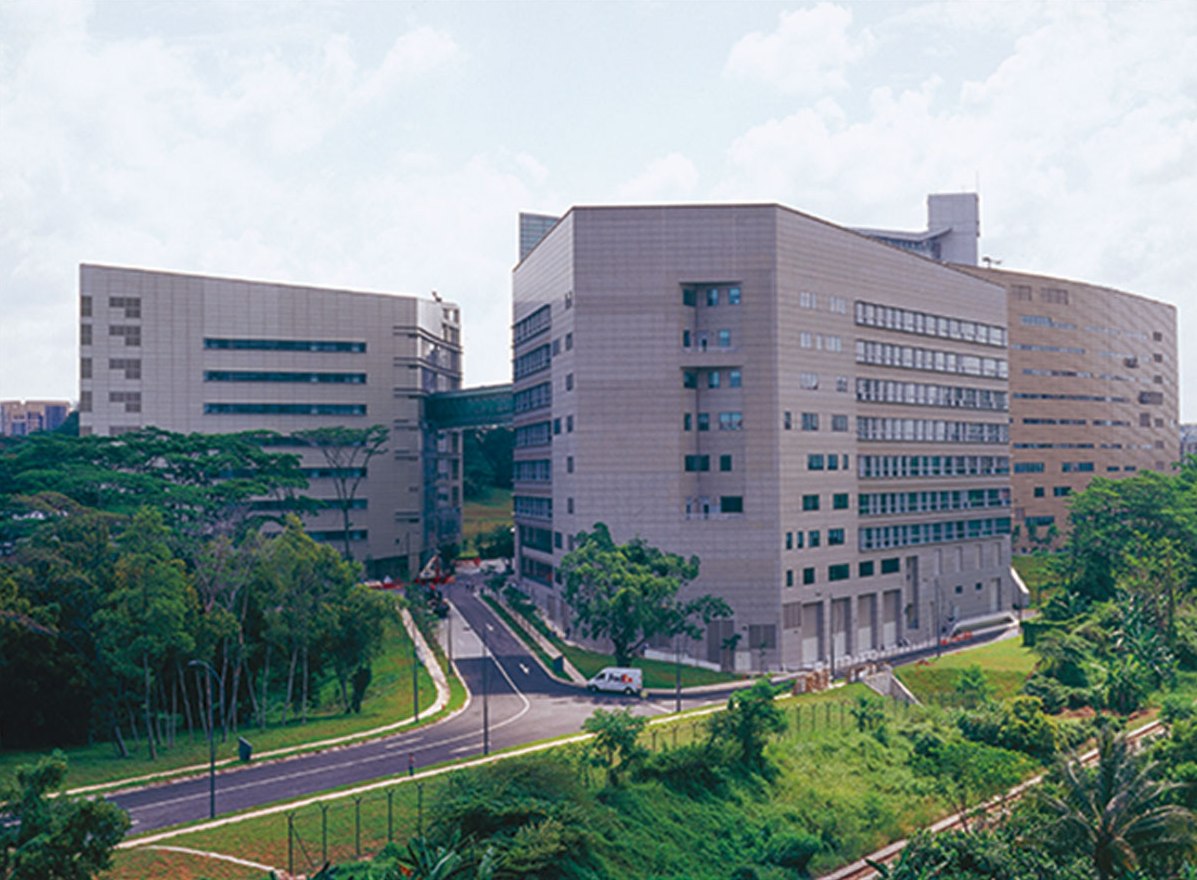

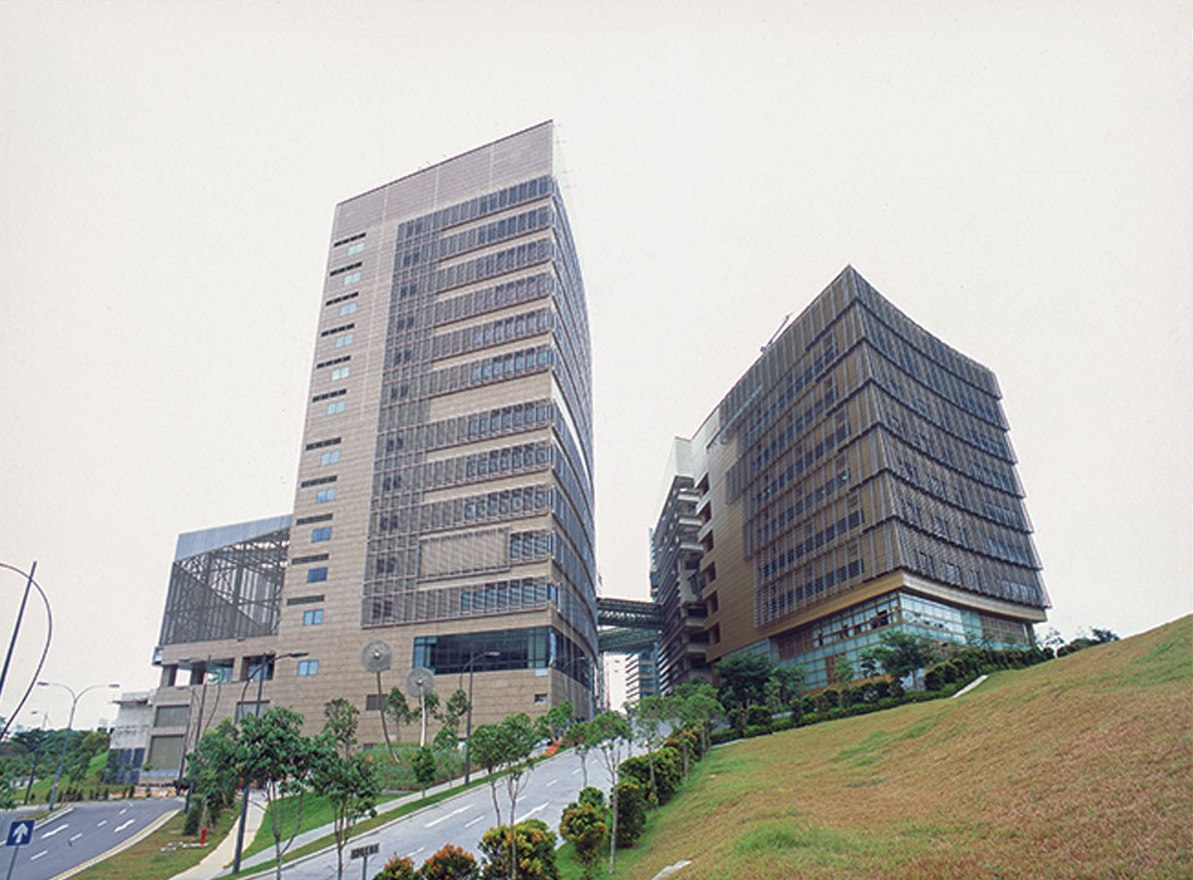

Biopolis is a government-financed biomedical research and development hub constructed in the high-tech district called Singapore's Silicon Valley.

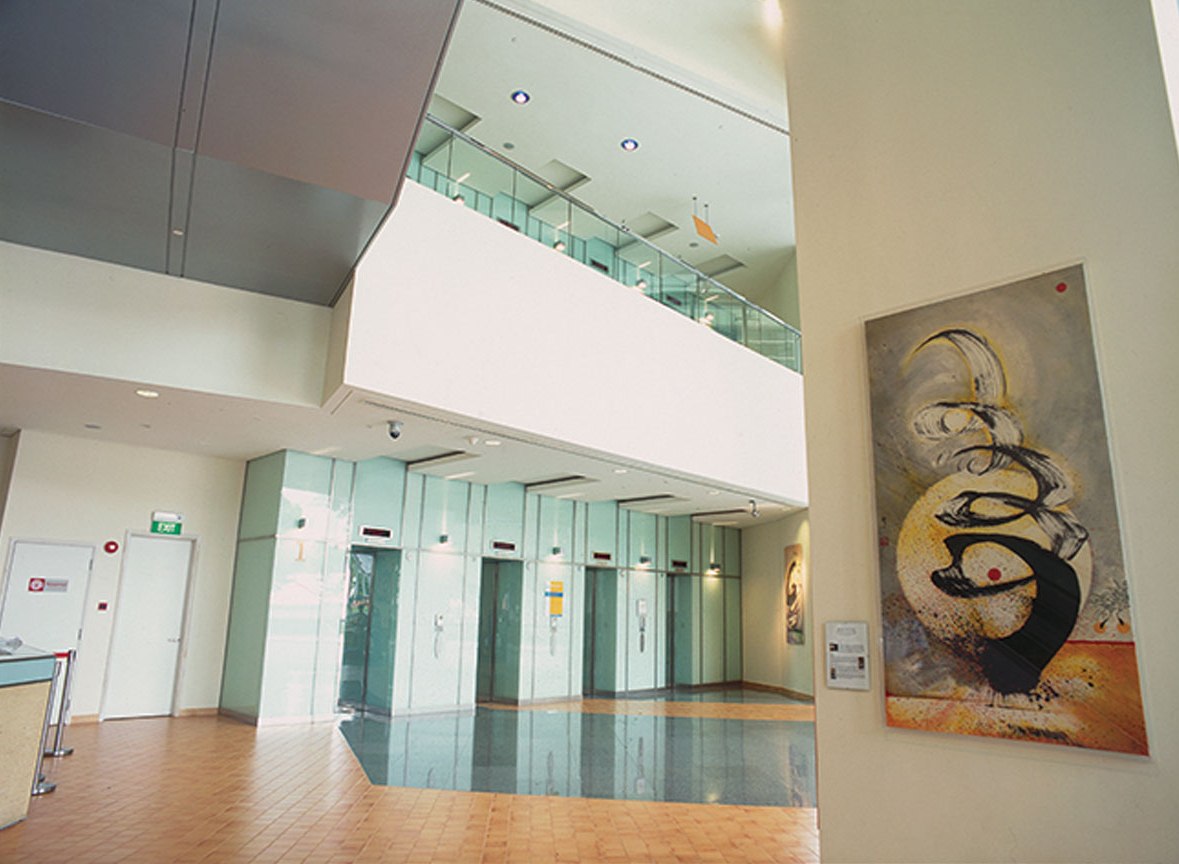

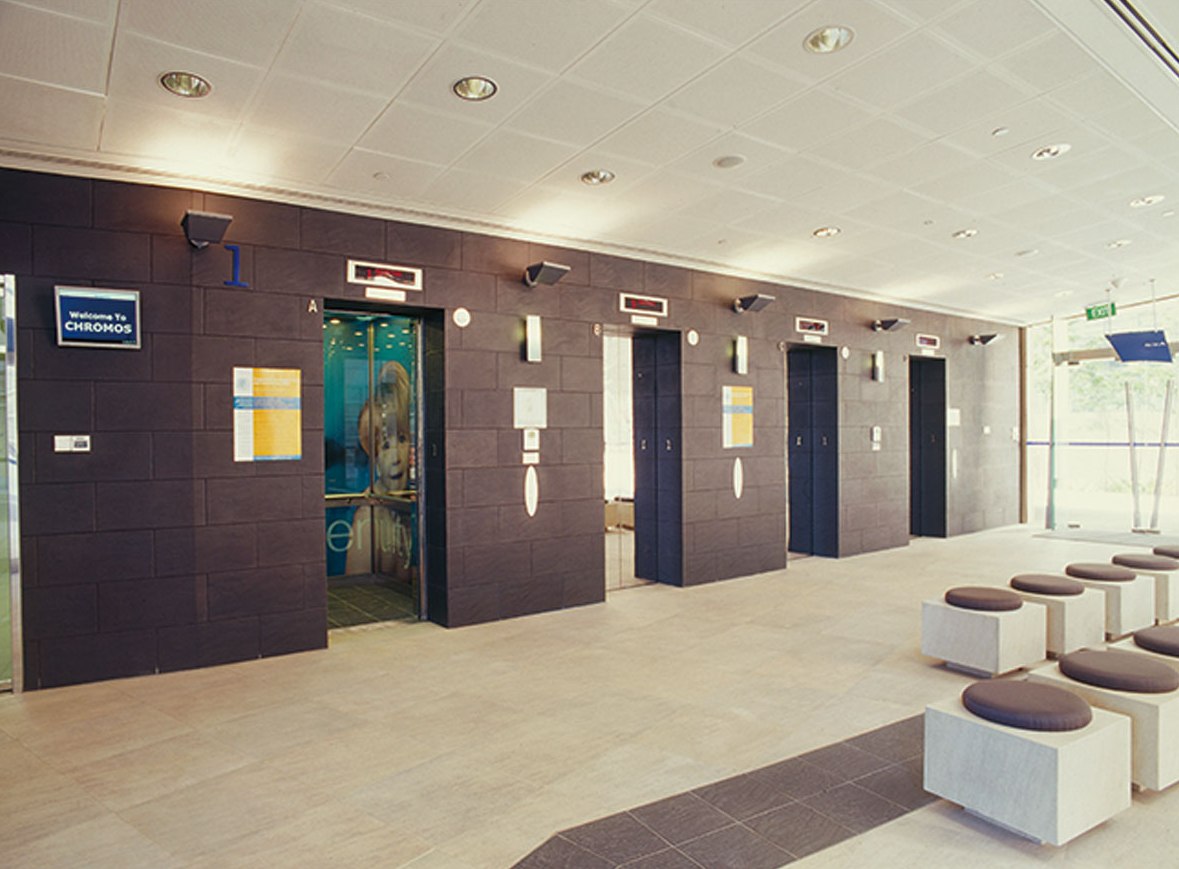

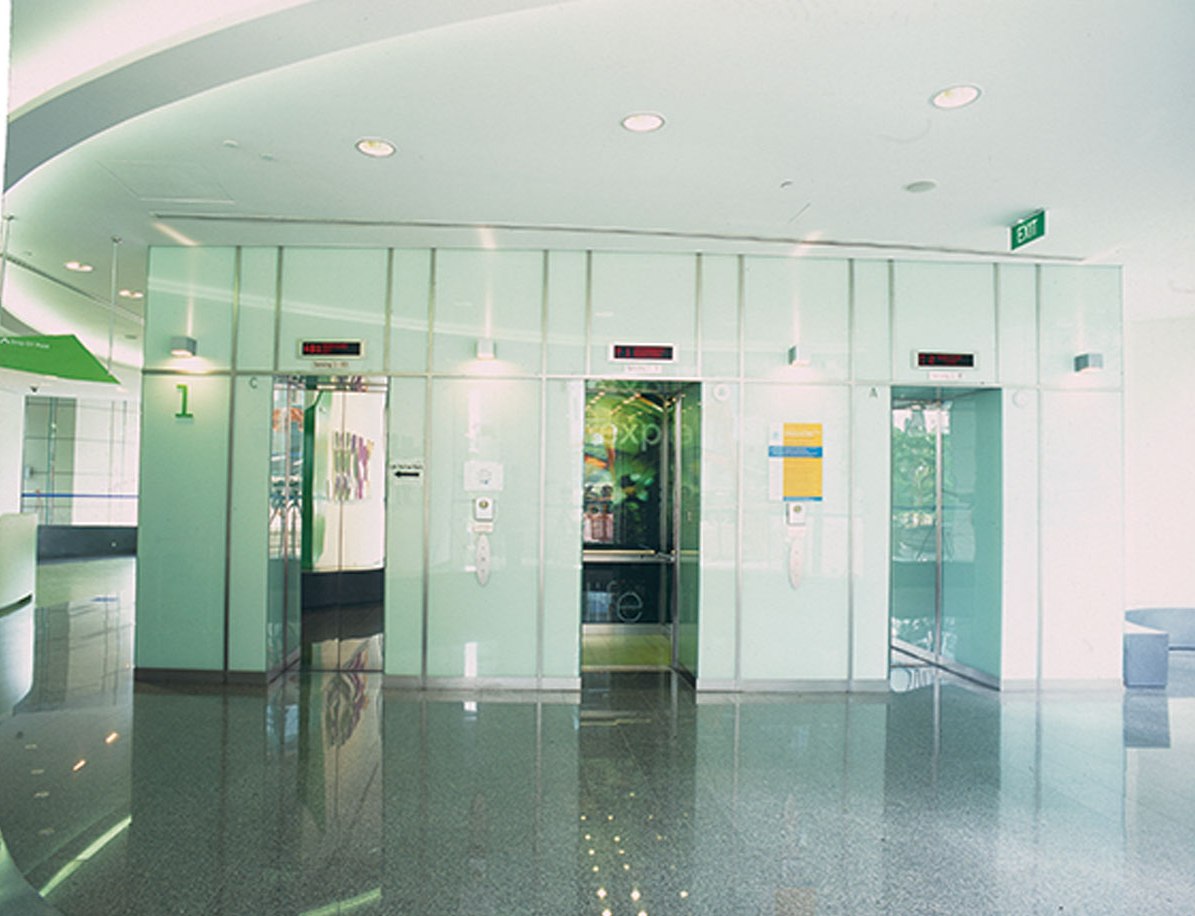

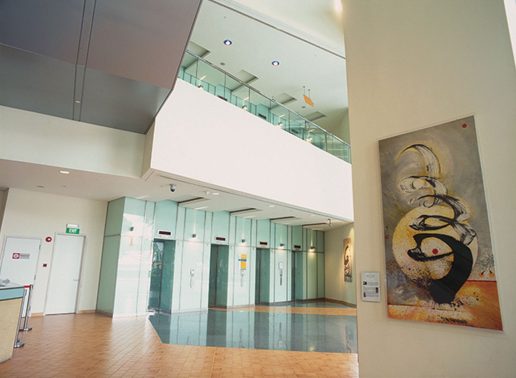

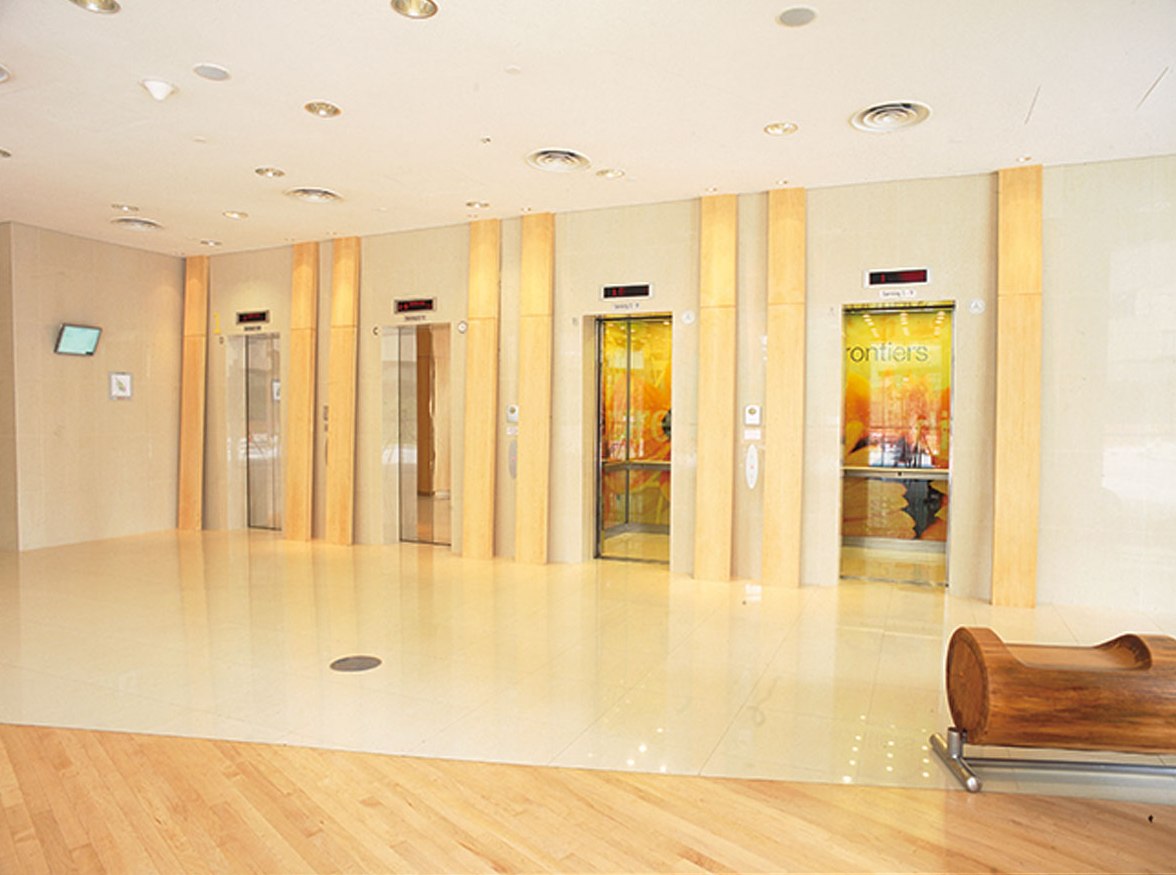

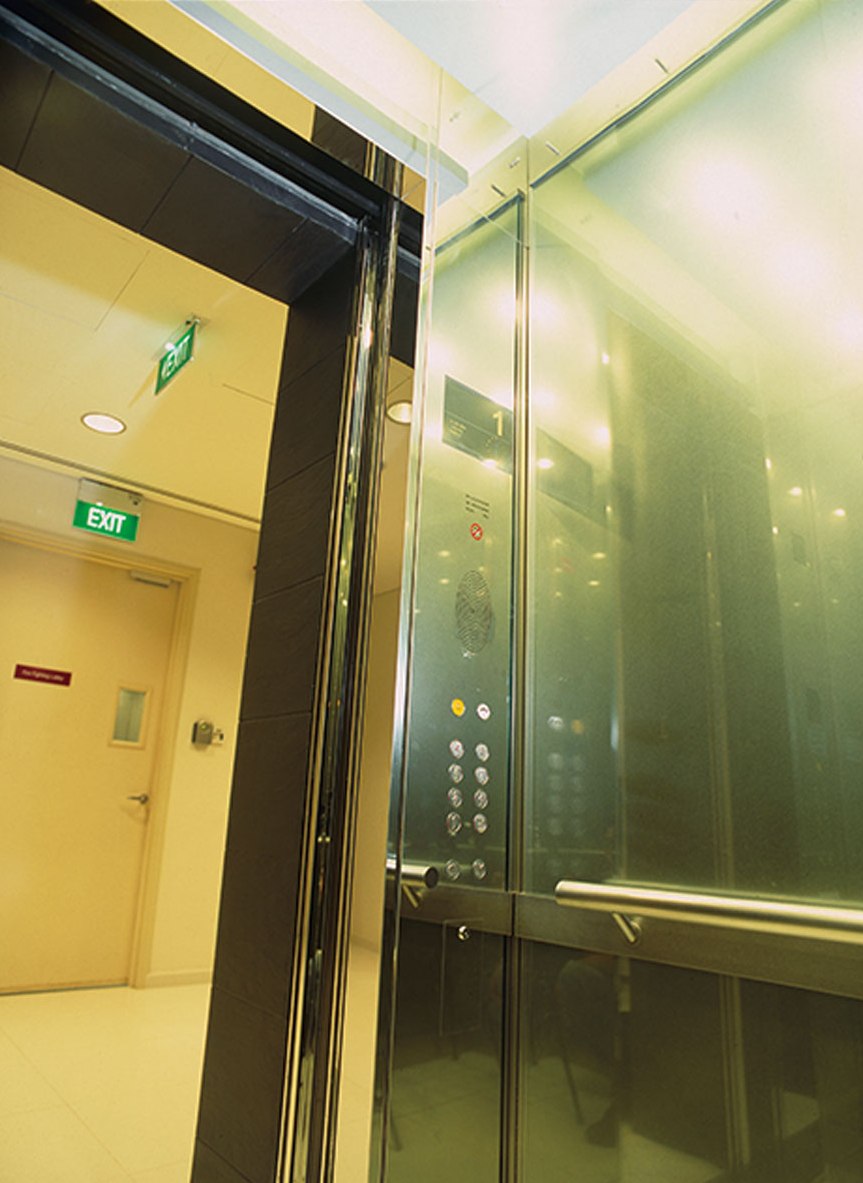

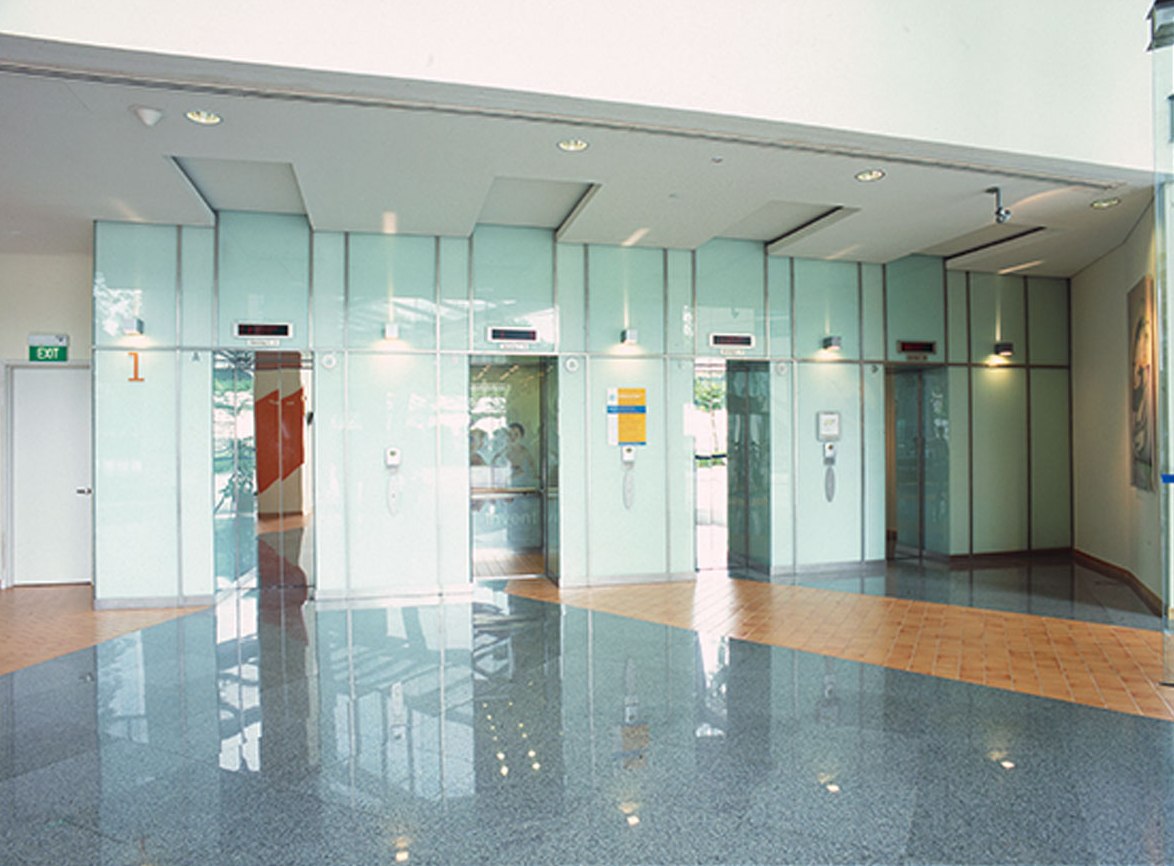

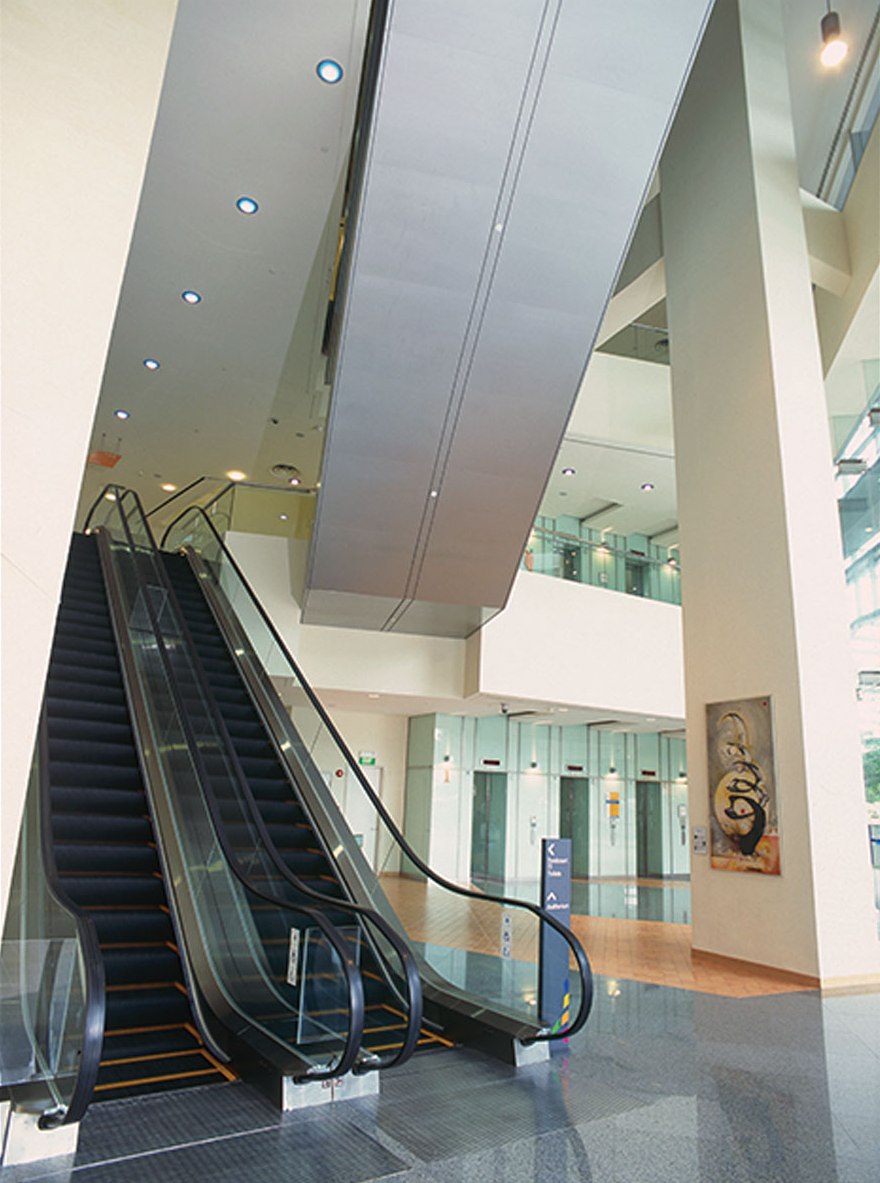

In the science institute facility consisting of seven buildings, including a 13-story block, Fujitec installed 45 elevators and eight escalators. In the facility using advanced information technology, all the elevator and escalator systems are monitored by a tele-monitoring system. In addition, linked through a LAN, the entire building control system offers an optimal control.
| Model | Use | Capacity (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| AC-GD | Passengaer | 1565 | 21 | 105 | 13 | 6 |
| AC-GD | Passengaer | 1020 | 14 | 120 | 9 | 3 |
| AC-GD | Passengaer | 1020 | 14 | 120 | 8 | 3 |
| AC-GD | Passengaer | 680 | 9 | 120 | 8 | 2 |
| AC-GD | Passengaer | 680 | 9 | 105 | 10 | 3 |
| AC-GD | Passengaer | 680 | 9 | 105 | 8 | 6 |
| AC-GD | Passengaer | 900 | 12 | 105 | 9 | 1 |
| AC-GD | Passengaer | 1430 | 19 | 60 | 4 | 1 |
| AC-GD | Passengaer | 900 | 12 | 60 | 4 | 5 |
| AC-GD | Service | 2040 | 27 | 105 | 16 | 1 |
| AC-GD | Service | 2040 | 27 | 105 | 13 | 1 |
| AC-GD | Service | 2040 | 27 | 105 | 12 | 1 |
| AC-GD | Service | 2040 | 27 | 105 | 11 | 4 |
| AC-GD | Freight | 3000 | - | 60 | 15 | 1 |
| AC-GD | Freight | 3000 | - | 60 | 12 | 1 |
| AC-GD | Freight | 3000 | - | 60 | 11 | 1 |
| AC-GD | Freight | 3000 | - | 60 | 10 | 4 |
| AC-GD | Freight | 3000 | - | 60 | 2 | 1 |
| Model | Type | Step width (mm) | Rise (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| V | S | 1000 | 6000 | 30 | 4 |
| V | S | 1000 | 5100 | 30 | 2 |
| V | S | 1000 | 3000 | 30 | 2 |
