Shin Kong Mitsukoshi Department Store

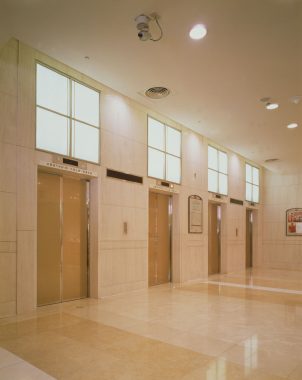

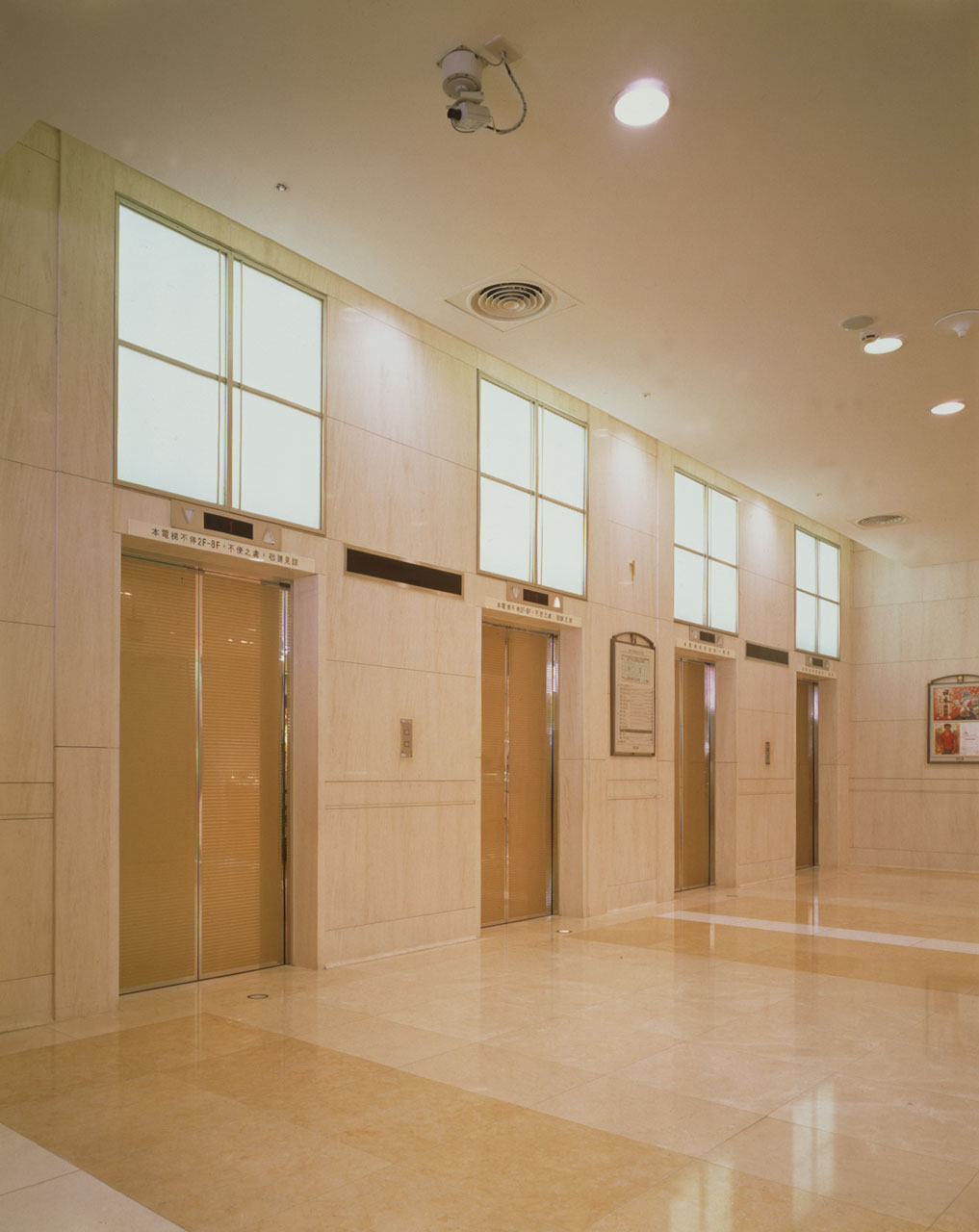

Elevator1

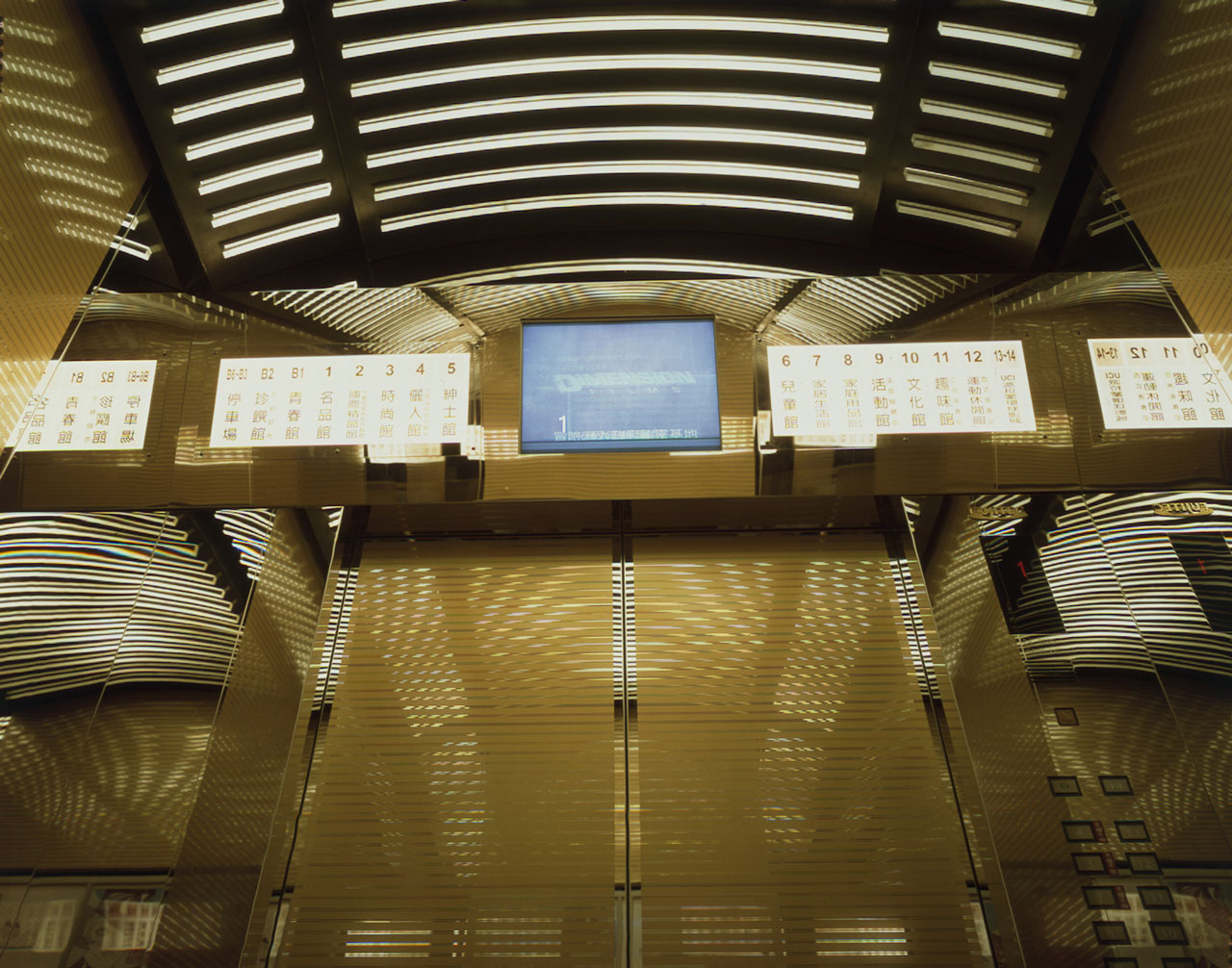

Elevator2

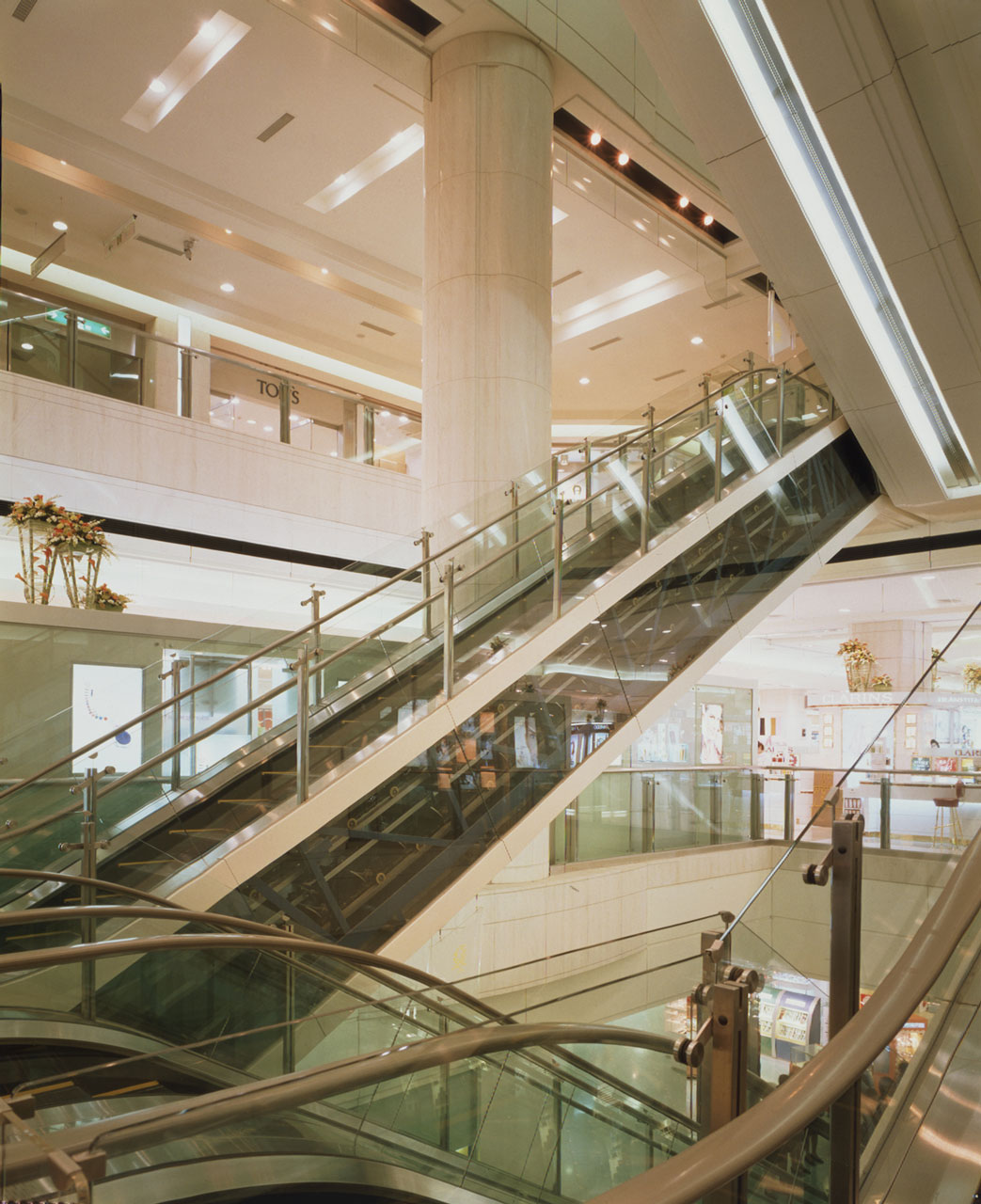

Escalator

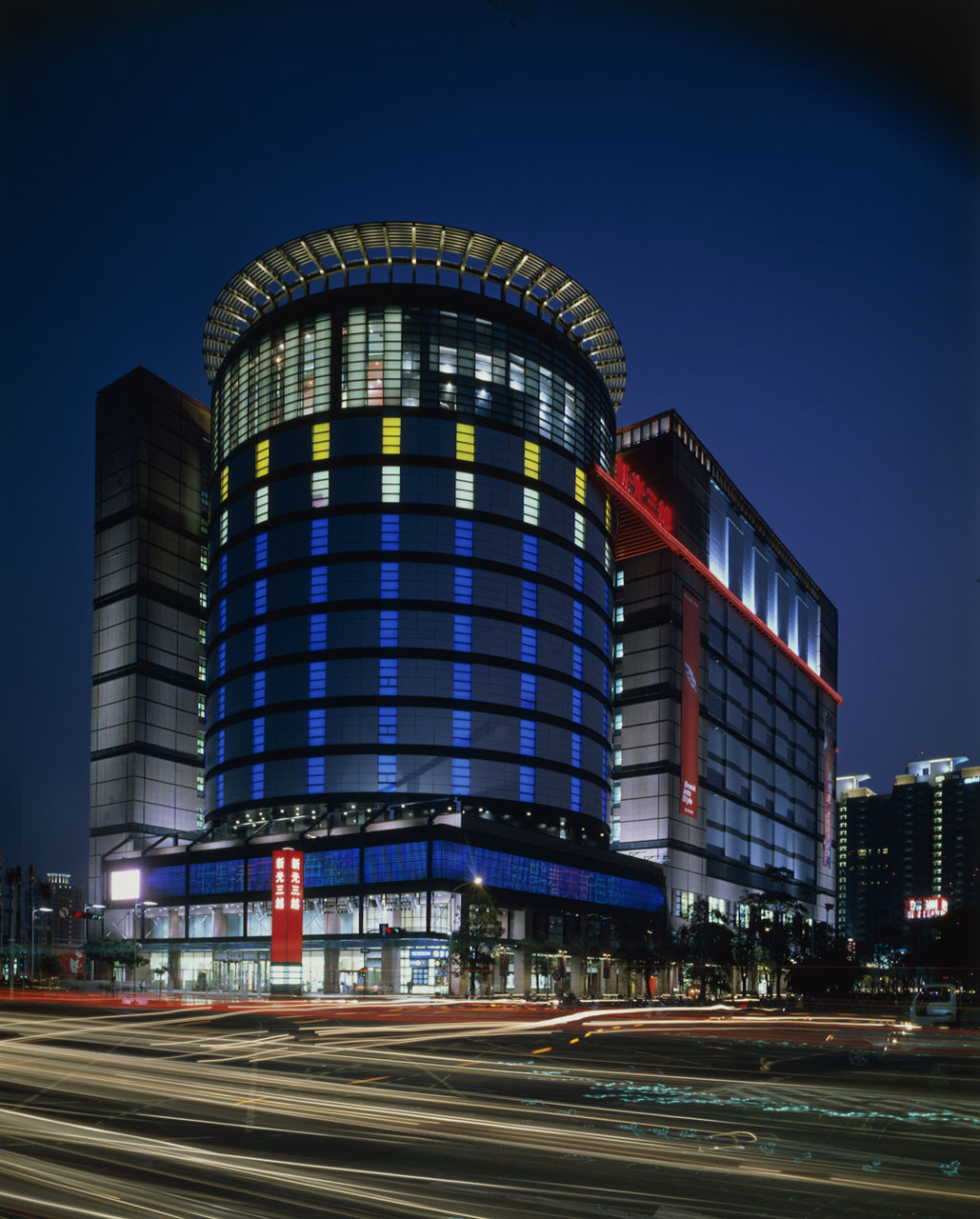

Exterior

Located on the main street of Taichung, Taiwan, the Taichung Shin Kong Mitsukoshi Department Store is one of the largest retail facilities in Taiwan as well as in Asia. In the department store, with 14 floors above ground and six below, 22 elevators, including high-speed models traveling up to 210 mpm, and 56 escalators are in operation.

Building name: Shin Kong Mitsukoshi Department Store

Address: Taichung, Taiwan

Client: Shin Kong Mitsukoshi Department Store Co., Ltd.

Design and supervision: H.C.C.H. & Associates, Architects, Planners & Engineers

Construction: International Engineering & Construction Corp.

Completion: ----

Specifications

Elevator Total units 22

Model	Use	Loading (kg)	Capacity (person)	Speed (m/min)	Stop number of floors (floor)	unit
AC-GL	Passenger	1600	21	210	19	4
AC-GL	Passenger	1600	21	210	19	2
AC-GD	Passenger	1600	21	150	20	4
AC-GD	Passenger	1600	21	150	18	4
AC-GD	Passenger	1600	21	150	20	2
AC-GD	Passenger	1600	21	150	21	2
AC-GD	Passenger	1600	21	150	19	2
AC-GD	Service	2500	33	105	21	1
HYDRAULIC	Passenger	2500	33	45	2	1

Escalator Total units 56

Model	Type	Step width (mm)	Floor height (mm)	Incline (degree)	unit
V	S	1000	5700	30	4
V	S	1000	5000	30	4
V	S	1000	4750	30	42
V	S	1000	4500	30	4
V	S	1000	3850	30	2
