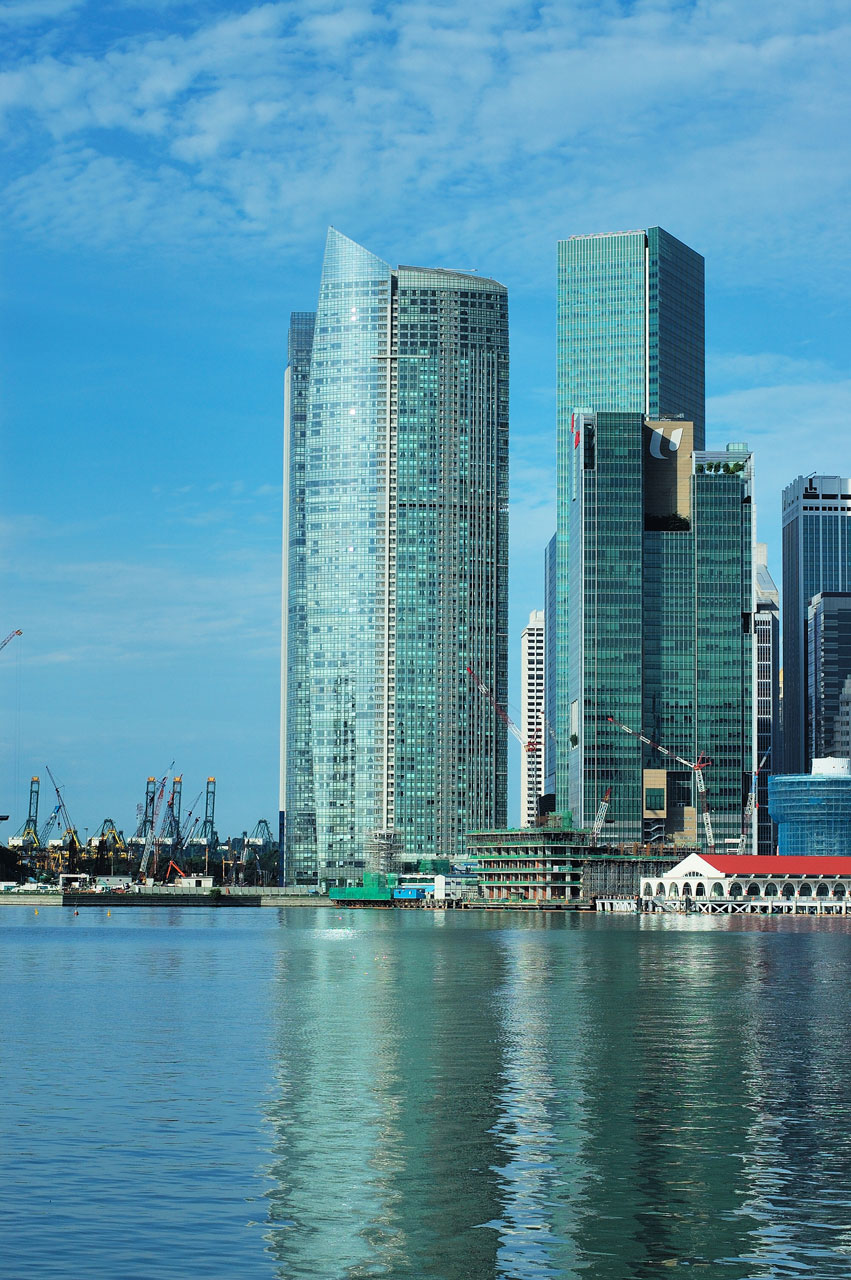

"The Sail" consists of two super high-rise condominium buildings located in the Marina Bay area in Singapore.
The 245-meter tall and 70-story buildings are designed with an image of a ship's sail in mind, and so features a gently curved appearance as a symbolic design.

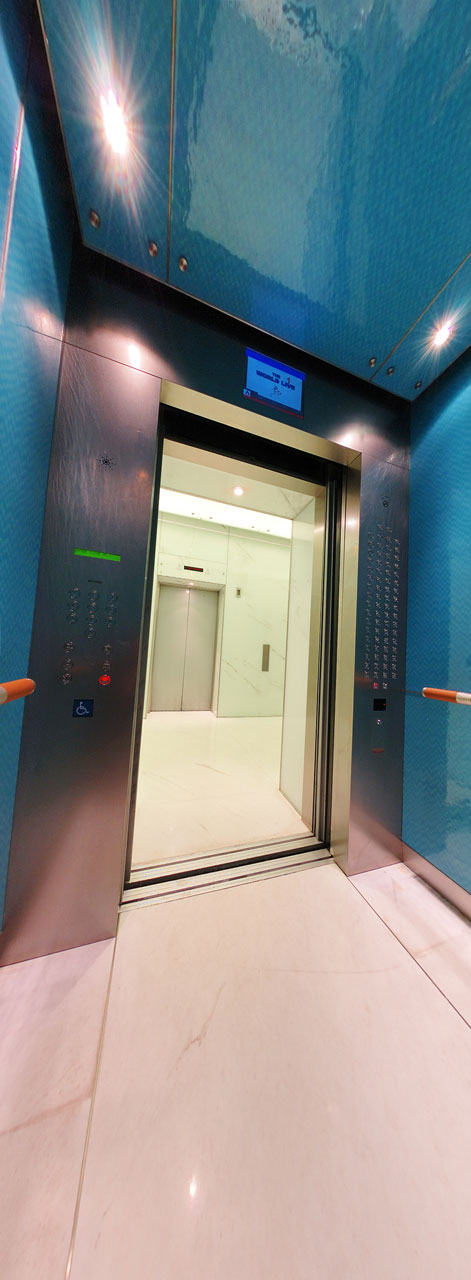

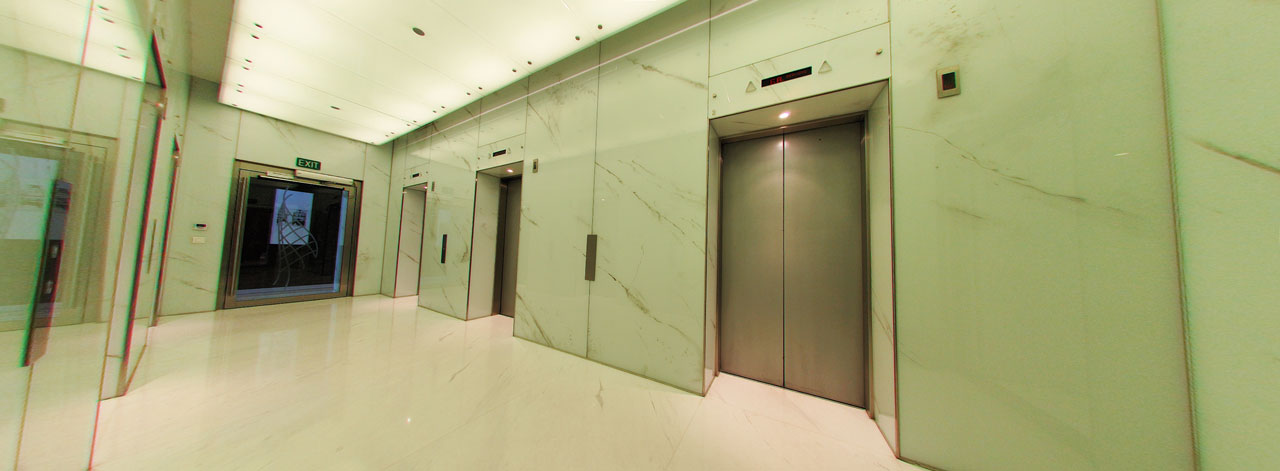

These two buildings are served by 15 Fujitec elevators including the 360 mpm high-speed models and 10 Fujitec escalators. The elevator cabs are designed with an image of the sea and the sky and have a beautiful blue-tone design.
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| AC-GL | Passenger | 1155 | 15 | 360 | 69 | 1 |
| AC-GL | Passenger | 1155 | 15 | 360 | 61 | 1 |
| AC-GL | Passenger | 1020 | 14 | 360 | 68 | 5 |
| AC-GL | Passenger | 1020 | 14 | 360 | 61 | 3 |
| AC-GL | Passenger | 900 | 12 | 105 | 8 | 2 |
| AC-GL | Passenger | 1020 | 14 | 60 | 3 | 2 |
| AC-GL | Passenger | 680 | 9 | 60 | 2 | 1 |
| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| GS8000 | S | 1000 | 7000 | 30 | 4 |
| GS8000 | S | 1000 | 6630 | 30 | 2 |
| GS8000 | S | 1000 | 6000 | 30 | 2 |
| GS8000 | S | 1000 | 5180 | 30 | 2 |
