The Manhattan Place

The Manhattan Place is a high-class office building built in the Kowloon Bay district, one of Hong Kong's biggest commercial areas. In the 41-story office building, Fujitec installed 23 elevators including five super-high-speed models traveling up to 480 meters per minute, and two escalators featuring stylish glass panels.

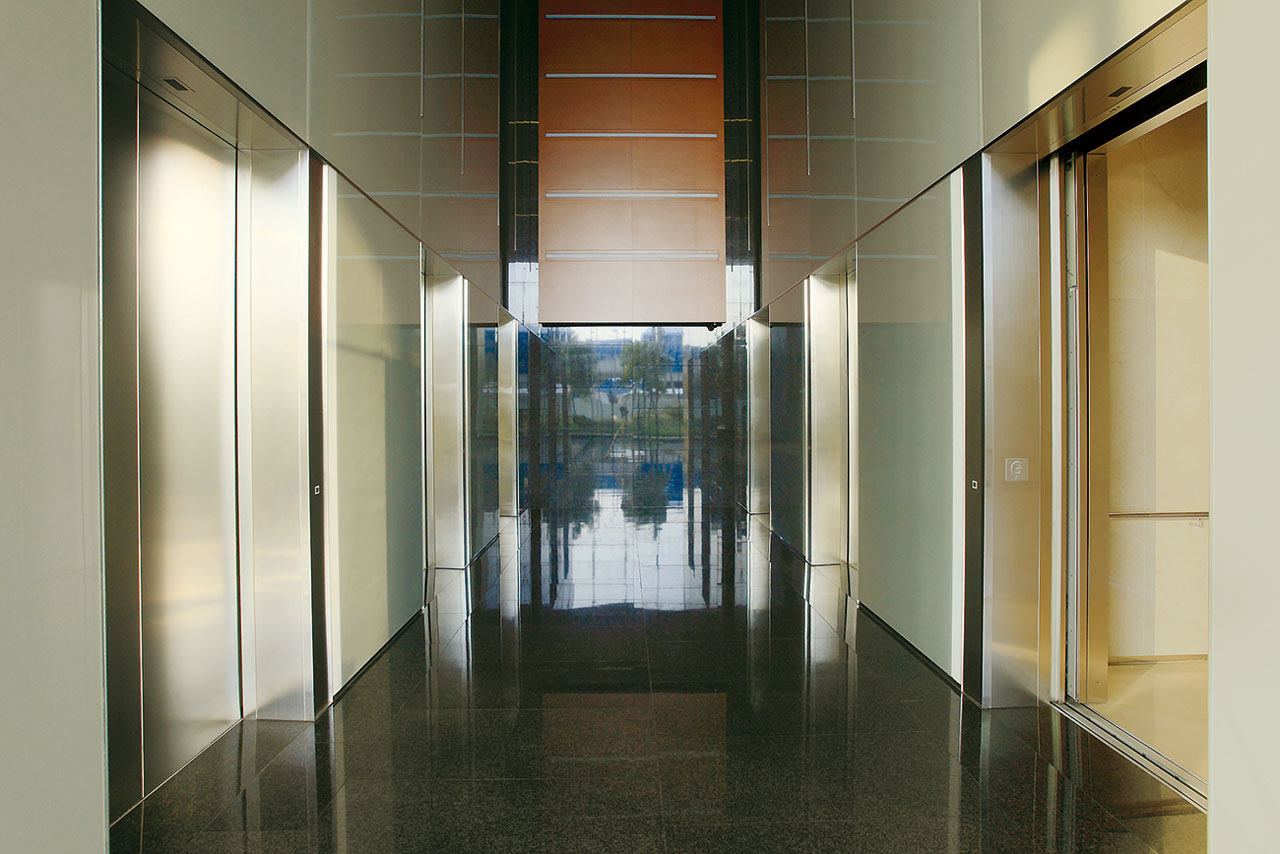

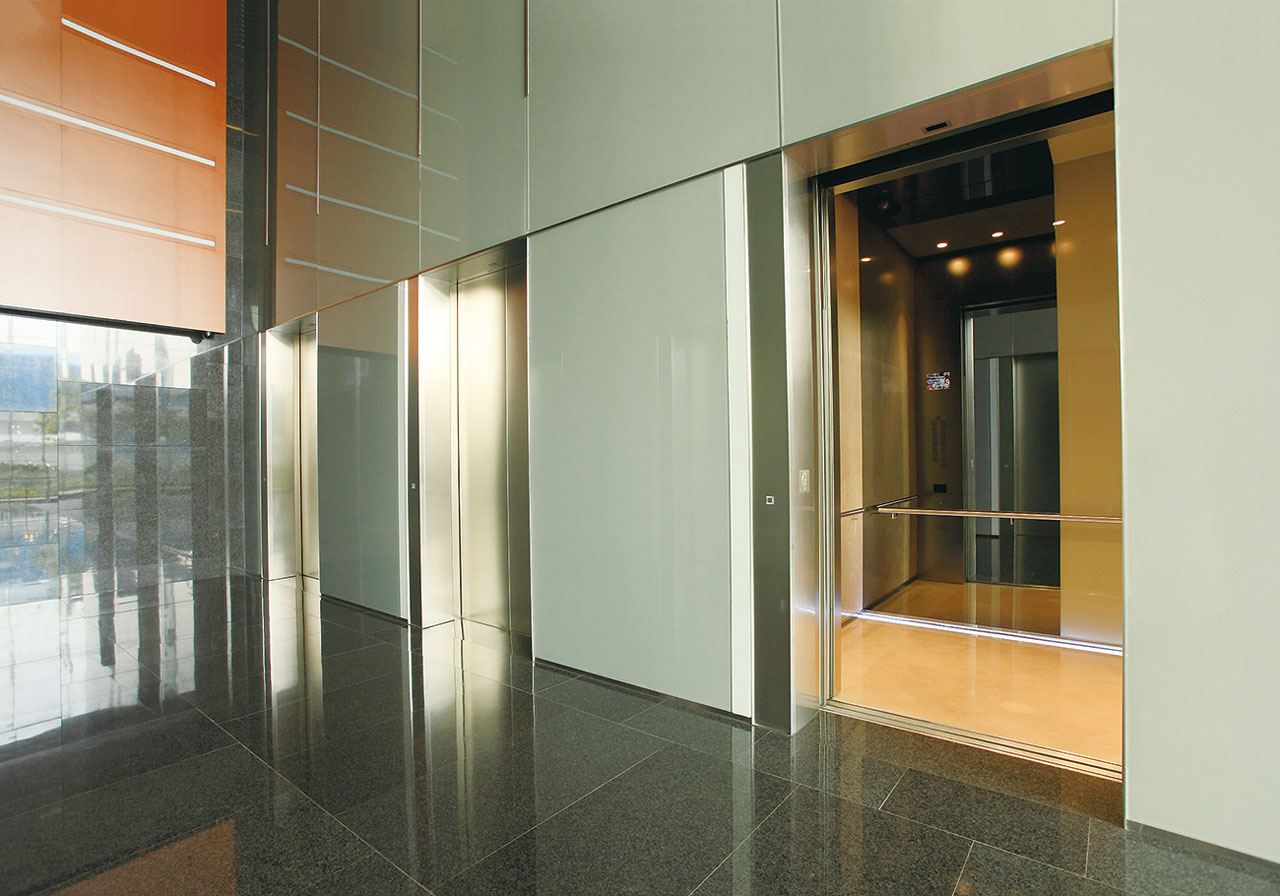

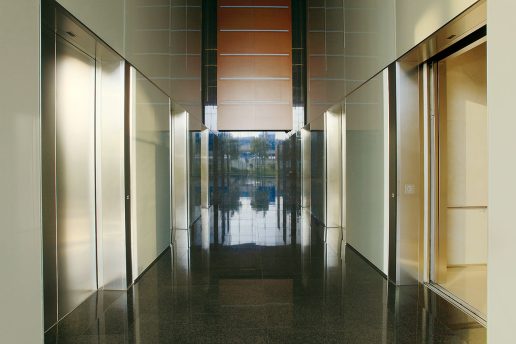

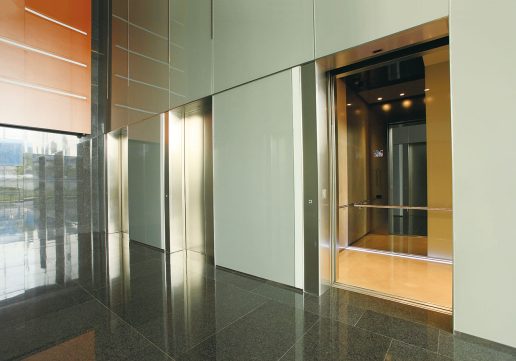

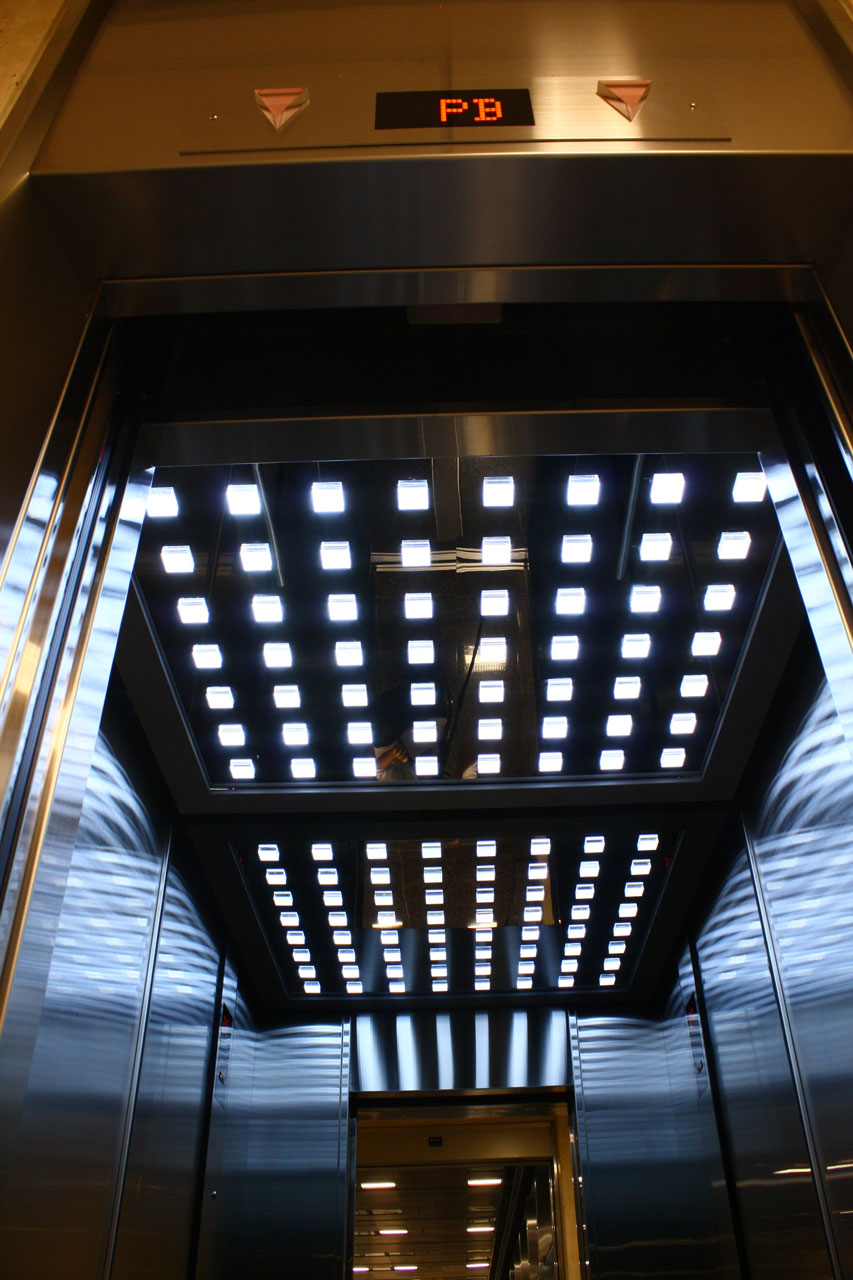

In the main elevator hall, a white LED lantern located adjacent to the hall button informs passengers of the elevator's arrival. In addition, cab interior walls and floors are finished with marble, which adds a classy feel to the luxuriousness of the building.

  • Elevator
  • Escalator
  • Office
  • Asia
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • 2000s
Building name
The Manhattan Place
Address
Hong Kong, China
Client
Pioneer Crest Ltd.
Design and supervision
WMKY
Construction
Sanfield Building Contractors Ltd
Completion
2008

Specifications

Elevator Total units 23
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
AC-GL Passenger 1600 21 480 10 5
AC-GL Passenger 1600 21 420 14 6
AC-GL Passenger 1600 21 210 15 6
AC-GL Passenger 1600 21 210 42 1
MRL Passenger 900 12 96 6 2
MRL Passenger 680 9 60 4 1
AC-GL Service 2000 27 210 42 1
AC-GD Freight 7000 - 30 4 1
Escalator Total units 2
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS8000 S 1200 5400 30 2
