Noi Bai International Airport Terminal2

Noi Bai International Airport is the largest international airport in Vietnam, located in the suburbs of the capital Hanoi. Rapid economic growth and an increasing number of passengers led to the construstion of Terminal 2 with funding from Japan's Offical Development Assistance (ODA) program.

  • Elevator
  • Escalator
  • Moving Walk
  • Transportation
  • Asia
  • Observation
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Balustrade with light
  • Step:1000mm
  • 2010s
Building name
Noi Bai International Airport Terminal2
Address
Hanoi, Vietnam
Client
AIRPORTS CORPORATION OF VIETNAM
Design and supervision
JAPAN AIRPORT CONSULTANTS
Construction
TAISEI - VINACONEX JOINT VENTURE, Inc
Completion
2015

Specifications

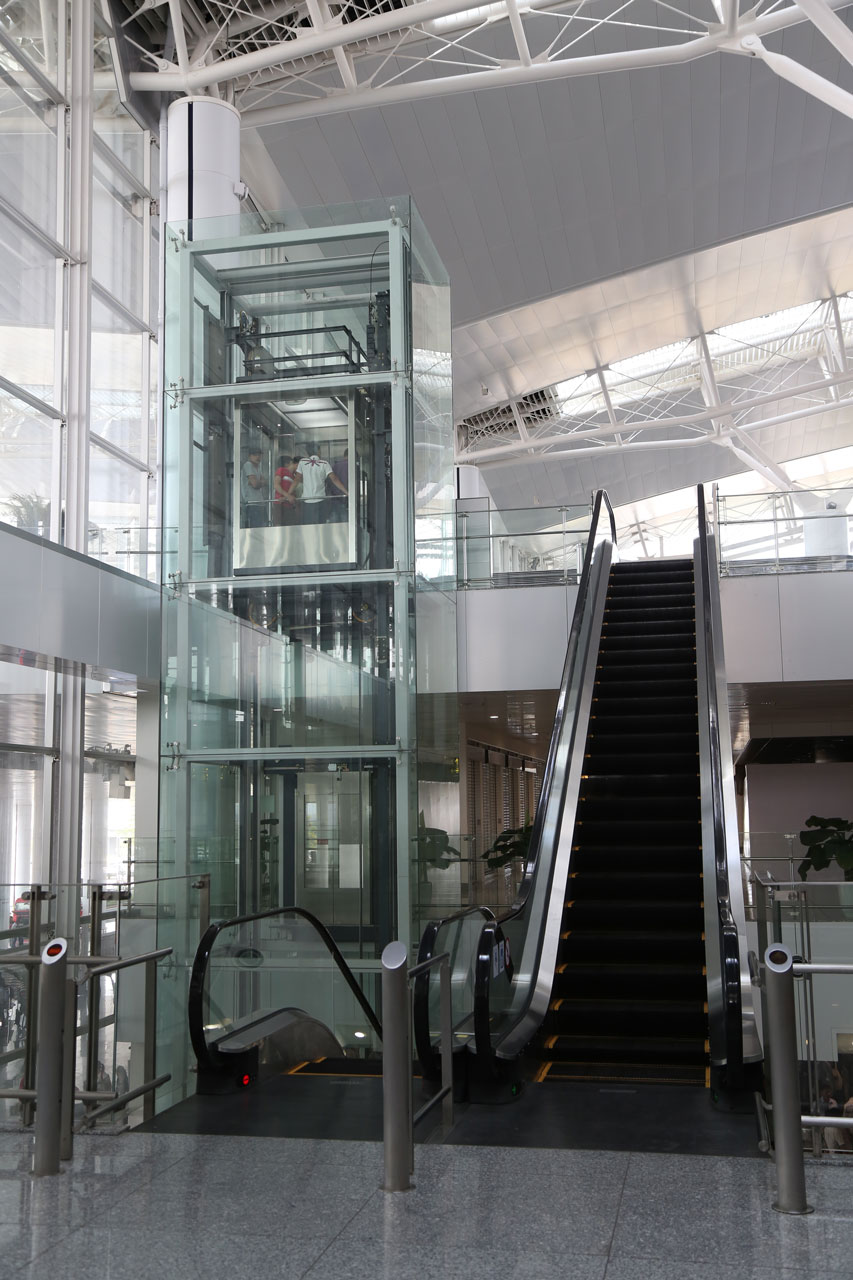

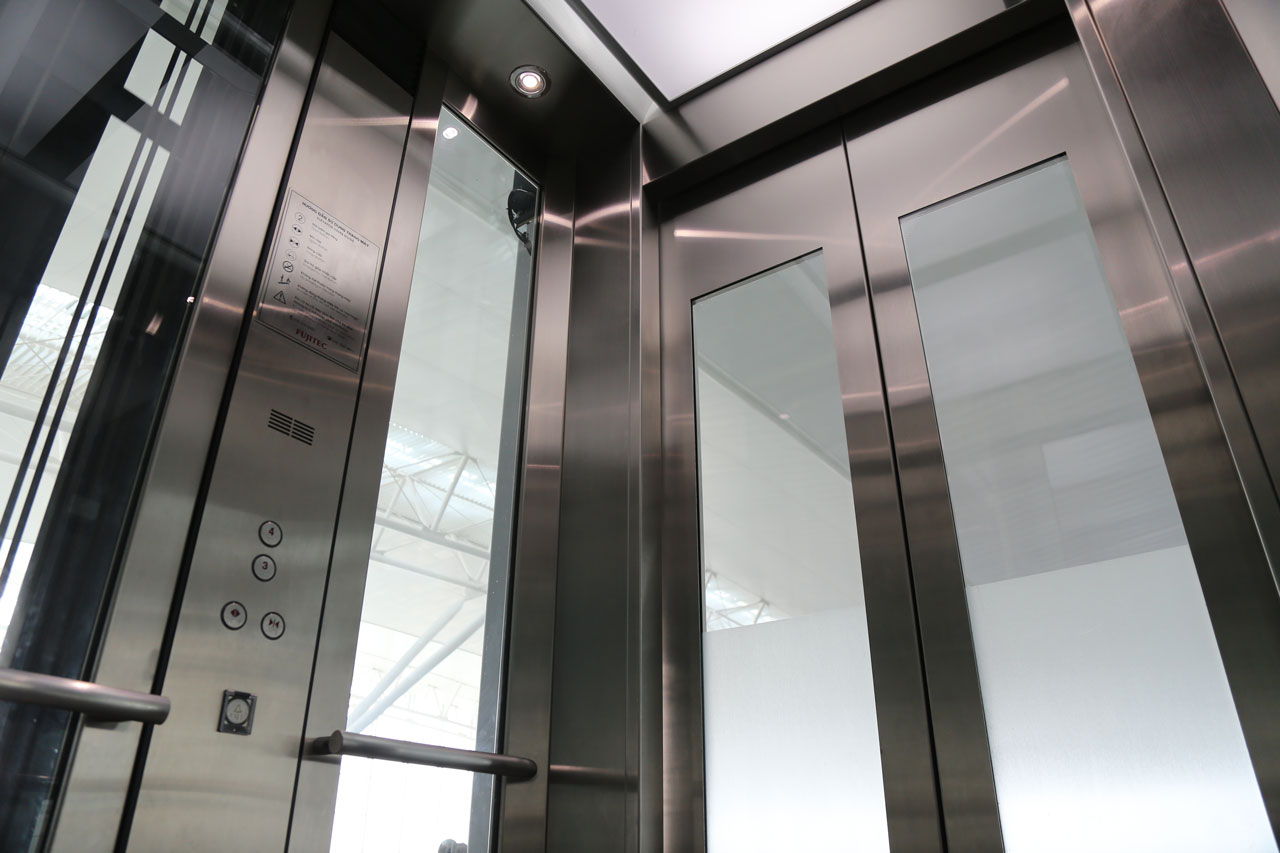

Elevator Total units 24
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
MRL Passenger 1150 15 60 2 2
MRL Passenger 1150 15 60 2 2
MRL Passenger 1150 15 60 3 4
MRL Passenger 1150 15 60 2 4
MRL Passenger 1150 15 60 2 4
MRL Passenger 1600 21 60 5 4
MRL Passenger 1600 21 60 2 4

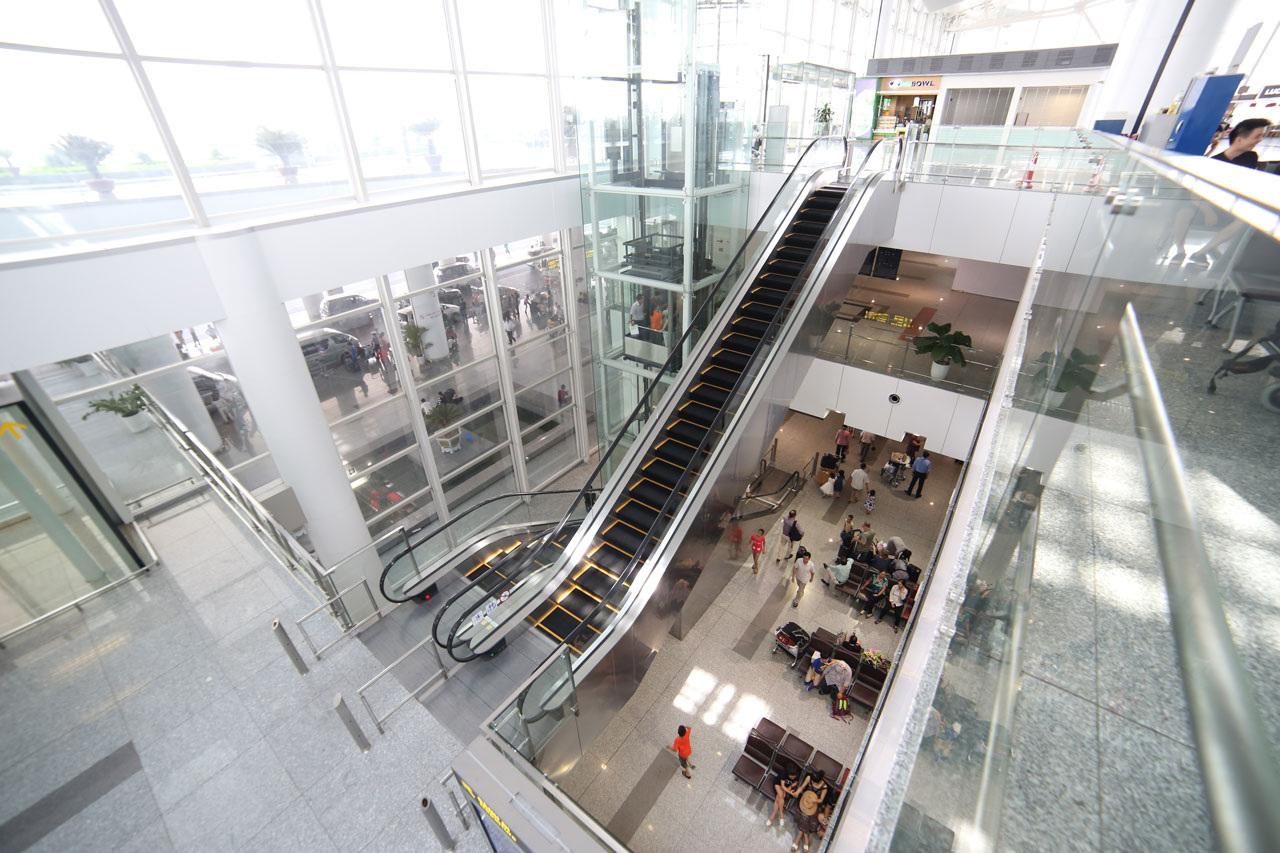

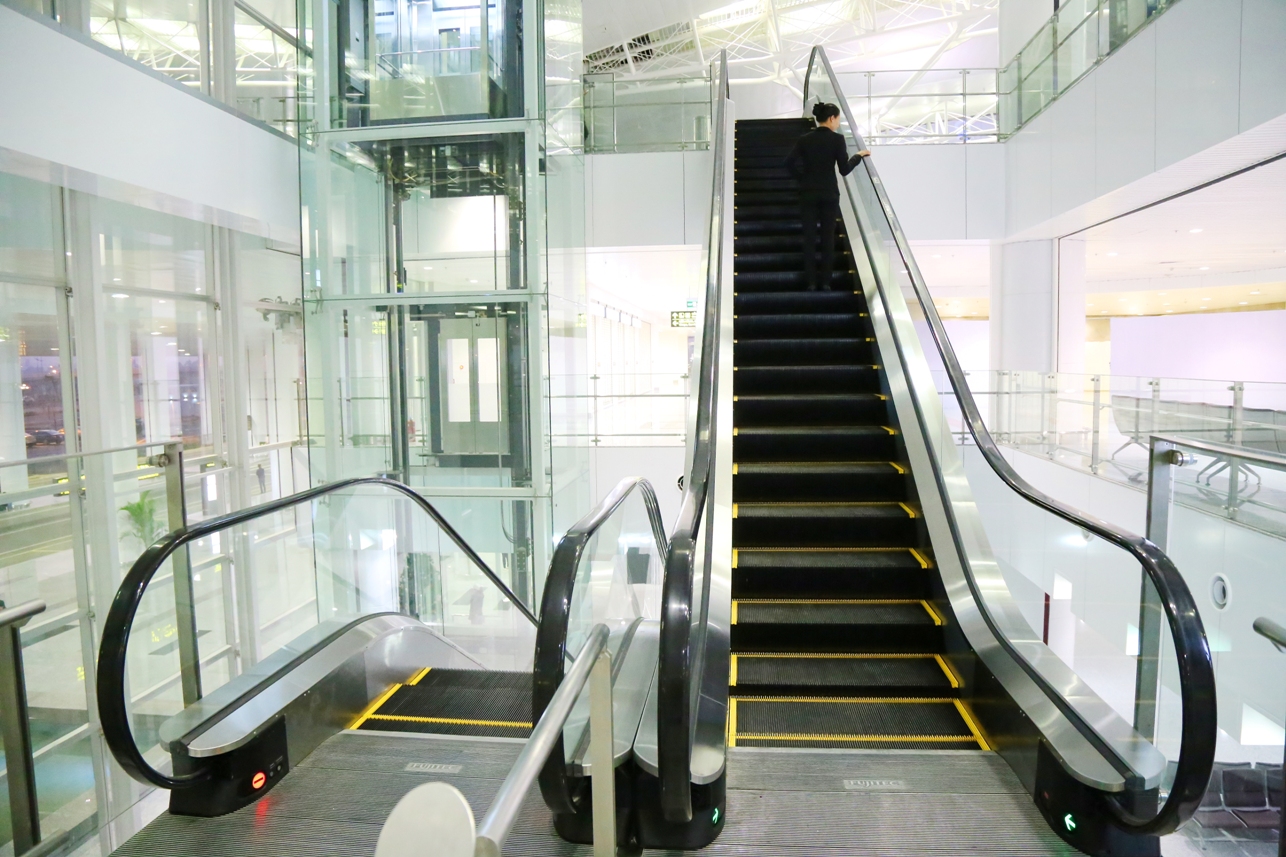

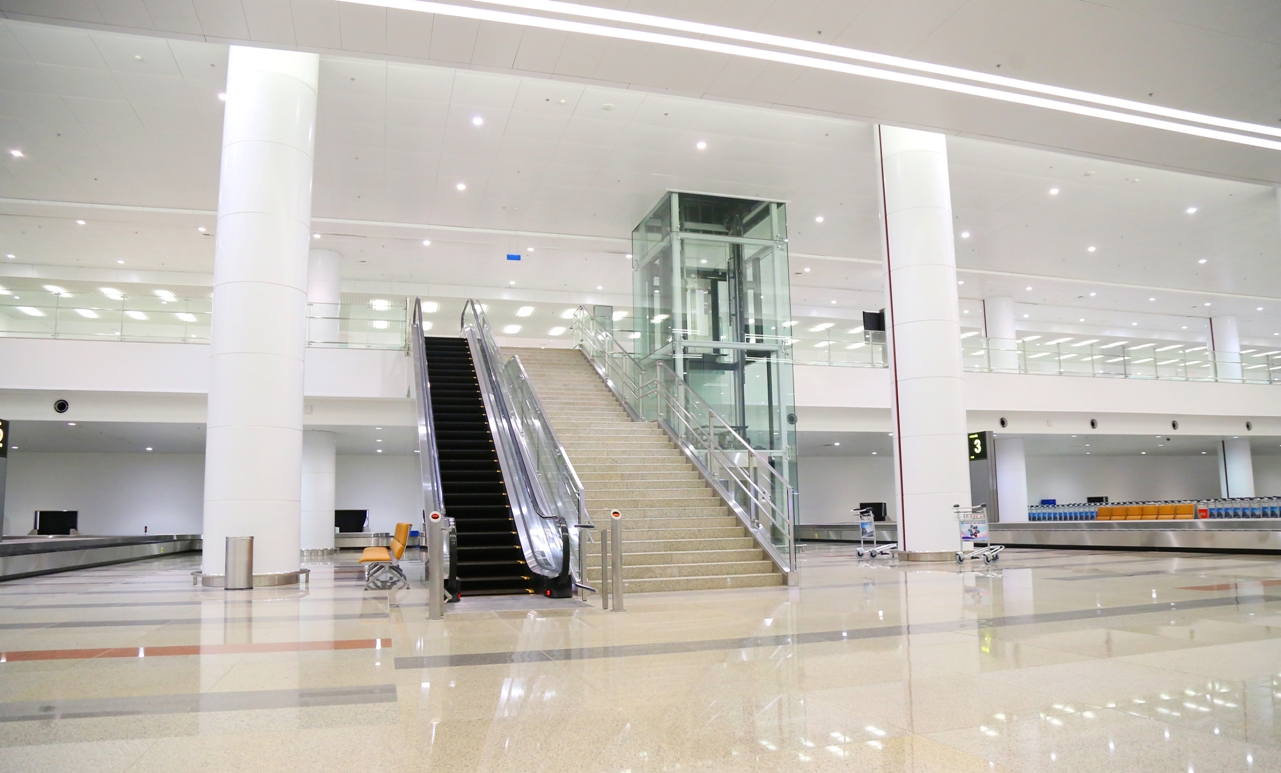

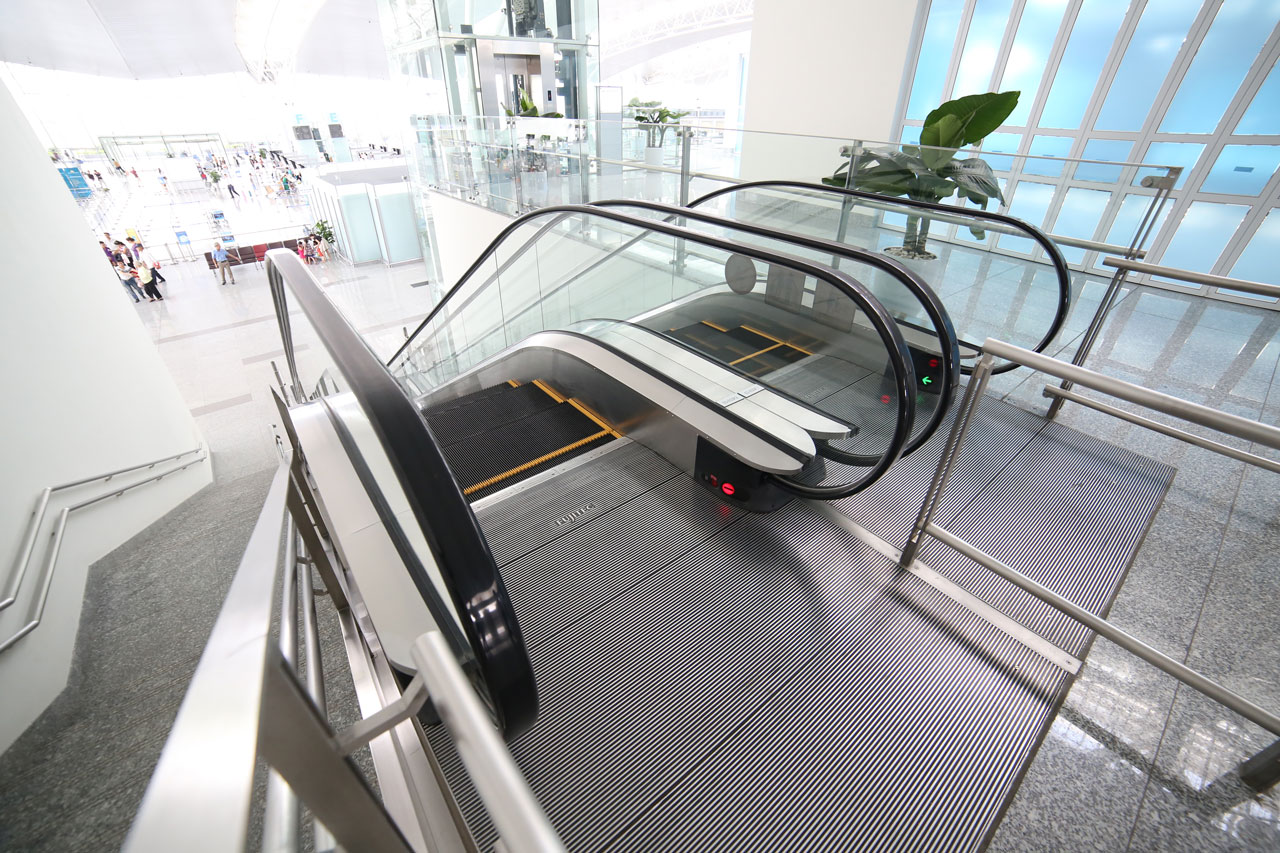

Escalator Total units 44
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS8000-NX S 1000 4800 30 12
GS8000-NX S 1000 5400 30 4
GS8000-NX F 1000 5400 30 2
GS8000-NX S 1000 6000 30 2
GS8000-NX F 1000 10800 30 2
GS8100-NX(Moving Walk) F 1400 54350 0 11
GS8100-NX(Moving Walk) F 1400 56675 0 2
GS8100-NX(Moving Walk) F 1400 59350 0 5
GS8100-NX(Moving Walk) F 1400 66350 0 2
GS8100-NX(Moving Walk) F 1400 71175 0 1
GS8100-NX(Moving Walk) F 1400 83350 0 1
