hu+gMUSEUM

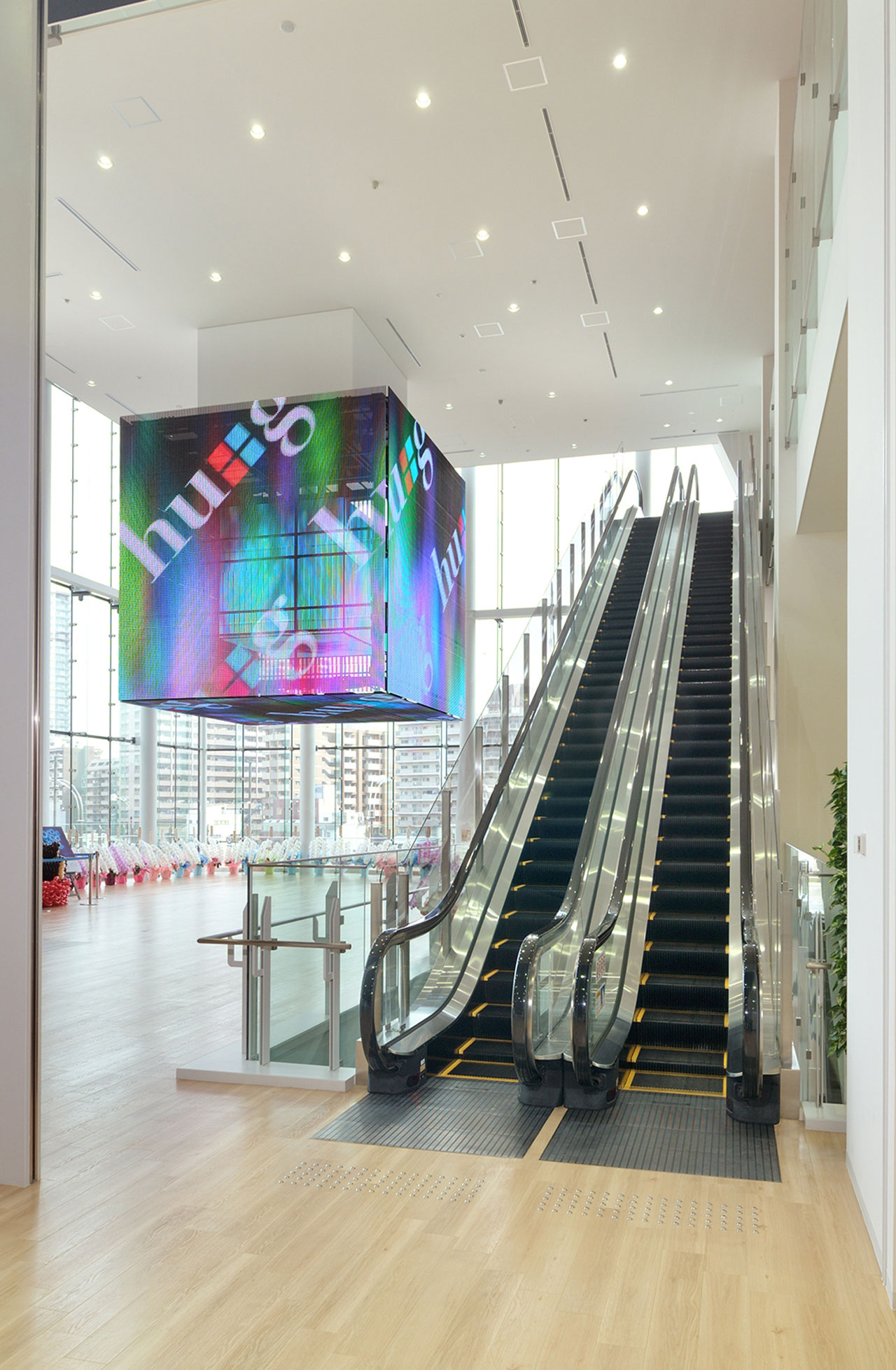

The “hu+gMUSEUM” is the museum of Osaka Gas Co., Ltd. (Osaka Gas). This museum occupies the site where the company was first established. Visitors to this five-story museum can see movies and experience various attractions, which showcase the benefits of natural gas. In this museum, four Fujitec elevators and eight Fujitec escalators were installed. In particular, the mirror finished escalators installed under the cube-shaped “hu+gVision” display complement the sophisticated atmosphere exuded by the atrium's spacious interior.

  • Elevator
  • Escalator
  • Other
  • Japan
  • Capacity:under 1150kg
  • Balustrade with light
  • Step:600mm
  • 2010s
Building name
hu+gMUSEUM
Address
Osaka
Client
Osaka Gas Co., Ltd.
Design and supervision
Yasui Architects & Engineers, Inc.
Construction
Takenaka Corporation
Completion
2015

Specifications

Elevator Total units 4
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
XIOR Passenger 1000 15 90 6 2
XIOR Passenger 900 13 90 5 1
EXCELDINE Freight 3000 - 45 5 1
Escalator Total units 8
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS-NX F 600 6000 30 2
GS-NX F 600 7500 30 2
GS-NX F 600 5000 30 4
