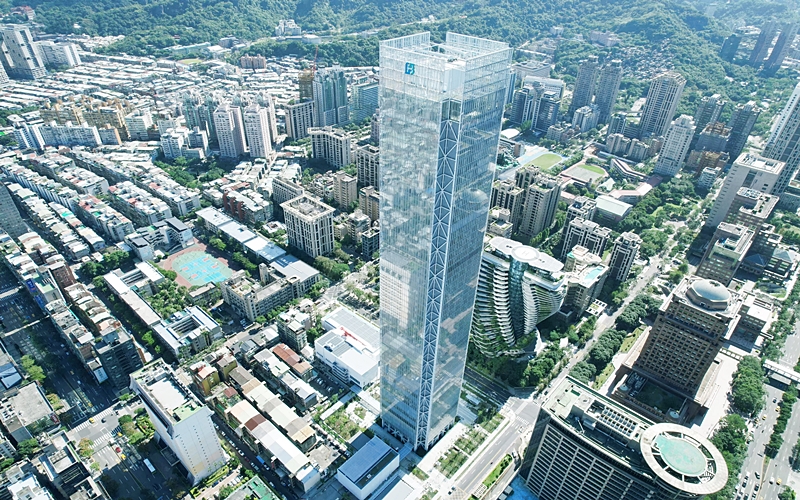

The headquarters building of Fubon Financial Holdings is a fifty-four (54)-story office building built in a financial district of Taipei City in Taiwan by Fubon Financial Holdings, one of the major financial groups.

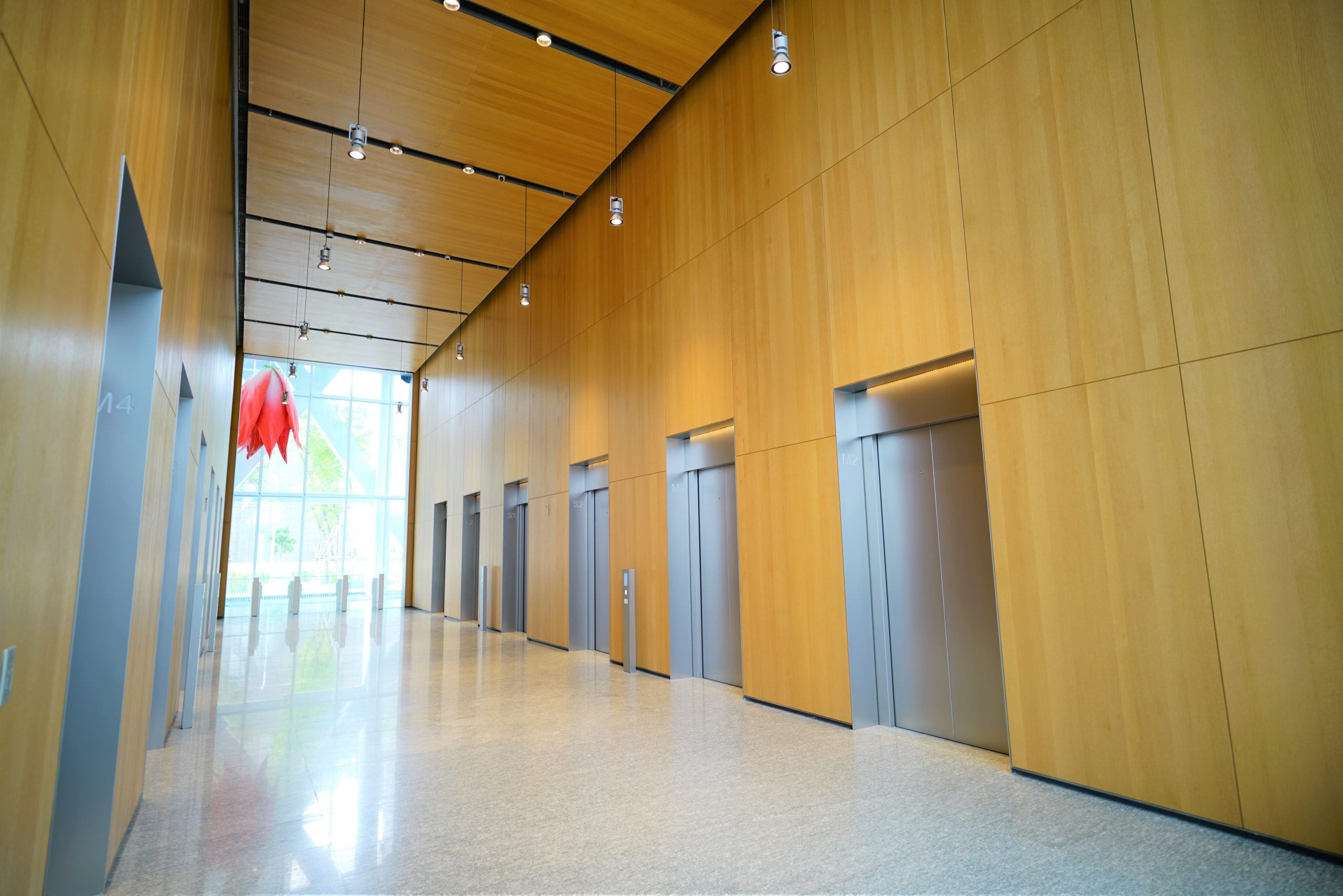

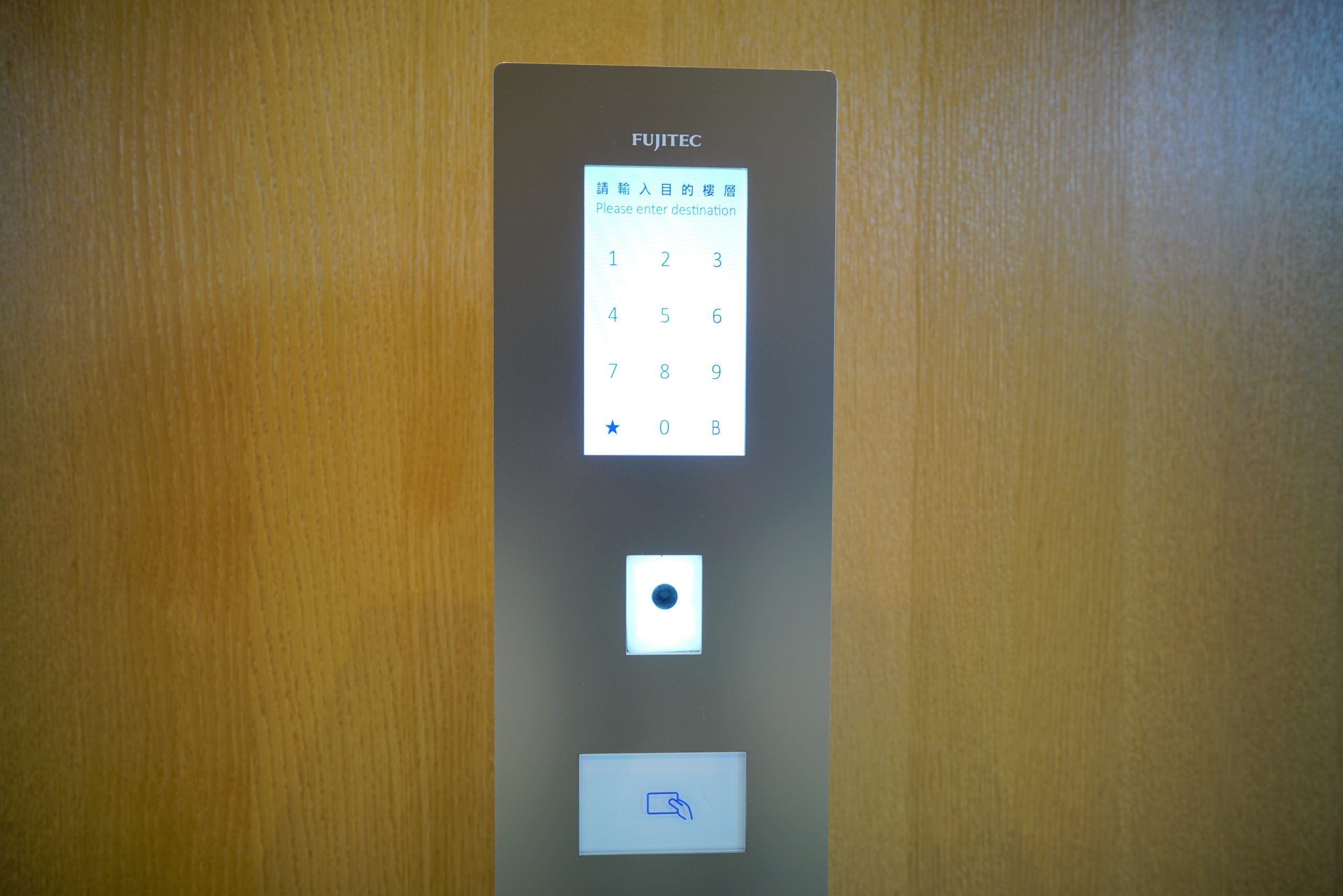

In this office building, Fujitec installed a total of thirty-three (33) products, including twenty-nine (29) elevators and four (4) escalators. The installed elevators incorporate the features of “double-deck elevator,” which is a vertically connected two car units, and EZSHUTTLE, whose control system automatically assigns the cars that users will ride in and reduces their riding time.
Double-deck elevators hold twice the capacity of elevators with the same car size. When combined with EZSHUTTLE, user riding times are reduced by up to an additional 55%*. Combining these products enables Fujitec to improve operation efficiency without increasing the number of units installed, saving space in common areas of building typically used for elevators. In this way, Fujitec helps alleviate elevator traffic congestion supports during rush hours, and supports comfortable travel for officer workers.
* Average service completion time (average time from initial call to arrival at the destination floor), comparing double-deck elevator (with EZSHUTTLE) and double-deck elevator (without EZSHUTTLE). Simulation results are from the same properties.
Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
---|---|---|---|---|---|---|
DOUBLE DECK | Passenger | 1275 | 20 | 300 | 19 | 4 |
DOUBLE DECK | Passenger | 1275 | 20 | 480 | 18 | 4 |
DOUBLE DECK | Passenger | 1275 | 20 | 360 | 4 | 4 |
DOUBLE DECK | Passenger | 1275 | 20 | 240 | 20 | 4 |
PMGL | Passenger | 1350 | 21 | 480 | 53 | 2 |
PMGL | Passenger | 1600 | 25 | 300 | 59 | 1 |
PMGL | Service | 4000 | 62 | 240 | 60 | 1 |
REXIA-T | Passenger | 1600 | 25 | 60 | 5 | 2 |
REXIA-T | Passenger | 800 | 12 | 60 | 2 | 1 |
REXIA-T | Service | 1000 | 15 | 60 | 6 | 1 |
REXIA-T | Passenger | 1600 | 25 | 60 | 4 | 2 |
REXIA-T | Passenger | 630 | 10 | 60 | 8 | 1 |
REXIA-T | Passenger | 630 | 10 | 60 | 6 | 1 |
PMGL | Freight | 5000 | - | 30 | 5 | 1 |
Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
---|---|---|---|---|---|
GS8000-NX | S | 800 | 4200 | 30 | 4 |
