In the “Kento” which is the Northern Osaka Health and Biomedical Innovation Town (NohBIT) spread at the northern side of Kishibe station on the JR Kyoto Line, the development of the town is proceeding under the concept of “health” and “medical care.”
The building standing in the “Kento Innovation Park” in the said town is “NIPRO Headquarters Building” which is a comprehensive medical manufacturer.
This building has seven (7) floors above ground and is equipped with the functions of NIPRO Headquarters and the open innovation promotion instrument.

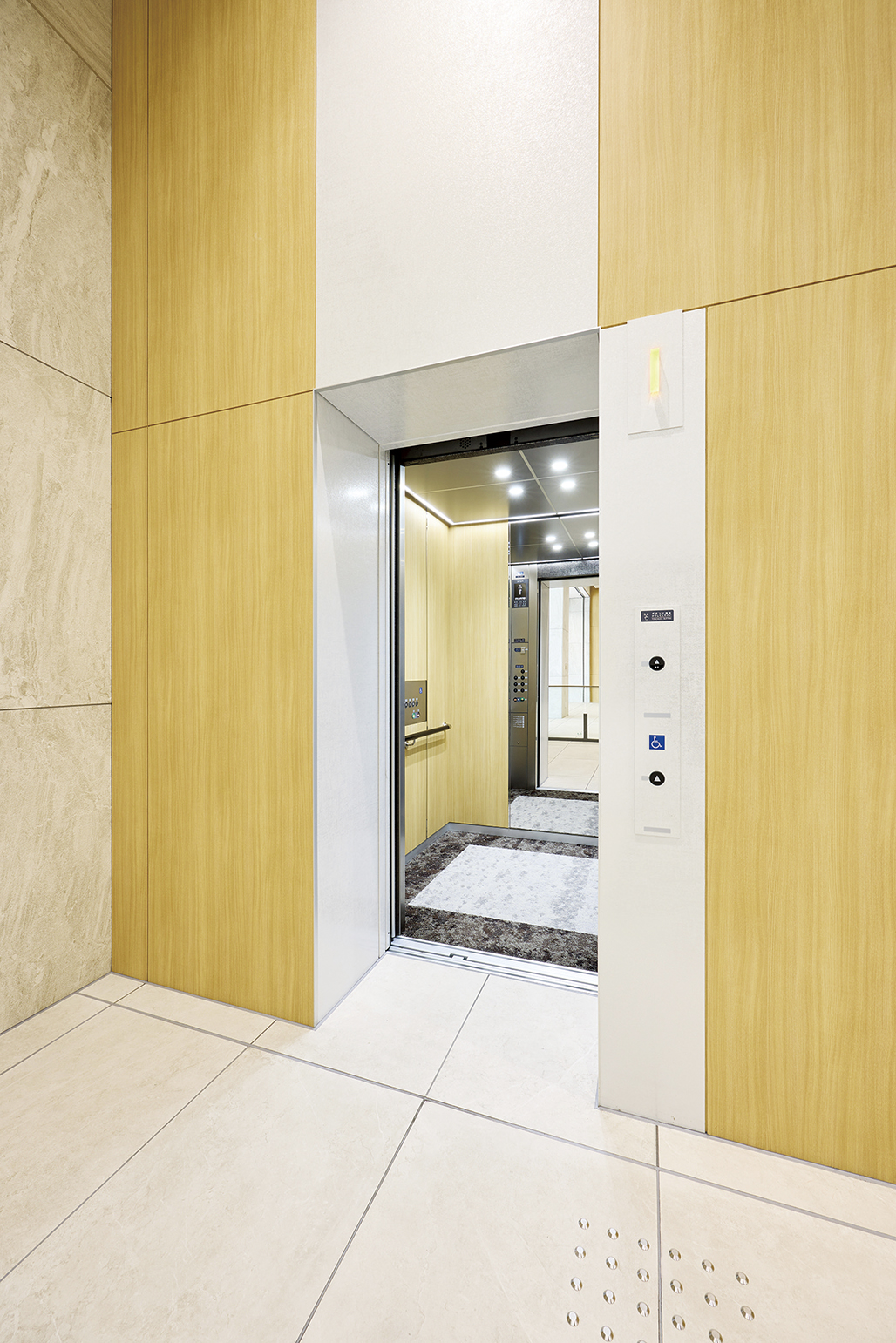

In this building, Fujitec installed nine (9) units of elevators and four (4) units of escalators.

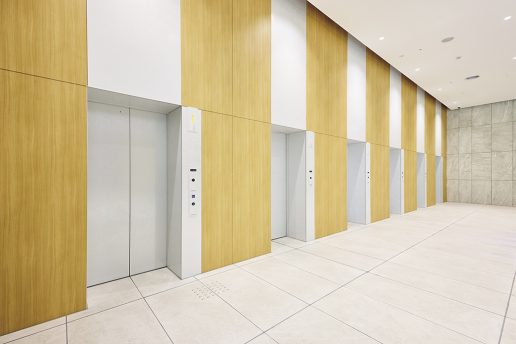

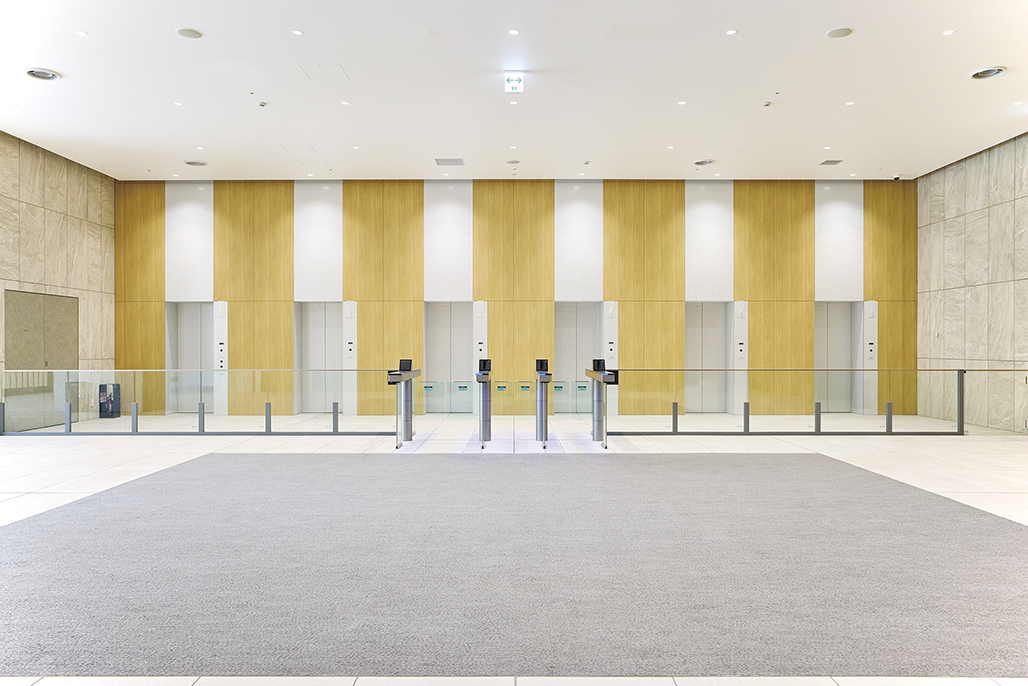

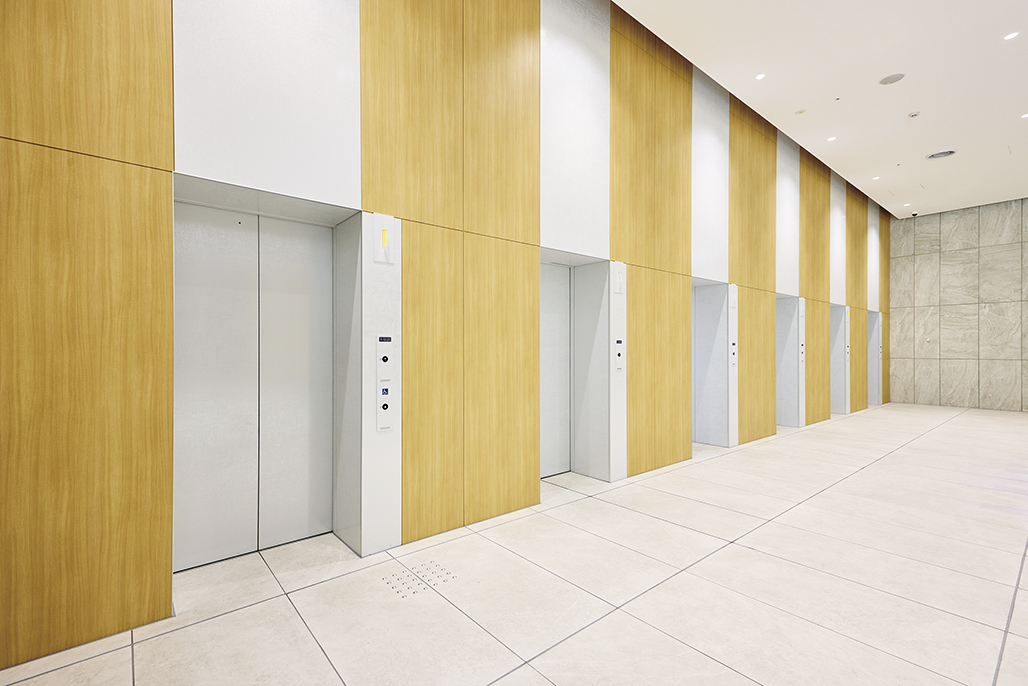

In the first floor’s entrance with the main six (6) elevators, security gates are placed.

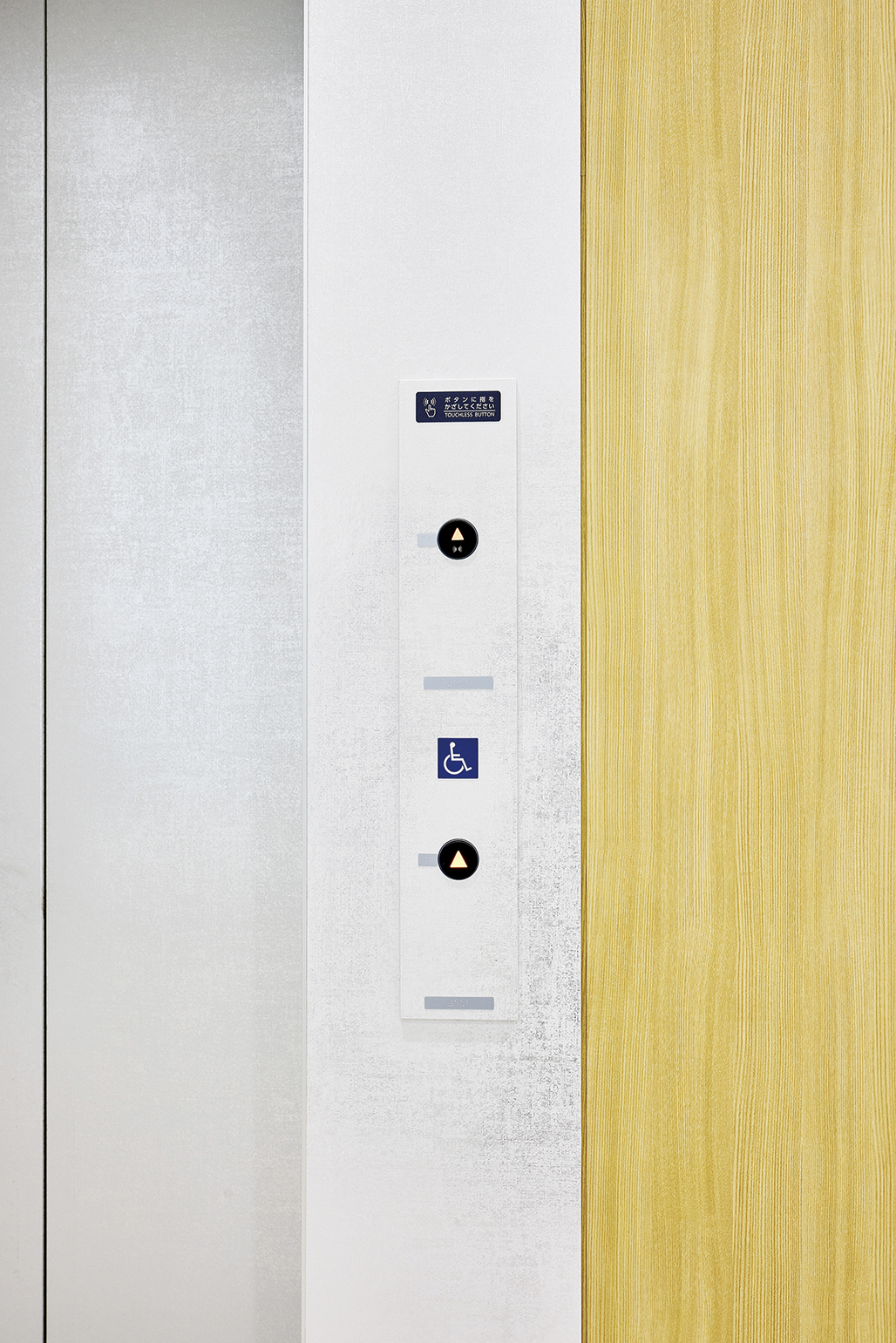

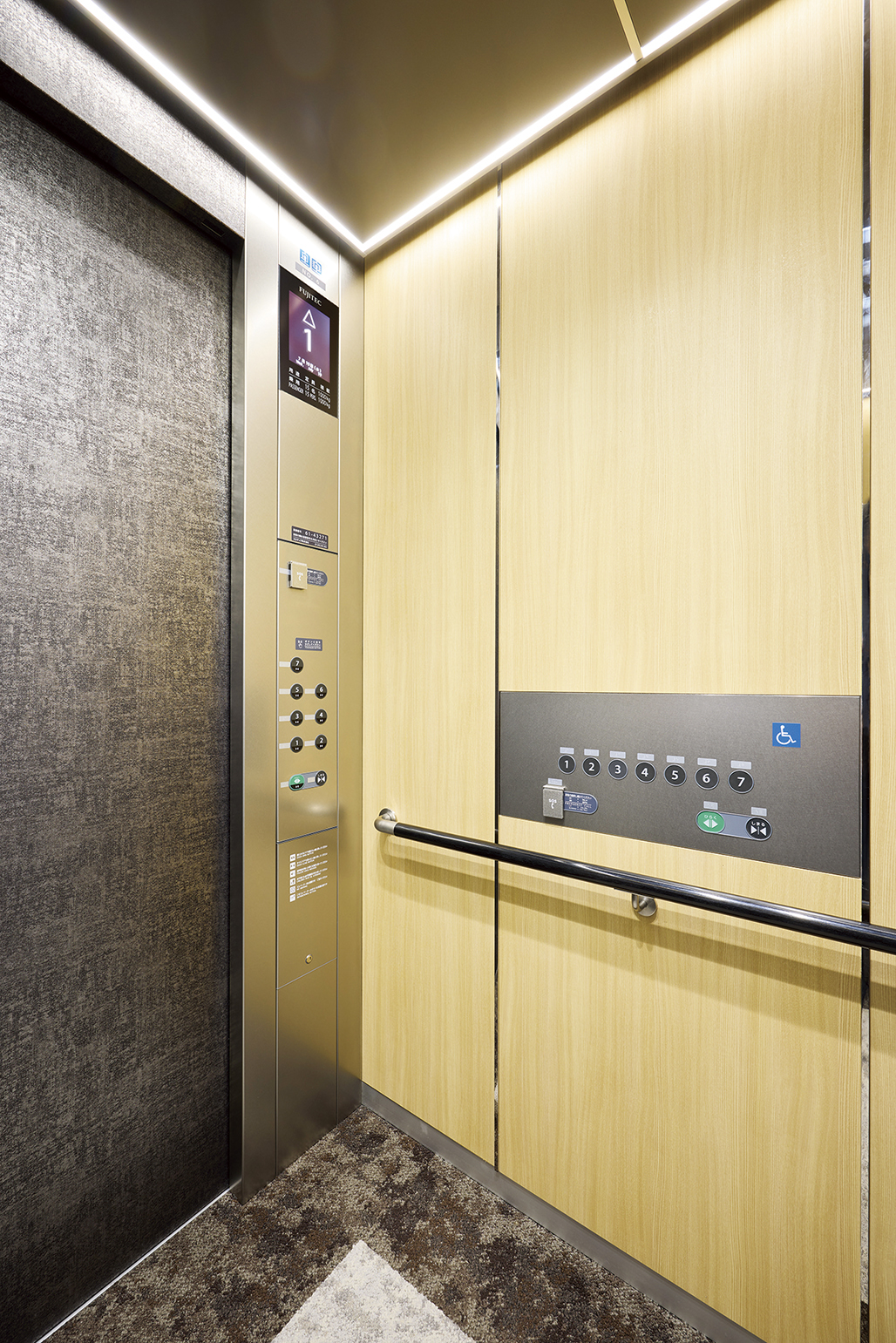

The elevators are equipped with the function of “Air Tap” by which the elevators can be operated without touching the registration devices from the aspect of good hygiene.
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| Order XIOR | service | 1800 | 27 | 90 | 8 | 1 |
| Order XIOR | service | 1150 | 17 | 90 | 7 | 1 |
| XIOR | passenger | 1000 | 15 | 90 | 7 | 6 |
| XIOR | passenger | 1000 | 15 | 60 | 3 | 1 |

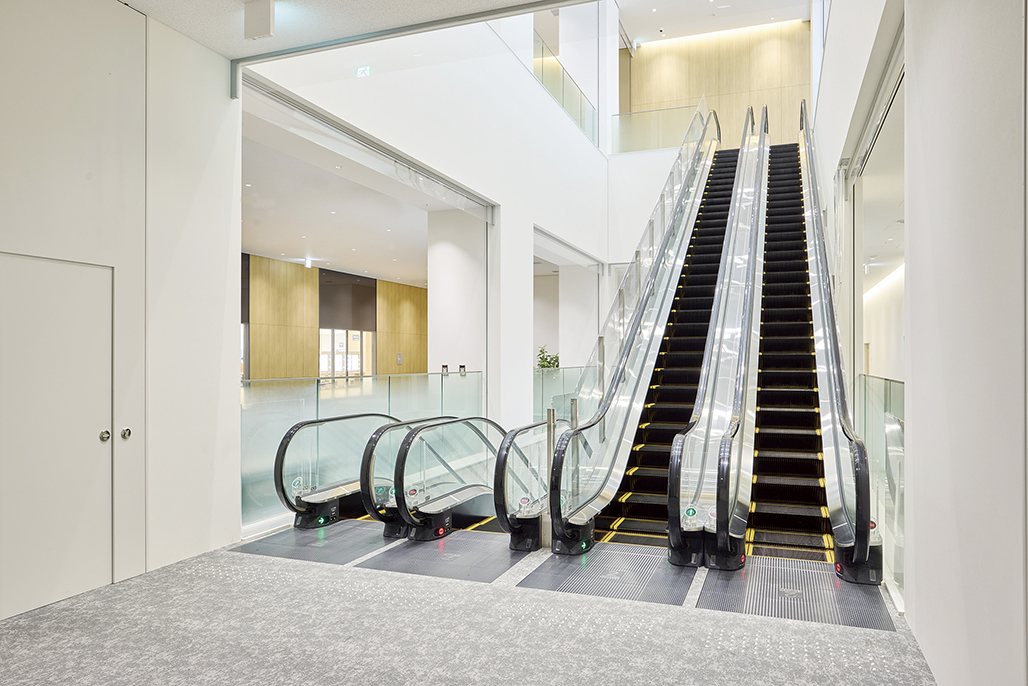

| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| GS-NX | S | 600 | 6500 | 30 | 4 |
