K-Arena Yokohama/Hilton Yokohama/K-Tower Yokohama

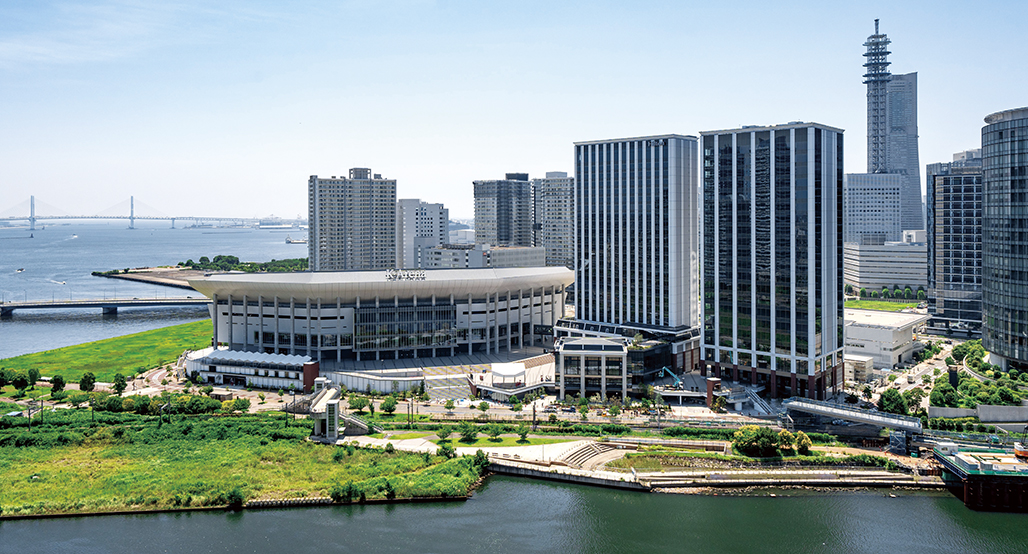

Yokohama's fascinating base, where the creative power of art and culture is integrated with urban development, is Music Terrace. This Music Terrace, has one of the world’s largest music arenas, K-Arena Yokohama, a remarkable international hotel, Hilton Yokohama, and a prominent office building, K-Tower Yokohama. It is one of the symbolic places of Yokohama.

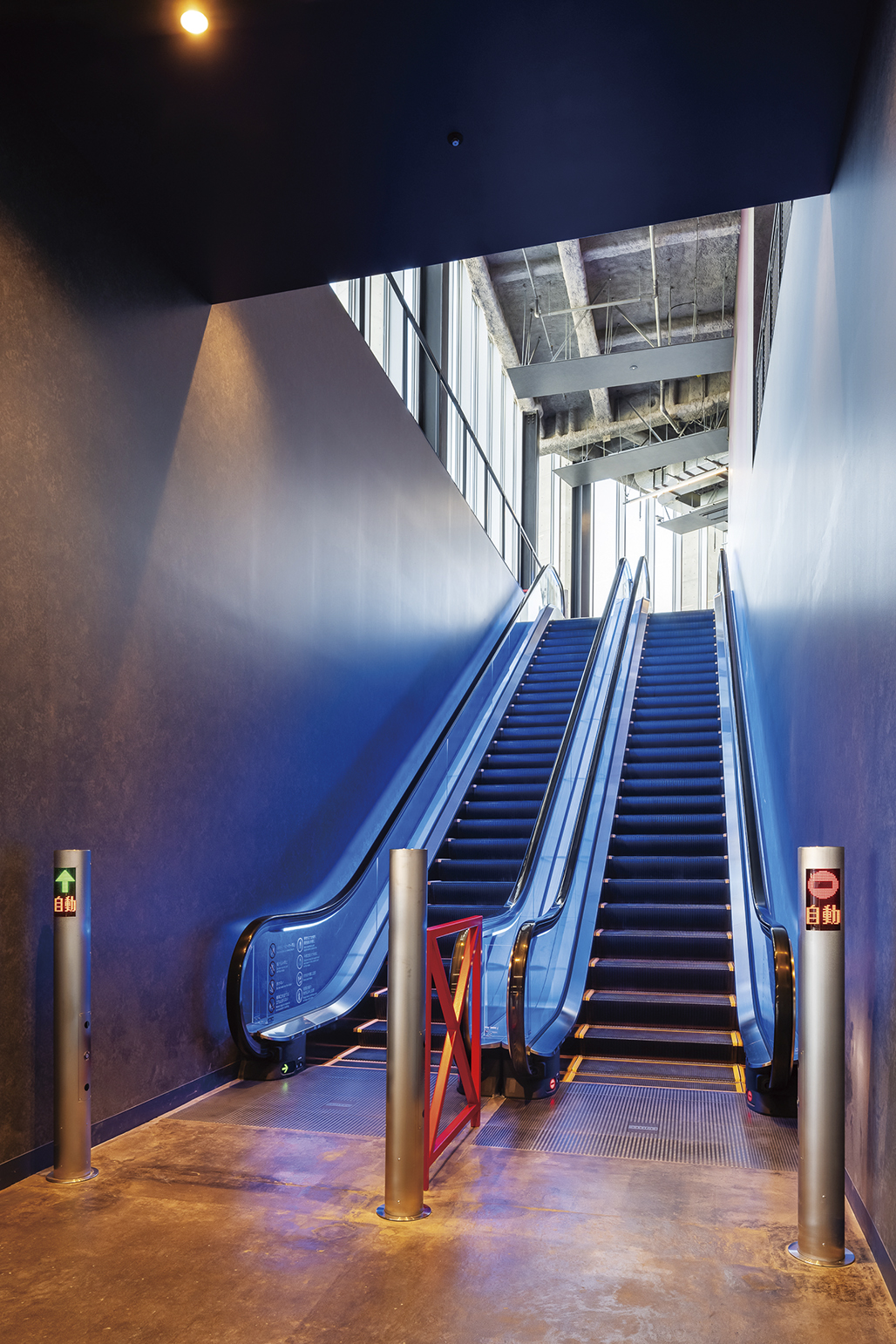

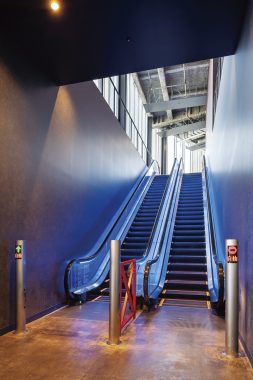

K-Arena Yokohama, the center of Music Terrace, is a music arena with a capacity of approximately 20,000 people. In these facilities, Fujitec installed five (5) elevators and four (4) escalators. The interior design of the elevators is chic and dignified. The escalators have blue lights under their handrails making people feel the image of Yokohama Harbor.

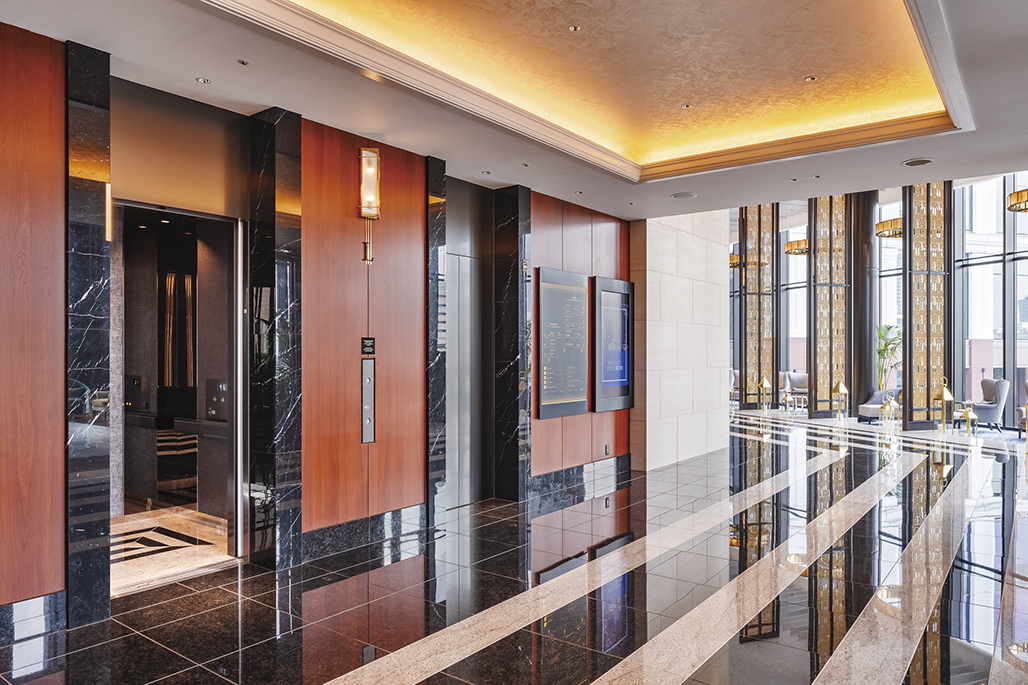

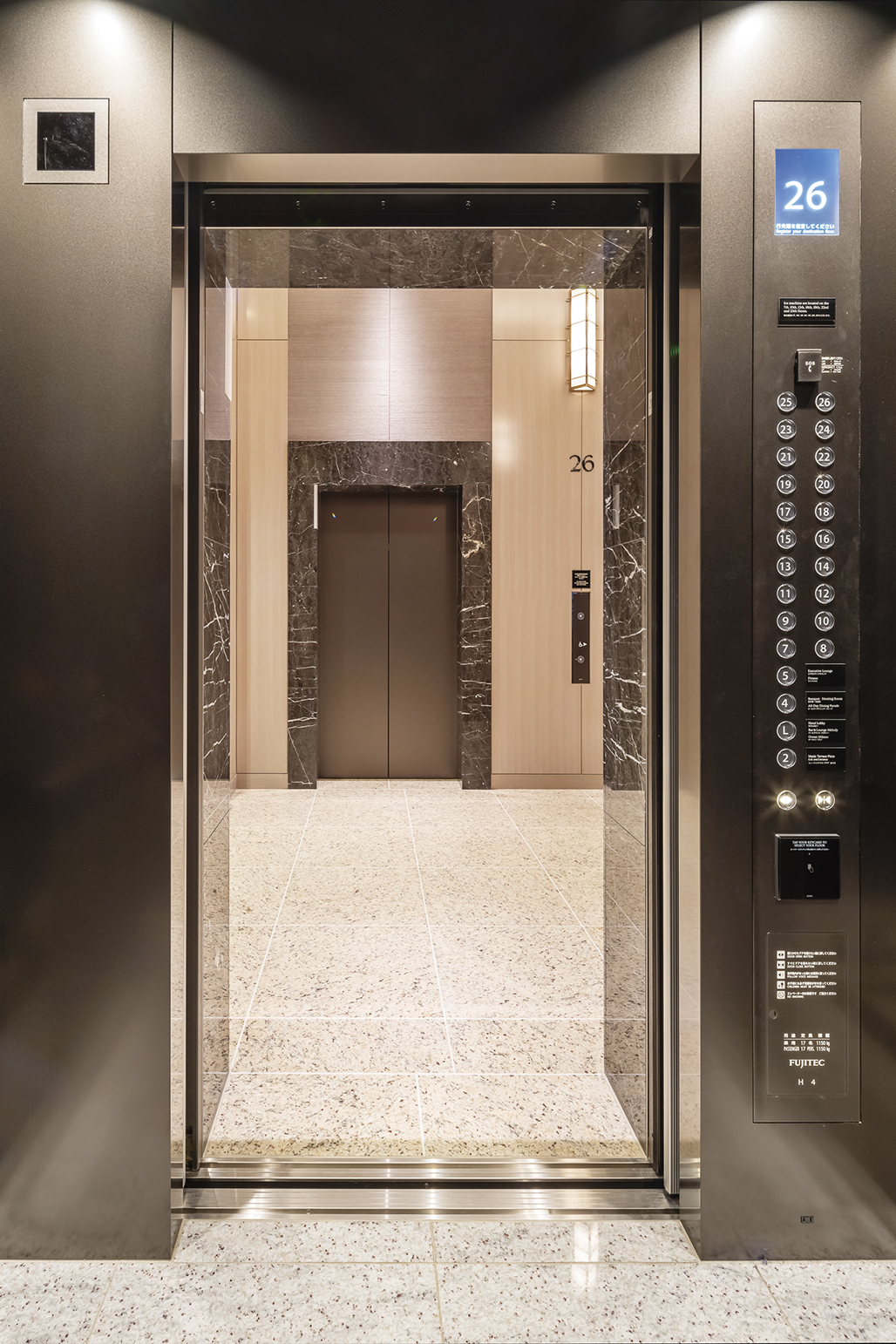

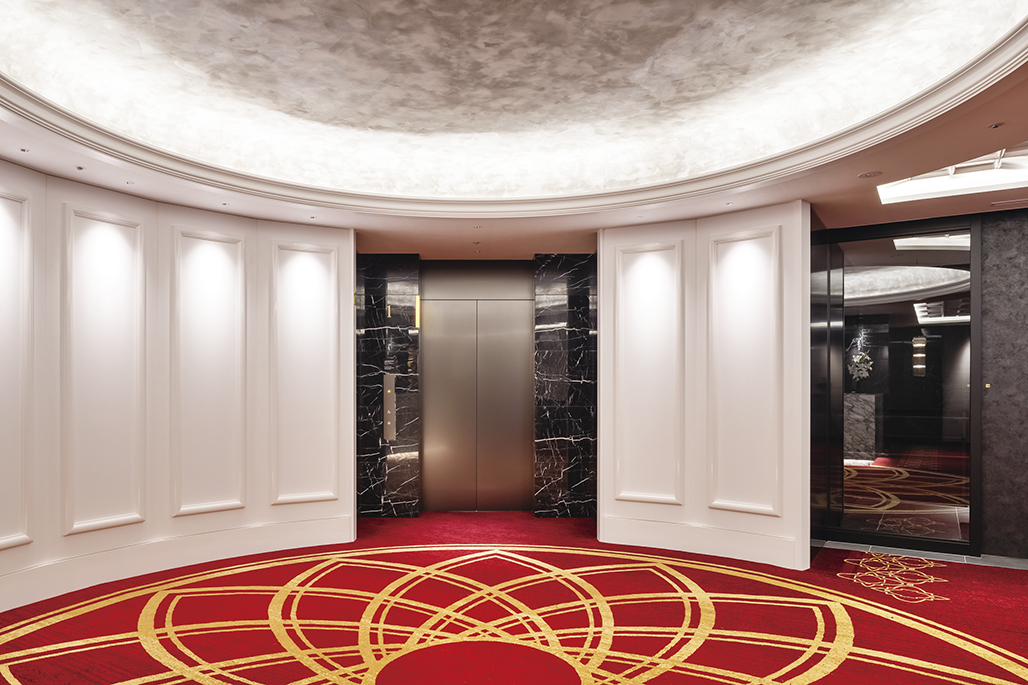

Meanwhile, the building with the beauty of Art Deco architectural style that brings about the atmosphere of Yokohama is Hilton Yokohama. This building has twenty-six (26) floors above ground and one (1) basement. Fujitec installed ten (10) elevators. Stone tiles are laid on the elevator floors. Black mirror and deeply embossed materials with textures contrasting with the mirror are integrated over the elevator walls. Such decoration of the elevator floor and walls creates a high-class and luxurious atmosphere.

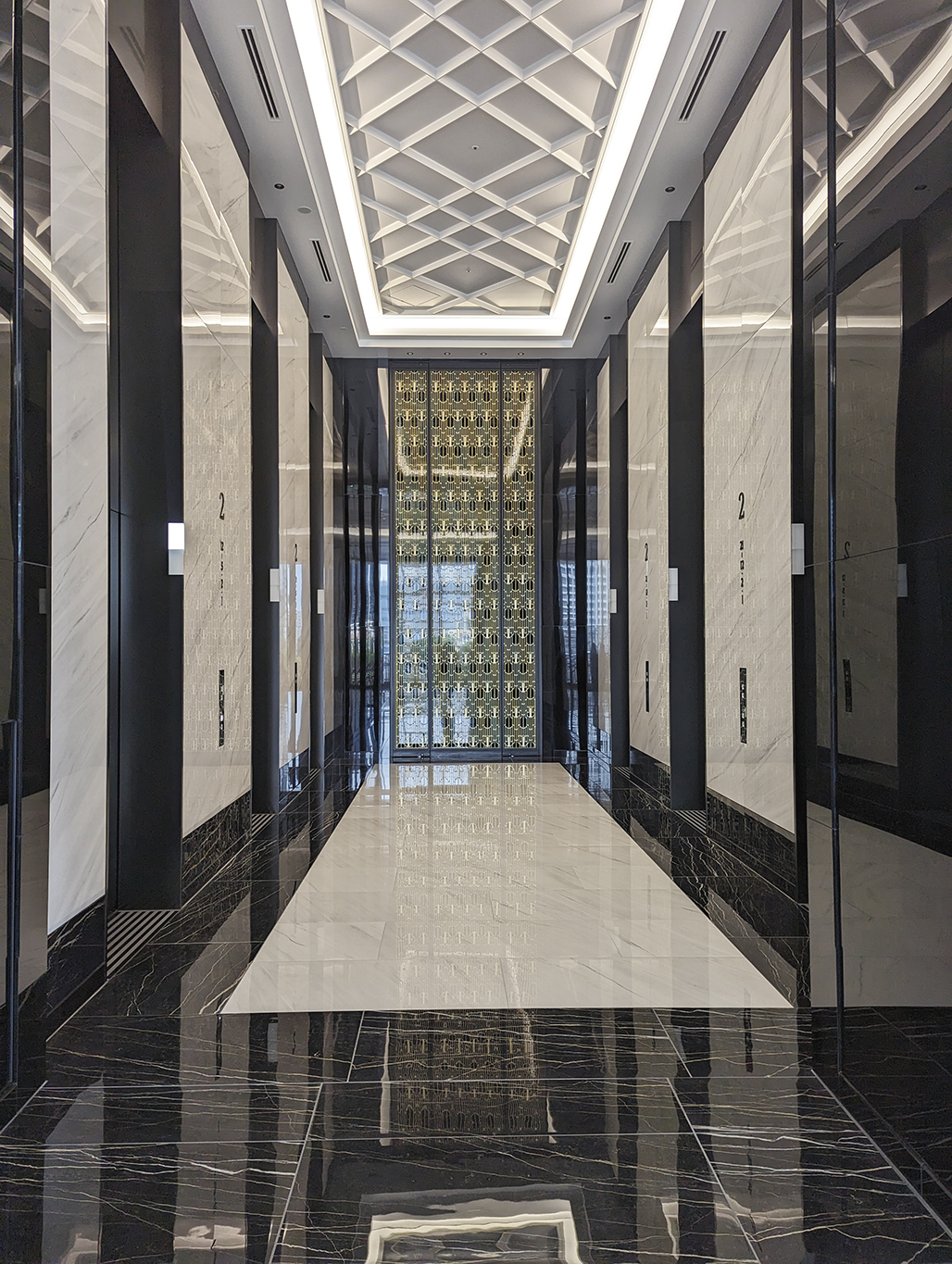

In addition, K-Tower Yokohama is an office building where people can enjoy the riverscape from their floors. In this office building, Fujitec installed seven (7) elevators. The spacious elevator lobby has beautiful decorations and designs. A sense of fun and a fascinating atmosphere are created throughout the building.
As another remarkable feature, Fujitec installed four (4) elevators in the pedestrian deck connecting the above three (3) buildings.

  • Elevator
  • Escalator
  • Office
  • Hotel
  • Public facility
  • Japan
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Balustrade with light
  • Step:1000mm
  • 2020s
Building name
K-Arena Yokohama/Hilton Yokohama/K-Tower Yokohama
Address
Kanagawa Prefecture
Client
Ken Corporation Ltd.
Design and supervision
Azusa Sekkei Co., Ltd./KUNIKEN LTD./KAJIMA CORPORATION
Construction
KAJIMA CORPORATION
Completion
2023

Specifications

Elevator Total units 26
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
Order XIOR passenger 2000 30 90 5 2
Order XIOR passenger 1150 17 90 3 3
Order XIOR service 2000 30 90 7 1
Order XIOR service 1700 26 90 8 2
Order XIOR service 1600 24 105 22 1
Order XIOR service 1150 17 90 4 1
XIOR passenger 1000 15 45 3 1
XIOR passenger 900 13 45 2 1
XIOR passenger 750 11 45 3 1
XIOR passenger 750 11 45 2 1
PM-GL passenger 1650 25 240 12 3
PM-GL passenger 1650 25 180 12 3
PM-GL passenger 1150 17 180 24 4
PM-GL service 1600 24 120 27 1
PM-GL service 900 13 120 26 1
Escalator Total units 4
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS-NX F 1000 5400 30 4
