Toho Hibiya Promenade Building

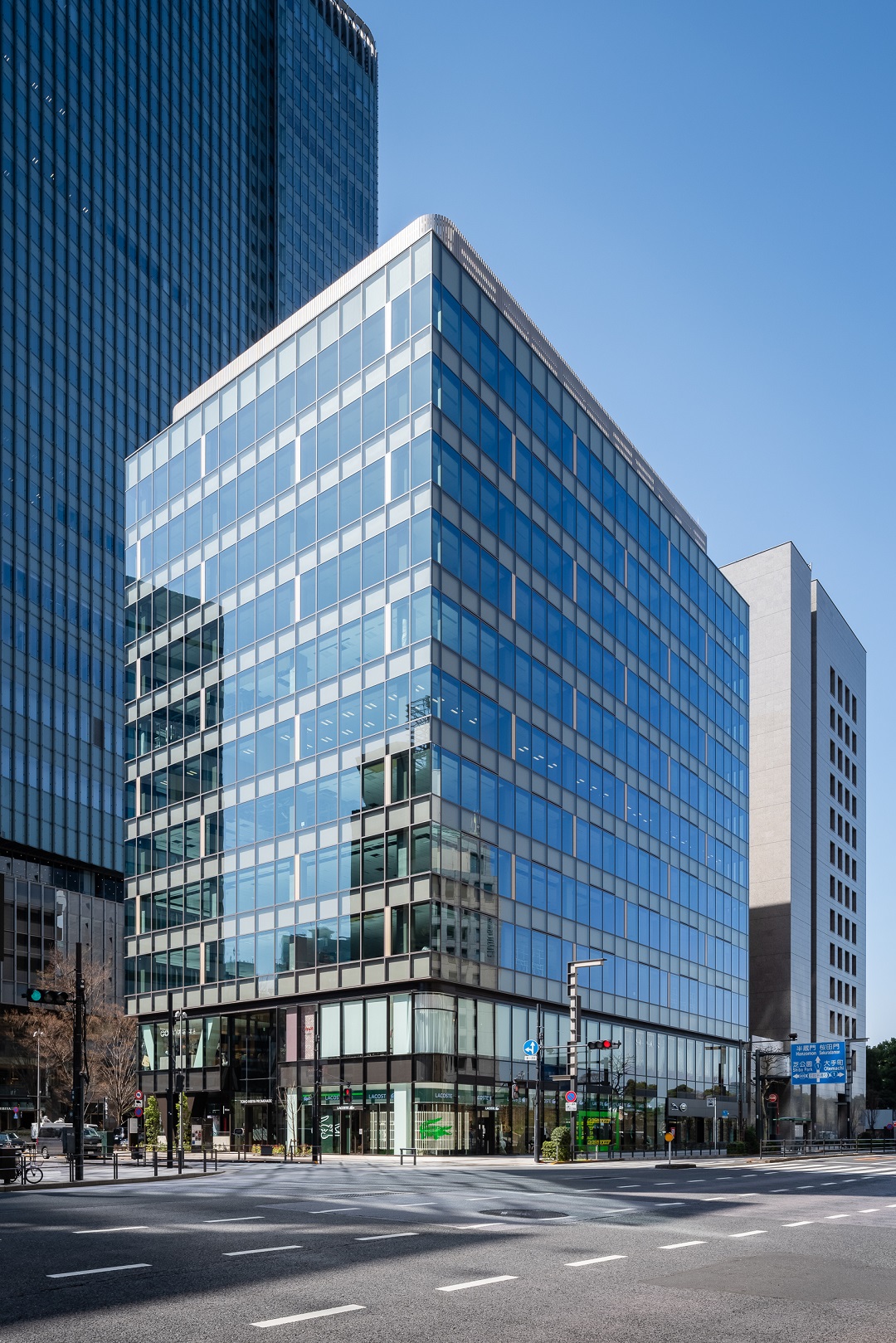

The "Toho Hibiya Promenade'' building is located in Hibiya, Tokyo, the center of entertainment. Overlooking the Kokyo Gaien National Garden and Hibiya Park. This building consists of office space and a commercial area for the convenience of office workers.
This facility has two (2) basement levels and eleven (11) floors above ground and acquired the "CASBEE Smart Wellness Office Certification," a building environment rating system, emphasizing the health and comfort of office workers.

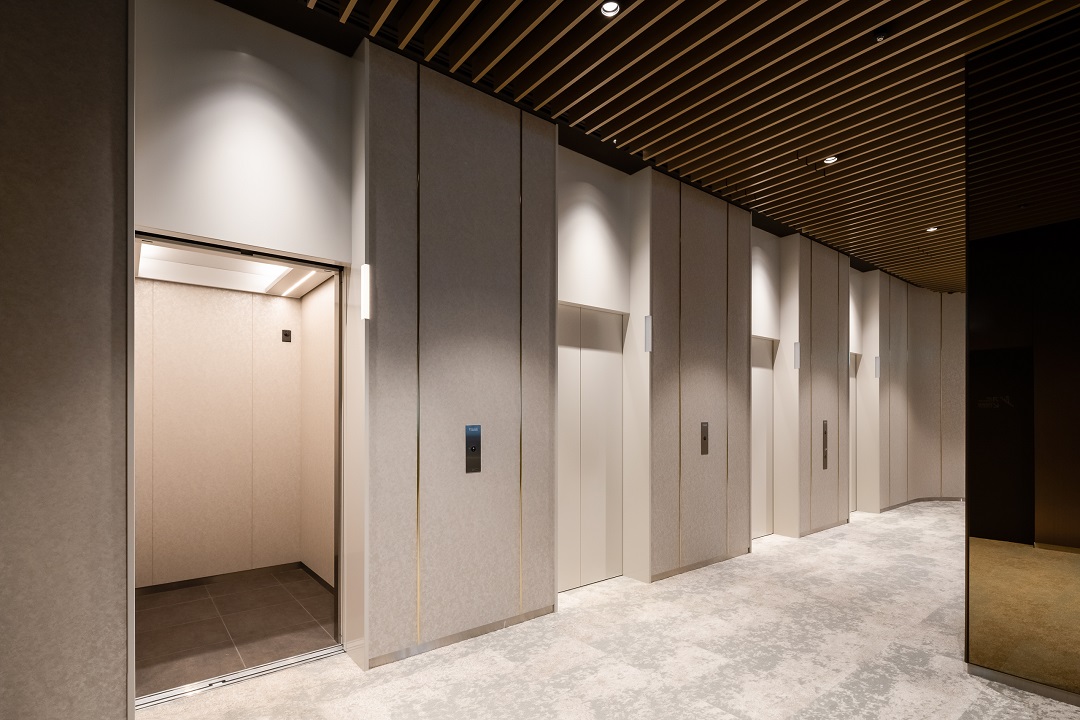

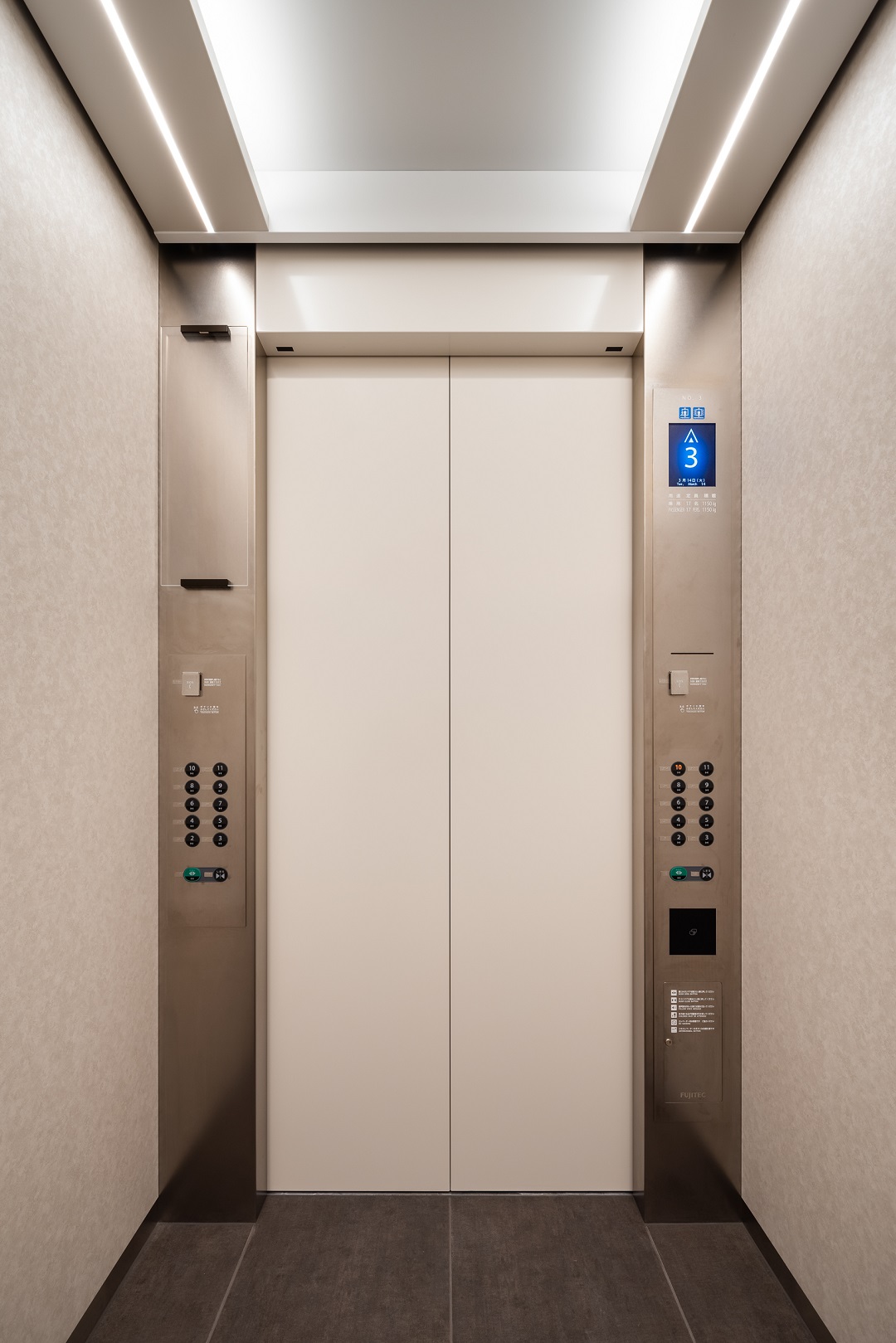

Fujitec delivered six (6) elevators and six (6) escalators. The elevators with their clean design are equipped with the "Air Tap" non-contact buttons to support comfortable transportation.

  • Elevator
  • Escalator
  • Office
  • Commercial facility
  • Japan
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Step:600mm
  • 2020s
Building name
Toho Hibiya Promenade Building
Tokyo Prefecture
Design and supervision
Takenaka Corporation
Takenaka Corporation


Elevator Total units 6
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
Order XIOR passenger 1150 17 105 10 4
Order XIOR service 1150 17 90 14 1
XIOR passenger 1000 15 90 4 1

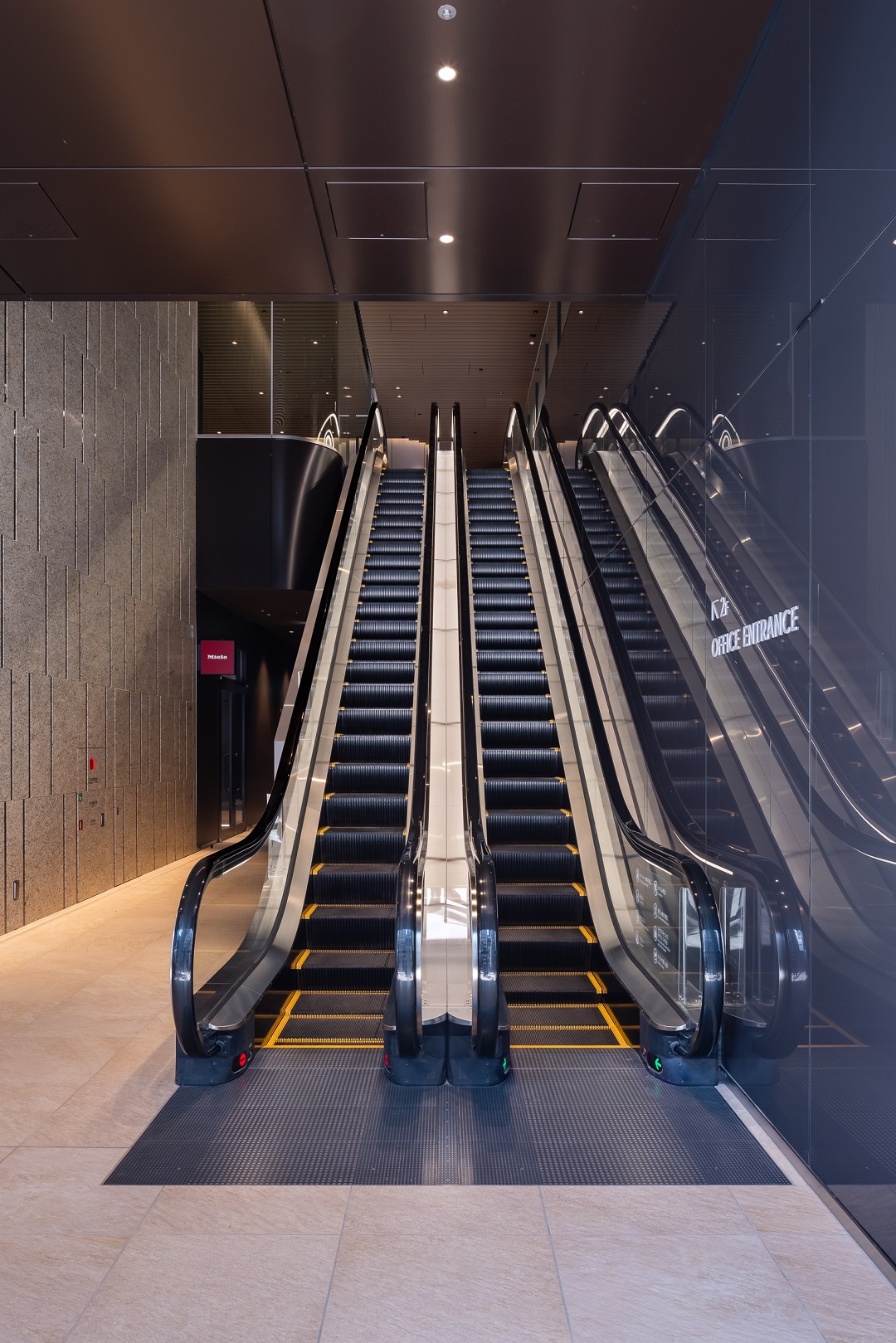

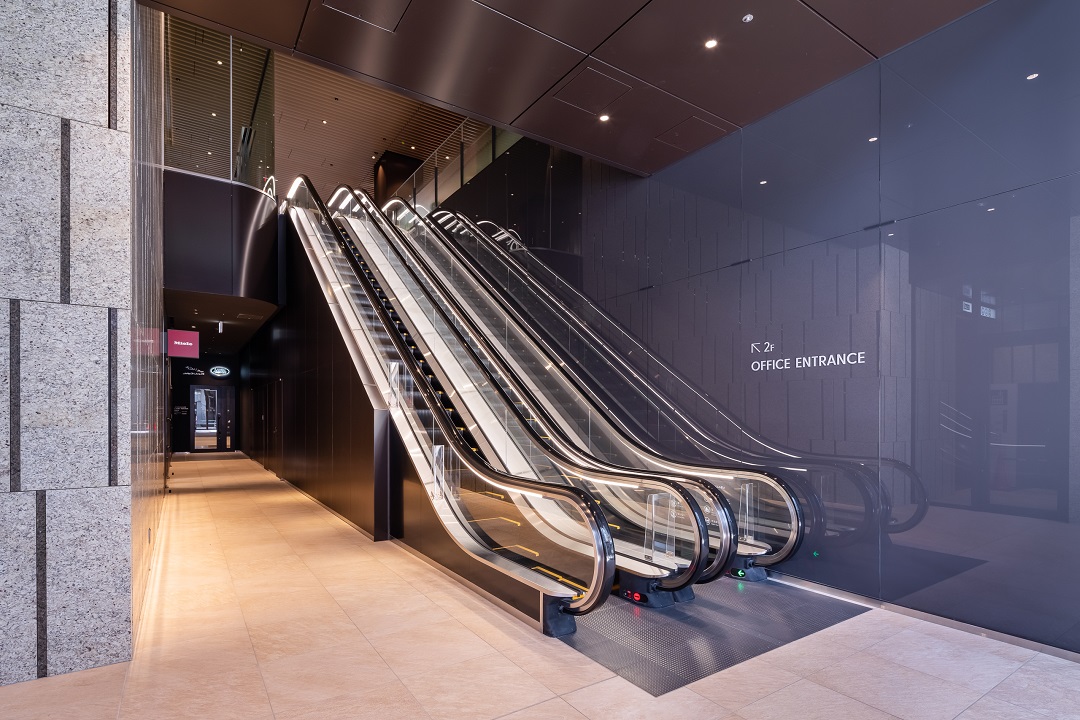

Escalator Total units 6
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS-NX F 600 5500 30 2
GS-NX F 600 4670 30 2
GS-NX F 600 4200 30 2
