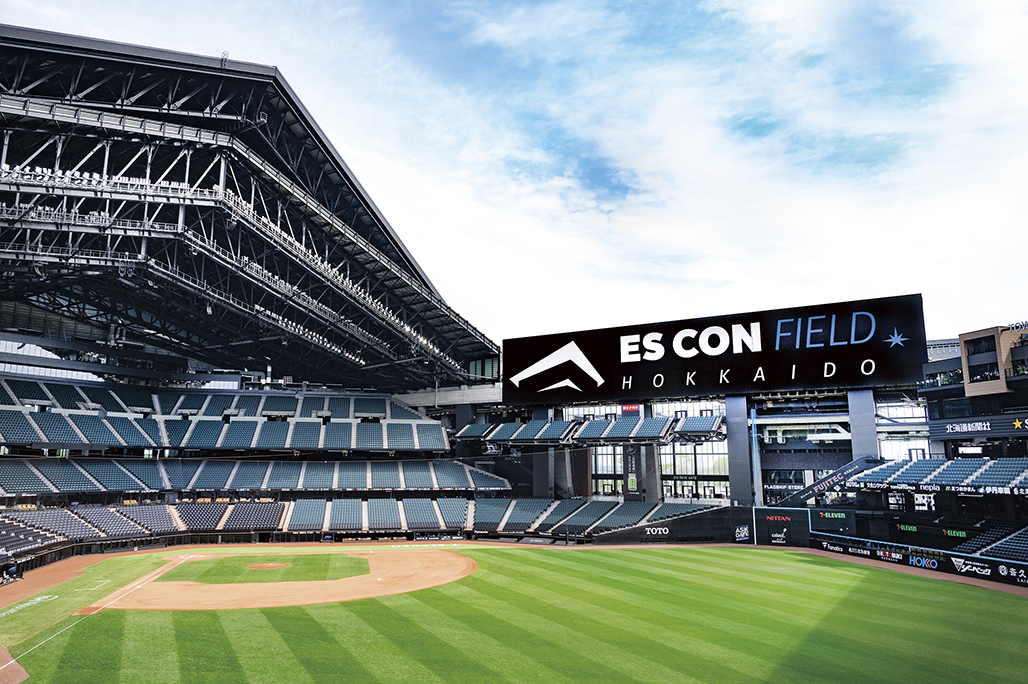

The "ES CON FIELD HOKKAIDO" is Japan's first natural turf stadium with retractable roof. Located in the Hokkaido Ball Park under the concept of "creating a space that will become a symbol of Hokkaido.The stadium, with five (5) floors above ground and one (1) basement, offers the scent of natural grass and colorful greenery to create a space that satisfies all five senses. This stadium is equipped with one of the world's largest screens and a 360-degree circular concourse that offers uninterrupted field views which is enjoyable just by walking around, and aims for being both player-first and fan-first.

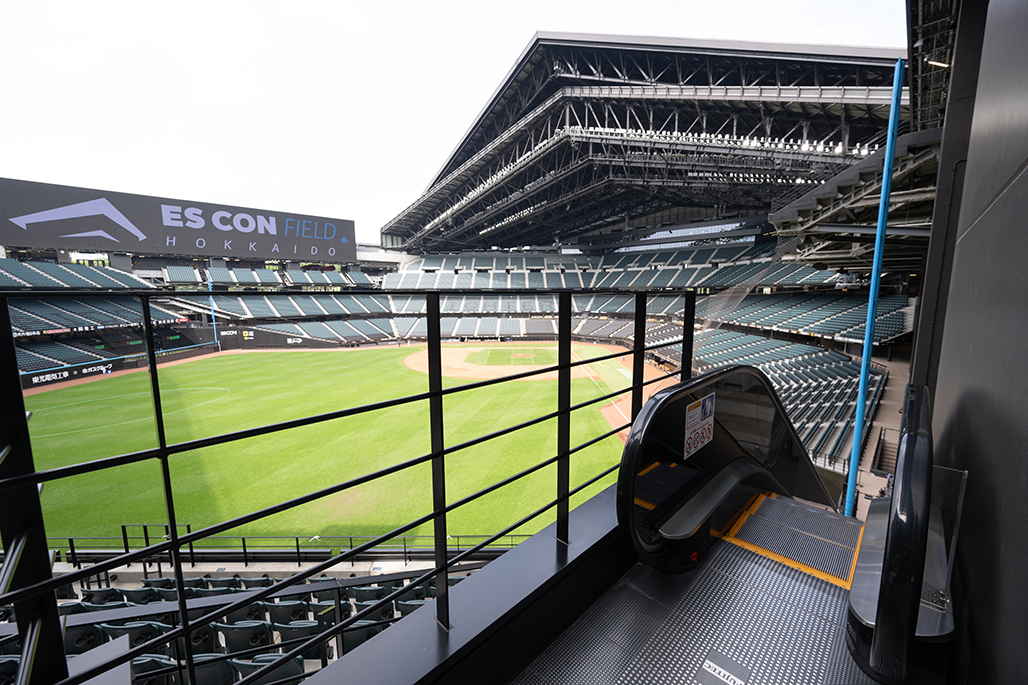

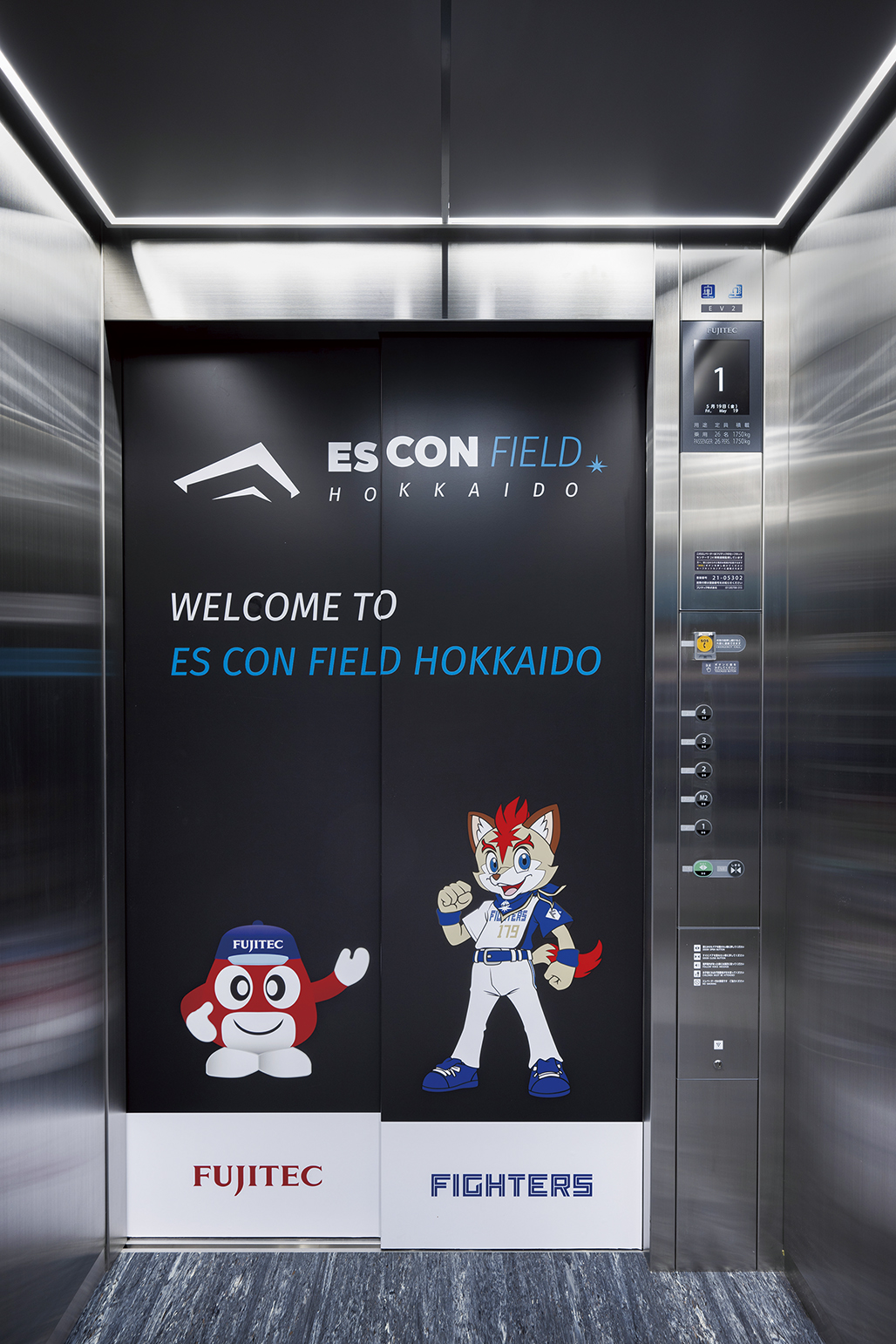

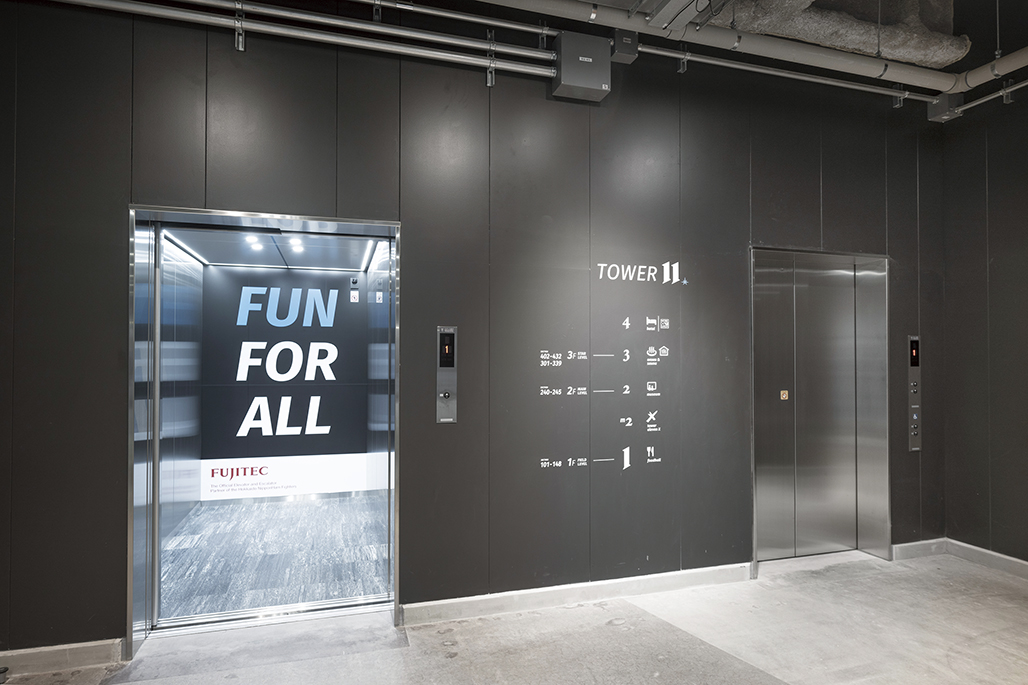

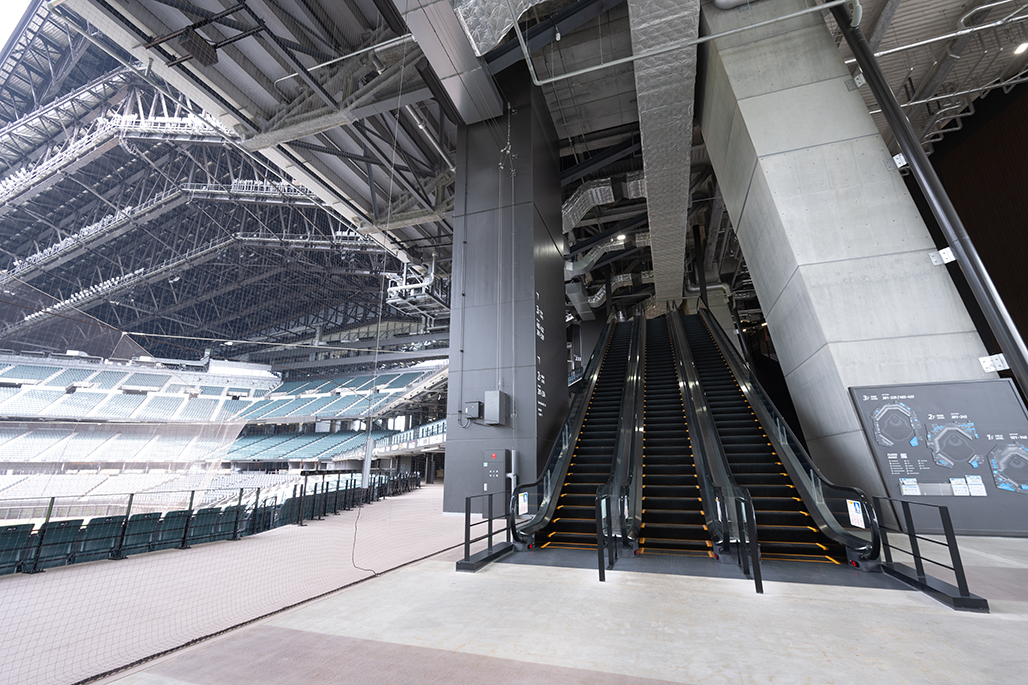

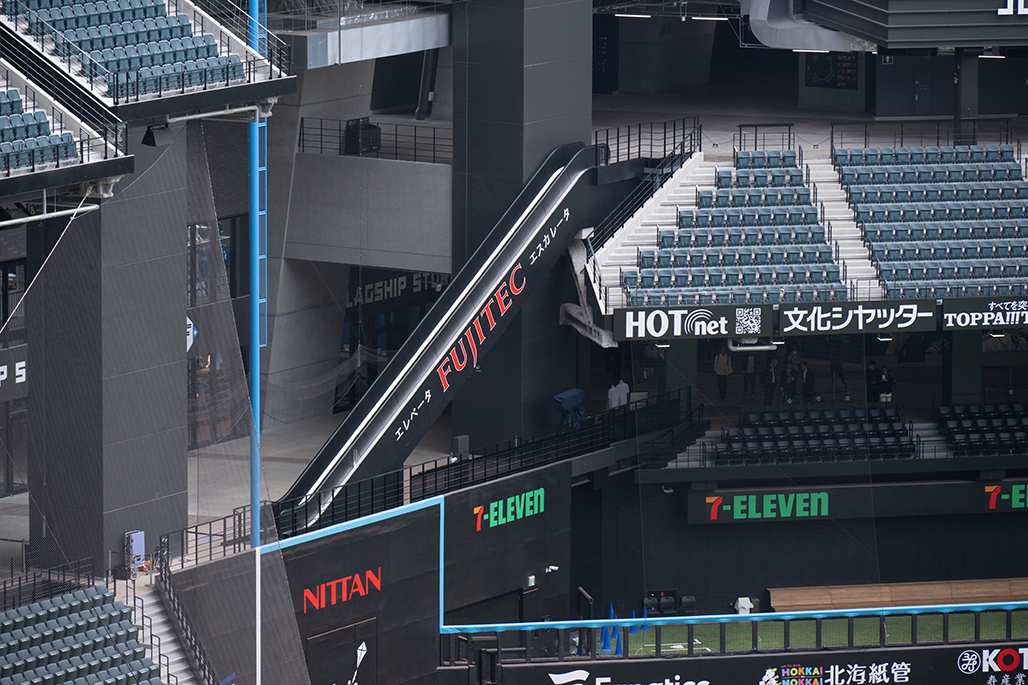

Fujitec delivered thirteen (13) elevators and fourteen (14) escalators here. The escalators are designed to be used by a large number of spectators in a short period of time and have a "heavy load specification" with twice the load strength of a normal escalator. The goal was to create a barrier-free stadium and design a smooth flow to ensure safe and smooth movement of the audience.
Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
---|---|---|---|---|---|---|
Order XIOR | passenger | 1750 | 26 | 105 | 6 | 2 |
Order XIOR | passenger | 1750 | 26 | 105 | 5 | 1 |
Order XIOR | passenger | 1750 | 26 | 60 | 4 | 2 |
Order XIOR | Passenger | 1150 | 17 | 60 | 3 | 1 |
Order XIOR | Passenger | 1150 | 17 | 45 | 2 | 2 |
Order XIOR | service | 1800 | 27 | 105 | 6 | 2 |
Order XIOR | service | 1750 | 26 | 60 | 4 | 1 |
XIOR | passenger | 1000 | 15 | 105 | 6 | 1 |
XIOR | service | 1000 | 15 | 45 | 2 | 1 |
Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
---|---|---|---|---|---|
GS-NX | S | 1000 | 8750 | 30 | 7 |
GS-NX | S | 600 | 8750 | 30 | 1 |
GS-NX | S | 1000 | 8400 | 30 | 4 |
GS-NX | P | 1000 | 5600 | 30 | 2 |
