Palm Jumeirah Monorail

Palm Jumeirah is one of the world's largest man-made islands off the coast of Dubai, the largest commercial city on the Arabian Peninsula. The Palm Jumeirah Monorail is a 5.45 km-long rail line that runs longitudinally through the artificial island.

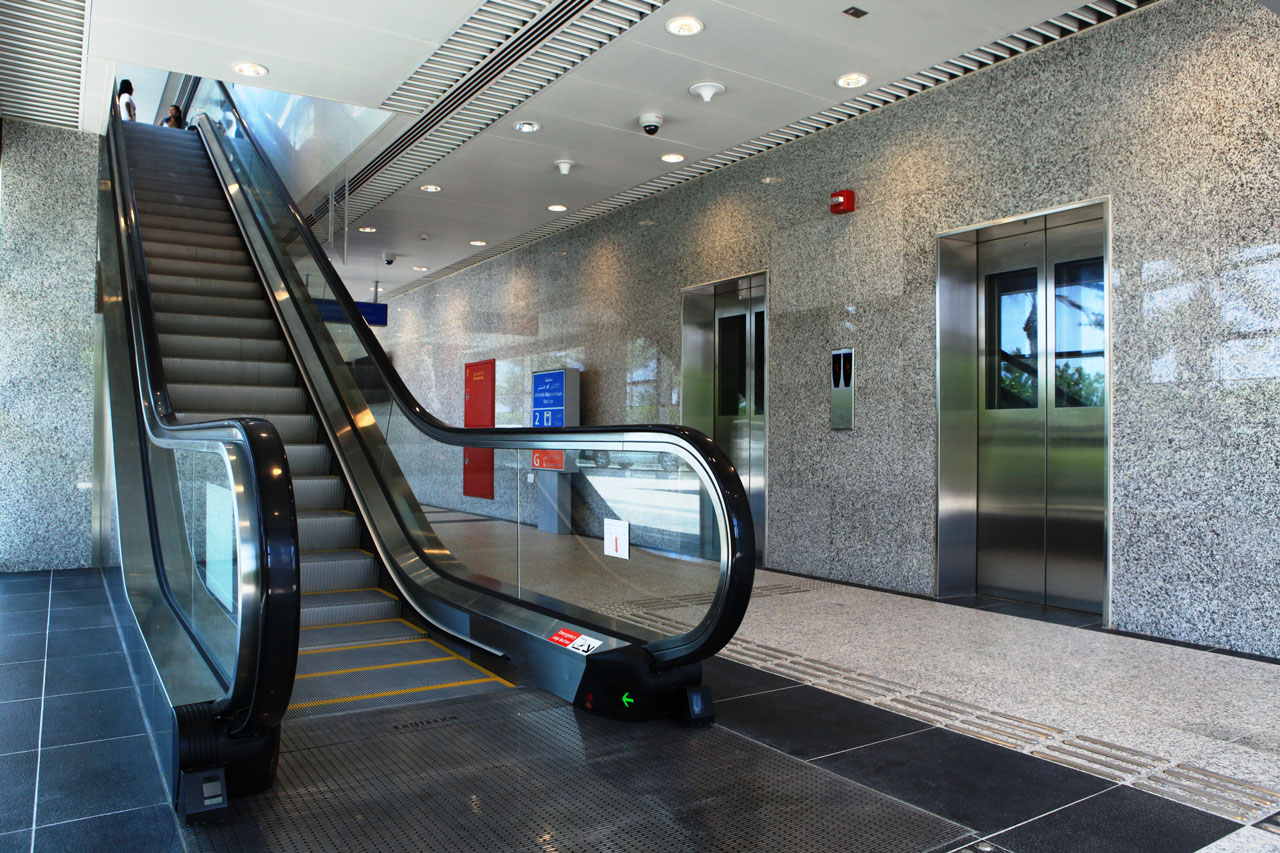

Four of the monorail station buildings are served by a total of 12 Fujitec elevators and a total of 20 Fujitec escalators.

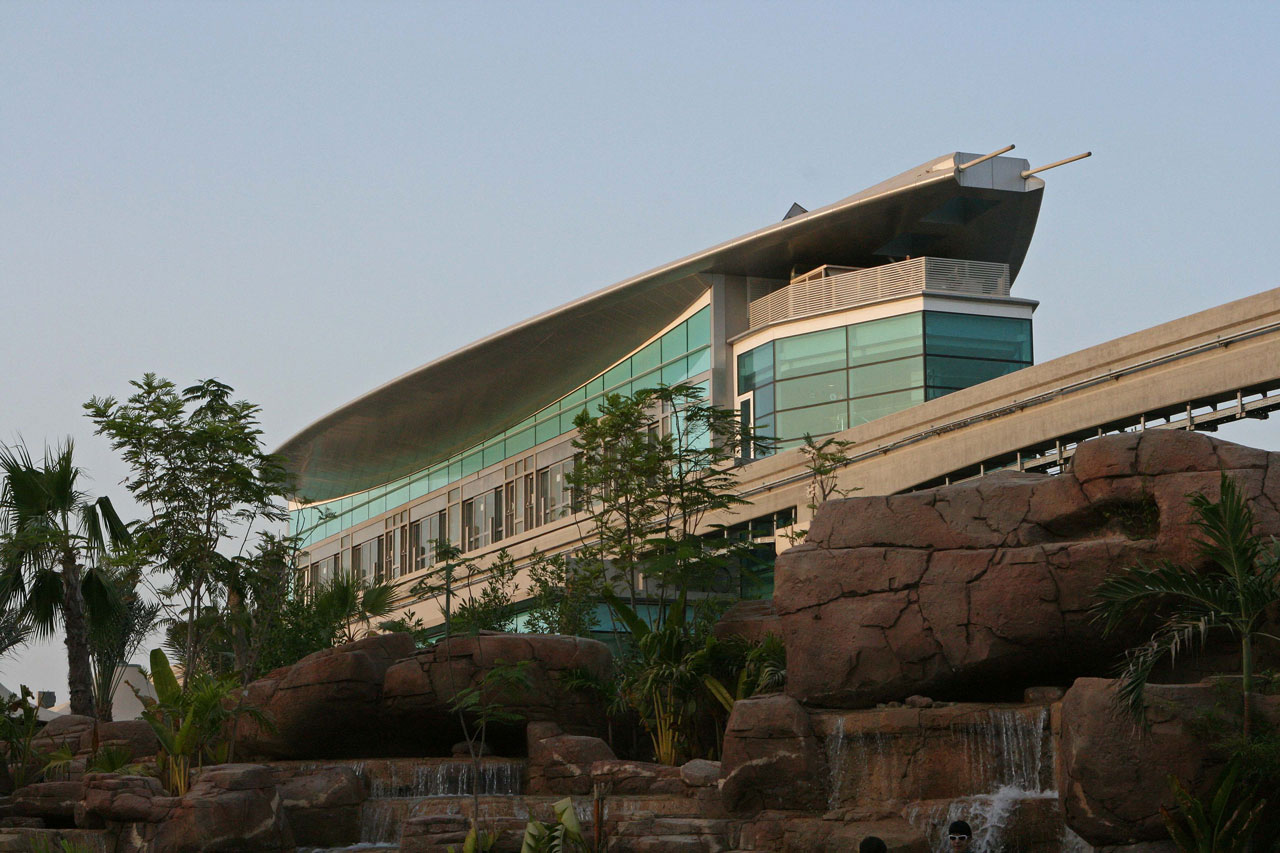

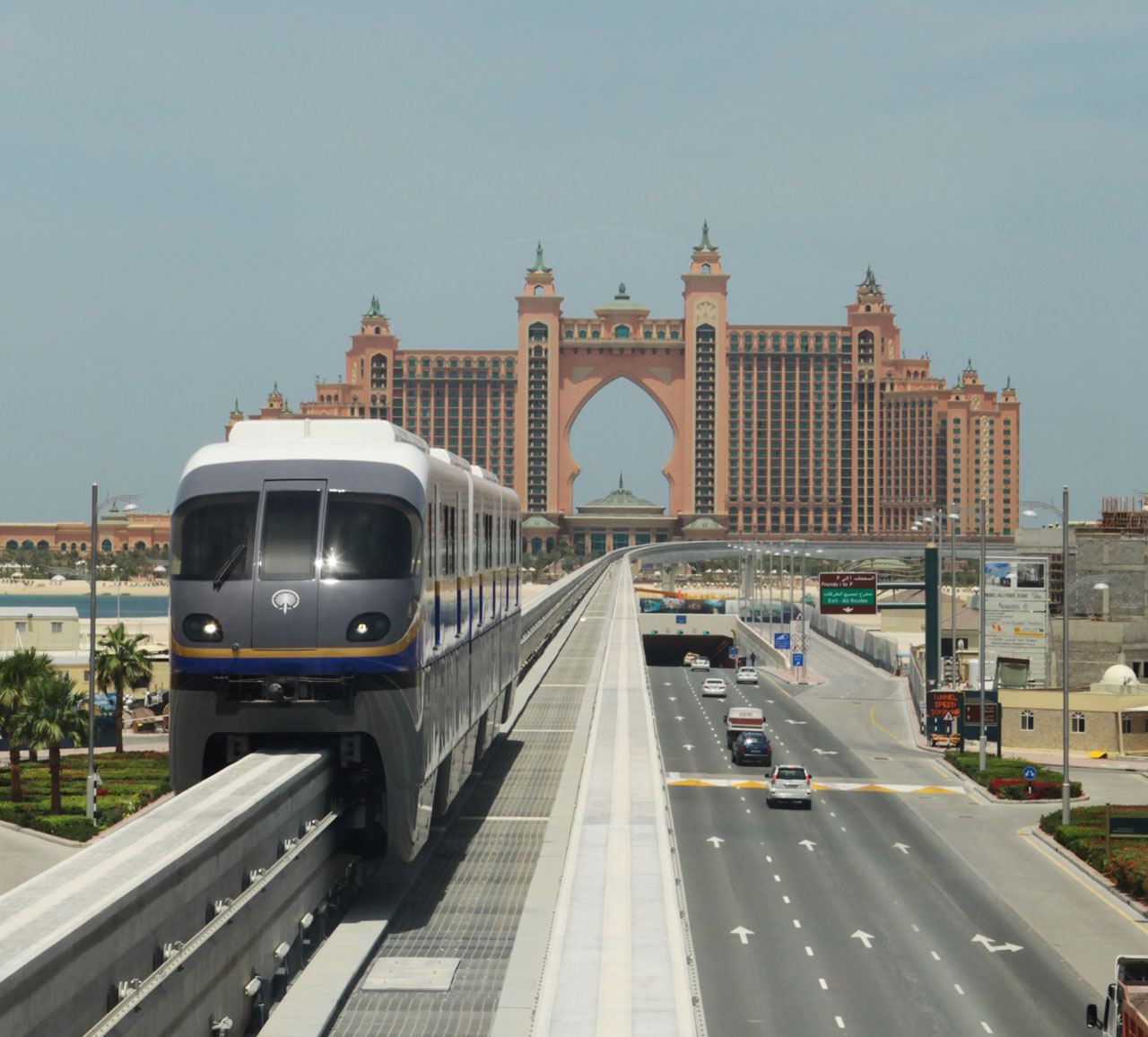

The entire line is an elevated railway starting from Gateway Station, on the mainland of Palm Jumeirah, to Atlantis Aquaventure Station, the terminal station at the tip of the island. The Monorail is attracting public attention as a new unmanned fully-automatic transit system.

  • Elevator
  • Escalator
  • Transportation
  • Middle East
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Step:1000mm
  • 2000s
Building name
Palm Jumeirah Monorail
Address
Dubai, UAE
Client
Nakheel
Design and supervision
Tonichi Consultant Campany Limited/TOSTEM Company Limited
Construction
Palm Jumeirah Monorail JV
Completion
2008

Specifications

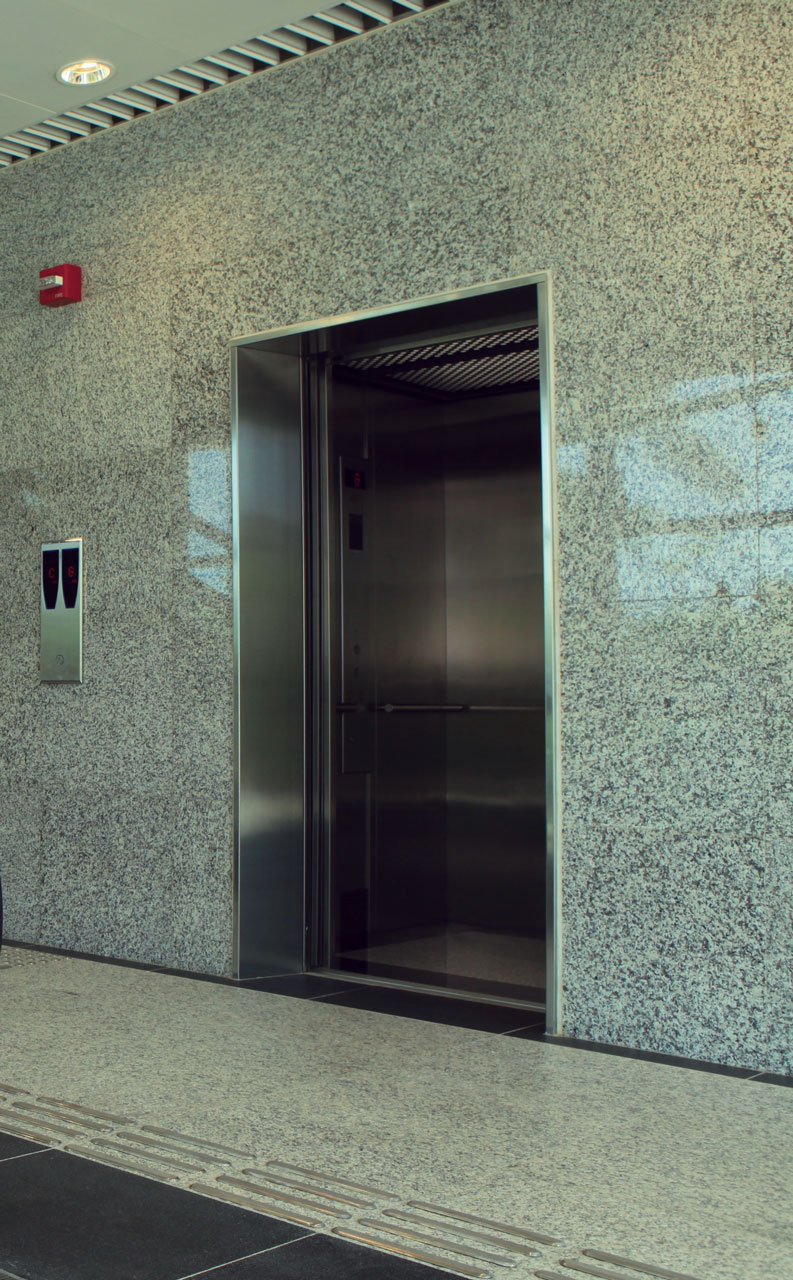

Elevator Total units 12
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
PMGL Passemger 1000 13 60 2 7
PMGL Passemger 1600 21 105 12 2
AC-GD Passemger 1000 13 60 2 2
AC-GD Service 3000 40 105 2 1

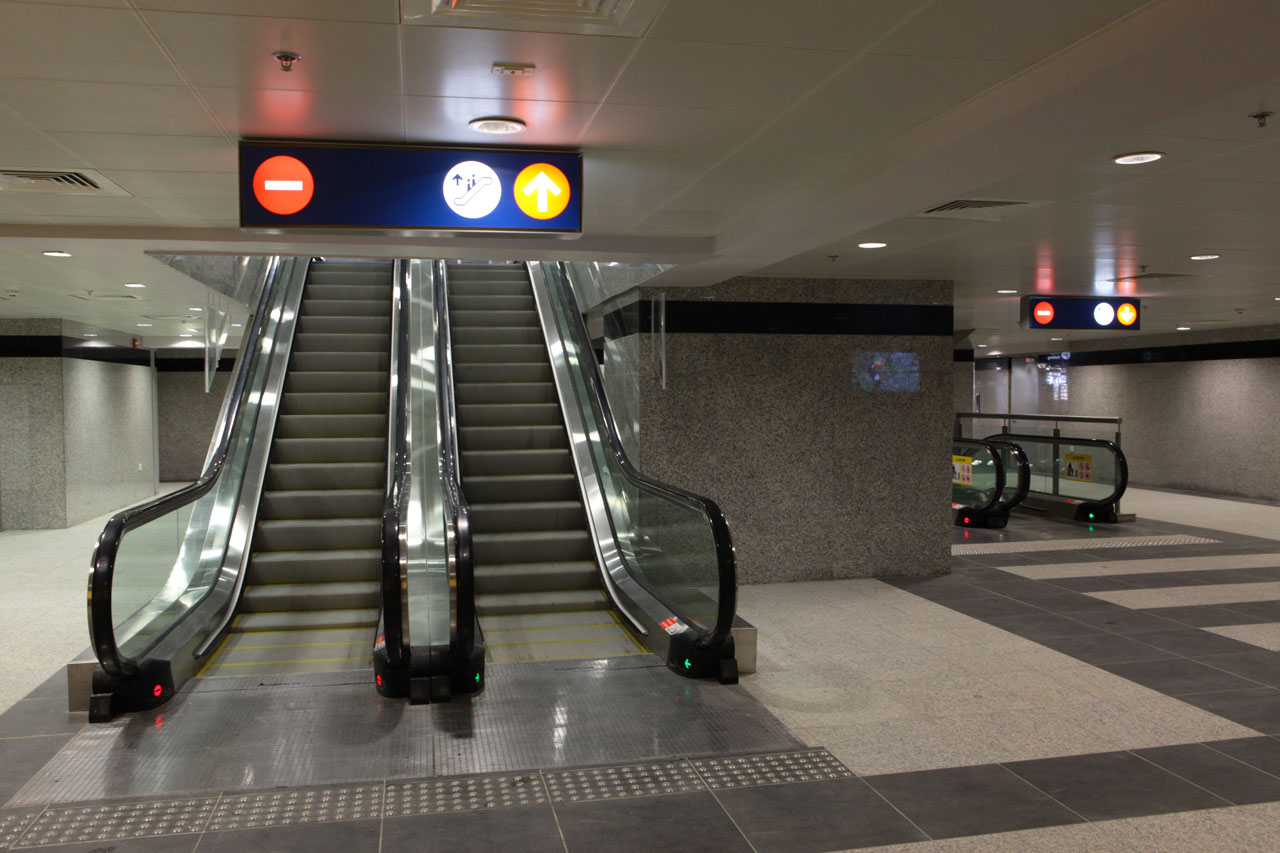

Escalator Total units 20
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS8000 S 1000 7255 30 2
GS8000 S 1000 5250 30 2
GS8000 S 1000 7555 30 2
GS8000 S 1000 5855 30 2
GS8000 S 1000 3035 30 2
GS8000 S 1000 7005 30 4
GS8000 S 1000 5200 30 2
GS8000 S 1000 3200 30 4
