Meiji University Izumi Learning Square

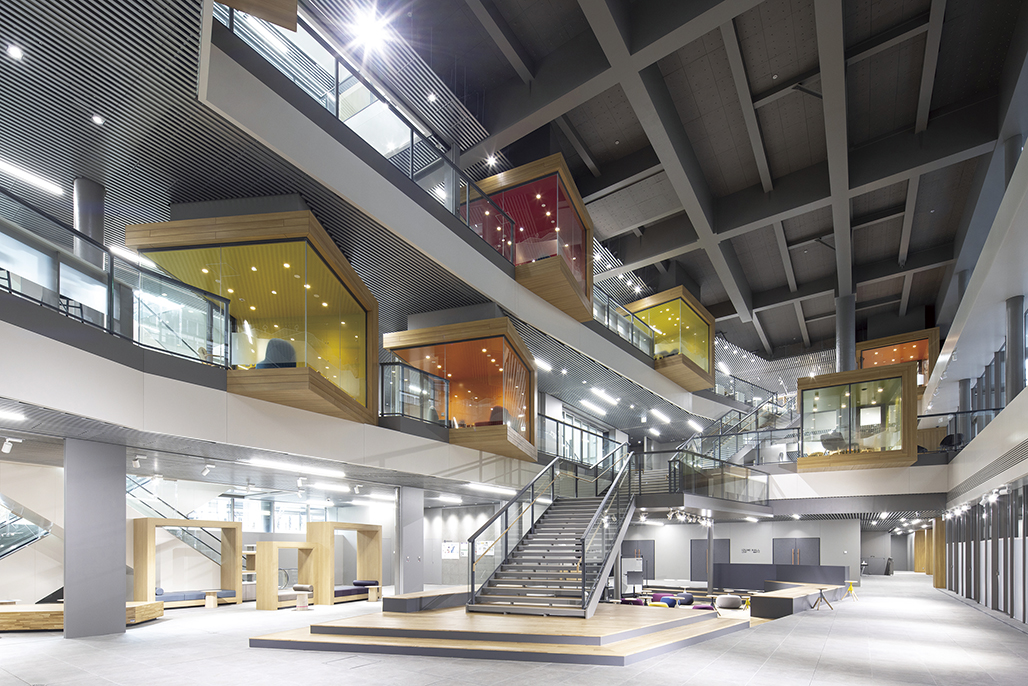

The “Meiji University Izumi Learning Square” is an eight (8) story education facility on Meiji University's Izumi Campus in Suginami-ku, Tokyo. In addition, to the classrooms of various sizes, diverse learning environments are provided to promote Active learning, a new learning approach where actively engaging students and promoting higher order of thinking skills.

Four (4) Fujitec elevators and twelve (12) escalators are delivered. The escalators installed in the offers smooth movement of students.

  • Elevator
  • Escalator
  • Public facility
  • Japan
  • Capacity:over 1150kg
  • Step:1000mm
  • 2020s
Building name
Meiji University Izumi Learning Square
Address
Tokyo Metropolis
Client
Meiji University
Design and supervision
MHS Planners, Architects & Engineers Ltd.
Construction
Toda Corporation
Completion
2022

Specifications

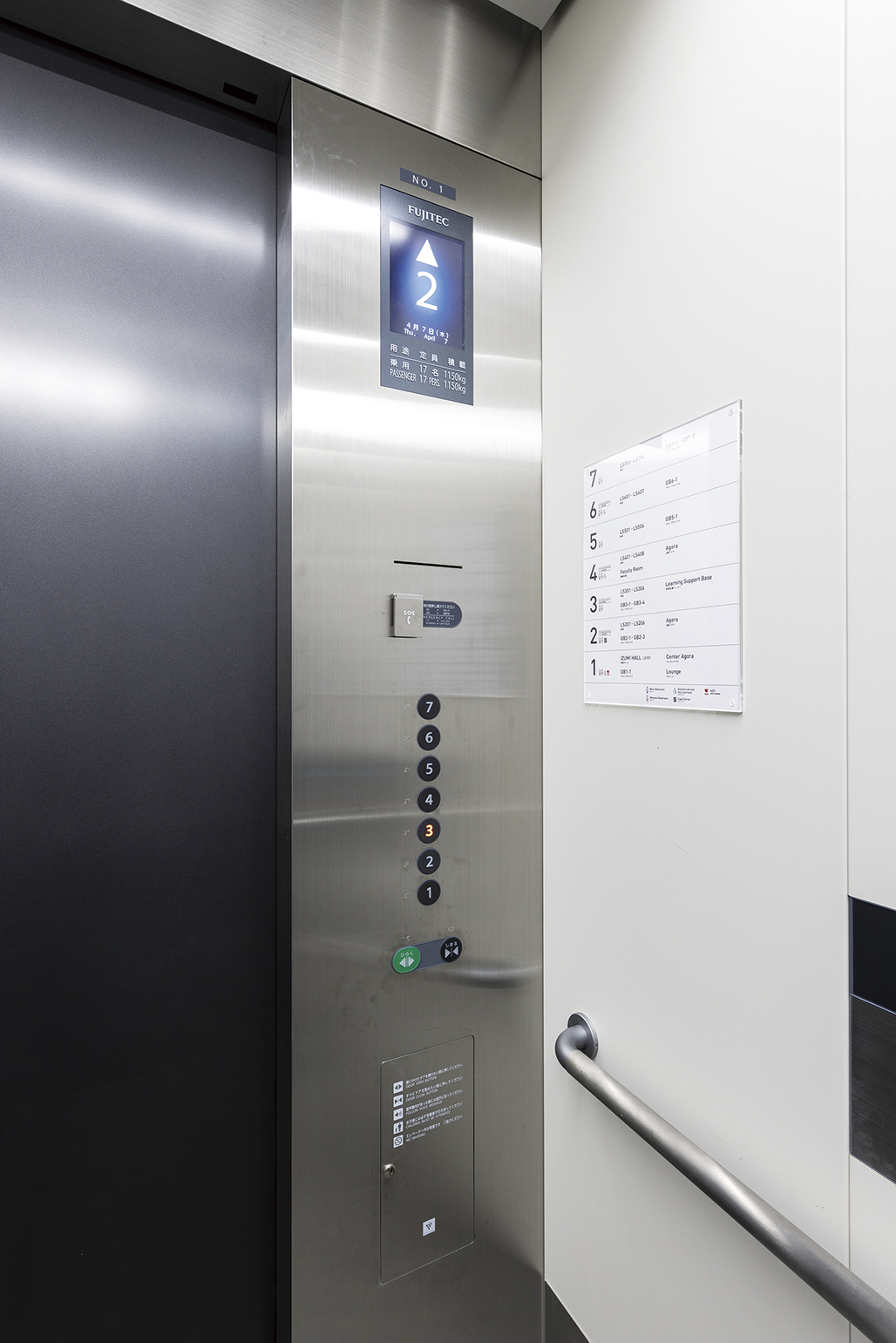

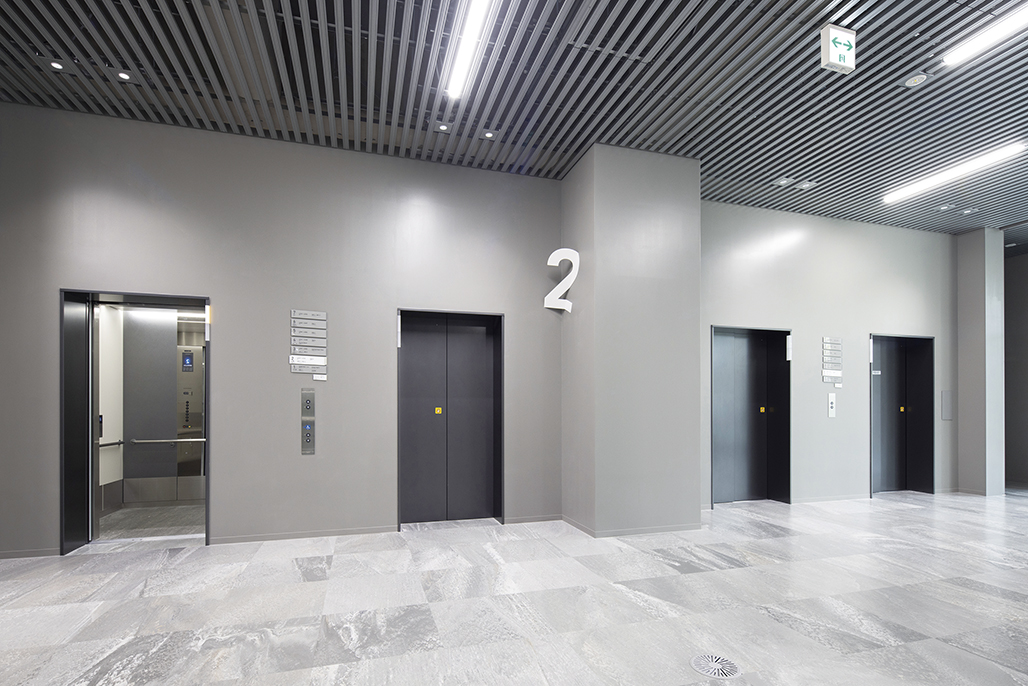

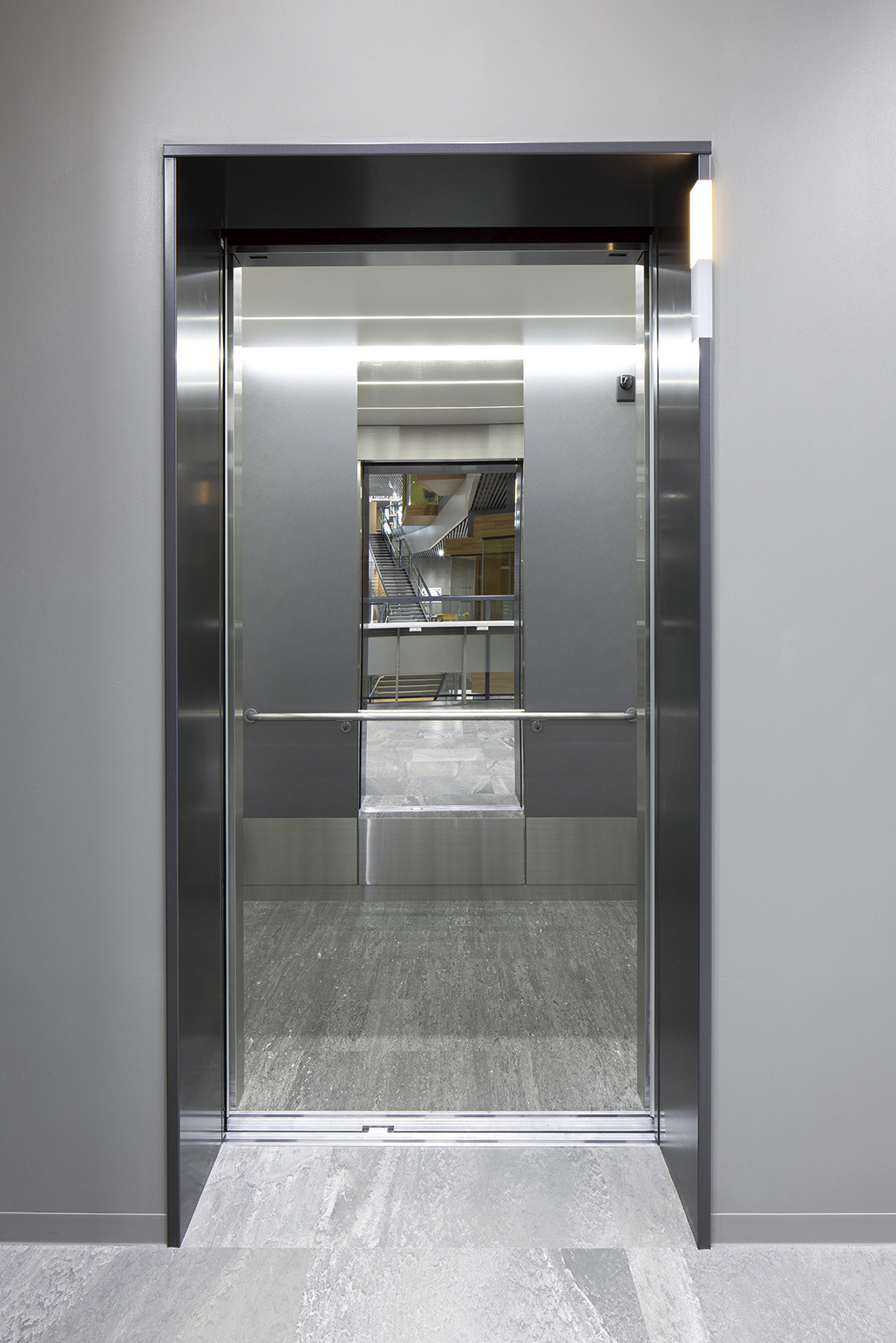

Elevator Total units 4
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
XIOR Passenger 1150 17 60 7 2
XIOR Service 1300 20 60 8 1
XIOR Service 1300 20 60 7 1

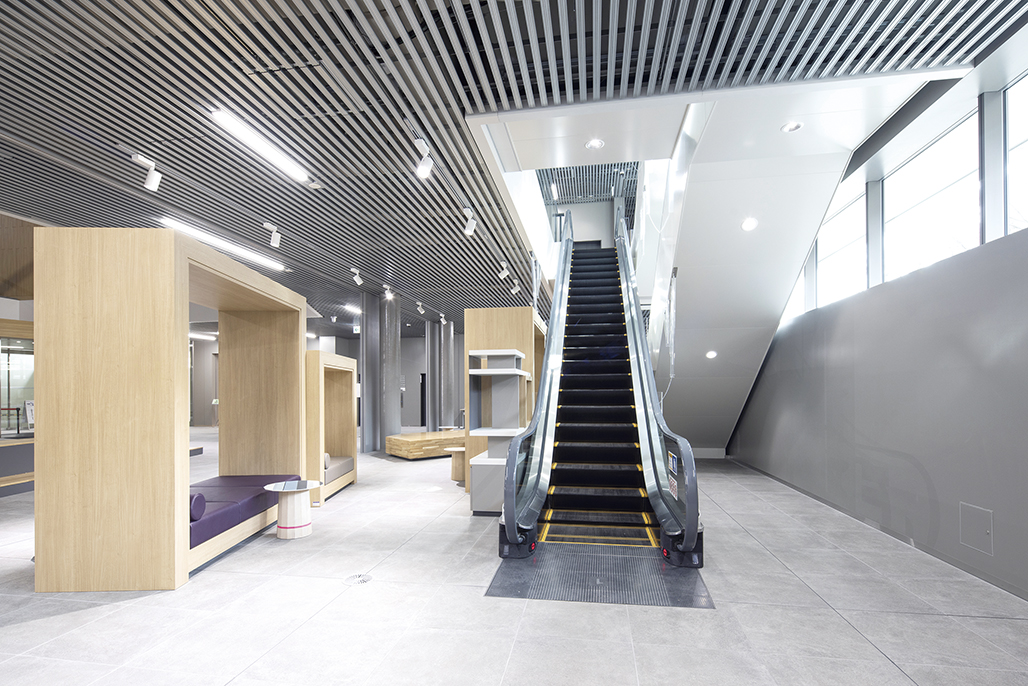

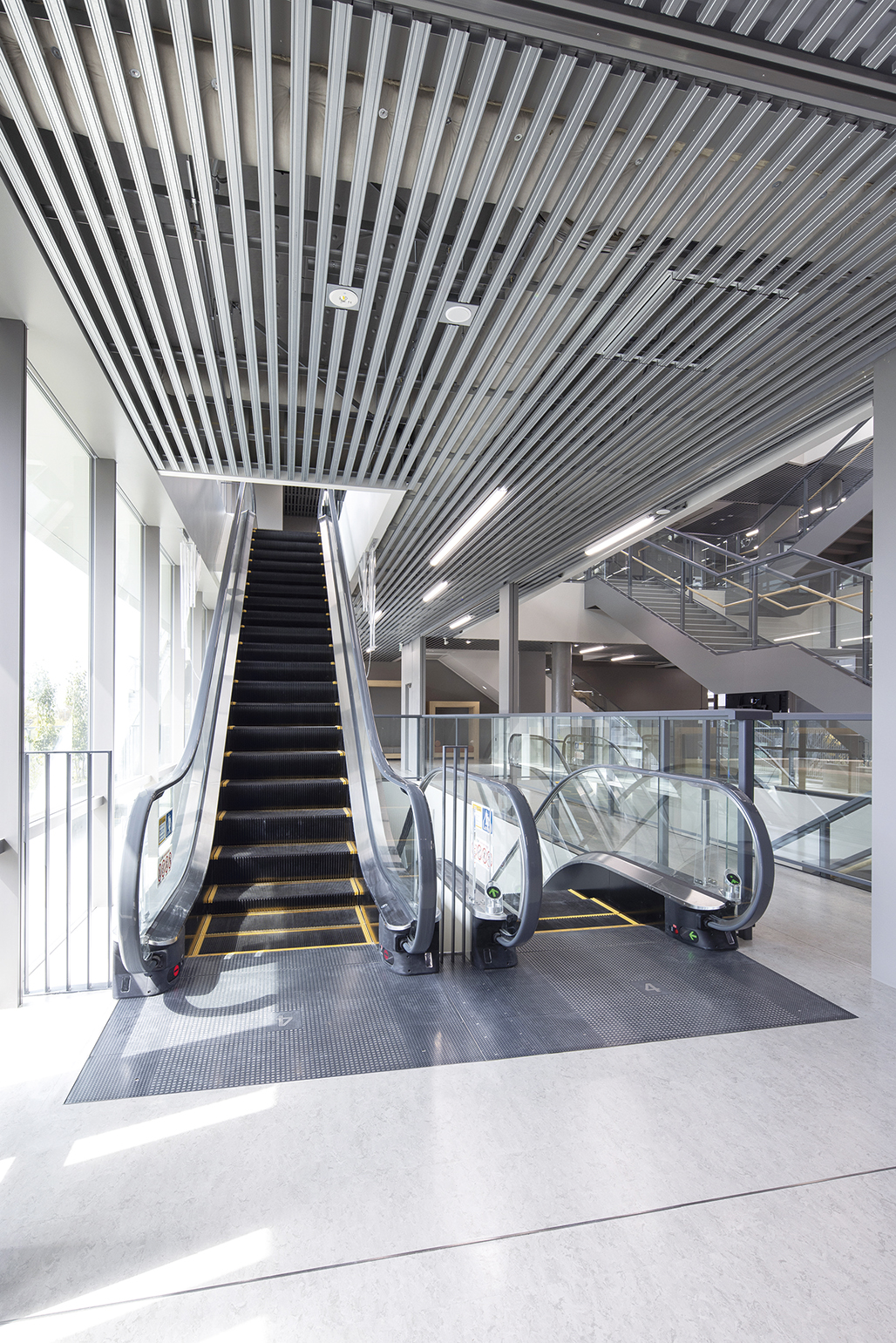

Escalator Total units 12
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS-NX S 1000 4900 35 4
GS-NX S 1000 4850 35 2
GS-NX S 1000 4400 35 6
