Sendai Trust Tower

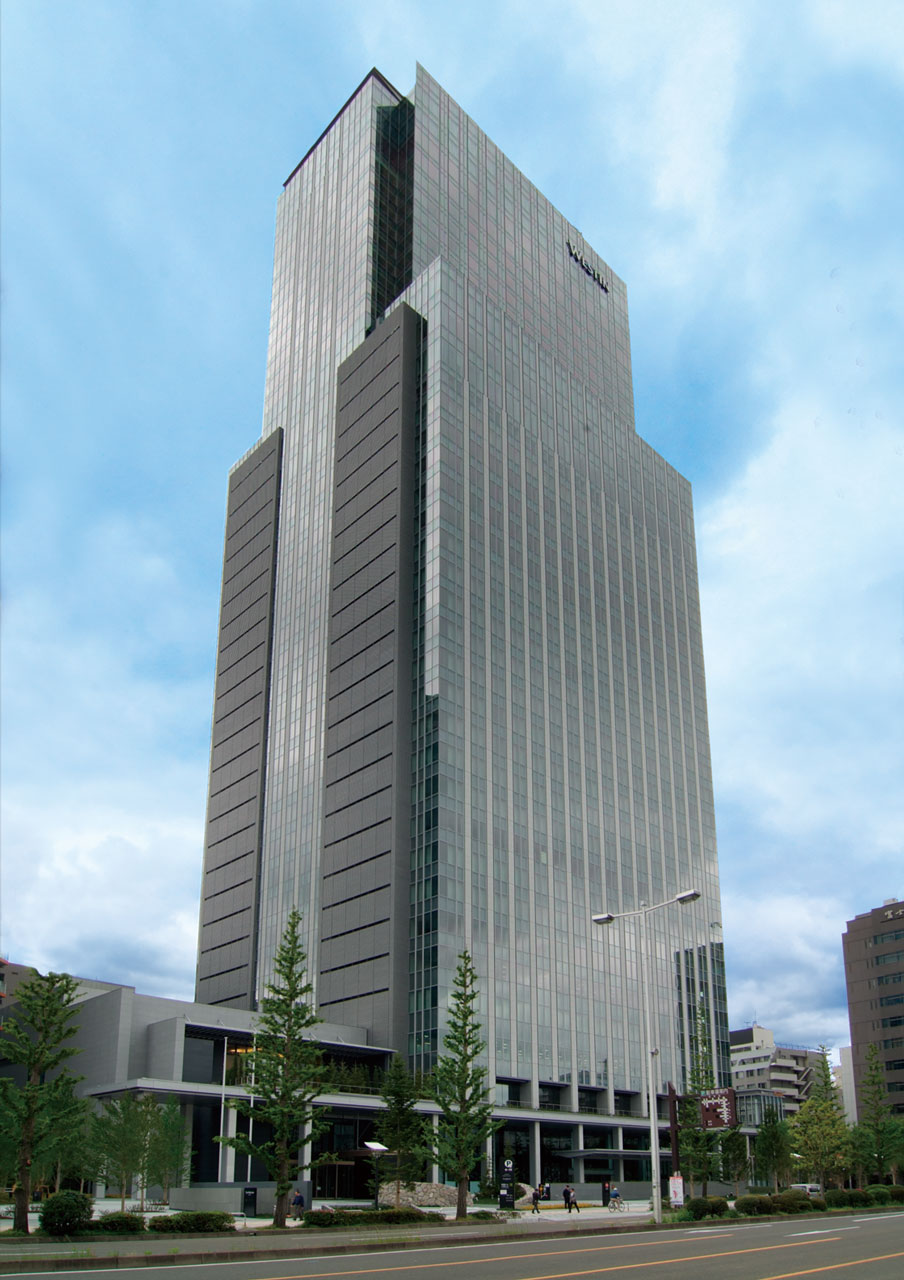

Located in Sendai, nicknamed the "City of Trees," the central city of the Tohoku region, the Sendai Trust Tower is the tallest super high-rise complex in the region.
The tower is served by 37 elevators, including super high-speed models that travel at 360 meters per minute, and four escalators.

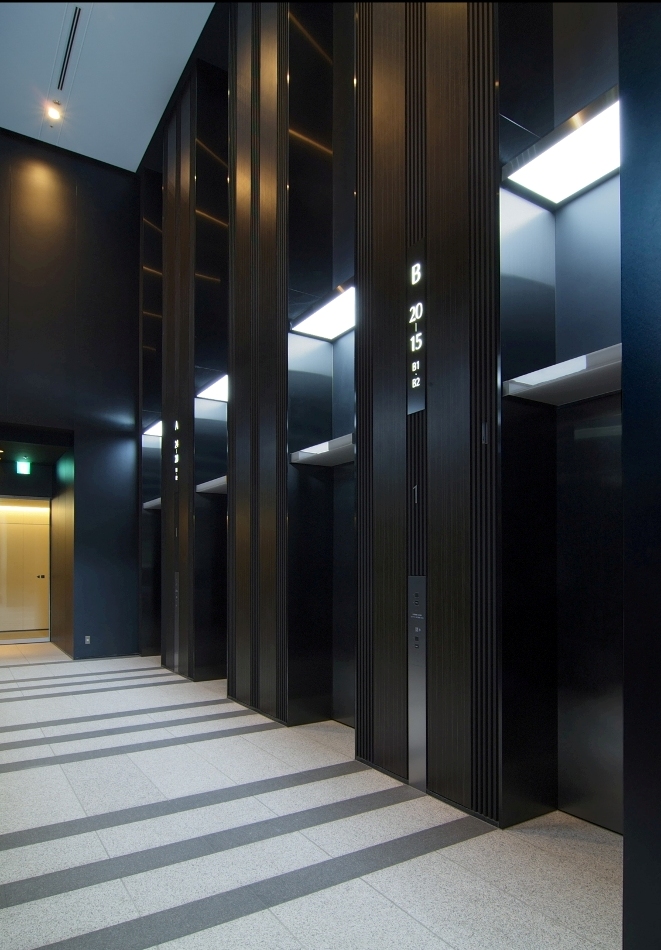

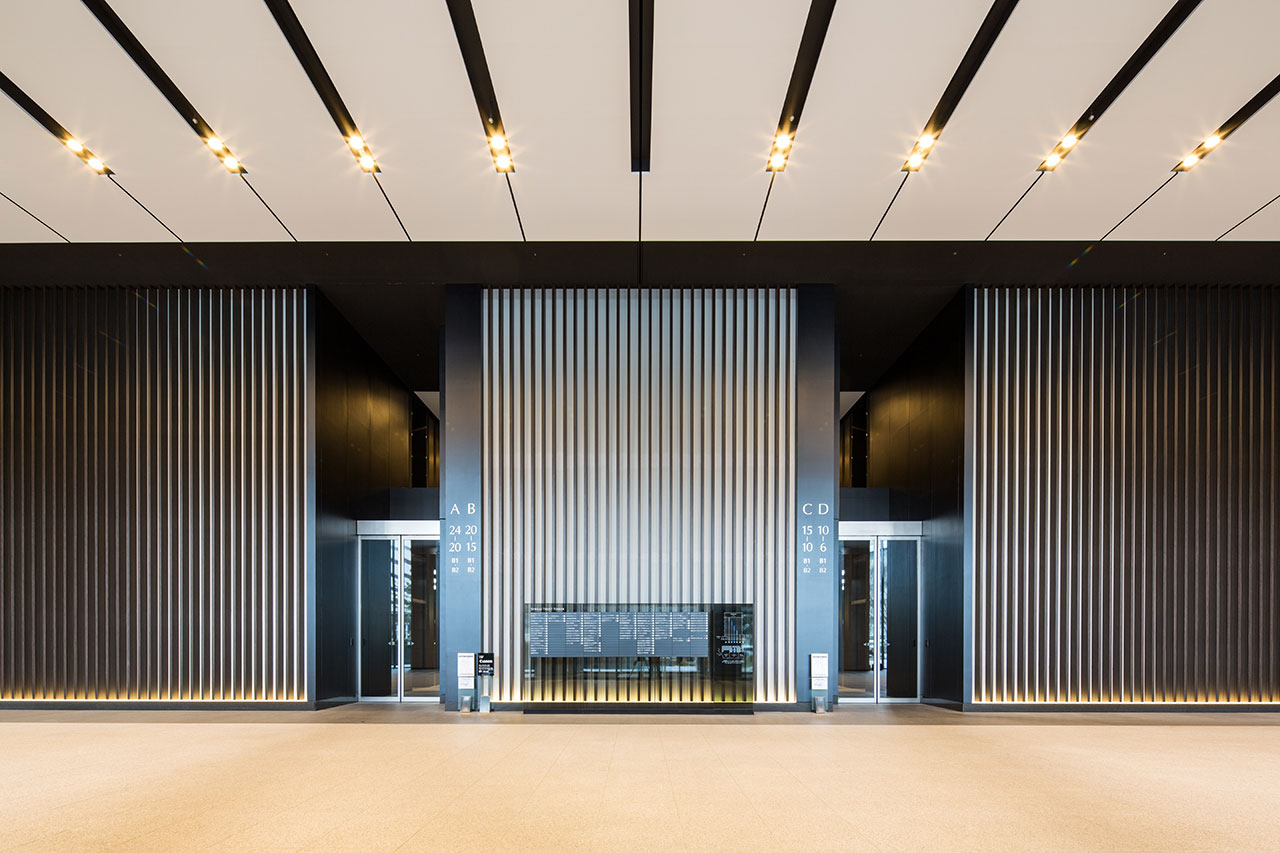

In the elevator hall on the first floor, a large LED lantern is incorporated in each of the five-meter tall transom panels that extends to the ceiling. It helps to integrate a dignified atmosphere and sophisticated design.
The tower, which is occupied by offices, commercial facilities, and a upper upscale hotel brand, The Westin Sendai, will surely become a new landmark in Sendai.

  • Elevator
  • Escalator
  • Office
  • Hotel
  • Commercial facility
  • Japan
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Balustrade with light
  • Step:1000mm
  • 2010s
Building name
Sendai Trust Tower
Address
Sendai, Miyagi
Client
Mori Trust Co.,Ltd.
Design and supervision
MHS Planners,Architects & Engineers Ltd./P.T.Morimura & Associates. Ltd./Taisei Corporation
Construction
Taisei Corporation
Completion
2010

Specifications

Elevator Total units 37
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
Order XIOR Passenger 1400 21 90 7 1
Order XIOR Passenger 1200 18 90 7 1
Order XIOR Passenger 1300 20 90 4 2
Order XIOR Passenger 750 11 90 2 1
Order XIOR Passenger 1500 23 90 3 1
Order XIOR Service 1150 17 90 5 1
Order XIOR Service 1150 17 90 3 1
Order XIOR Service 2000 30 60 3 1
AC-GL Passenger 1350 20 120 11 1
AC-GL Passenger 1350 20 120 9 3
AC-GL Passenger 1350 20 180 12 1
AC-GL Passenger 1350 20 180 10 3
AC-GL Passenger 1350 20 240 12 1
AC-GL Passenger 1350 20 240 10 3
AC-GL Passenger 1350 20 300 12 1
AC-GL Passenger 1350 20 300 10 3
AC-GL Passenger 1600 24 360 6 3
AC-GL Passenger 1150 17 150 11 4
AC-GL Service 1150 17 180 26 1
AC-GL Service 1000 15 240 16 2
AC-GL Service 1600 21 180 40 1
AC-GL Service 2000 30 180 40 1

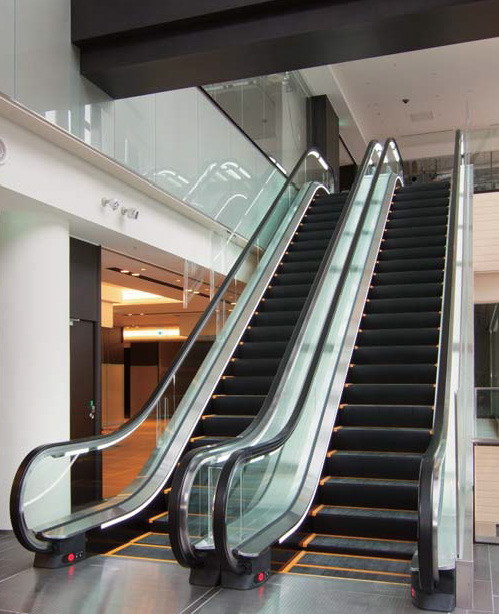

Escalator Total units 4
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS-NX F 1000 5200 35 4
