JR Yokohama Tower

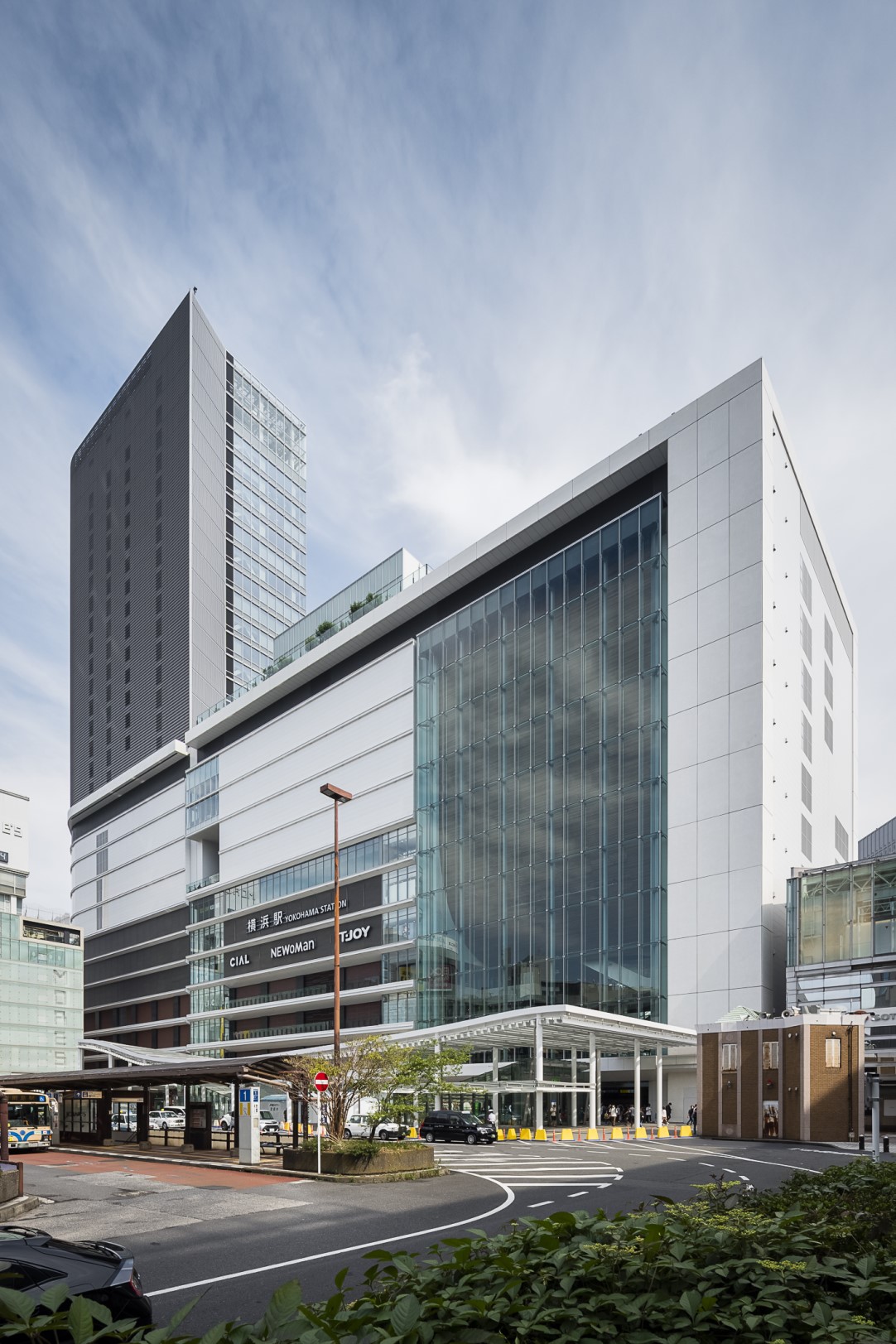

JR Yokohama Tower is a 132-meter high-rise complex building with direct access to the Yokohama station of East Japan Railway(JR-EAST). The lower floors in this building are occupied by commercial facilities including movie theaters; the higher floors are occupied by offices. This building is well known as the landmark which leads people to the west gate of the Yokohama Station.

In this building, there are nine (9) units of Fujitec elevators and twenty-four (24) units of Fujitec escalators.

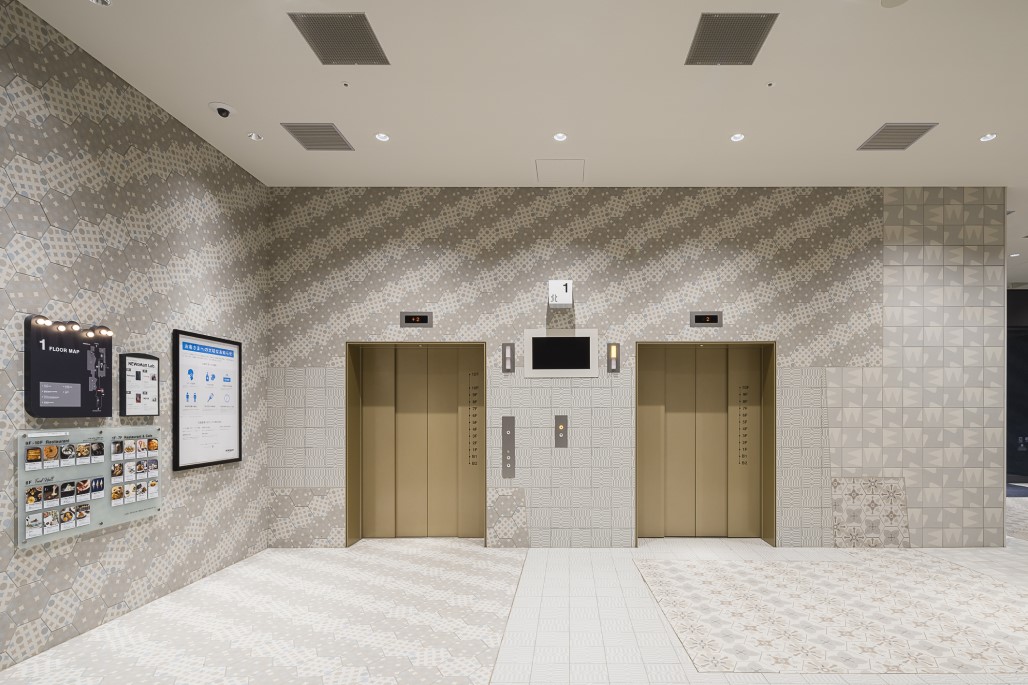

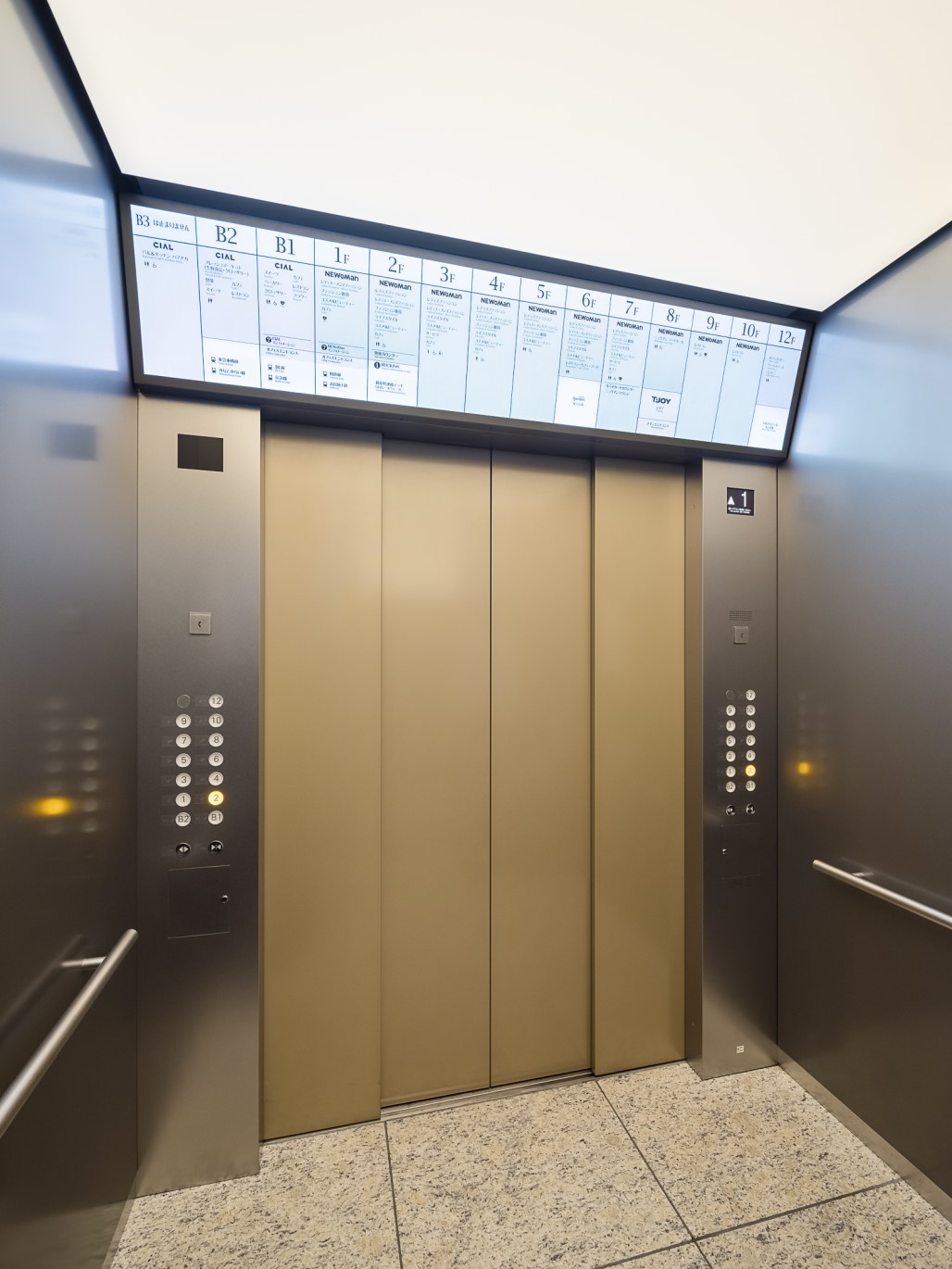

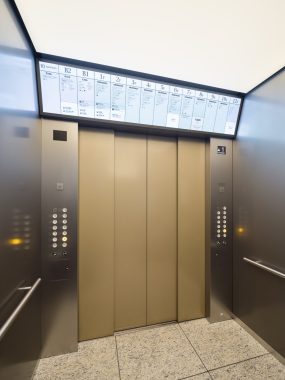

Regarding the elevators, their interior is designed under the concept of Simplicity in order for it to harmonize with the atmosphere created by the interior design of the commercial facilities and the offices.

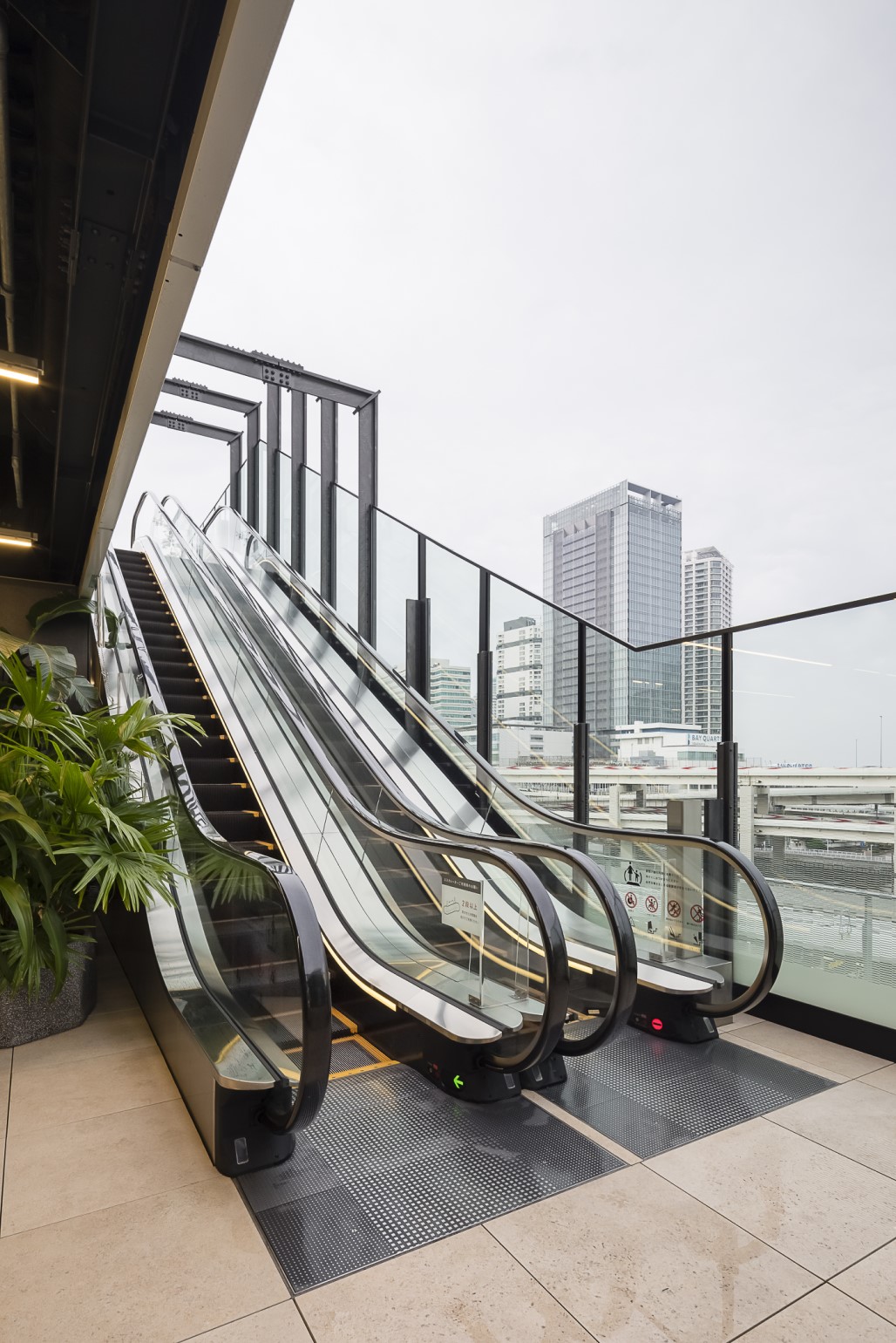

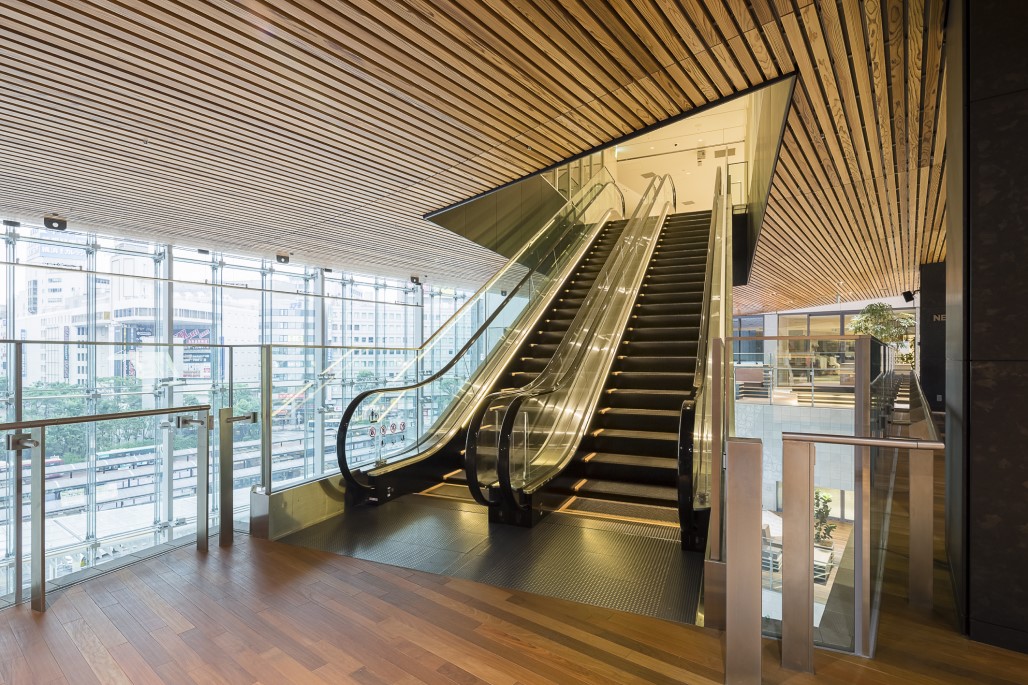

Concerning the escalators, the skirt guards of the escalators inside the building have LED lighting which lights the footsteps of users; the escalators installed on the spectacular rooftop is of all-weather type.

Photographing Cooperation:
East Japan Railway Company; JR East Building Co.,Ltd.; LUMINE CO.,LTD.

  • Elevator
  • Escalator
  • Office
  • Commercial facility
  • Japan
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Balustrade with light
  • Step:600mm
  • Step:800mm
  • Step:1000mm
  • Outdoor
  • 2020s
Building name
JR Yokohama Tower
Address
Kanagawa prefecture
Client
East Japan Railway Company
Design and supervision
JR East Design Corporation
Construction
TAKENAKA CORPORATION
Completion
2020

Specifications

Elevator Total units 9
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
XIOR Passenger 750 11 45 3 1
Order XIOR Passenger 1800 27 105 13 1
Order XIOR Passenger 1800 27 105 14 1
AC-GL Passenger 1500 23 240 4 3
AC-GL Passenger 1150 17 180 10 3
Escalator Total units 24
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS-NX S 1000 5200 30 2
GS-NX S 600 4700 30 6
Slim Fit S 1000 5610 30 2
Slim Fit S 1000 5200 30 2
Slim Fit S 1000 4700 30 8
Slim Fit F 800 4700 35 4
