Tokyo World Gate

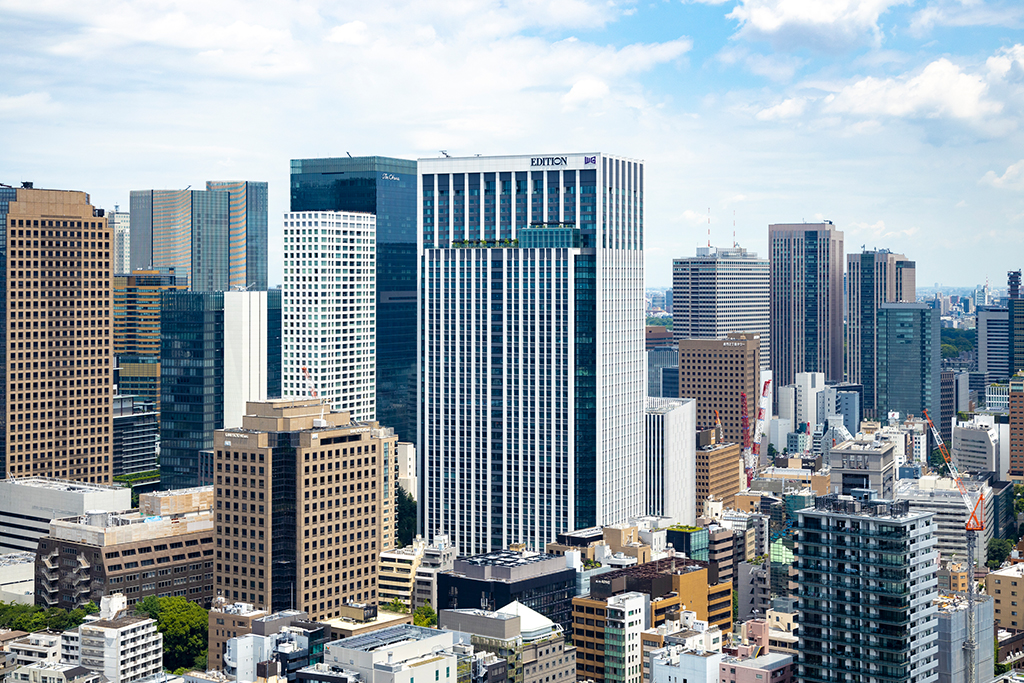

Tokyo World Gate is a new business district developed around Kamiyacho Trust Tower which is a complex office building with thirty-eight (38) aboveground and three (3) underground floors in Toranomon area regarded as a symbolic area representing the international mega city, Tokyo.

In this newly developed district, there are 54 units of Fujitec elevators and escalators.

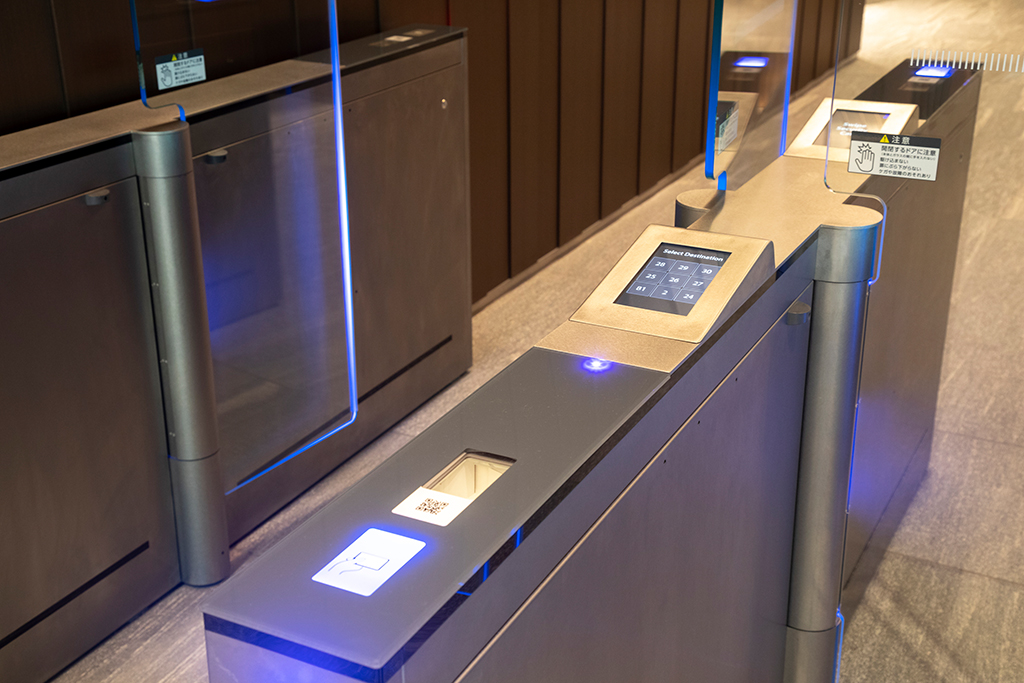

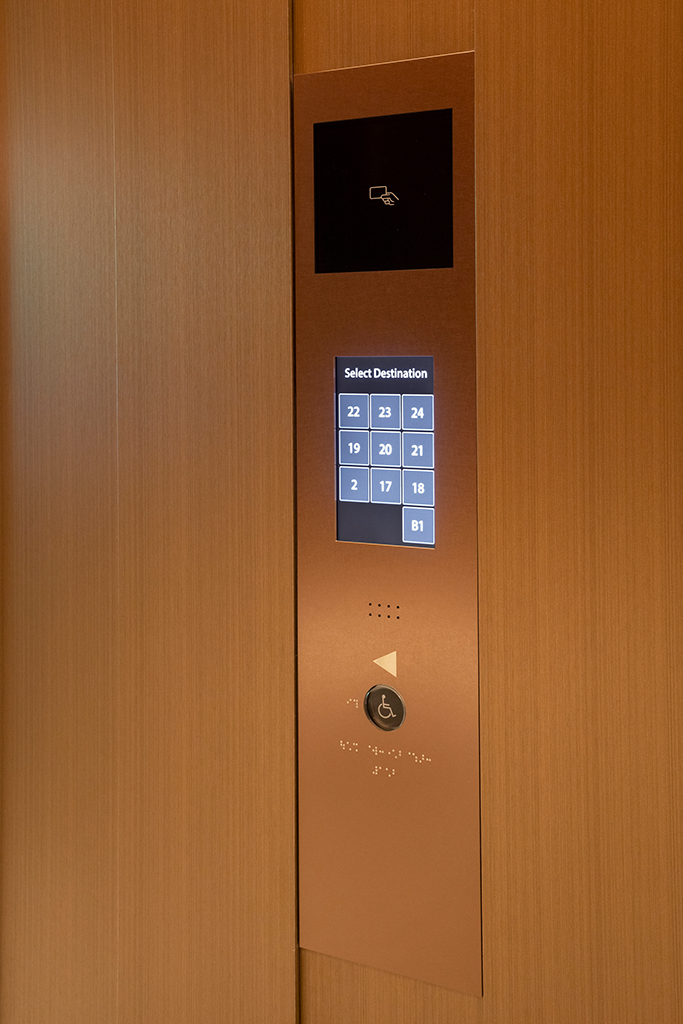

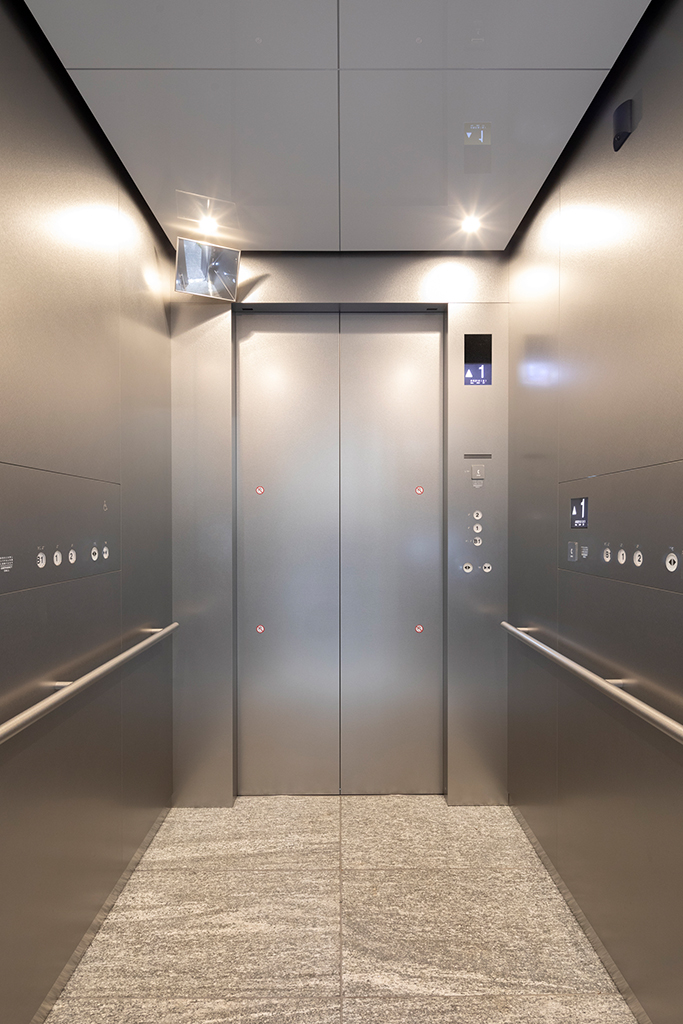

Fujitec elevators in the office area have Destination Floor Registration System called EZSHUTTLE, which contributes to the enhancement and increase of elevator operating efficiency.

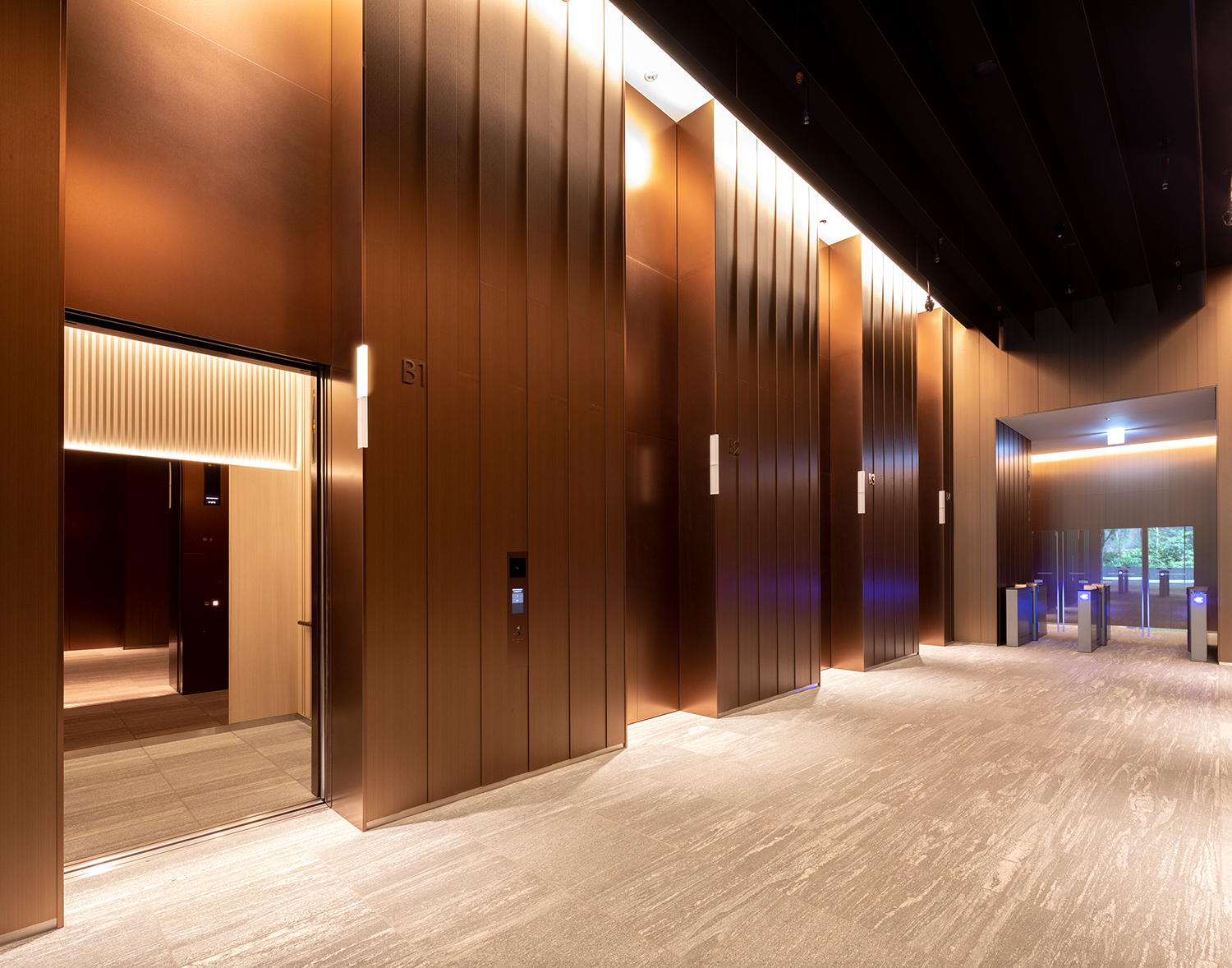

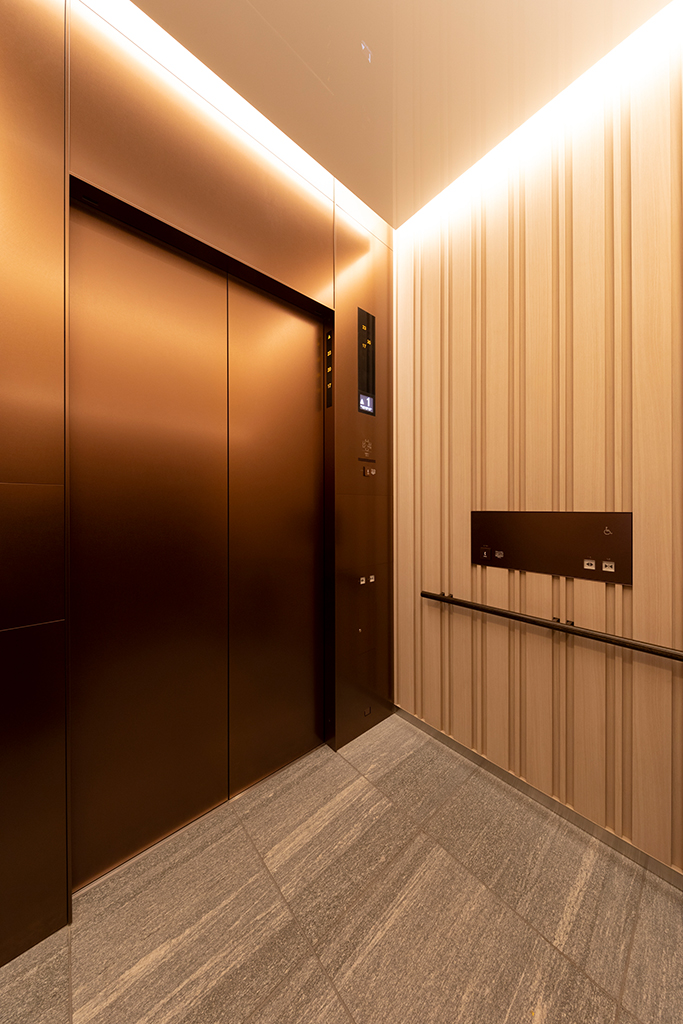

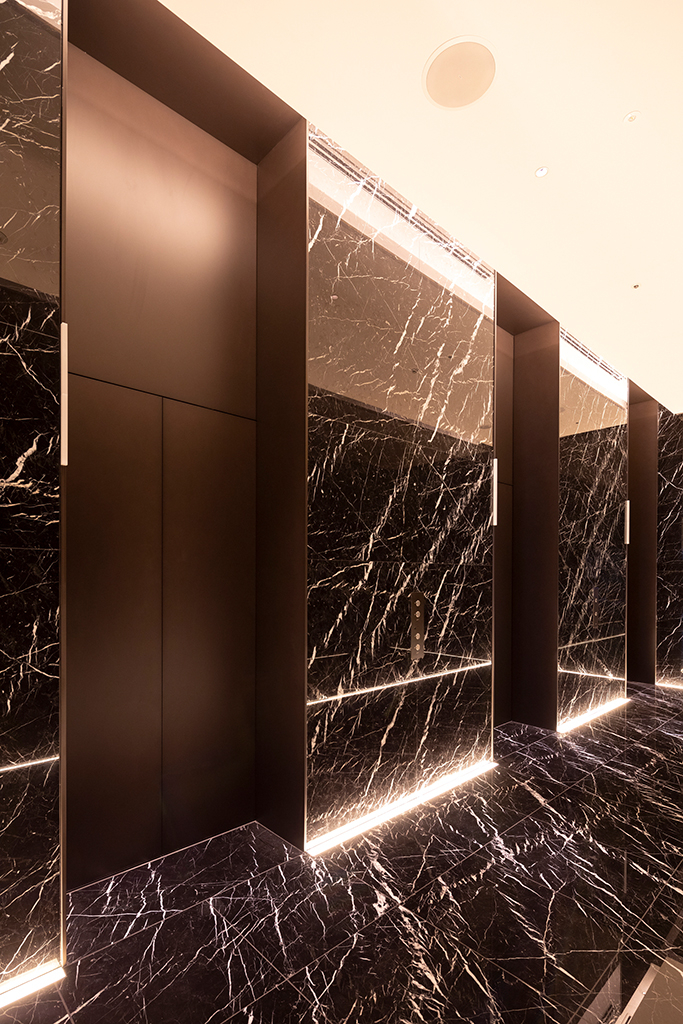

The exterior of these elevators is designed and finished with the basic concept of “Application of pink-bronze-like stainless steel for creation of modern and high-quality appearance.”

Fujitec shuttle elevators installed in the hotel of The Tokyo Edition, Toranomon, which occupies the top-level floors of a building, provide excellent service to hotel guests and visitors at the speed of 300 meter per minute.

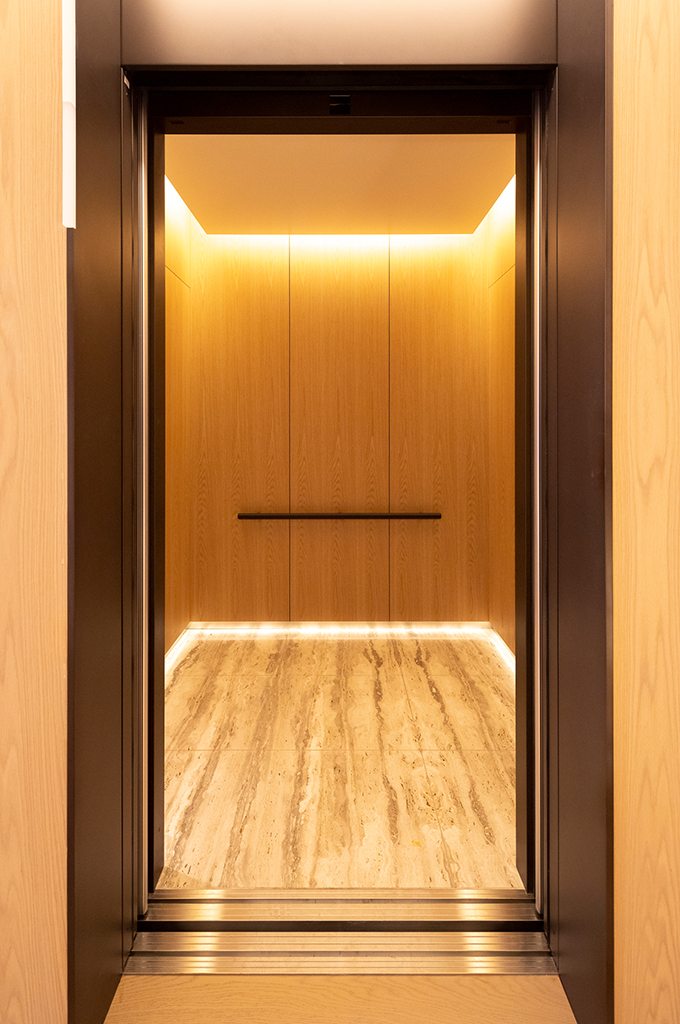

The interior of these elevators is created with application of non-flammable wood and with finish of sulfide fumigation by paint.

The comfort and pure relaxation brought in the elevator interior by soft illumination with concealed lighting can make the guests and visitors forget the hustle and bustle of the city.

  • Elevator
  • Office
  • Residence
  • Hotel
  • Japan
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Balustrade with light
  • Step:1000mm
  • Outdoor
  • 2020s
Building name
Tokyo World Gate
Address
Toranomon, Tokyo
Client
Mori Trust Co.,Ltd
Design and supervision
Yasui Architects & Engineers, Inc / Shimizu Corporation / Kenchiku Setsubi Sekkei Kenkyusho
Construction
Shimizu Corporation
Completion
2020

Specifications

Elevator Total units 50
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
AC-GL Passenger 1800 27 300 11 8
AC-GL Passenger 1800 27 240 12 8
AC-GL Passenger 1800 27 150 11 8
AC-GL Passenger 1800 27 120 11 7
AC-GL Passenger 1600 24 300 7 3
AC-GL Passenger 1000 15 360 7 1
AC-GL Service (Fire Operation) 2000 30 180 41 1
AC-GL Service (Fire Operation) 2600 35 180 41 1
AC-GL Service (Fire Operation) 1650 25 180 40 1
AC-GL Service 1000 15 180 13 2
XIOR Passenger 1200 18 90 5 1
XIOR Passenger 1300 20 45 2 1
XIOR Passenger 1000 15 45 2 1
XIOR Passenger 1000 15 60 3 1
XIOR Passenger 1000 15 105 6 3
XIOR Passenger 900 13 90 5 1
XIOR Passenger 900 13 60 3 1
XIOR Service 2000 30 60 3 1

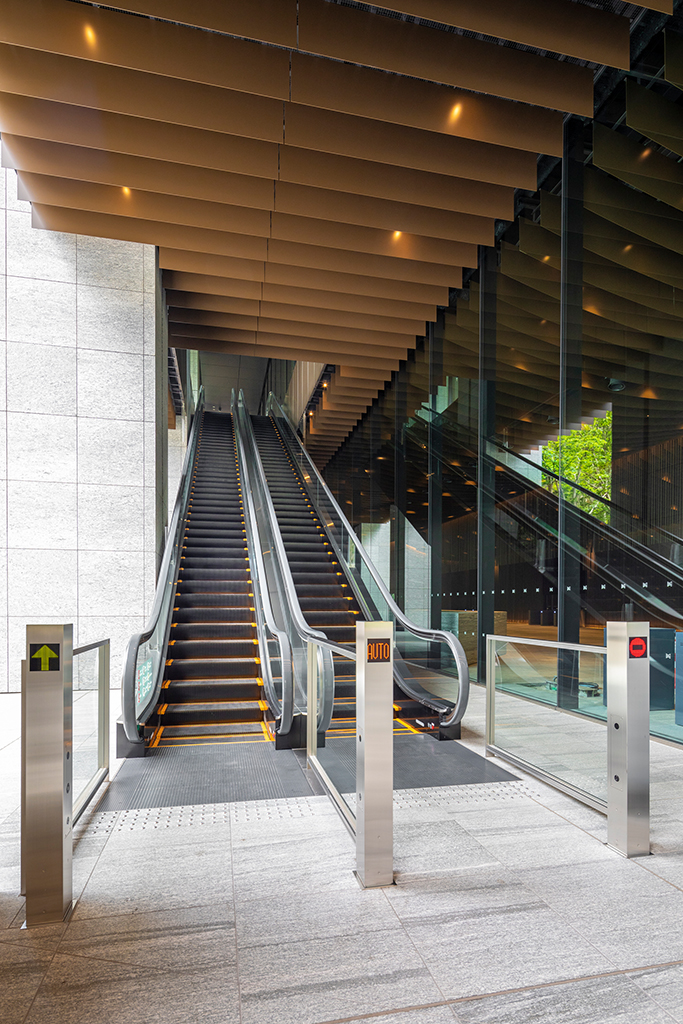

Escalator Total units 4
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
Slim Fit F 1000 8420 30 2
Slim Fit F 1000 7680 30 2
