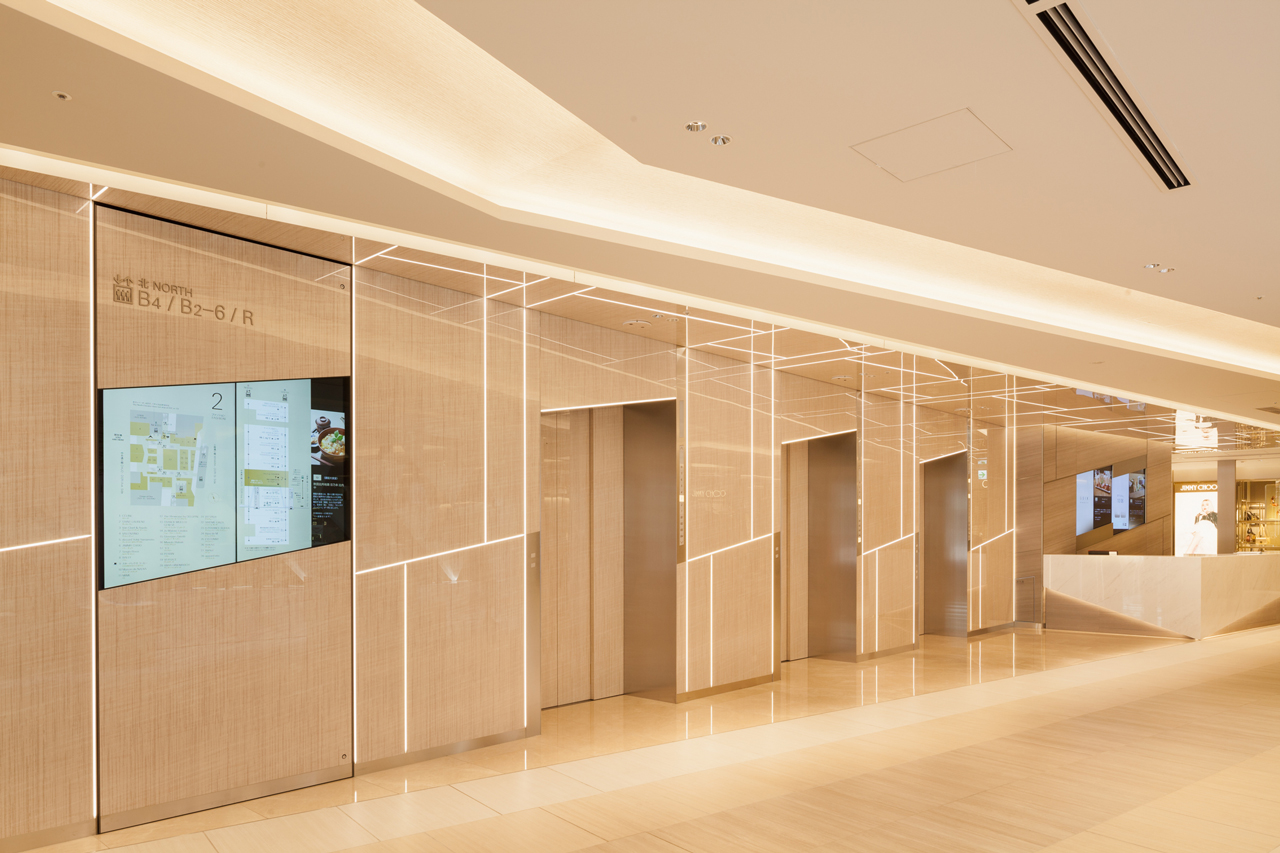

2nd-Floor Elevator Lobby in Commercial Facility Area

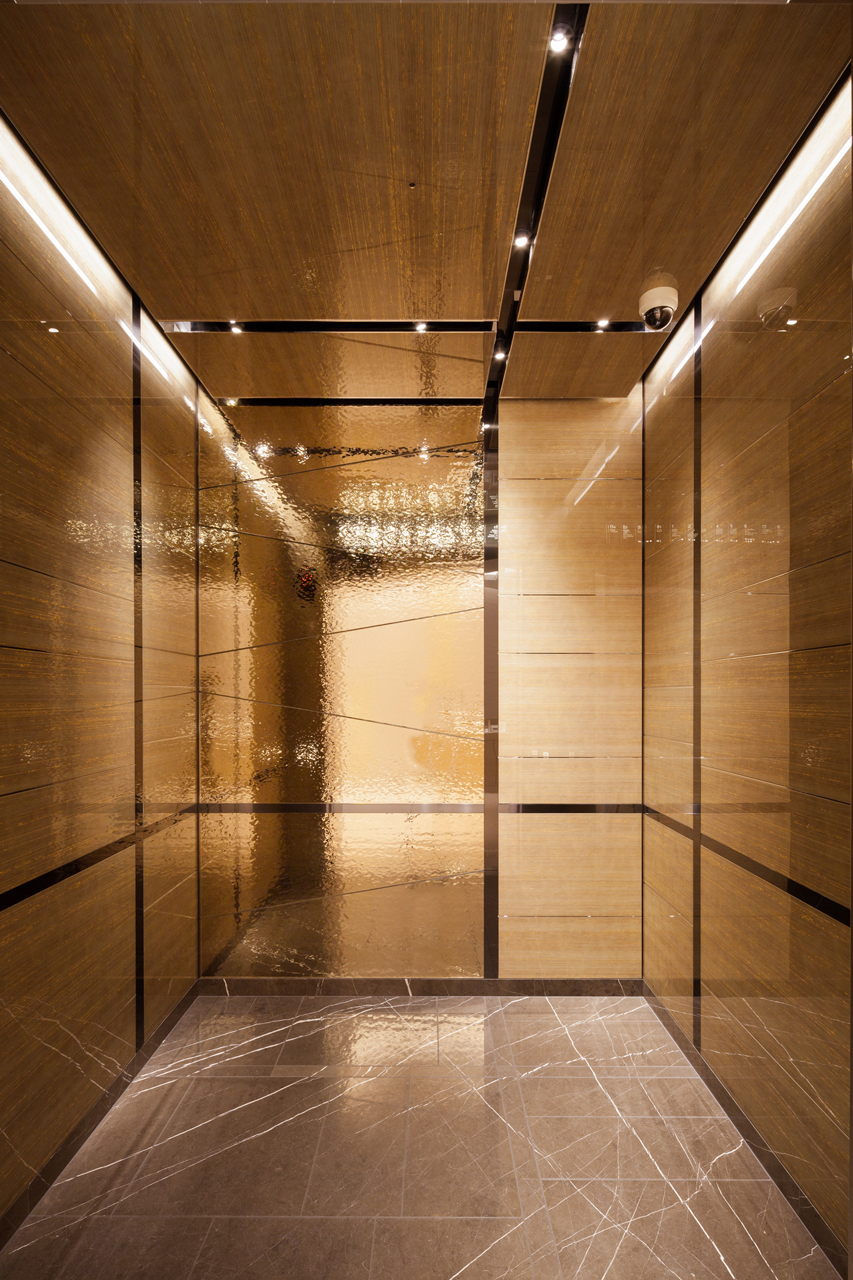

View of Elevator Interior from Elevator Lobby in Commercial Facility

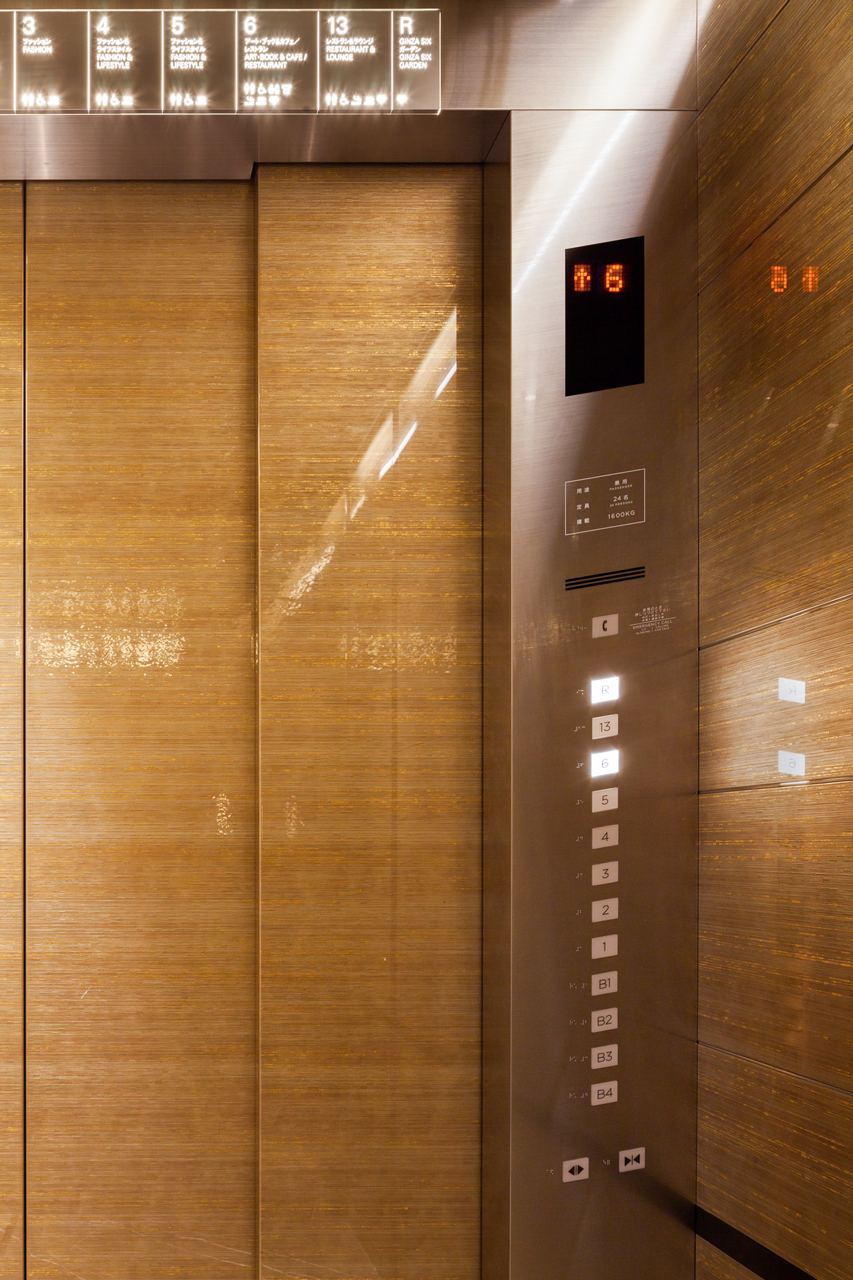

Car Operating Panel of the Elevators in Commercial Facility

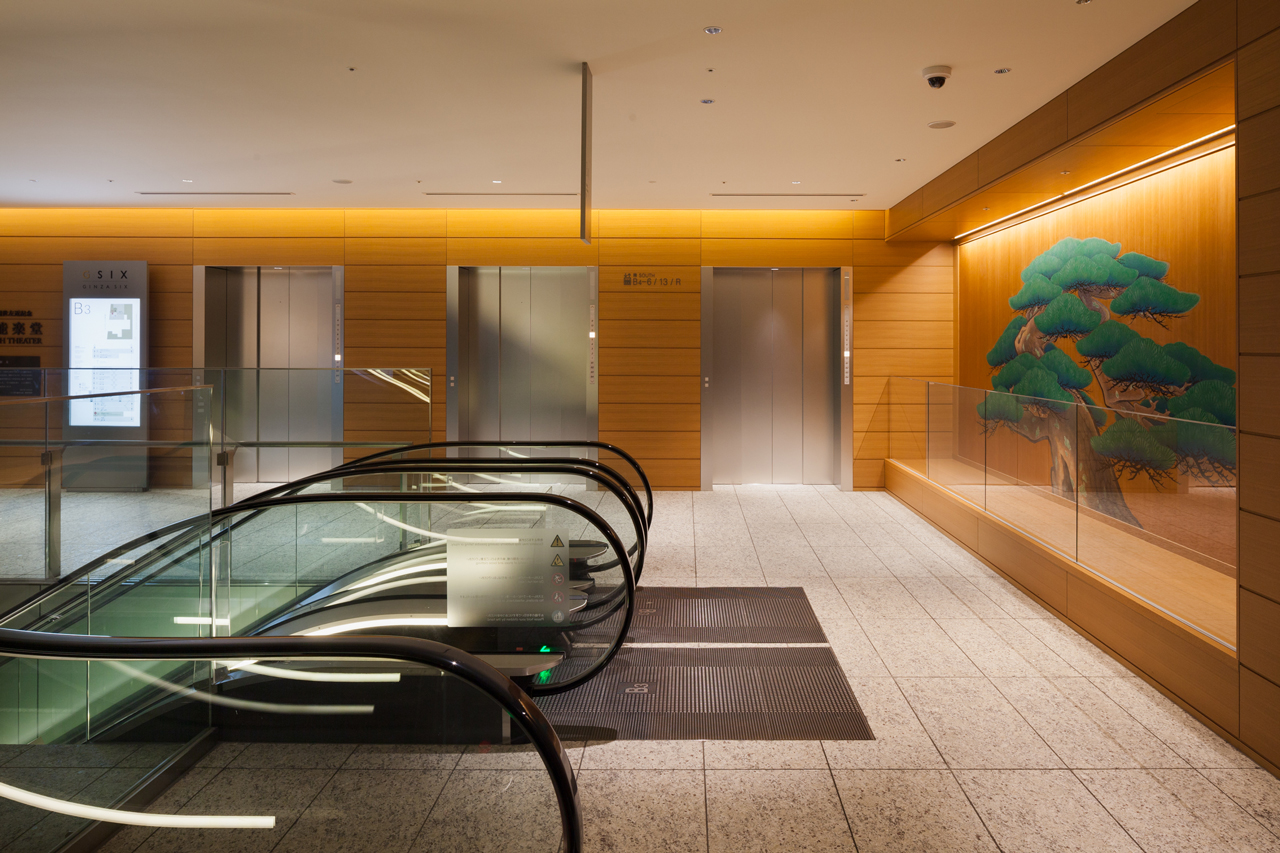

In Basement 3 of Commercial Facility, Elevators and Escalators to access to Nohgakudo

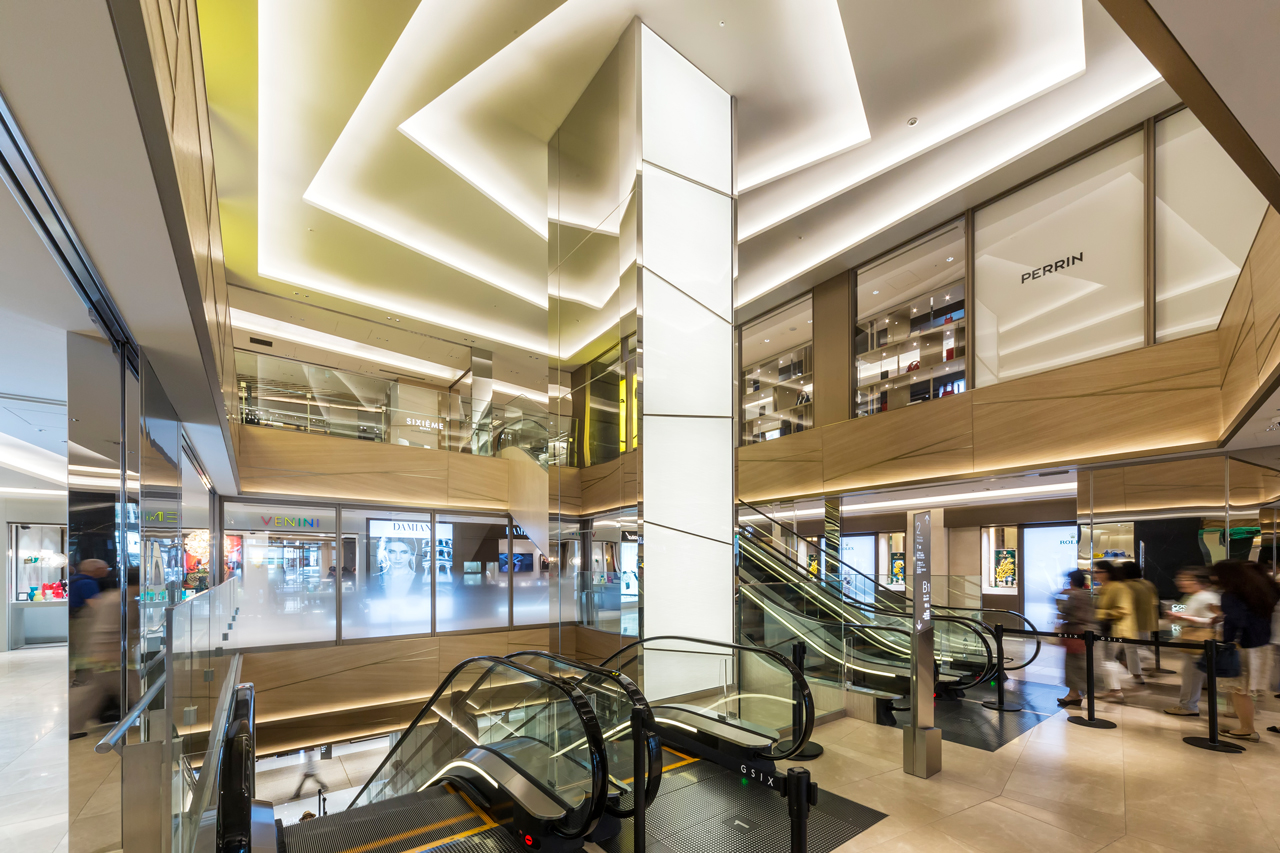

Escalators in the 1st-Floor Entrance in Commercial Facility

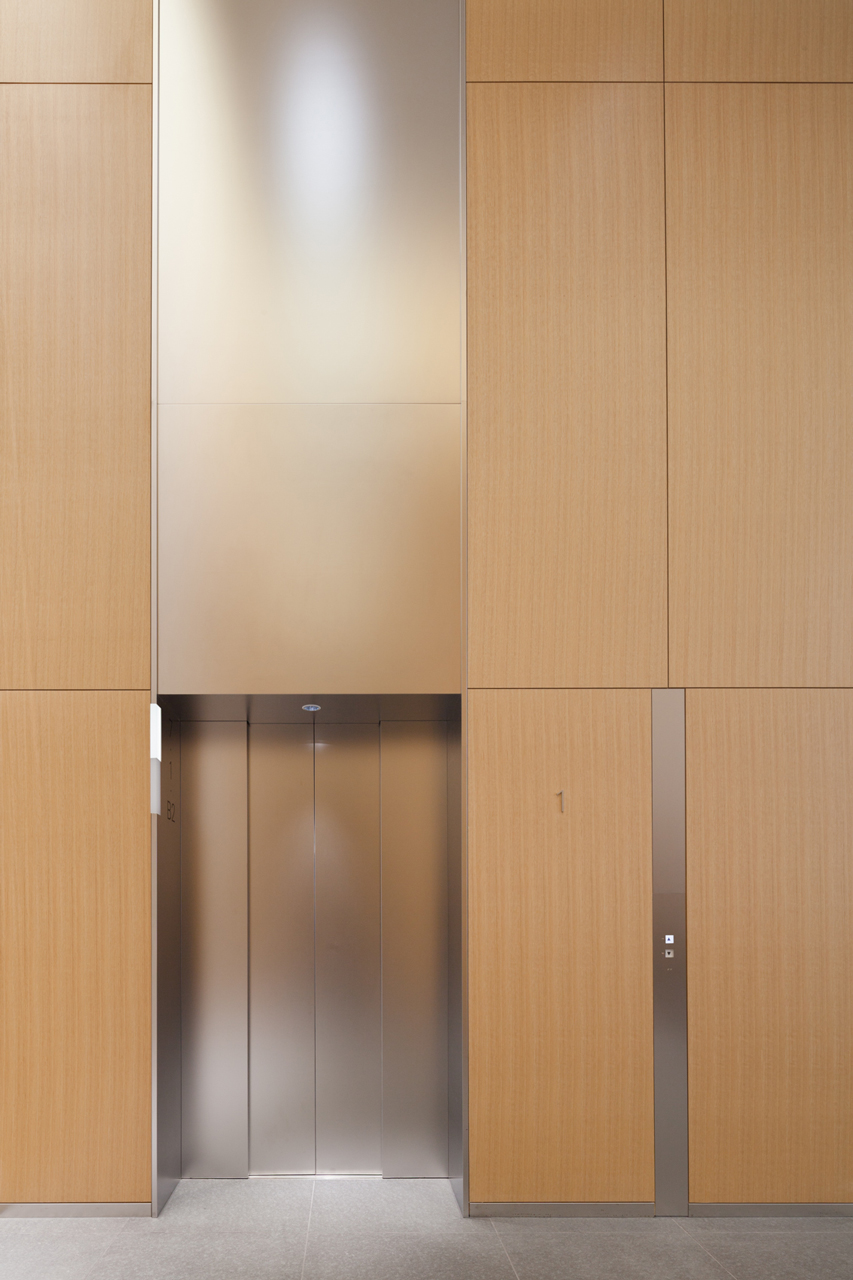

Elevator Entrance in the 1st Floor of Office Space

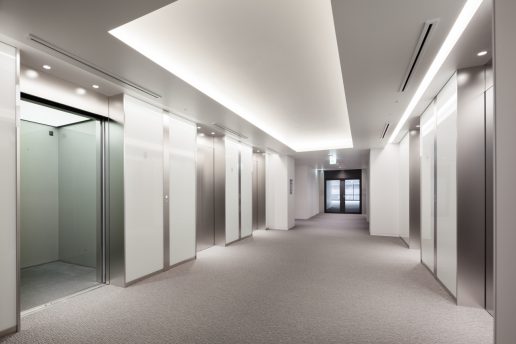

Elevator Lobby in the 9th Floor of Office Space

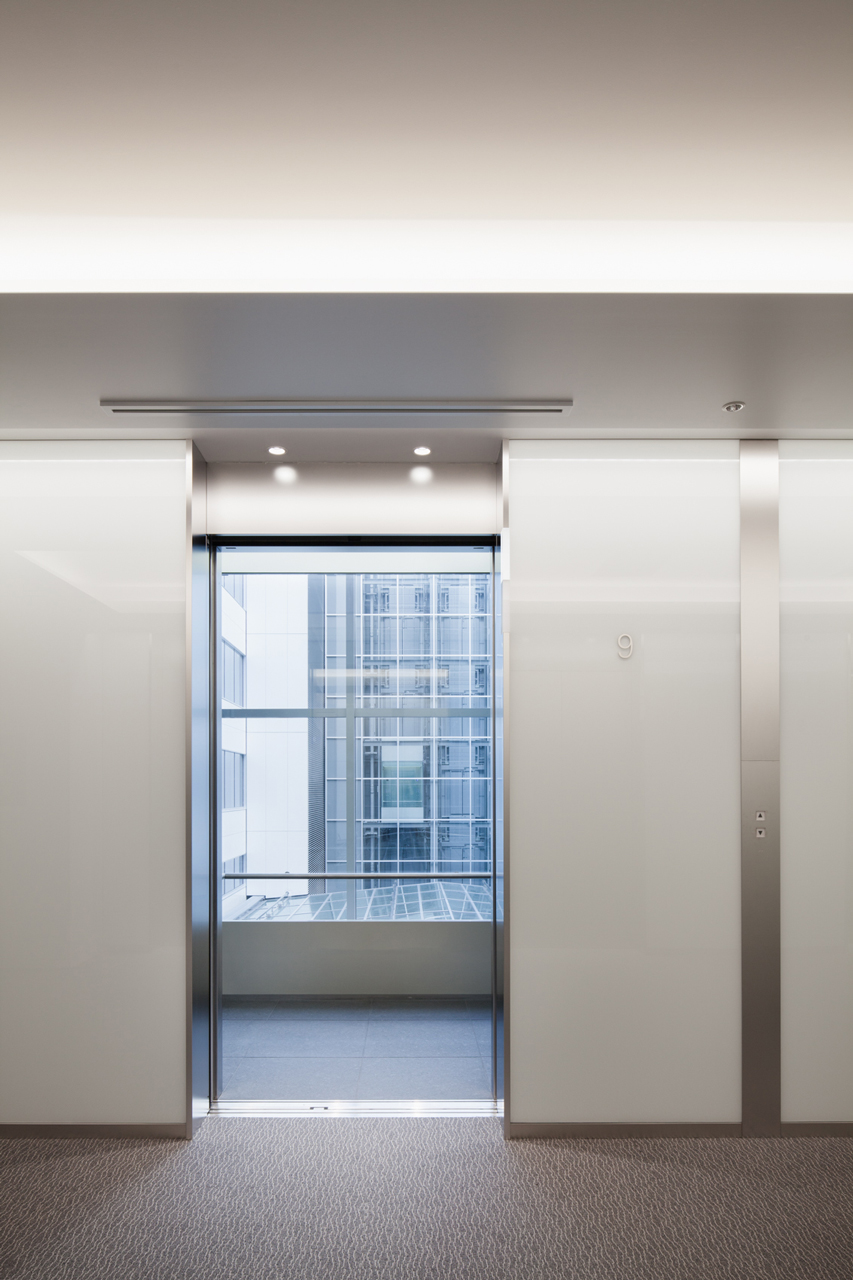

View of Elevator Inside from Elevator Lobby in Office Space

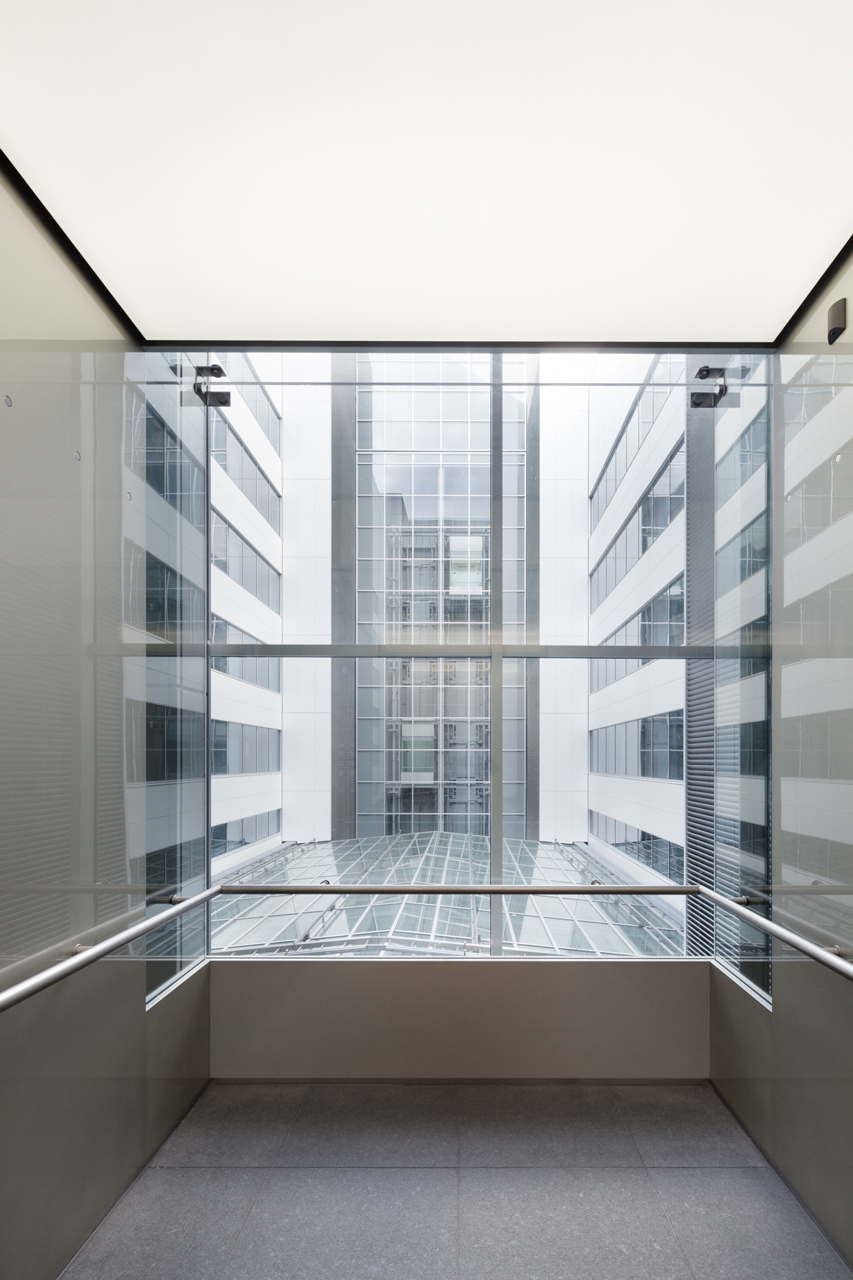

View of Elevator Interior from Elevator Entrance in Office Space

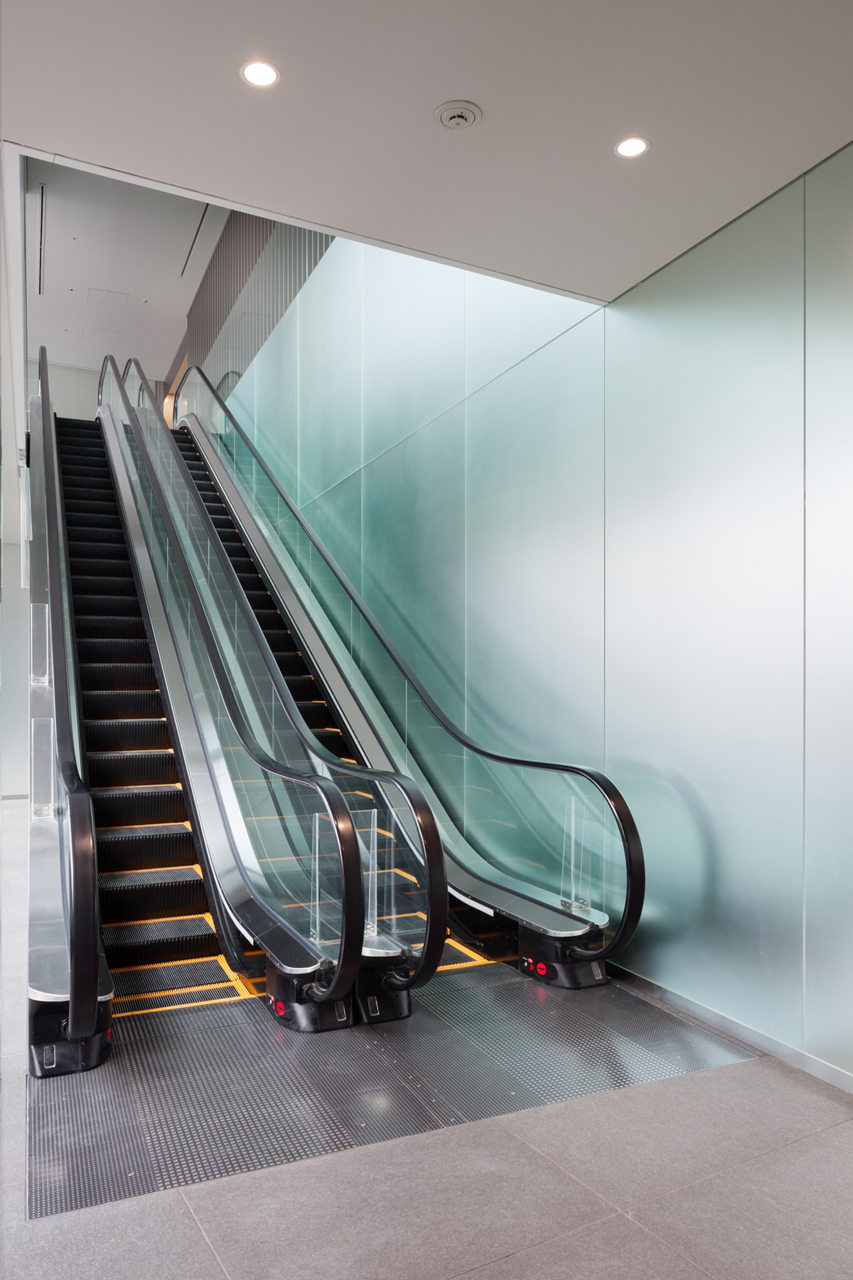

Escalators between Commercial Facility Area and Office Area
GINZA SIX is a complex facility which stands along the central street of Ginza 6 chome. It was built by developing the two city blocks; one city block where a Ginza branch of Matsuzakaya Department Store existed and the other city block adjacent to the said premises.
GINZA SIX has 6 floors under the ground and 13 floors above the ground, being composed of multiple facilities such as a commercial facility, an office facility, a cultural exchange facility, etc. including other public functions such as a bus station and a roof garden.
In this building, there are 84-unit Fujitec products; 38 elevators and 46 escalators.
The elevators installed in the commercial facility have a very remarkable design that the head jamb of their elevator entrance is slanted. Also in the office facility, the 120-m/m-speed elevators have a special feature that their passenger capacity is 42 persons. These middle-speed large-capacity elevators transport passengers very smoothly and very swiftly to the high-zone office floors.
Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
---|---|---|---|---|---|---|
AC-GL | Passenger | 2750 | 42 | 120 | 5 | 3 |
AC-GL | Passenger | 2750 | 42 | 120 | 3 | 3 |
AC-GL | Passenger | 1600 | 24 | 120 | 12 | 3 |
AC-GL | Passenger | 1600 | 24 | 120 | 11 | 3 |
AC-GL | Emergency | 1800 | 27 | 120 | 20 | 3 |
AC-GL | Emergency | 1800 | 27 | 120 | 19 | 1 |
XIOR | Passenger | 750 | 11 | 105 | 2 | 2 |
XIOR | Passenger | 750 | 11 | 60 | 2 | 1 |
XIOR | Passenger | 750 | 11 | 45 | 2 | 1 |
Order XIOR | Passenger | 1600 | 24 | 105 | 8 | 5 |
Order XIOR | Passenger | 1600 | 24 | 105 | 6 | 5 |
Order XIOR | Passenger | 750 | 11 | 60 | 5 | 3 |
Order XIOR | Passenger | 750 | 11 | 60 | 4 | 1 |
Order XIOR | Passenger | 750 | 11 | 60 | 3 | 1 |
Order XIOR | Service | 2000 | 30 | 60 | 9 | 1 |
Order XIOR | Service | 1600 | 24 | 105 | 9 | 2 |
Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
---|---|---|---|---|---|
GS-NX | S | 1000 | 6000 | 30 | 4 |
GS-NX | S | 1000 | 4650 | 30 | 4 |
GS-NX | S | 1000 | 4460 | 30 | 4 |
GS-NX | S | 1000 | 4420 | 30 | 2 |
GS-NX | S | 1000 | 4400 | 30 | 4 |
GS-NX | S | 1000 | 4380 | 30 | 8 |
GS-NX | S | 1000 | 4120 | 30 | 4 |
GS-NX | S | 600 | 5700 | 30 | 2 |
GS-NX | S | 600 | 5100 | 30 | 2 |
GS-NX | S | 600 | 4650 | 30 | 2 |
GS-NX | S | 600 | 4450 | 30 | 2 |
GS-NX | S | 600 | 4230 | 30 | 2 |
Slim Fit | F | 1000 | 4460 | 30 | 2 |
Slim Fit | F | 1000 | 4395 | 30 | 2 |
Slim Fit | F | 600 | 4900 | 35 | 2 |
