Shangri-La Hotel Vancouver

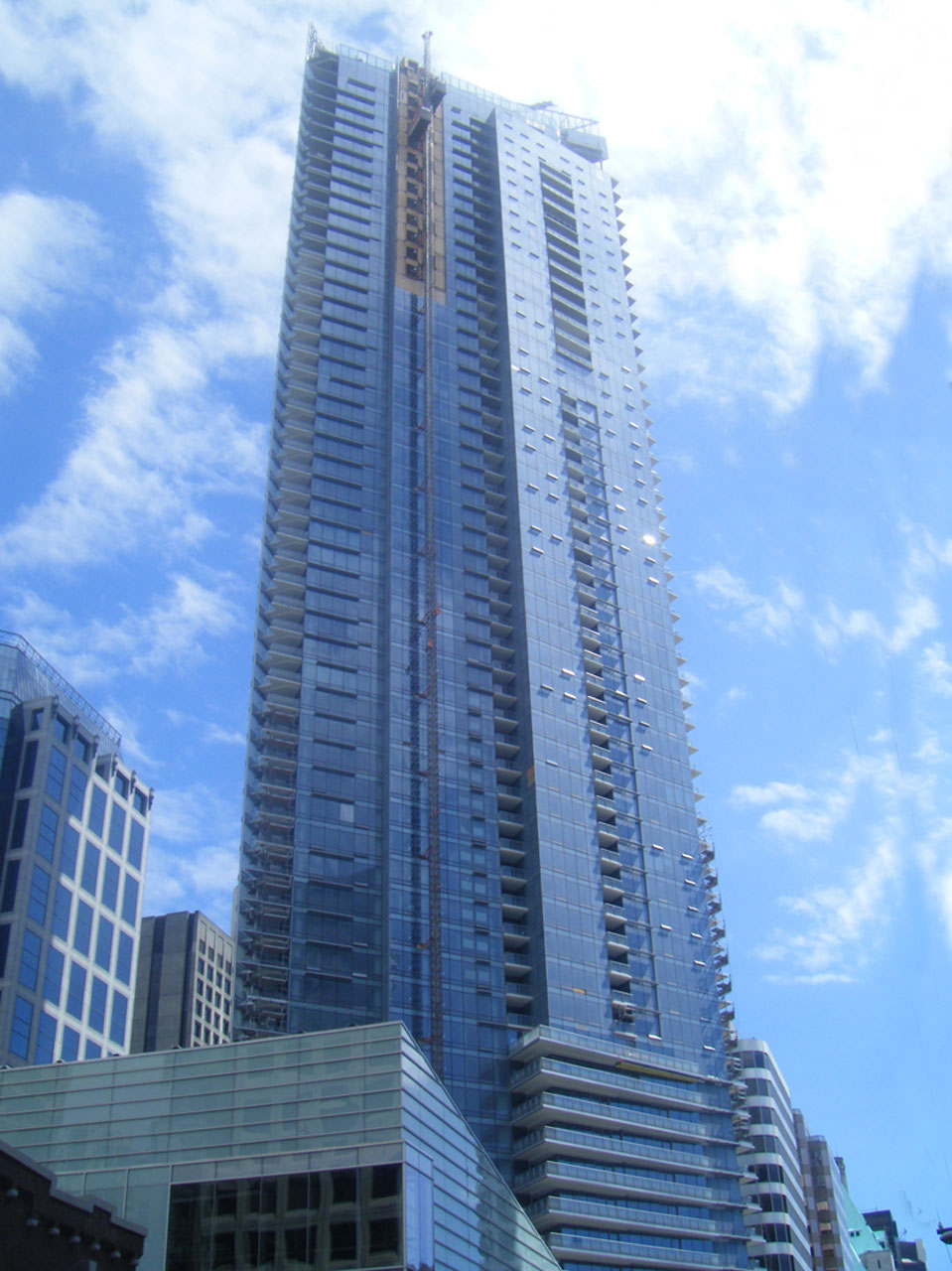

Located in Vancouver, a harbor city in Western Canada, the Shangri-La Hotel Vancouver quickly attracts the gaze from passersby with its glass-walled exterior. Rising 61 floors (648 ft. high) above the ground, the building consists of a world-renowned hotel and a luxury condominium.
The building is served by a total of 13 Fujitec elevators, including super high-speed models traveling at 360 mpm.

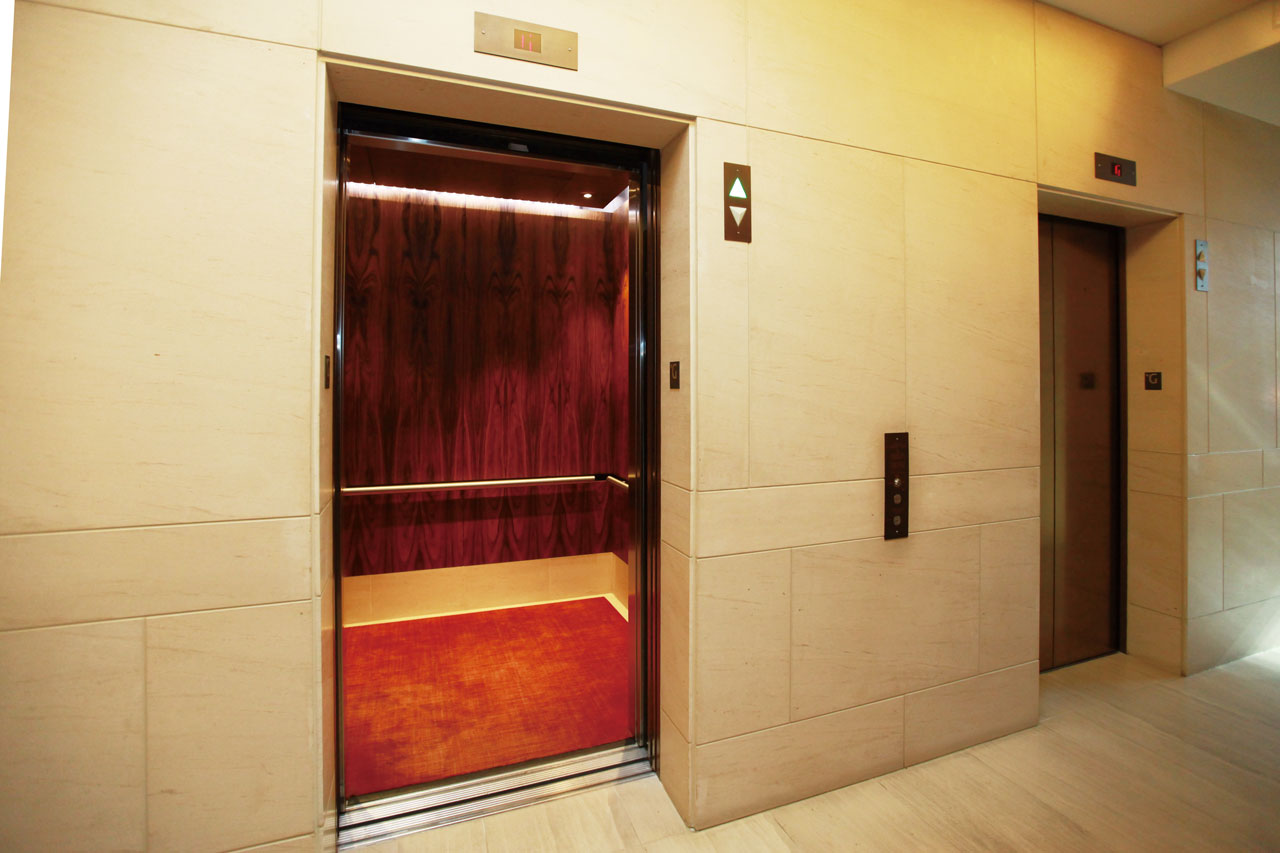

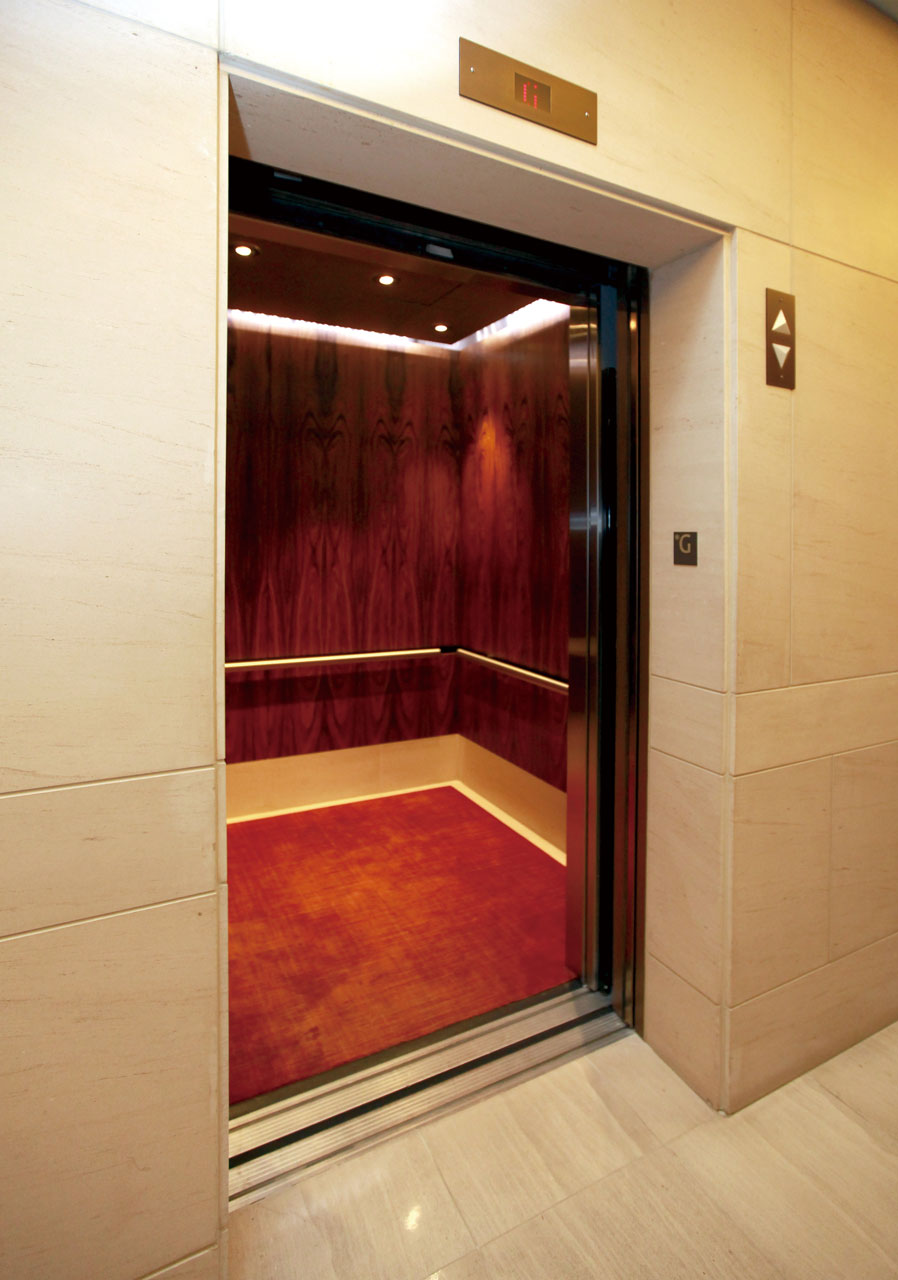

The downlights and indirect lights installed in the car ceiling glow with a gentle illumination, creating a classy atmosphere that suitably matches the high-class hotel.

  • Elevator
  • Residence
  • Hotel
  • North America
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • 2000s
Building name
Shangri-La Hotel Vancouver
Address
Vancouver, Canada
Client
KBK No.11 Ventures Ltd. C/O Westbank Projects Corp.
Design and supervision
Drew Bourne Architect MAIBC
Construction
Ledcor Construction Ltd.
Completion
2009

Specifications

Elevator Total units 13
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
AC-GL Passenger 1600 21 360 24 2
AC-GL Passenger 1600 21 210 65 1
AC-GL Passenger 1360 18 210 34 3
AC-GL Passenger 1360 18 150 13 2
AC-GL Passenger 1360 18 150 16 1
AC-GL Passenger 2270 30 105 5 2
AC-GL Service 910 12 60 4 1
AC-GL Passenger 2720 36 30 3 1
