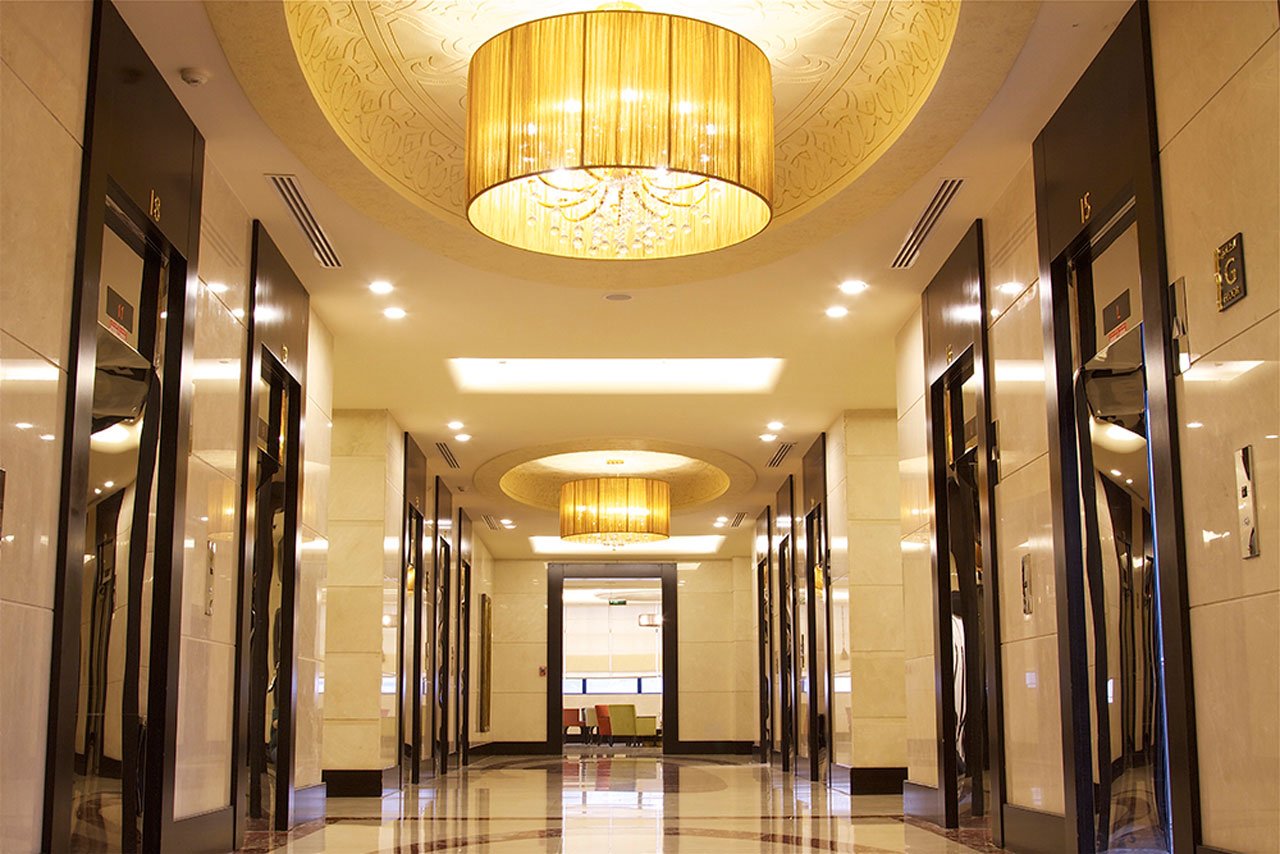

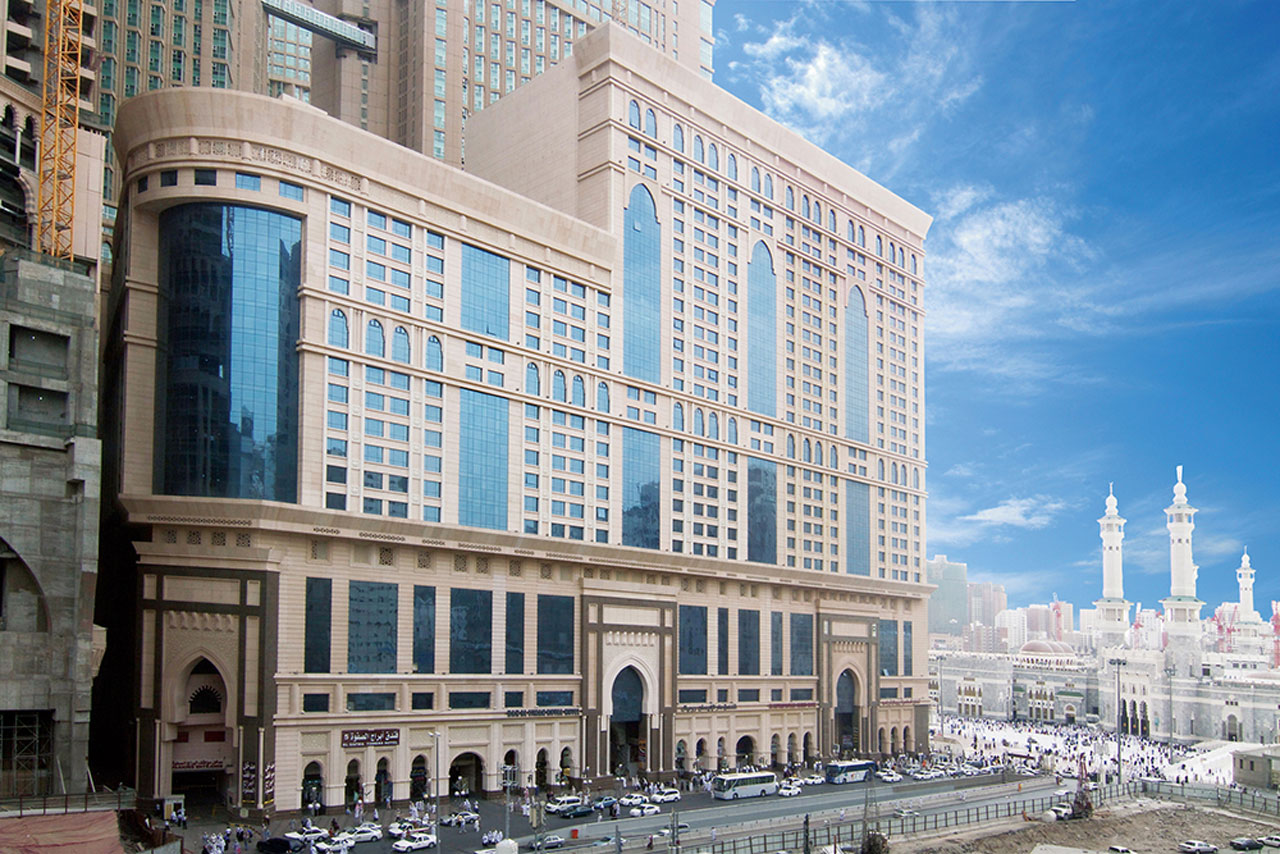

Al Safwah Tower is located in Islam's holiest place, Mecca in Saudi Arabia. The building composed of 24 floors above ground and four underground is occupied by three famous hotels and commercial facilities. In this building, 60 Fujitec elevators and 12 Fujitec escalators were installed to serve guests of the hotels and visitors in the facilities. Among the elevators, there are 31 high-speed elevators. The elevator halls and cabs are extensively finished with polished natural stone panels, creating a luxurious atmosphere in a dignified design.
| Model | Use | Loading (kg) | Capacity (person) | Speed (m/min) | Stop number of floors (floor) |
unit |
|---|---|---|---|---|---|---|
| AC-GL | Passenger | 1000 | 13 | 240 | 16 | 4 |
| AC-GL | Passenger | 2000 | 27 | 240 | 15 | 3 |
| AC-GL | Passenger | 2000 | 27 | 240 | 25 | 24 |
| AC-GD | Passenger | 1300 | 17 | 105 | 7 | 2 |
| AC-GD | Passenger | 2000 | 27 | 150 | 15 | 6 |
| AC-GD | Passenger | 2000 | 27 | 150 | 16 | 3 |
| AC-GD | Passenger | 2000 | 27 | 150 | 19 | 1 |
| AC-GD | Passenger | 1600 | 21 | 150 | 17 | 2 |
| AC-GD | Passenger | 1800 | 24 | 90 | 3 | 1 |
| AC-GD | Service | 1000 | 13 | 90 | 16 | 2 |
| AC-GD | Service | 1000 | 13 | 90 | 4 | 2 |
| AC-GD | Service | 2500 | 33 | 60 | 5 | 1 |
| AC-GD | Service | 1300 | 17 | 60 | 5 | 2 |
| AC-GD | Service | 4500 | 60 | 60 | 9 | 1 |
| AC-GD | Service | 2000 | 27 | 90 | 5 | 1 |
| AC-GD | Service | 1600 | 21 | 150 | 17 | 2 |
| AC-GD | Service | 1600 | 21 | 150 | 5 | 2 |
| AC-GD | Service | 2000 | 27 | 90 | 5 | 1 |

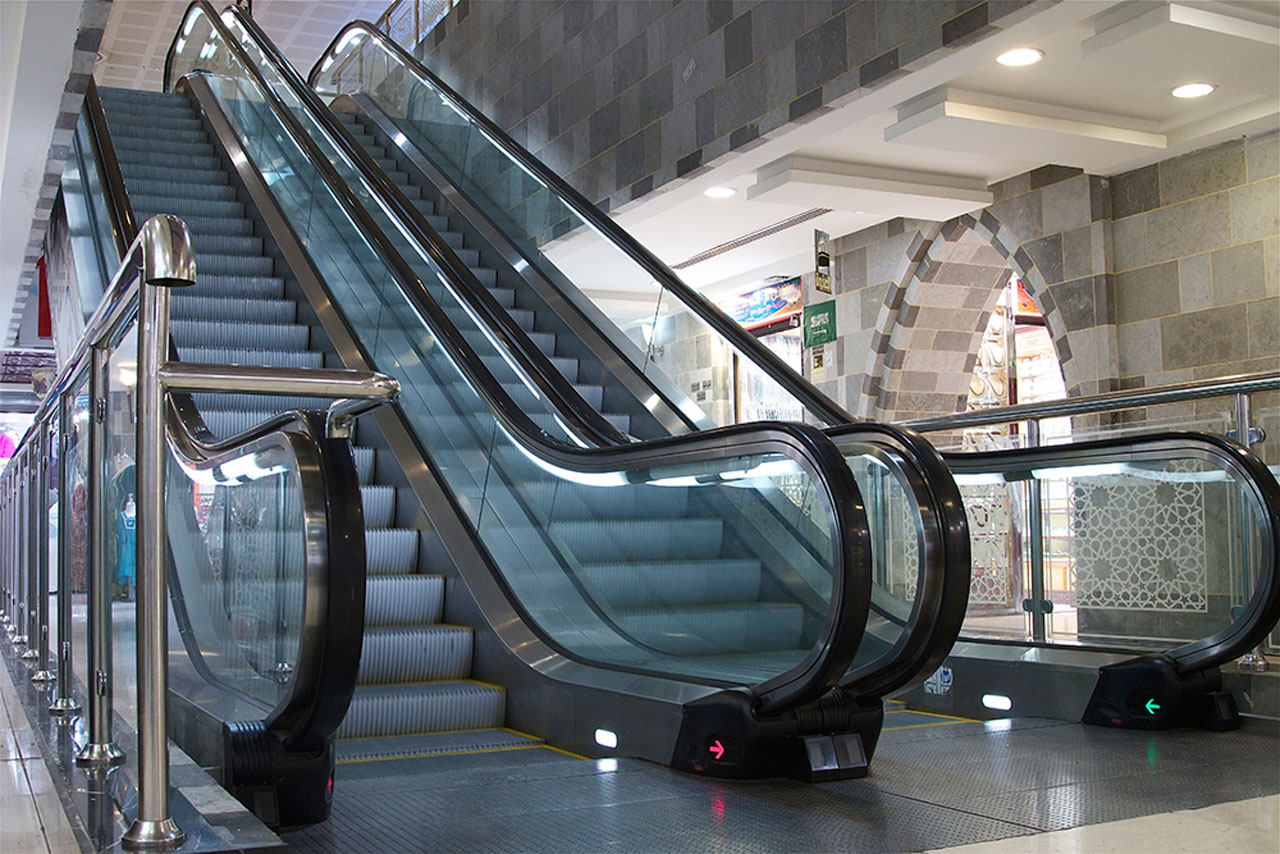

| Model | Type | Step width (mm) | Floor height (mm) | Incline (degree) | unit |
|---|---|---|---|---|---|
| GS8000-NX | S | 1000 | 4950 | 30 | 8 |
| GS8000-NX | S | 1000 | 6600 | 30 | 4 |
