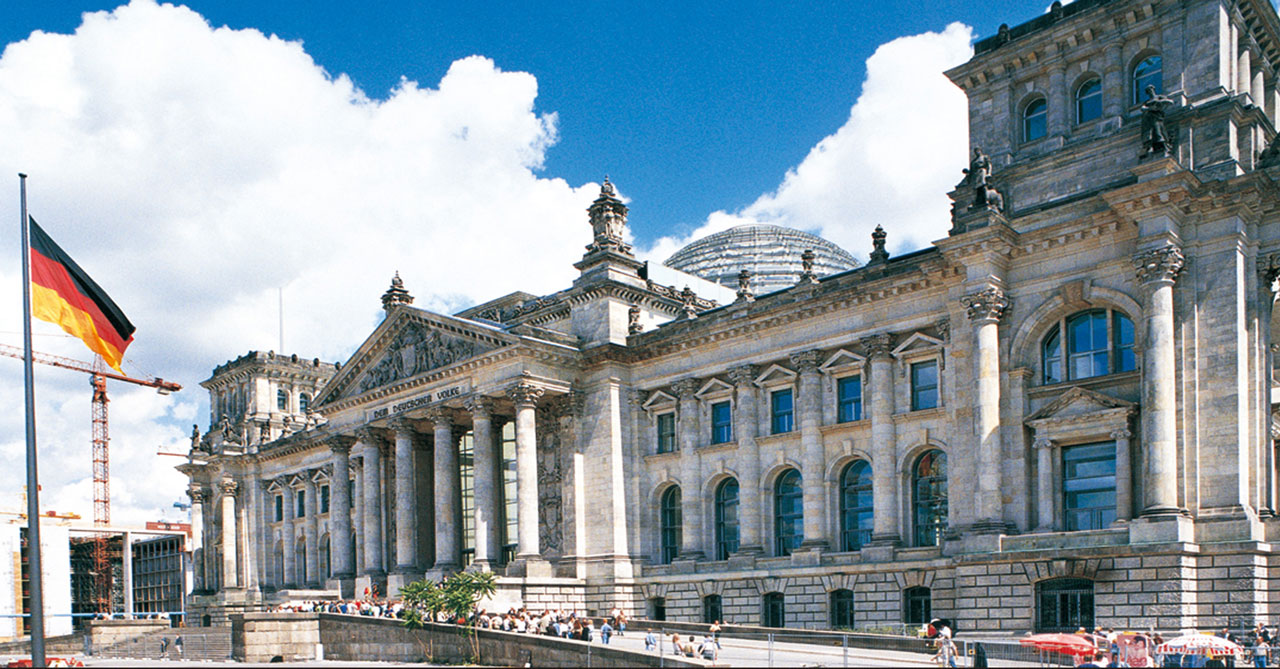

The Imperial Parliament Building of Germany

The Imperial Parliament Building (Reichstag) in Berlin is the central facility of the House of Parliament in the Republic of Germany. 22 Fujitec elevators, inclusive of 7 observation elevators with glass used for the finishing of landings and car interiors, are in full operation. Fully glassclad interior observation elevators draw the interest of passengers.

  • Elevator
  • Public facility
  • Europe
  • Observation
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • 1990s before
Building name
The Imperial Parliament Building of Germany
Address
Berlin, Germany
Client
Bundesbaugsellschaft Berlin mbH
Design and supervision
Sir Norman Foster and Partners
Construction
Zublin
Completion
1999

Specifications

Elevator Total units 19
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
AC-GL Passenger 3000 40 96 6 2
AC-GL Passenger 3000 40 96 6 2
AC-GD Service 1500 20 96 8 1
AC-GD Passenger 2000 27 96 7 2
AC-GD Passenger 2000 27 96 6 2
AC-GD Passenger 1200 16 96 6 2
AC-GL Passenger 4500 60 96 5 2
HYDRAULIC Service 850 11 48 2 1
HYDRAULIC Passenger 1000 13 60 3 1
HYDRAULIC Passenger 900 12 48 3 1
AC-GD Service 1200 16 96 2 1
HYDRAULIC Passenger 2500 33 48 4 1
HYDRAULIC Service 850 11 48 3 1
